GSV60I48-P1J

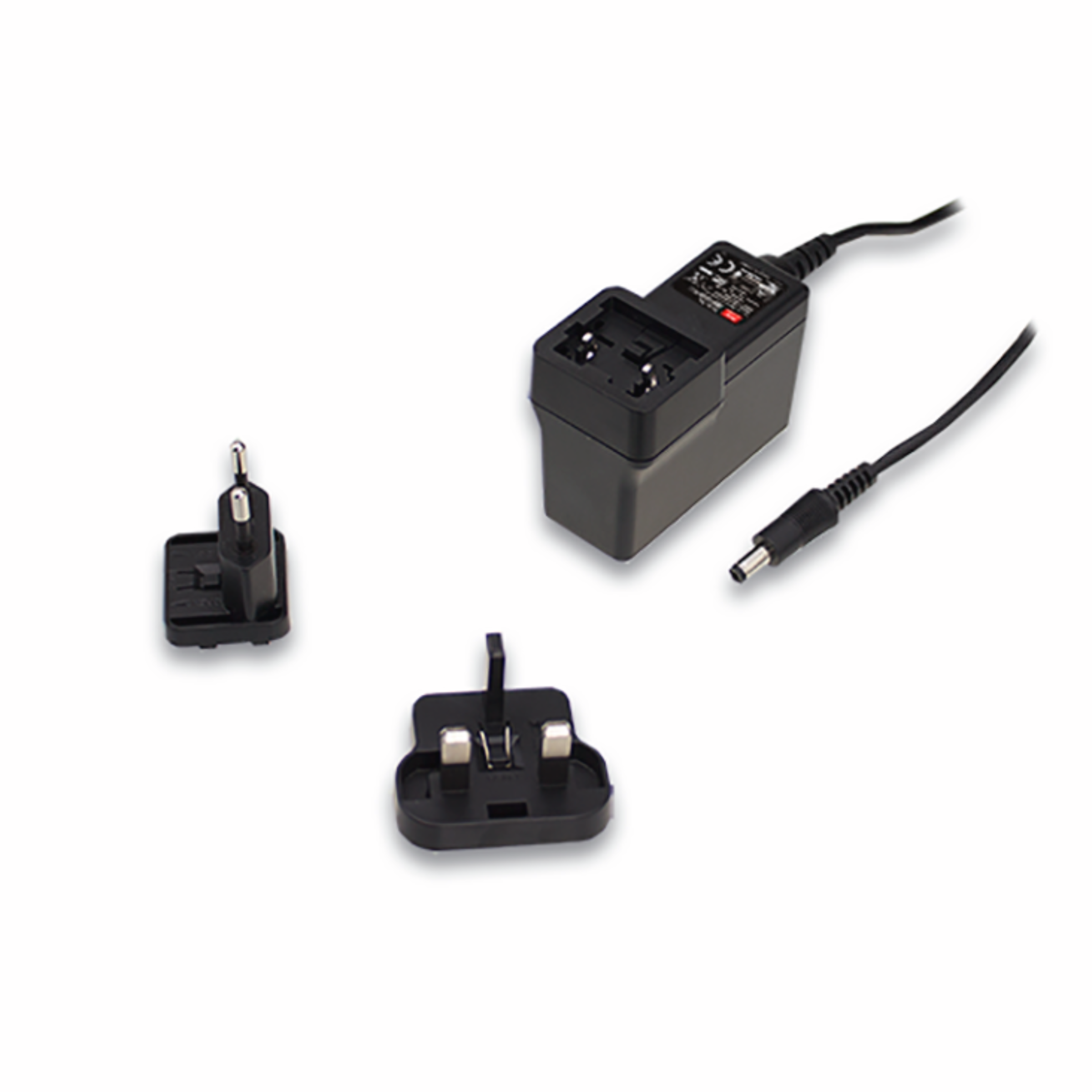

MEAN WELL AC/DC LED power supply unit CV 60W 48V 1,25A not dimmable
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 60 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Operating mode
- CV
- Output Power
- 60 W
- Output voltage
- 48 V
- Output current
- 1.250 A
- Interfaces
- not dimmable
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 450,000 h

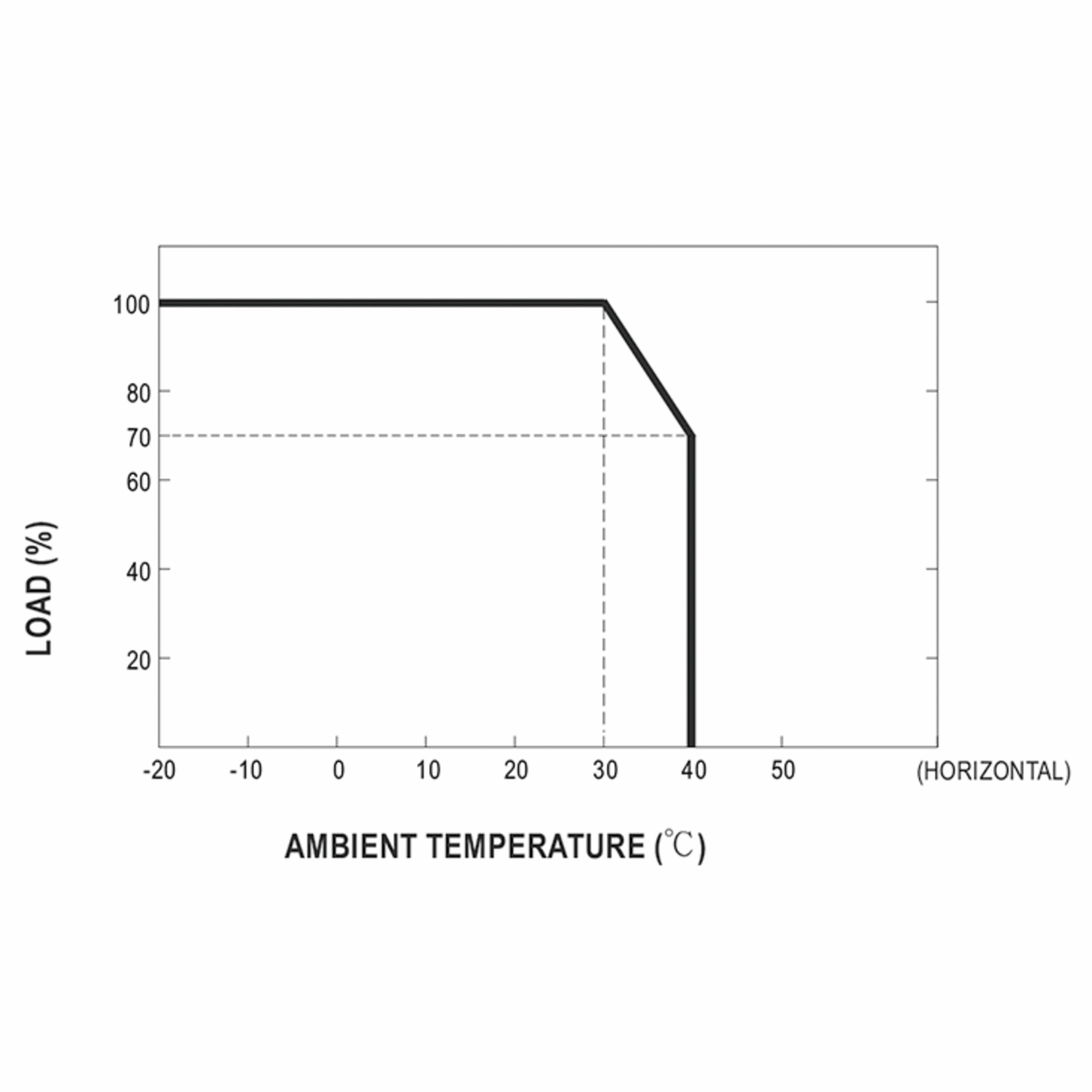

- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 40 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 80 °C
Input
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 180 V
- Input voltage max. AC
- 264 V
- Input voltage min. DC
- 255 V
- Input voltage max. DC
- 373 V
- Input current
- 0.5 A
- Efficiency
- 89 %
- No load power, less than
- 0.5 W
- Leakage current, max.
- 0.25 mA
- Inrush current, max.
- 20 A
- Power factor correction (PFC)
- Power factor
- 0.92
- Connection type, input
- Plug Adapter
Output
- Number of outputs
- 1
- Output Power
- 60 W
- Output voltage
- 48 V
- Output voltage tolerance
- -2 %
- Ripple & Noise
- 3,650 mVp-p
- Selectable output current
- Output current
- 1.250 A
- Overload protection
- Type of overload protection
- Hiccup
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection

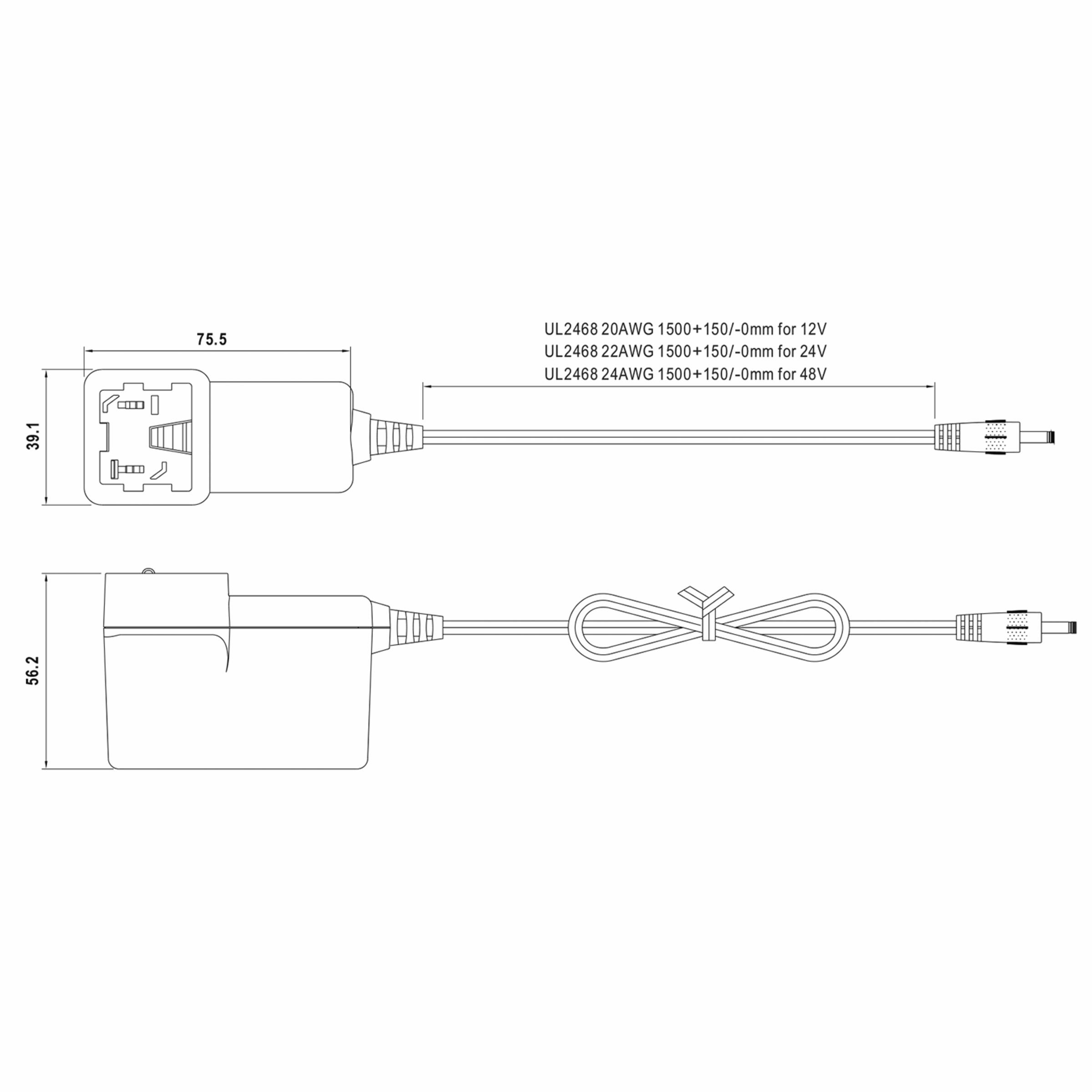

- Connection type, output
- 5,5*2,1mm Barrel Plug
- Cable length, output
- 150 cm
Safety/Certifications
- Protection class
- II
- Isolation voltage I/P-O/P
- 3,750 V
- Approvals
- CE
- EAC
- EN
- UKCA
- Standards (EMC)
- EN 55015
- Standards (safety)
- EN 61347-1
- EN 61347-2-13
