Manufacturer Part No.

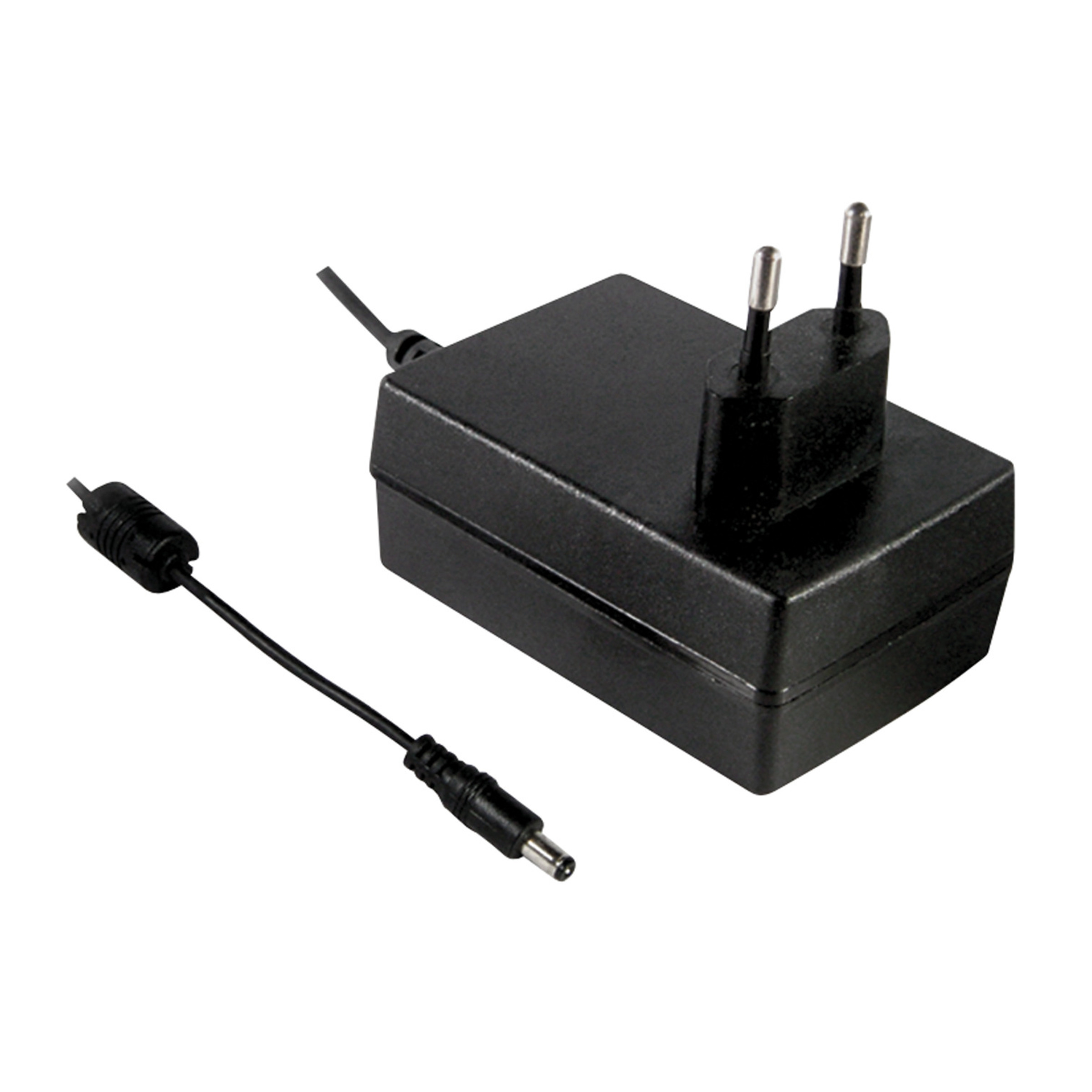

GS36E48-P1J
Schukat Part No.
GS36E48-P1J
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Pcs. in stock

Planned delivery time
Ø 99 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Lieferbar auf Bestellung
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Output Power
36.0 W
Output voltage
48 V
Output current
0.75 A
Efficiency
87.5 %
RoHS-Conform

Specifications

Open all

General

Series
  • GS36E

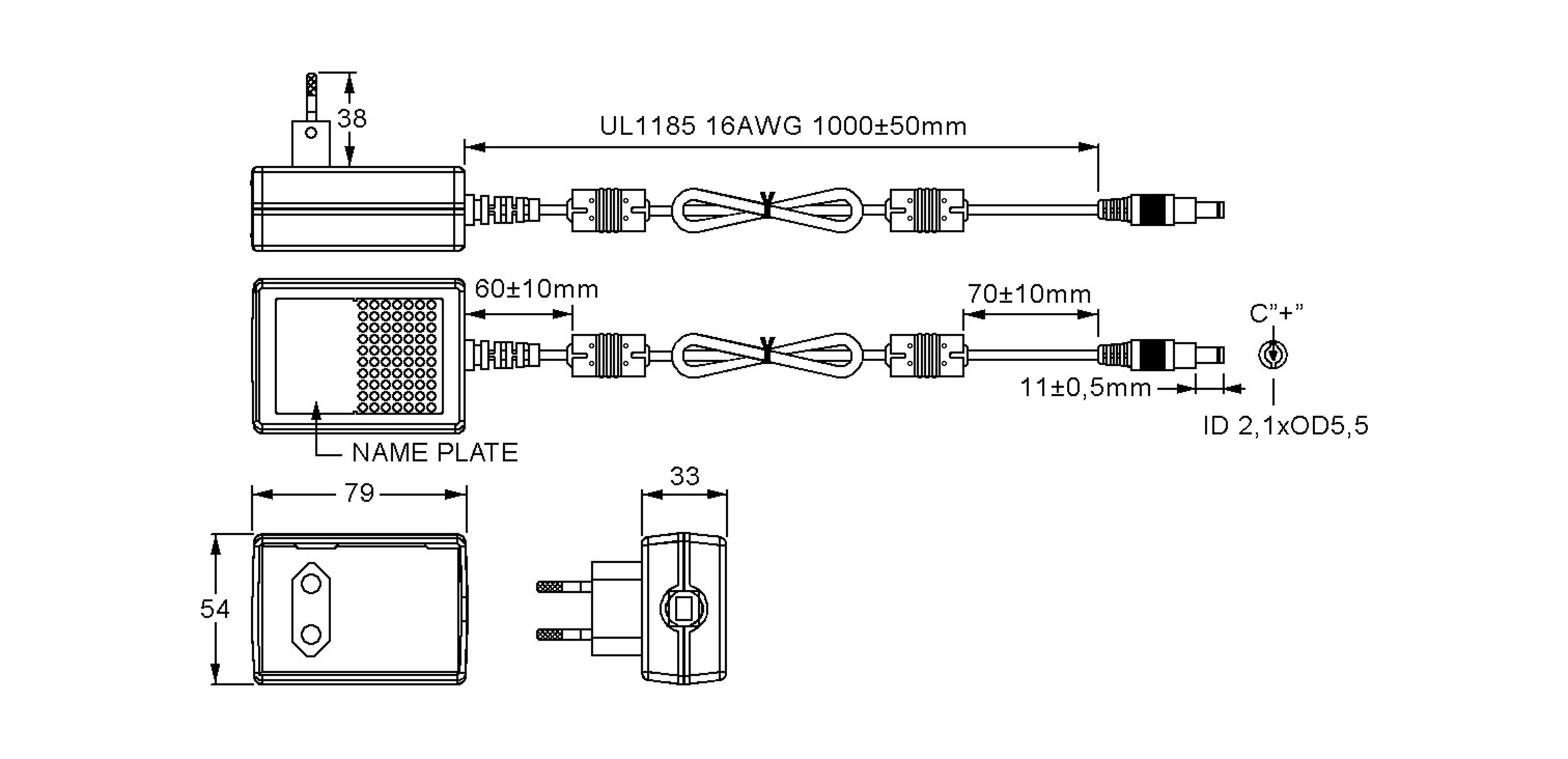

Dimension: Length
  • 79 mm
Dimension: Width
  • 54 mm
Dimension: Height
  • 33 mm
Weight
  • 226 g
Label
  • TÜV
Manufacturer's warranty (years)
  • 2

Operating conditions

MTBF
  • 692300 h
Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 50 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 85 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 135 V
Input voltage max. DC
  • 370 V
Input current
  • 0.7 A
Efficiency
  • 87.5 %
No load power, less than
  • 0.3 W
Leakage current, max.
  • 0.25 mA
Inrush current, max.
  • 60 A
Power factor correction (PFC)

Output

Number of outputs
  • 1
Output Power
  • 36.0 W
Output voltage
  • 48 V
Selectable output voltage
Output voltage tolerance
  • -2 % 2 %
Ripple & Noise
  • 240 mVp-p
Output current
  • 0.75 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Cable length, output
  • 100 cm

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 4242 V
Energy level
  • Level V
Approvals
  • CE
  • EN
  • IEC
Standards (safety)
  • EN 60950-1
