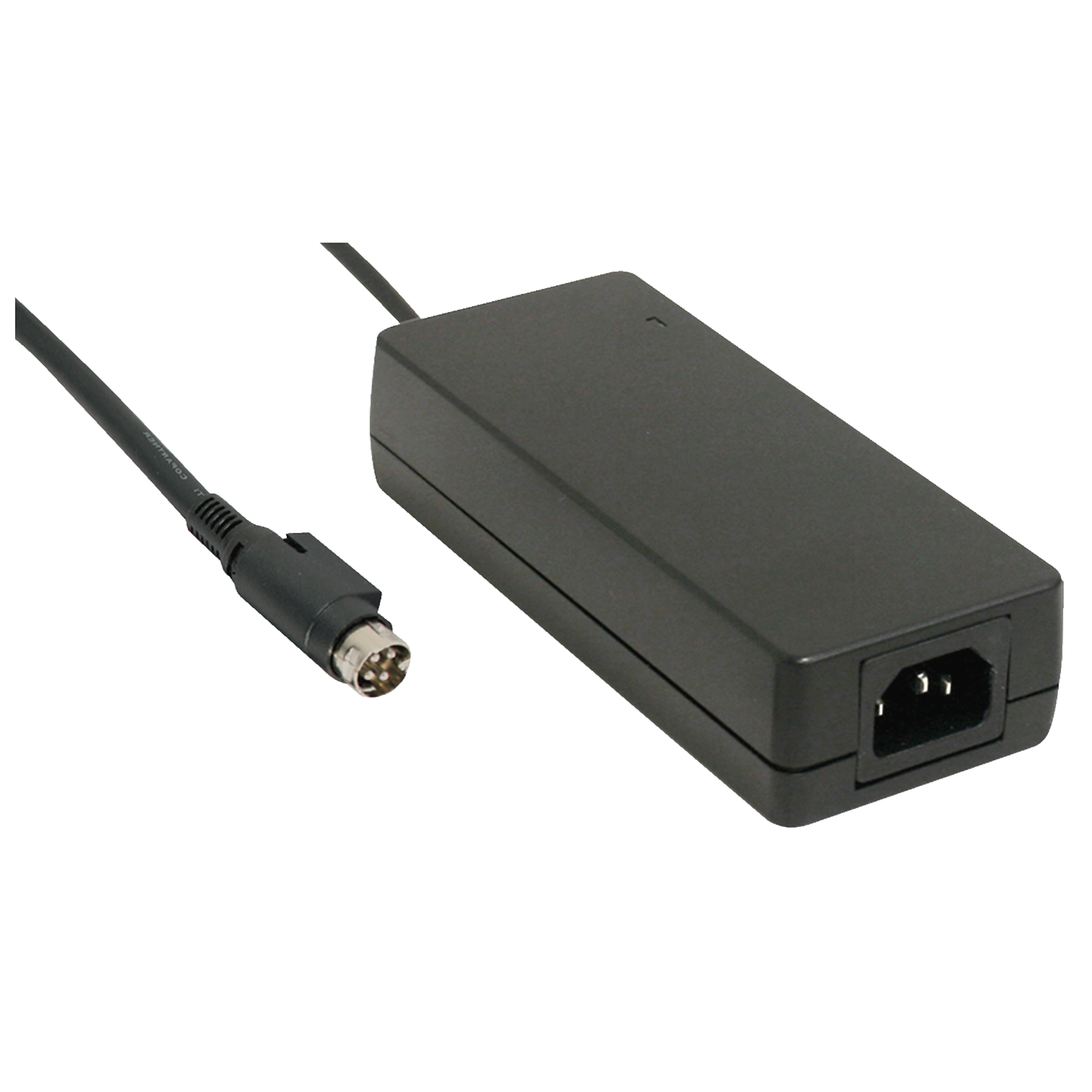

GC120A12-R7B
MEAN WELL Lead Battery Charger 102,0 W 13,6 V 7,500 A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
27 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Chargeable battery systems
- Lead
- Output Power
- 102 W
- Output voltage
- 13.6 V
- Output current
- 7.500 A
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 400,700 h
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
- Usable battery types
- Battery Pack
- Chargeable battery systems
- Lead
- Battery capacity, min.
- 40 Ah
- Battery capacity, max.
- 100 Ah
Input
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 85 V
- Input voltage max. AC
- 264 V
- Input voltage min. DC
- 120 V
- Input voltage max. DC
- 370 V
- Input current
- 0.7 A
- Efficiency
- 86 %
- No load power, less than
- 0.5 W
- Leakage current, max.
- 0.75 mA
- Inrush current, max.
- 70 A
- Power factor correction (PFC)
- Power factor
- 0.97
- Connection type, input
- IEC-320 C14
Output
- Number of outputs
- 1
- Output Power
- 102 W
- Output voltage
- 13.6 V
- Output current
- 7.500 A
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Reverse polarity protection
- Connection type, output
- Power Mini DIN 4-Pin
- Cable length, output
- 120 cm
Safety/Certifications
- Protection class
- I
- Isolation voltage I/P-O/P
- 3,000 V
- Approvals
- CE
- EAC
- EN
- IEC
- PSE
- UKCA
- Standards (EMC)
- EN 55032 Class B
- Standards (safety)
- EN 62368-1
- IEC 62368-1
