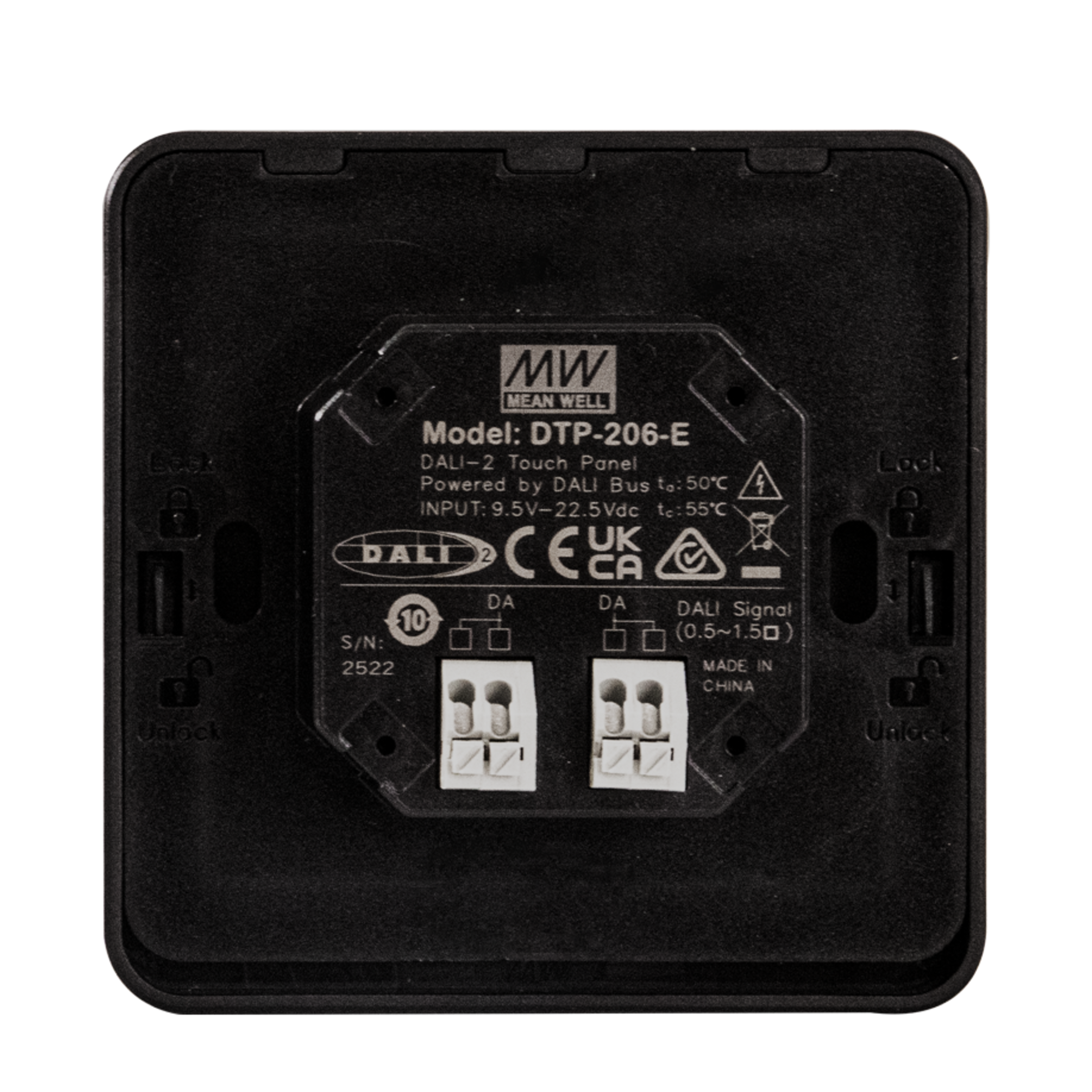

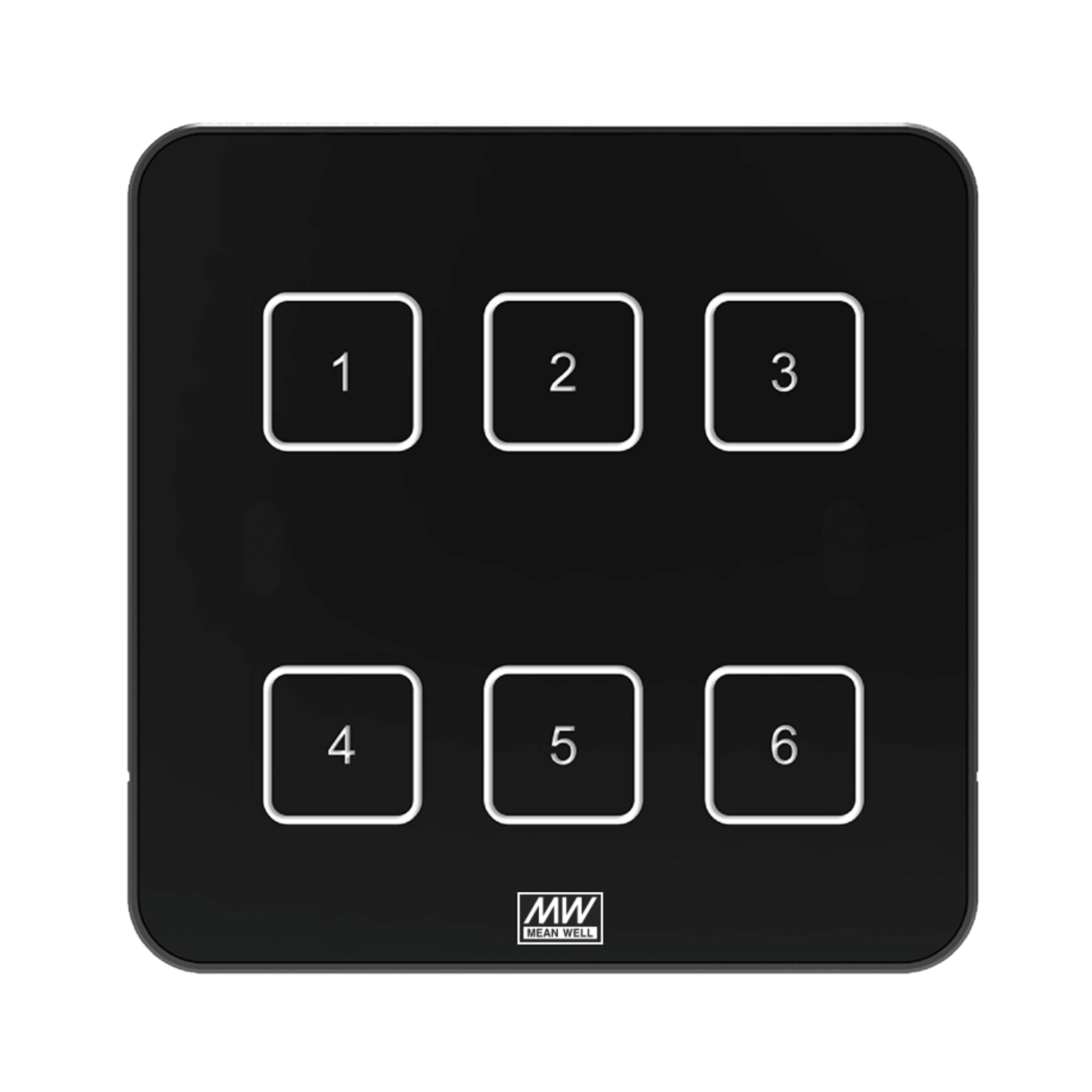

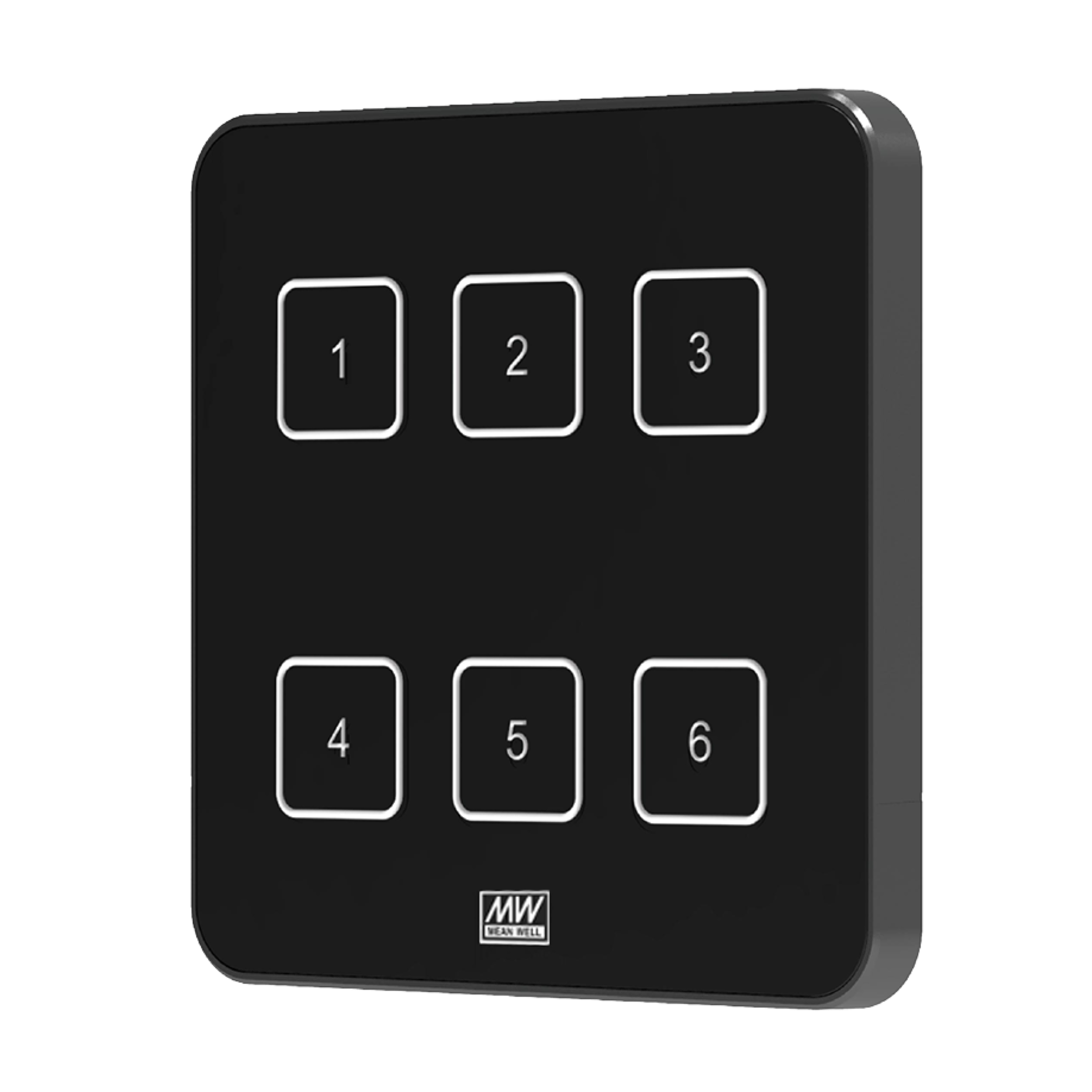

DTP-206-E

MEAN WELL Dimmer 9,5 V 22,5 V

DTP-206-EDTP-206-EDTP-206-E
NEW
Manufacturer Part No.
DTP-206-E
Schukat Part No.
DTP-206-E
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 48 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
DALI-1 Touch Panel
Input voltage min. DC
9.5 V
Input voltage max. DC
22.5 V
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • DTP-2xx
Product group
  • L9931
Type
  • DALI-1 Touch Panel
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 120 mm
Dimension: Width
  • 70 mm
Dimension: Height
  • 26.5 mm
Weight
  • 130 g
Manufacturer's warranty (years)
  • 5
Product description
  • The DTP-2XX series complies with the DALI 1EC62386 standard as a DALI-2 input device, is powered via the DALI bus and features a variety of buttons. It is fitted with toughened glass and a sliding cover. The cover is easy to install and can also be customised with laser-engraved symbols. An integrated toggle switch allows the button backlighting and volume to be adjusted, enabling users to tailor the settings to their needs. This touch panel can be used with the MEAN WELL DLC-02 DALI controller, an LED power supply and various DALI sensors to form a digital DALI-2 lighting system, which can control switching on/off, colour temperature, colour, brightness, scenes, groupings, schedules and various event-based adjustments, thereby meeting most lighting control requirements. If you require a digital DALI lighting solution, please contact a MEAN WELL sales representative.
Application note
  • Compatible with DALI-2 controllers - Power supply via DALI bus - Compatible with the MEAN WELL DLC-02 DALI controller and programmable via the MEAN WELL DLC software.

Input

Input voltage min. DC
  • 9.5 V
Input voltage max. DC
  • 22.5 V
Connection type, input
  • Push-In Terminal

Output

Connection type, output
  • Push-In Terminal

Safety/Certifications

Approvals
  • CE
  • EN
  • RCM
  • UKCA
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1

Documents

DTP-2XX-E .pdf
Download (pdf, 7.634 KB)
MEAN_WELL_Katalog_Industrie_2026.pdf
Download (pdf, 48.955 KB)
MEAN_WELL_Katalog_LED.pdf
Download (pdf, 53.159 KB)
PowerNex_en-s.pdf
Download (pdf, 12.272 KB)

Other Products

All Products of the Series
NEW
Loading...

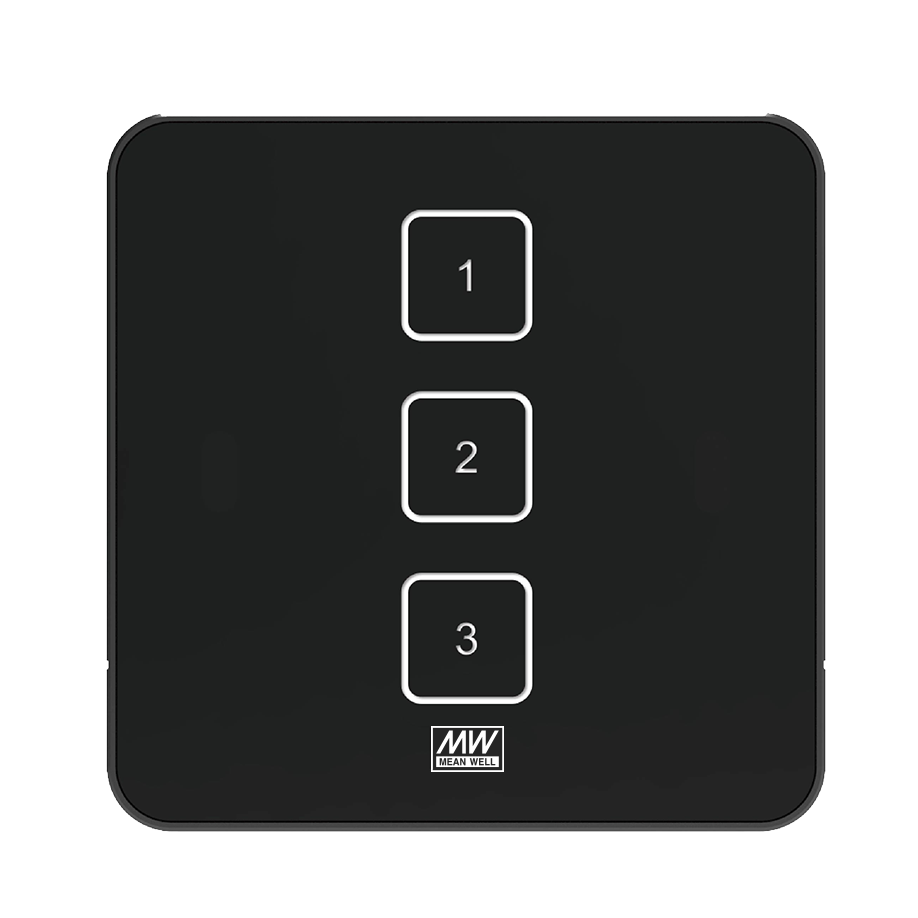

DTP-203-E
