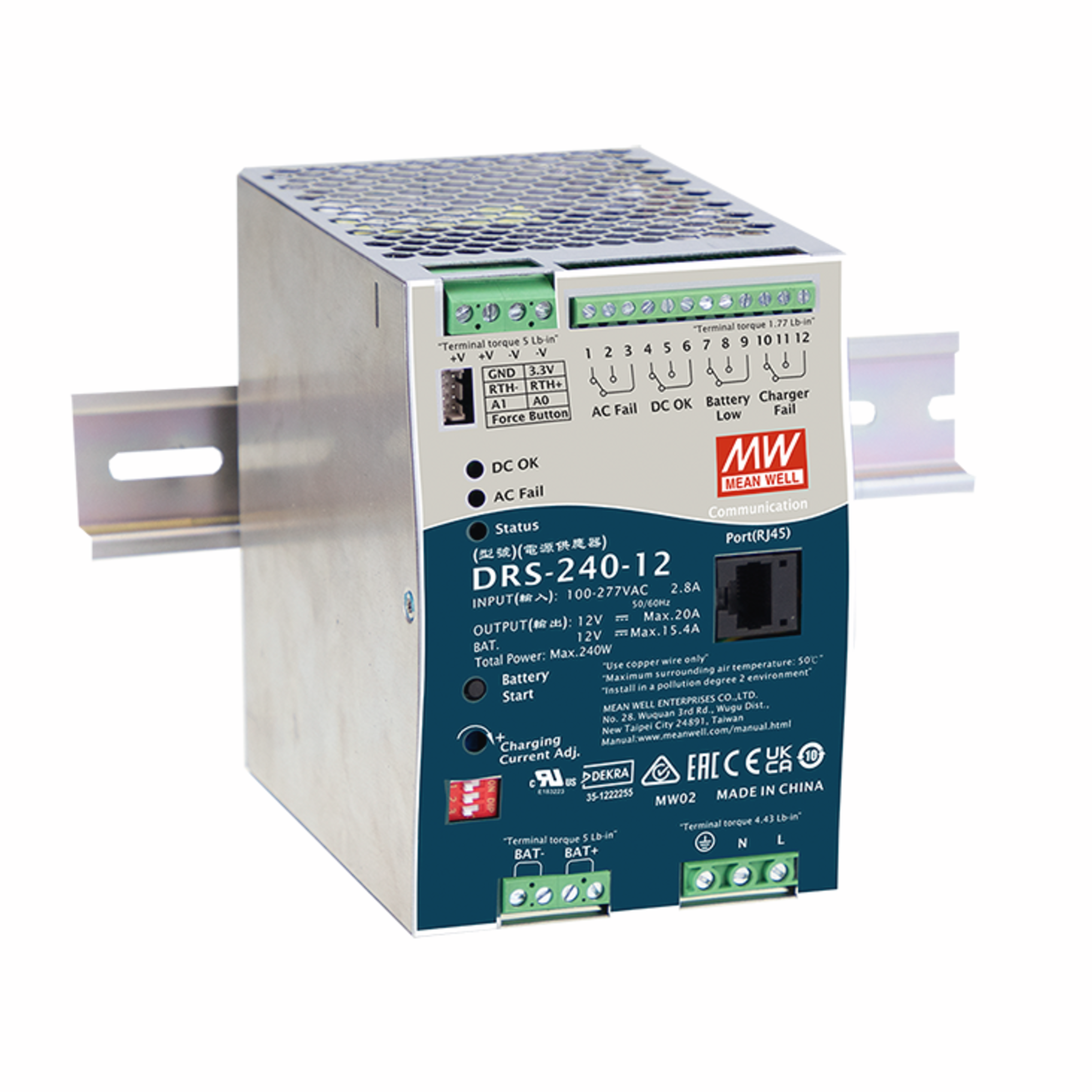

DRS-240-12

MEAN WELL Uninterruptible power supply (UPS) 240W 12V 20A External Energy Storage

DRS-240-12DRS-240-12DRS-240-12DRS-240-12
Manufacturer Part No.
DRS-240-12
Schukat Part No.
DRS-240-12
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

17 Pcs. in stock

Next Stock Receipt
Week 38/2026
200 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 8 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable cables/wires.
Output Power
240 W
Output voltage
12 V
Output current
20.000 A
Operating mode
External Energy Storage
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • DRS-240
Product group
  • L3635
Application
  • ITE
  • Industry
Operating mode
  • External Energy Storage
Package/Case
  • DIN Rail

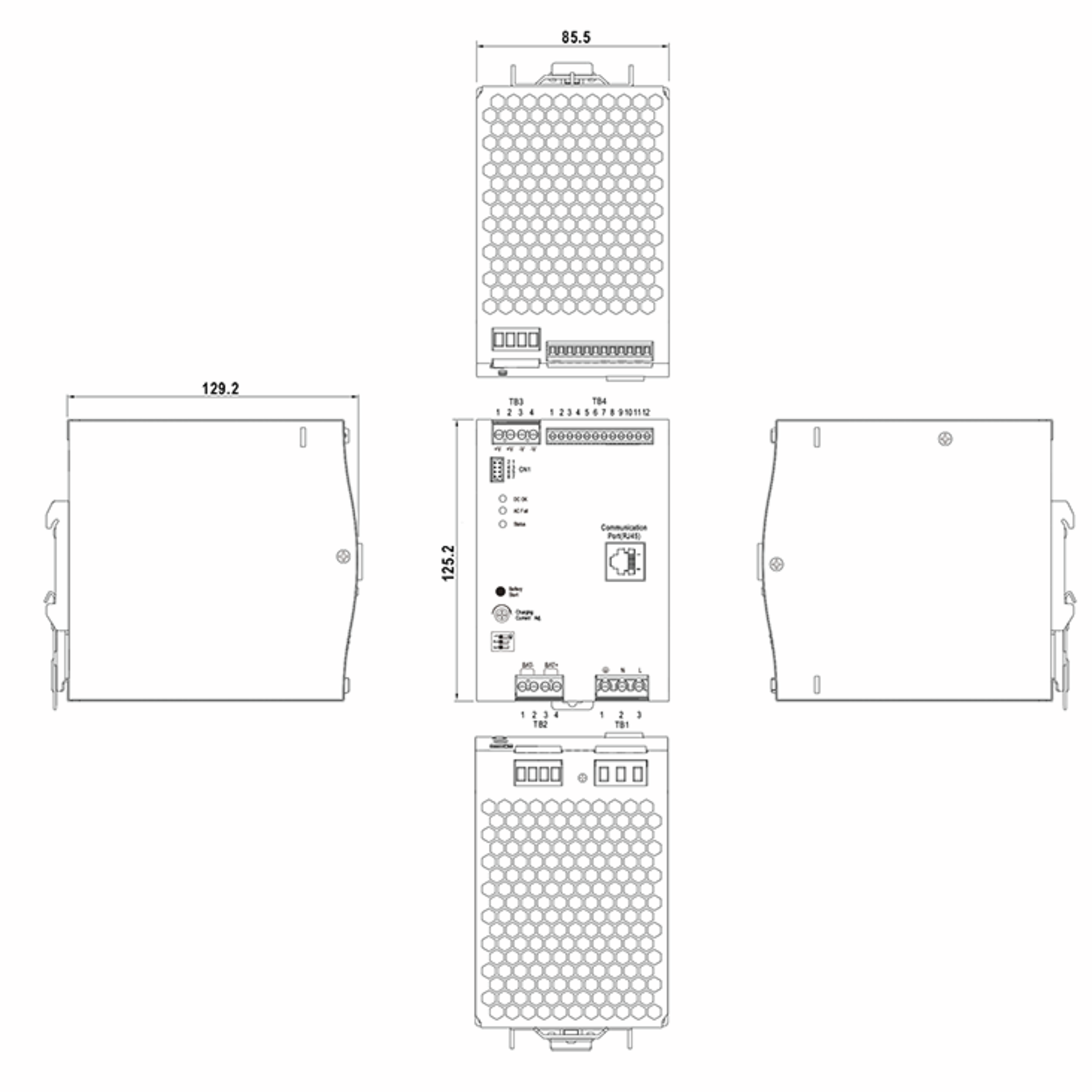

Dimension: Width
  • 85.5 mm
Dimension: Height
  • 125.2 mm
Dimension: Depth
  • 129.2 mm
Weight
  • 1,190 g
Label
  • DEKRA
Interfaces
  • MOD-Bus
Manufacturer's warranty (years)
  • 3
Product description
  • The DRS-240 is a 240W AC/DC safety power supply series for DIN rail mounting. In addition to the primary output, it features an additional charging circuit that automatically adjusts the charging current to match the primary output current. The DRS-240 operates within a universal input range of 90 VAC to 305 VAC and supports output systems with nominal voltages of 12 VDC, 24 VDC, 36 VDC and 48 VDC. With a high efficiency of up to 92%, it can be operated via convection cooling at ambient temperatures ranging from -30°C to 70°C. In addition to protective functions such as overload protection, overvoltage protection, battery undervoltage protection and reverse polarity protection for the battery, the DRS-240 also features relay contacts and LED indicator alarm signals for AC failure, battery undervoltage, charging circuit failure and DC OK, to ensure easy integration into security systems that comply with local alarm regulations.
Features
  • AC-OK Signal
  • DC compatible
  • DC-OK-Signal
  • Programmable
Notice

Operating conditions

MTBF
  • 73,300 h
Operating expectation
  • 50,000 h

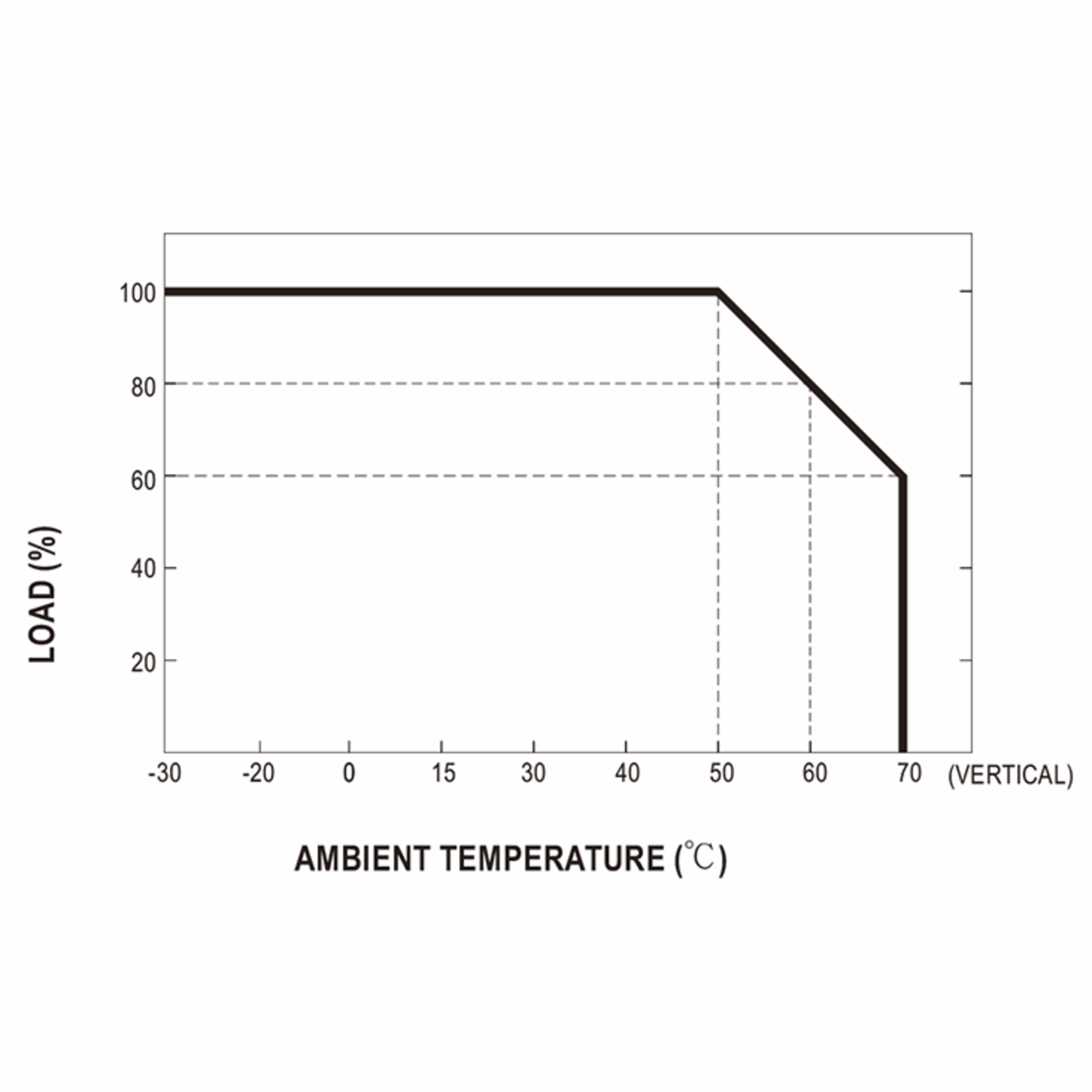

Operating Temperature Min.
  • -30 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 65 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 305 V
Input voltage min. DC
  • 127 V
Input voltage max. DC
  • 431 V
Input current
  • 1.4 A
Efficiency
  • 90 %
Power factor correction (PFC)
Power factor
  • 0.95
Connection type, input
  • Screw Terminal
Shutdown at deeply discharged battery
Alarm at deeply discharged battery

Output

Number of outputs
  • 1
Output Power
  • 240 W
Output voltage
  • 12 V
Output voltage tolerance
  • -1.1 %
Ripple & Noise
  • 150 mVp-p
Output current
  • 20.000 A
Overload protection
Type of overload protection
  • Constant Current Limitting
Short-circuit protection
Overvoltage protection
Overtemperature protection
Reverse polarity protection
Connection type, output
  • Screw Terminal
Temperature compensation

Safety/Certifications

Protection class
  • I
Isolation voltage I/P-O/P
  • 4,000 V
Isolation voltage I/P-FG
  • 2,000 V
Isolation voltage O/P-FG
  • 1,500 V
Approvals
  • AS/NZ
  • CE
  • EAC
  • EN
  • IEC
  • UKCA
  • UL
Standards (EMC)
  • EN 55032 Class B
Standards (safety)
  • EN 62368-1
  • IEC 62368-1
  • UL 62368-1
