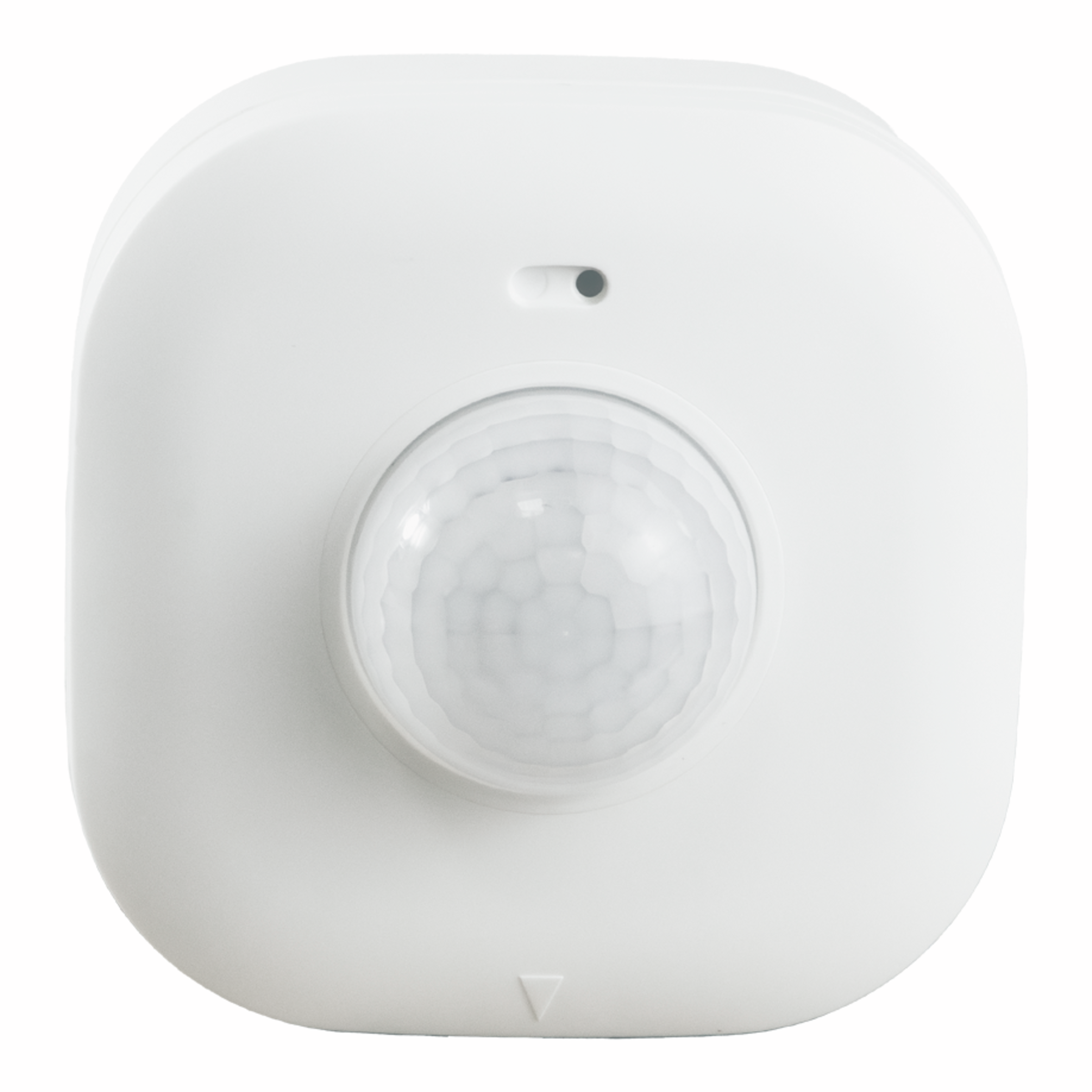

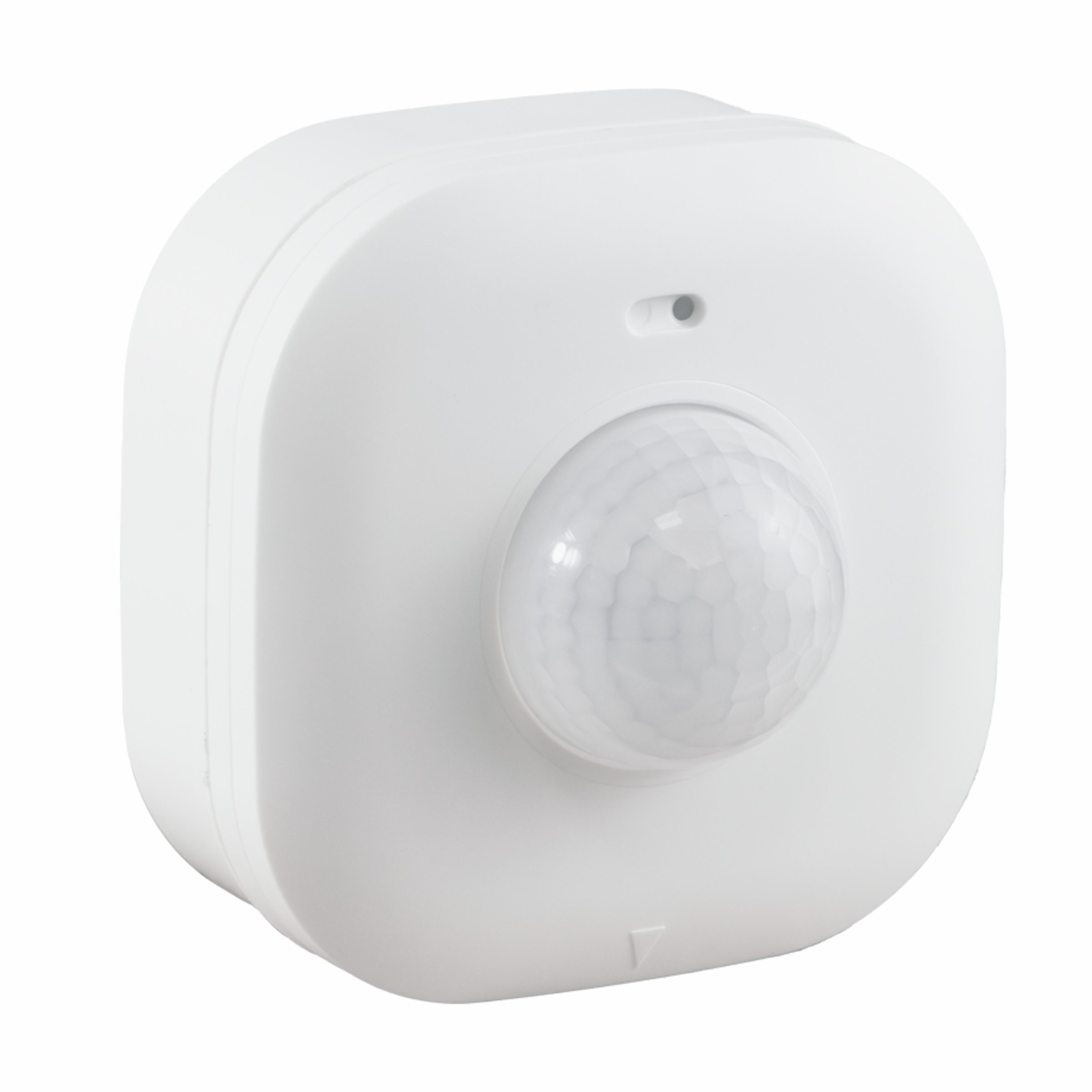

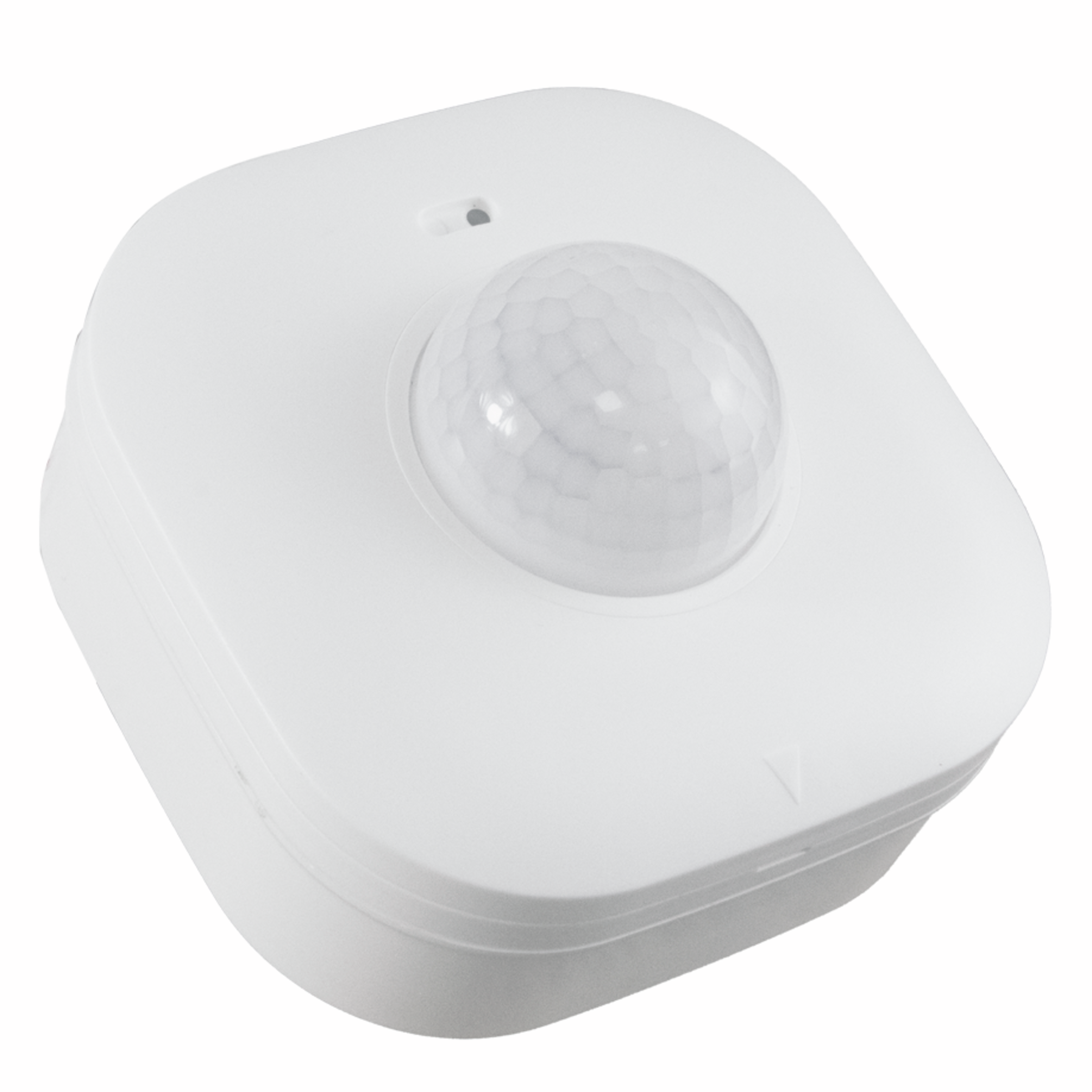

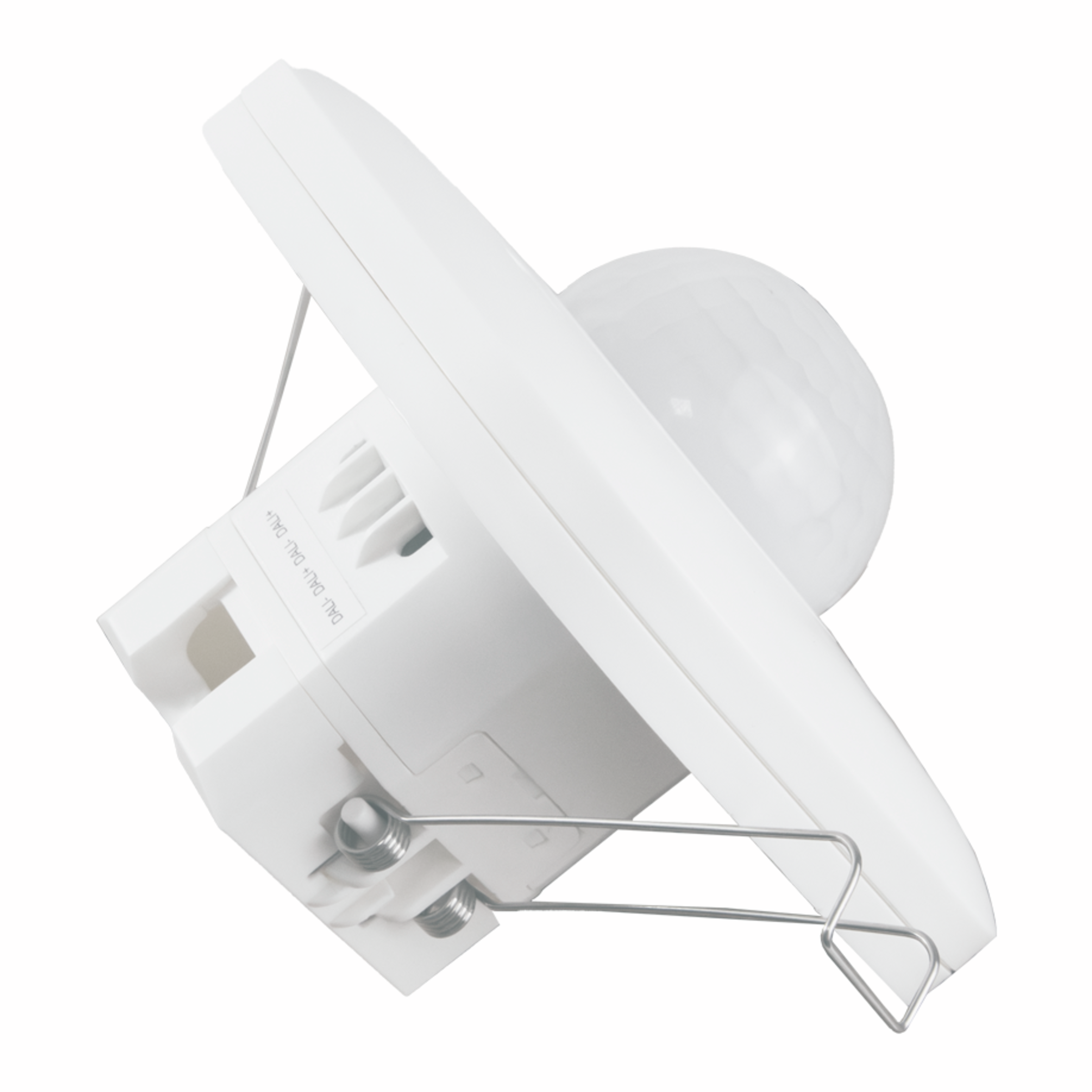

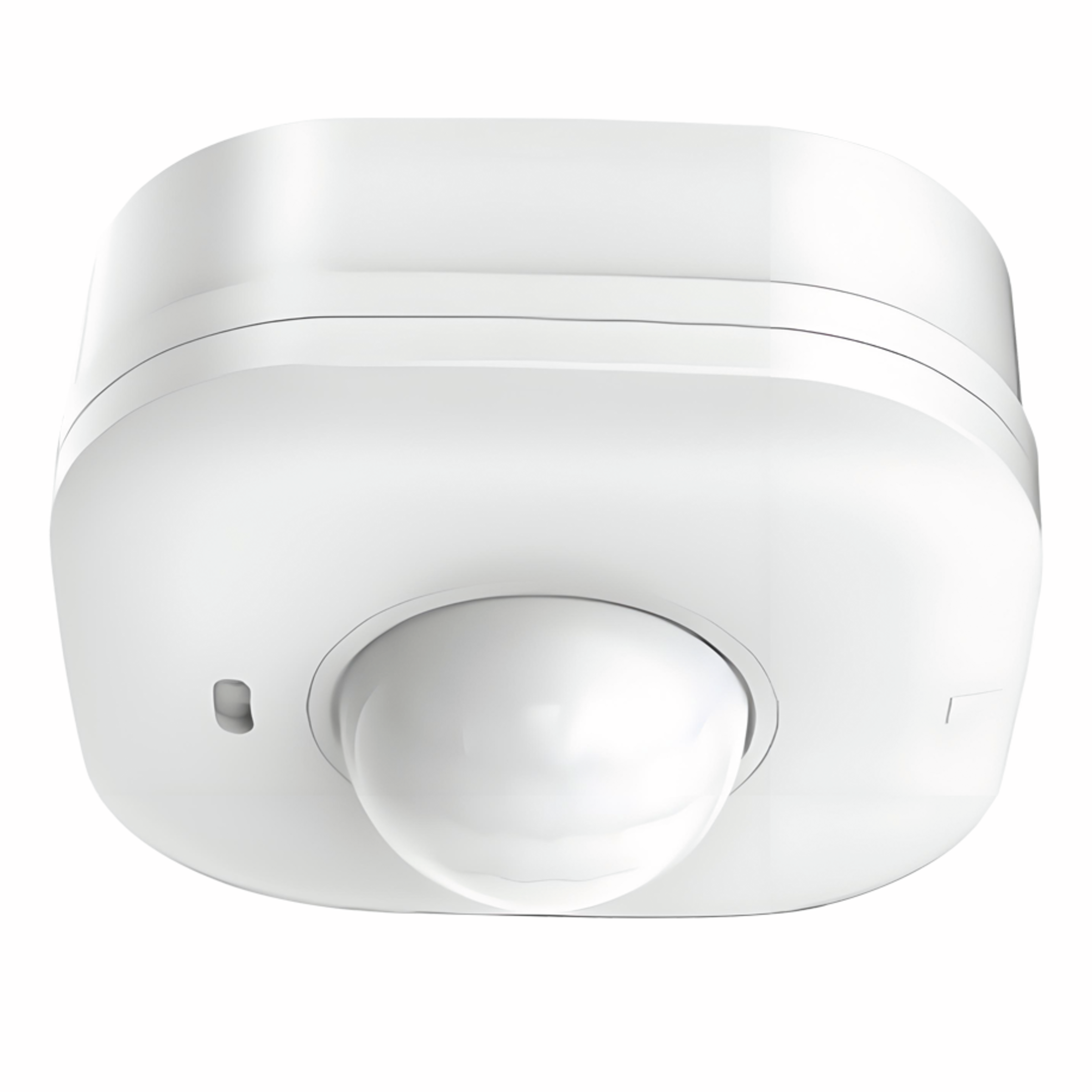

DLS-208-P

MEAN WELL Dimmer 9,5 V 22,5 V

DLS-208-PDLS-208-P
NEW
Manufacturer Part No.
DLS-208-P
Schukat Part No.
DLS-208-P
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

19 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Motion Sensor
Input voltage min. DC
9.5 V
Input voltage max. DC
22.5 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • MEAN WELL
Series
  • DLS-2xx
Product group
  • L9933
Type
  • Motion Sensor
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 105 mm
Dimension: Width
  • 105 mm
Dimension: Height
  • 80.8 mm
Weight
  • 250 g
Manufacturer's warranty (years)
  • 5
Product description
  • The DLS-2XX series is a DALI-2-compatible input device with PIR motion and daylight sensors.It is powered via the DALI bus. It uses passive infrared (PIR) technology to detect the movement of people or pets in the monitored area in real time. The product has an integrated daylight sensor that measures the ambient brightness in real time. By combining PIR detection and daylight sensing, it provides fast and accurate inputs for applications such as smart homes, hotels, offices, warehouses, and parking lots.The product is ceiling-mounted and is available in versions for low and high installation heights to accommodate different detection ranges. This sensor series can be combined with MEAN WELL's DLC-02 master controller, LED drivers, and DTP series touch panels to form a digital DALI-2 lighting system. It enables control of DALI luminaires, including on/off, dimming, and scene control, meeting daily lighting control requirements.

Input

Input voltage min. DC
  • 9.5 V
Input voltage max. DC
  • 22.5 V
Connection type, input
  • Screw Terminal

Output

Connection type, output
  • Screw Terminal

Safety/Certifications

Approvals
  • CE
  • EN
  • IEC
Standards (EMC)
  • EN 55015

Other Products

All Products of the Series
NEW
Loading...

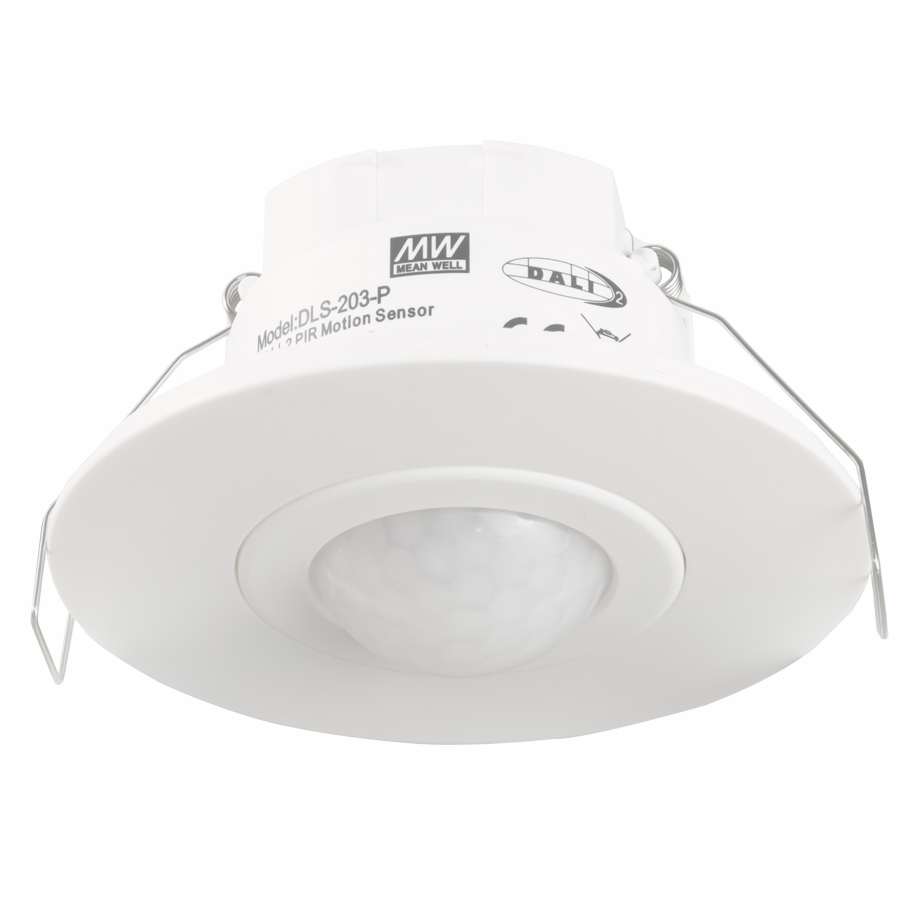

DLS-203-P
