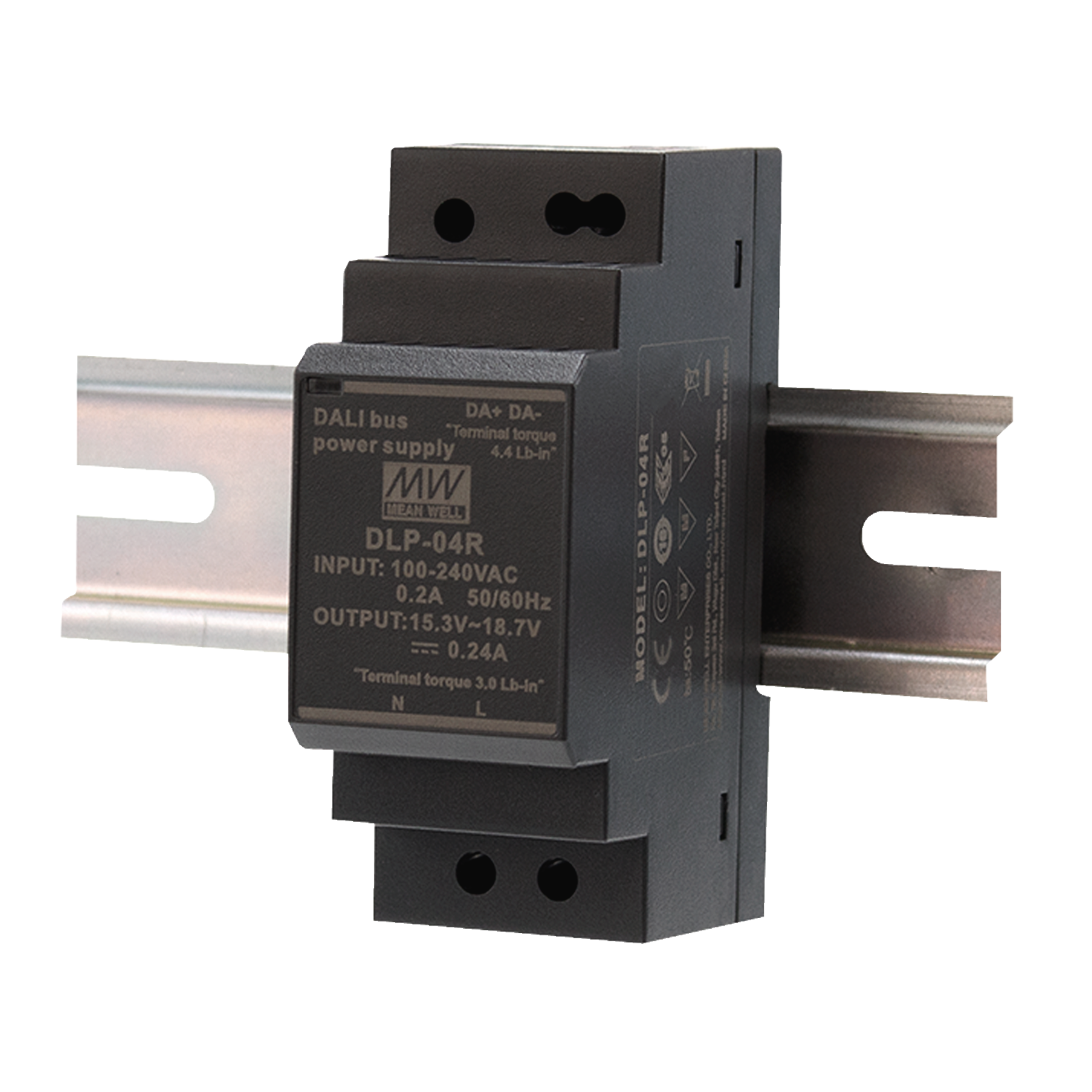

DLP-04R

MEAN WELL AC/DC LED power supply unit CV 3,84W 16V 0,24A not dimmable

DLP-04RDLP-04R
TOP
Manufacturer Part No.
DLP-04R
Schukat Part No.
DLP-04R
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1.466 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 96 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable surge protection devices.
Here you will find suitable inrush current limiters.
Here you will find suitable EMC & noise suppression components.
Operating mode
CV
Output Power
3.84 W
Output voltage
16 V
Output current
0.240 A
Interfaces
not dimmable
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • DLP-04
Product group
  • L9930
Application
  • Lighting
Operating mode
  • CV
Package/Case
  • DIN Rail
Dimension: Width
  • 35 mm
Dimension: Height
  • 90 mm
Dimension: Depth
  • 54.4 mm
Weight
  • 870 g
Label
  • MM-Zeichen
Dimmable
Interfaces
  • not dimmable
Manufacturer's warranty (years)
  • 3
Features
  • DC compatible
Application note
  • This power supply unit is intended to provide power to the DALI bus and is not designed for the direct operation of LED lamps.
Notice

Operating conditions

MTBF
  • 604,700 h
Operating expectation
  • 30,000 h
Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 120 V
Input voltage max. DC
  • 370 V
Input current
  • 0.06 A
No load power, less than
  • 0.5 W
Leakage current, max.
  • 0.5 mA
Inrush current, max.
  • 20 A
Power factor correction (PFC)
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 3.84 W
Output voltage
  • 16 V
Ripple & Noise
  • 50 mVp-p
Output current
  • 0.240 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Approvals
  • CE
  • EAC
  • EN
  • ENEC
  • UKCA
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1

Documents

MEAN_WELL_Katalog_Industrie_2026.pdf
Download (pdf, 48.955 KB)
MEAN_WELL_Katalog_LED.pdf
Download (pdf, 53.159 KB)

Other Products

All Products of the Series
Loading...

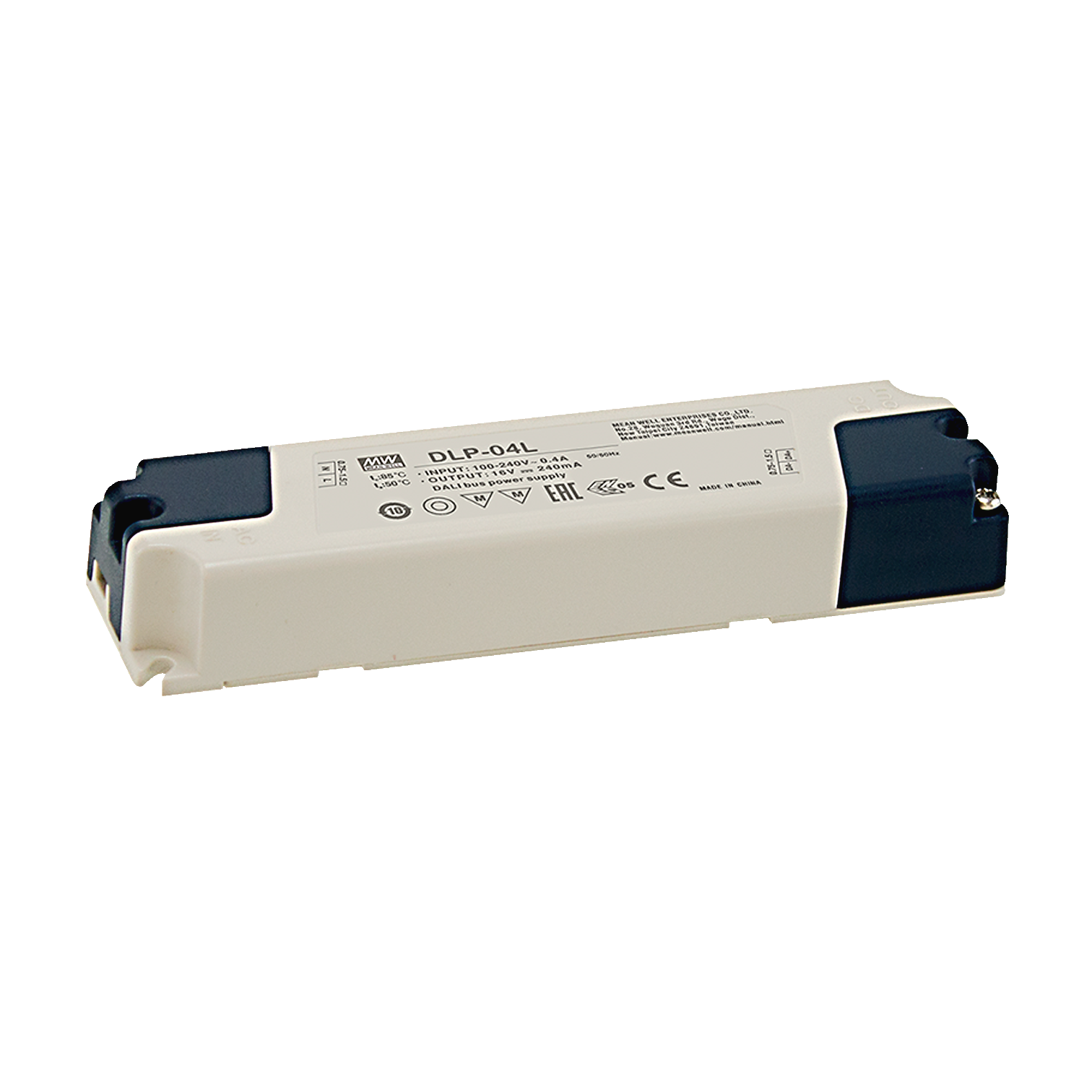

DLP-04L
