DDRH-30-15DR

MEAN WELL DC/DC converter regulated 15 V 2 A Din rail 4.000 V

Manufacturer Part No.
DDRH-30-15DR
Schukat Part No.
DDRH-30-15DR
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

6 Pcs. in stock

Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 6 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
regulated
Package/Case
Din rail
Output Power
30 W
Output voltage
15 V
Output current
2.000 A
Isolation voltage I/P-O/P
4,000 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • MEAN WELL
Series
  • DDRH-30
Product group
  • L9612 MEAN WELL DDRH-30 DC/DC Converter Single Output
Application
  • ITE
  • Industry
Operating mode
  • regulated
Package/Case
  • Din rail

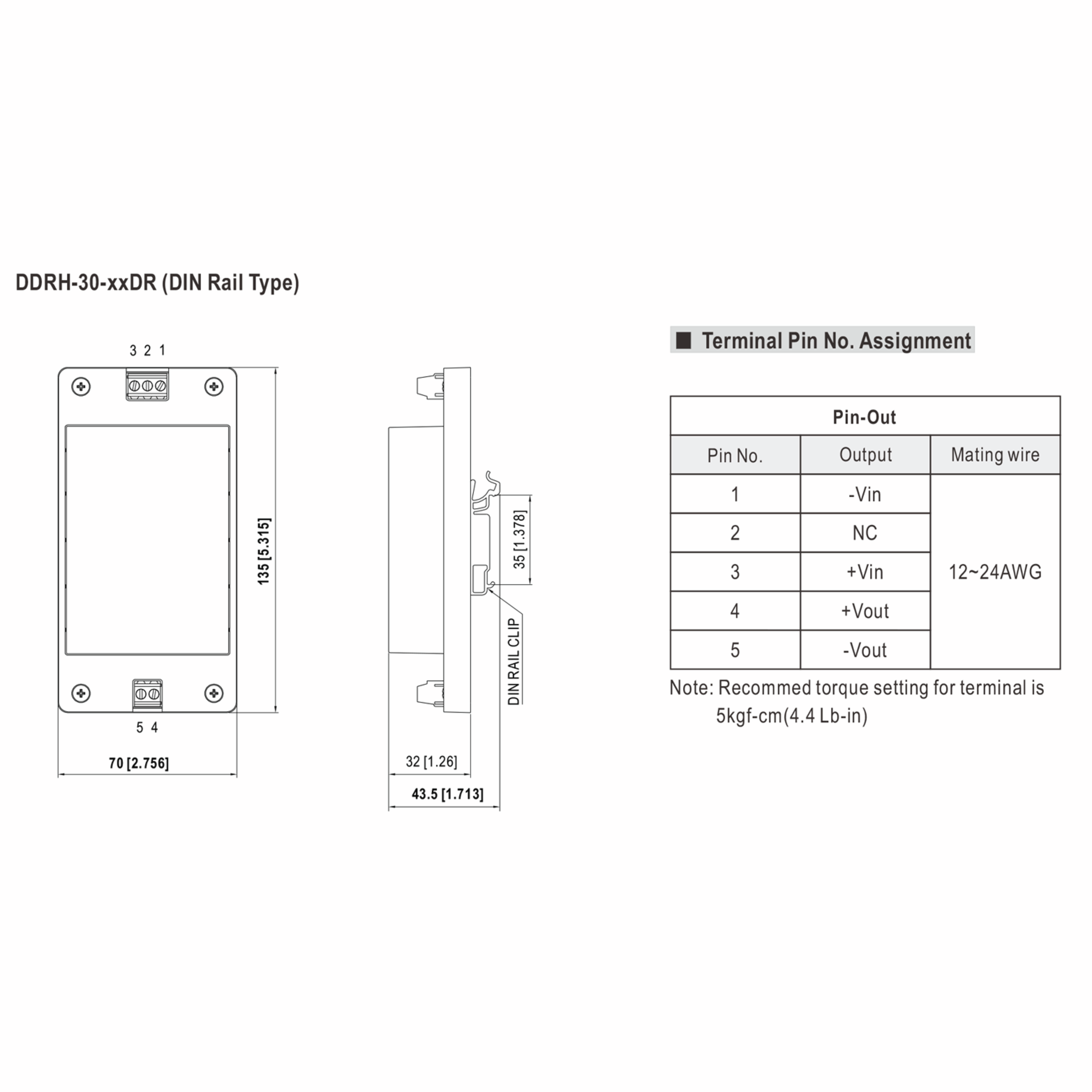

Dimension: Length
  • 135 mm
Dimension: Width
  • 70 mm
Dimension: Height
  • 43.5 mm
Weight
  • 310 g
Manufacturer's warranty (years)
  • 3

Operating conditions

MTBF
  • 318,000 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 80 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Nominal input voltage
  • 800 V
Input voltage min. DC
  • 150 V
Input voltage max. DC
  • 1,500 V
Input voltage range
  • 10:1
Efficiency
  • 88 %
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 30 W
Output voltage
  • 15 V
Output voltage tolerance
  • -2 %
Ripple & Noise
  • 100 mVp-p
Output current
  • 2.000 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal
Capacitive load, max.
  • 2,000 µF

Safety/Certifications

Isolation voltage I/P-O/P
  • 4,000 V
Approvals
  • CE
  • EAC
  • IEC
  • UKCA
Standards (EMC)
  • EN 55032 Class A
