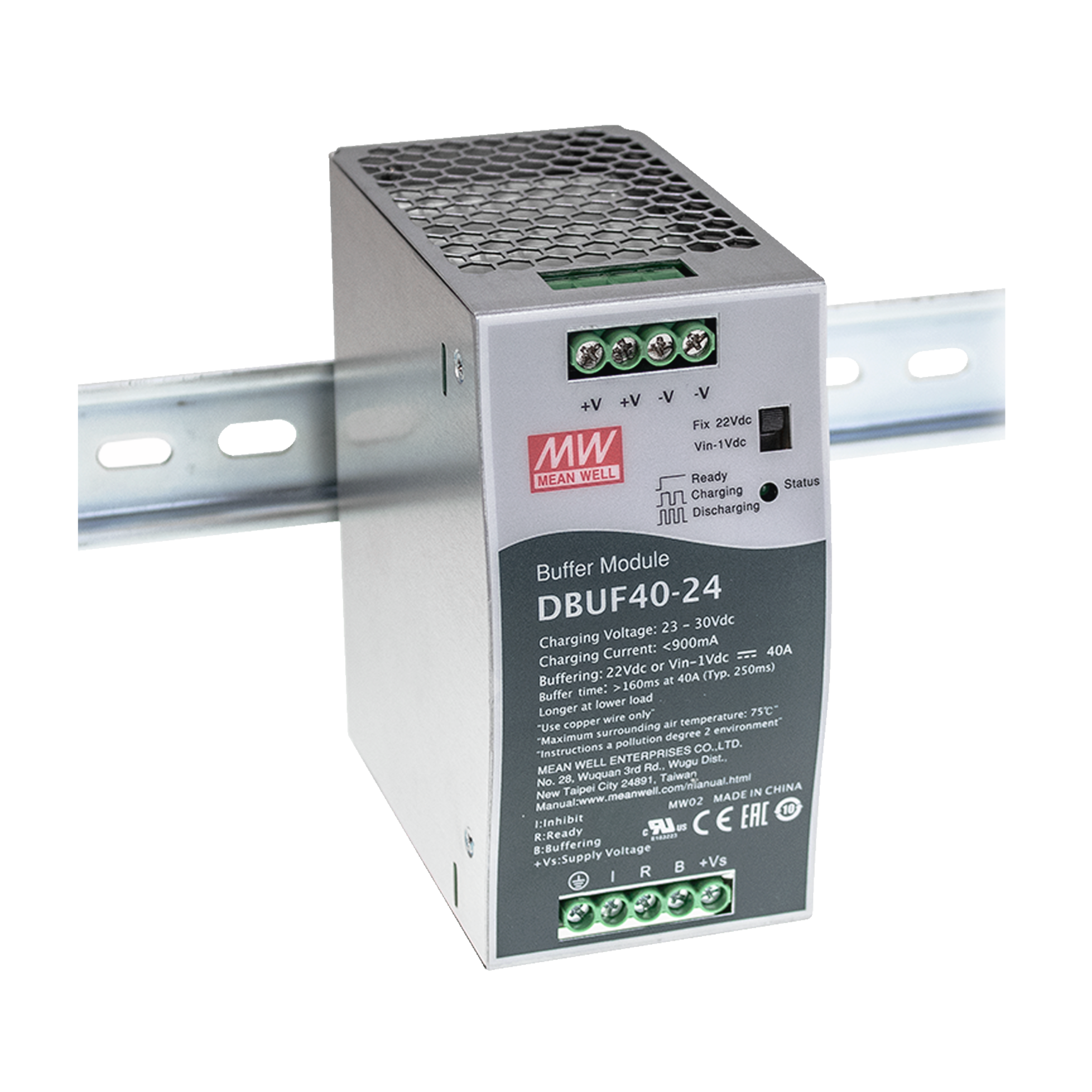

DBUF40-24
MEAN WELL Buffer module DIN Rail 40A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
267 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Buffer module
- Output current
- 40.000 A
- Package/Case
- DIN Rail
- RoHS-Conform
Specifications
Open all
Input
- Input voltage min. DC
- 23 V
- Input voltage max. DC
- 30 V
- Connection type, input
- Screw Terminal
Output
- Output current
- 40.000 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Reverse polarity protection
- Connection type, output
- Screw Terminal
Safety/Certifications
- Approvals
- CE
- EAC
- IEC
- UL
- Standards (EMC)
- EN 55032 Class B
- Standards (safety)
- IEC 62368-1
- UL 62368-1
