DBUF20-24

MEAN WELL Buffer module DIN Rail 20A

DBUF20-24DBUF20-24DBUF20-24DBUF20-24
Manufacturer Part No.
DBUF20-24
Schukat Part No.
DBUF20-24
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

140 Pcs. in stock

Next Stock Receipt
Week 35/2026
120 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable cables/wires.
Type
Buffer module
Output current
20.000 A
Package/Case
DIN Rail
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • DBUF20
Product group
  • L9956
Type
  • Buffer module
Package/Case
  • DIN Rail

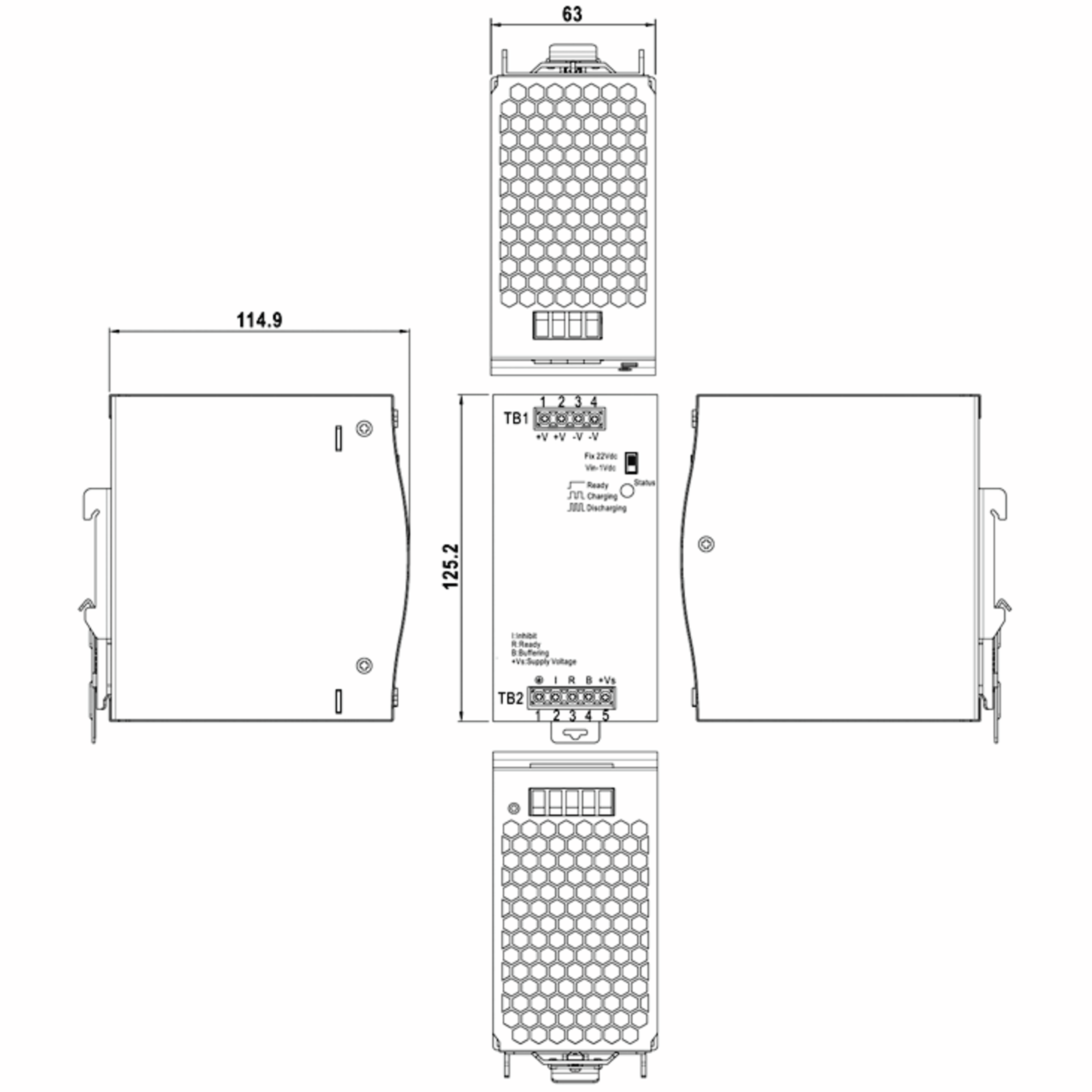

Dimension: Width
  • 63 mm
Dimension: Height
  • 125.2 mm
Dimension: Depth
  • 114.9 mm
Weight
  • 1,620 g
Manufacturer's warranty (years)
  • 3

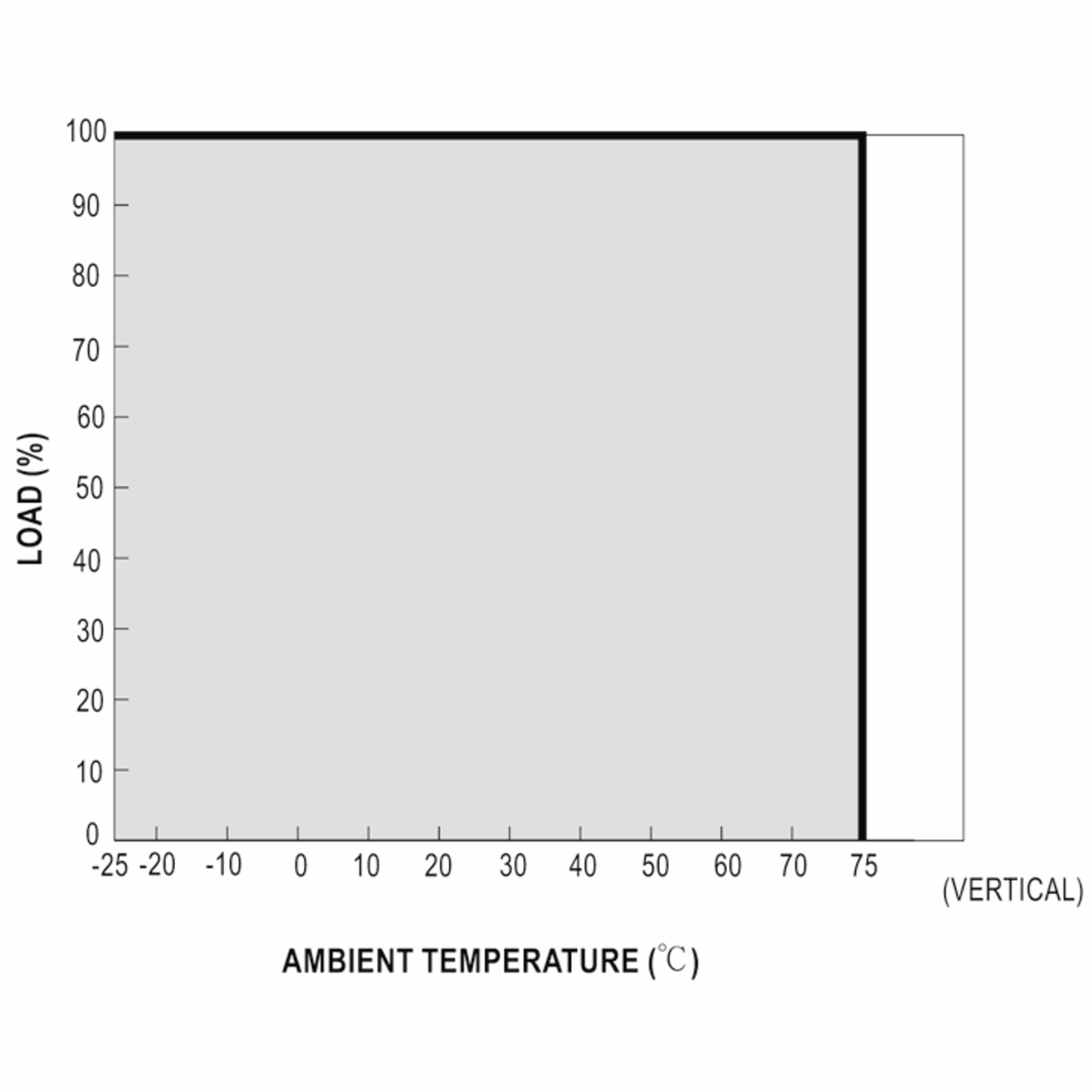

Product description

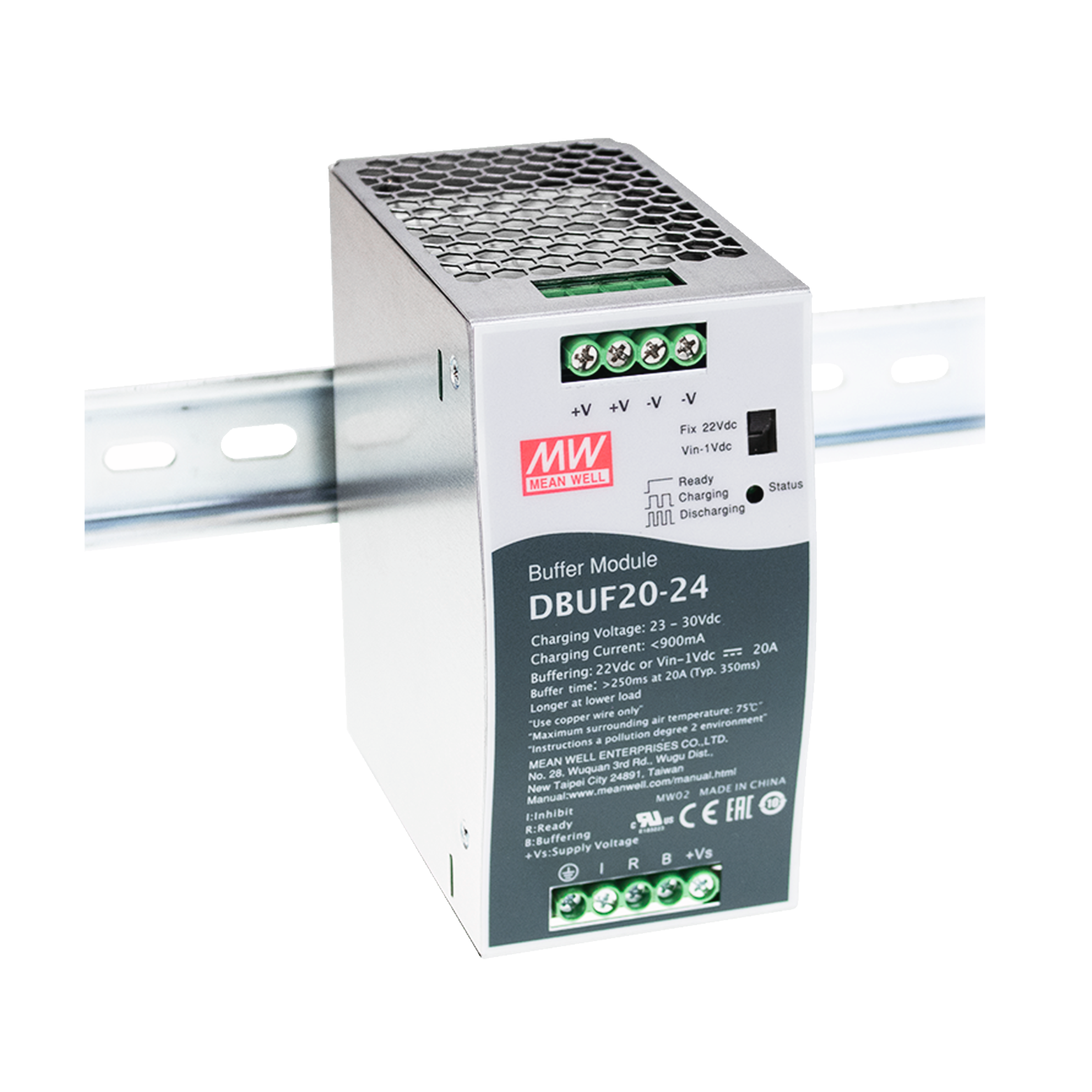

  • The DBUF20-24 buffer module is an accessory for regulated 24V DC power supplies. The buffer module uses maintenance-free electrolytic capacitors for energy storage, thereby eliminating the need for regular maintenance and replacement compared with other batteries, which also have a shorter service life. The DBUF20-24 features comprehensive protection functions such as overvoltage, overcurrent and short-circuit protection, and can be connected in parallel to increase the output current or the backup time.
Application note
  • Buffer time 350 ms at 20 A.
Notice

Input

Input voltage min. DC
  • 23 V
Input voltage max. DC
  • 30 V
Connection type, input
  • Screw Terminal

Output

Output current
  • 20.000 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Reverse polarity protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Approvals
  • CE
  • EAC
  • IEC
  • UL
Standards (EMC)
  • EN 55032 Class B
Standards (safety)
  • IEC 62368-1
  • UL 62368-1
