CMU3G-R

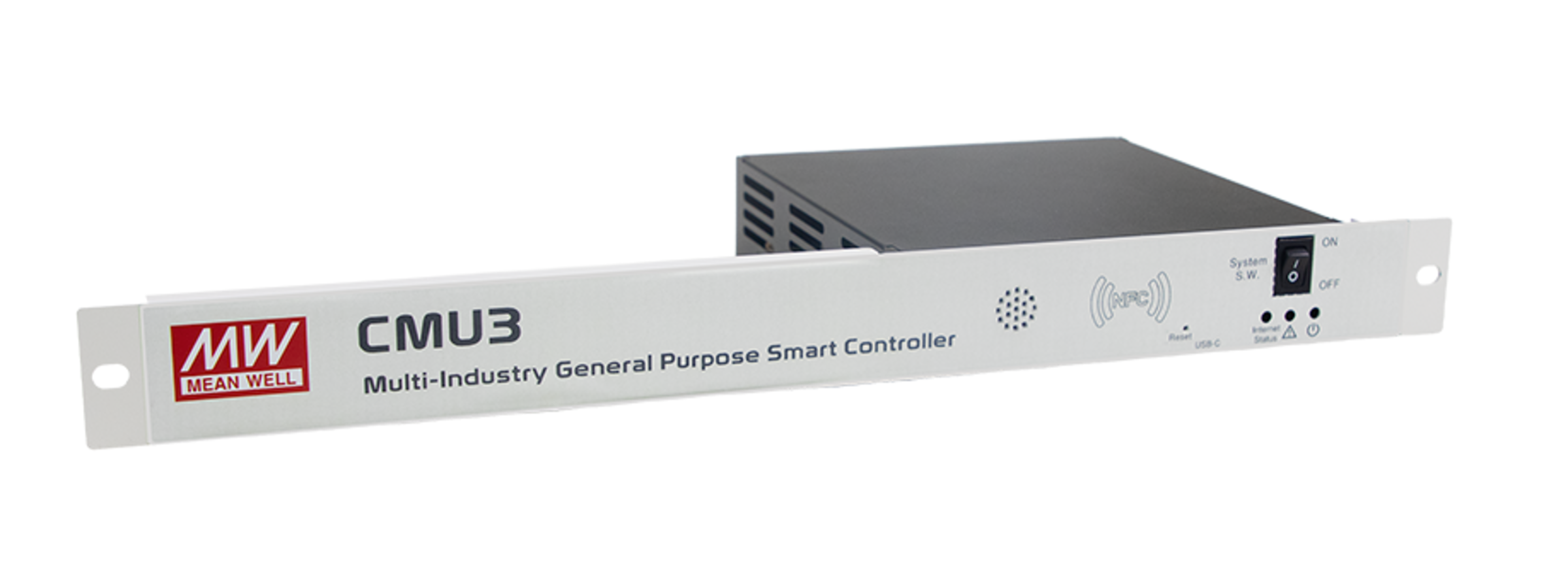

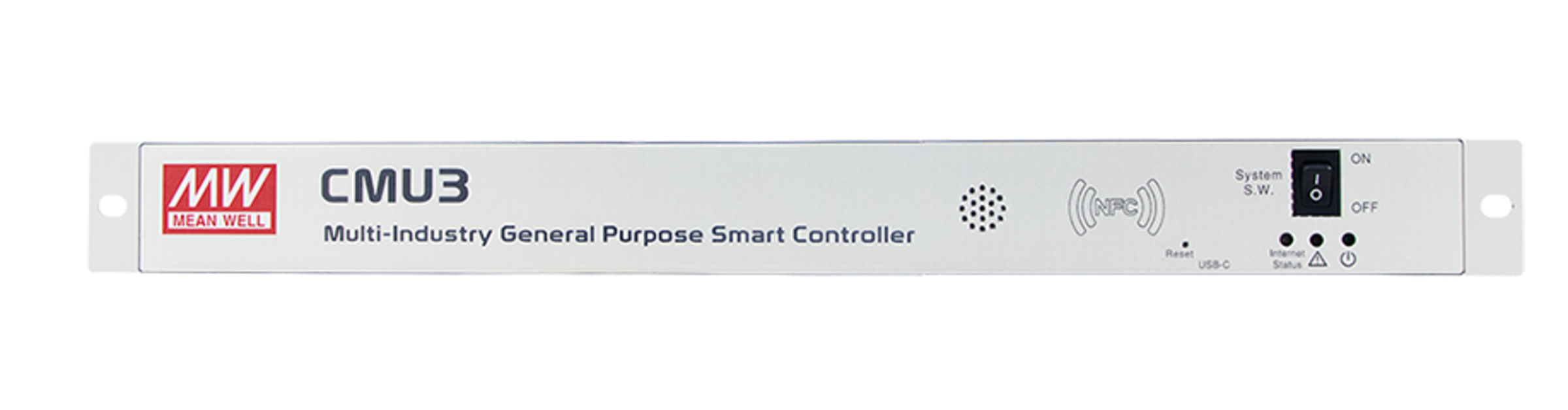

MEAN WELL CMU3 Controller/monitor unit

CMU3G-RCMU3G-RCMU3G-R
NEW
Manufacturer Part No.
CMU3G-R
Schukat Part No.
CMU3G-R
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Controller/monitor unit
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • CMU3
Product group
  • L9952
Type
  • Controller/monitor unit
Package/Case
  • Rack-Module
Dimension: Length
  • 482 mm
Dimension: Width
  • 186.6 mm
Dimension: Height
  • 44.5 mm
Weight
  • 2,040 g

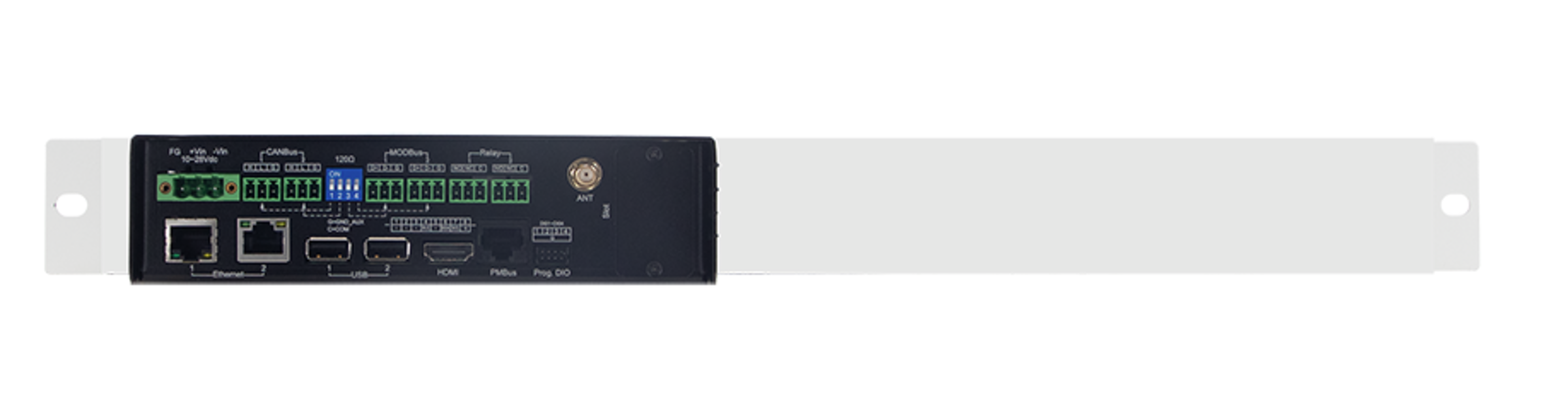

Interfaces
  • CAN bus
  • Ethernet
  • PM-Bus
  • RS-485
  • USB
  • Wireless Connection
Manufacturer's warranty (years)
  • 5
Product description
  • CMU3 is an advanced industrial controller designed to integrate modern industrial and building systems, improving operational efficiency, energy management, and system reliability. It supports automation control for lighting, HVAC, security, and other building applications, enabling flexible device coordination. Thanks to comprehensive energy management features, the CMU3 can monitor device power consumption, provide real-time reports and optimization recommendations, and help improve overall energy efficiency. In addition, it supports fault diagnosis, predictive maintenance, and automation extensions to meet the requirements of various industrial, commercial, and residential application scenarios.
Features
  • NFC-Function
  • Programmable

Input

Input voltage min. DC
  • 10 V
Input voltage max. DC
  • 28 V
Connection type, input
  • Connector

Output

Connection type, output
  • Connector

Safety/Certifications

Approvals
  • CE
  • IEC
  • UKCA
Standards (EMC)
  • EN 55032 Class B
Standards (safety)
  • IEC 62368-1

Documents

MEAN_WELL_Katalog_Industrie_2026.pdf
Download (pdf, 48.955 KB)
MEAN_WELL_Katalog_LED.pdf
Download (pdf, 53.159 KB)

Other Products

All Products of the Series
NEW
Loading...
CMU3G
MEAN WELL

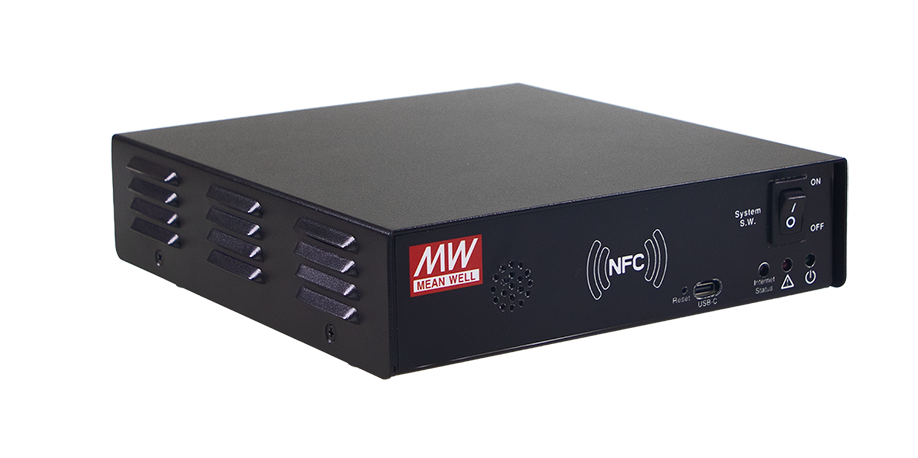

CMU3 Controller/monitor unit
