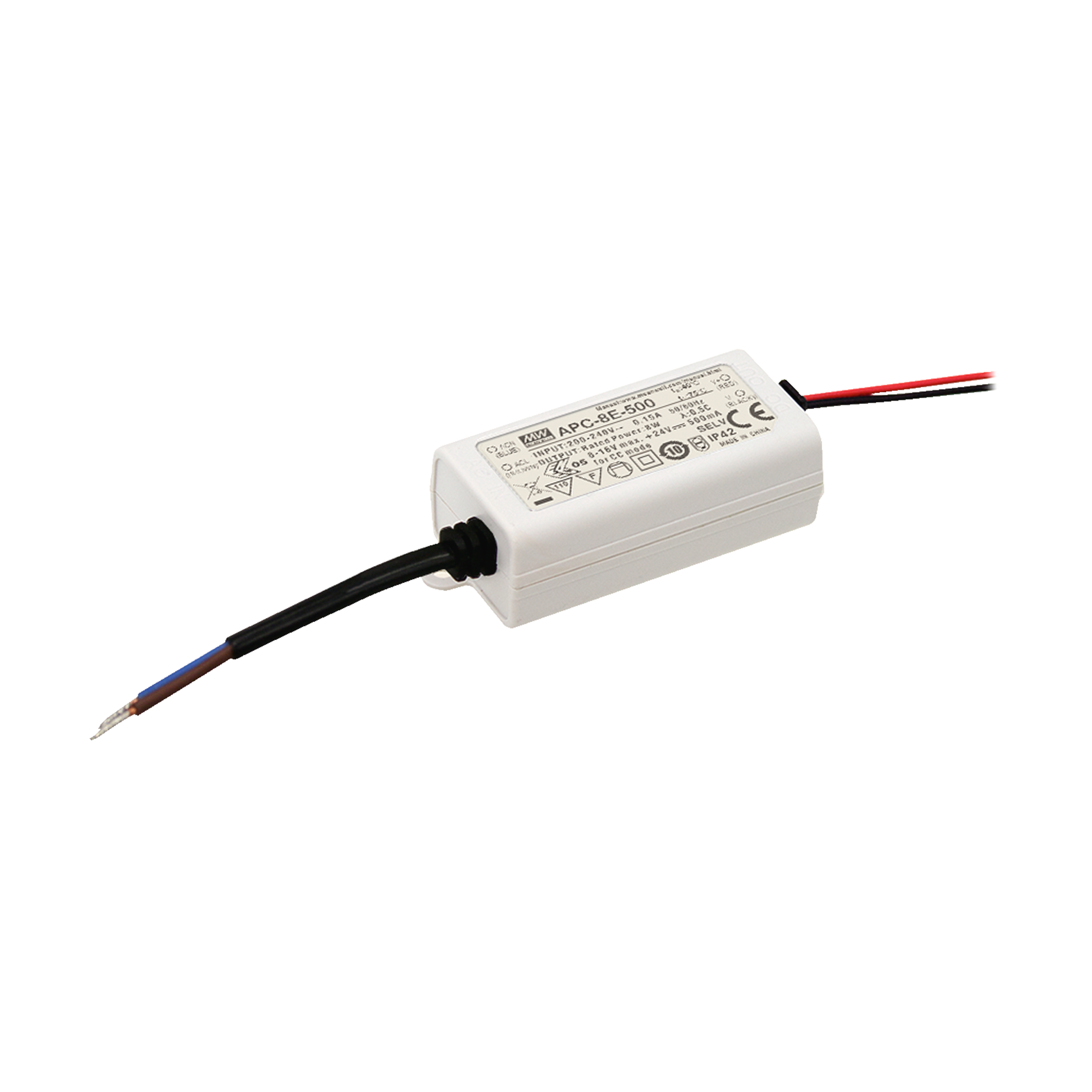

APC-8E-250

MEAN WELL AC/DC LED power supply unit CC 8W 0,250A IP42 not dimmable

APC-8E-250APC-8E-250
Manufacturer Part No.
APC-8E-250
Schukat Part No.
APC-8E-250
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 01.01.2023
Cancelled by manufacturer with replacement
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 72 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable surge protection devices.
Here you will find suitable inrush current limiters.
Here you will find suitable EMC & noise suppression components.
Operating mode
CC
Output Power
8 W
Output current
0.250 A
Output Voltage Min.
16 V
Output Voltage Max.
32 V
Protection Class IP
IP42
Interfaces
not dimmable
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • APC-8E
Product group
  • L5816
Application
  • ITE
  • Industry
Operating mode
  • CC
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 60 mm
Dimension: Width
  • 30 mm
Dimension: Height
  • 23.5 mm
Weight
  • 50 g
Label
  • SELV
Dimmable
Interfaces
  • not dimmable
Manufacturer's warranty (years)
  • 2
Features
  • DC compatible
  • Independent Control Gear
Application note
  • These power supplies are intended for installation in end-user devices. For installation only in devices whose primary use is other than lighting, e.g. photocopiers, overhead and slide projectors, or for scale and display lighting. These products are NOT intended for lighting applications within the European Economic Area. End-of-life electronic equipment is recyclable and must not be disposed of with household waste. When the appliance reaches the end of its service life, dispose of it in accordance with the applicable legal provisions at the collection points of the waste disposal system. Disposal via household waste is prohibited.
Notice

Operating conditions

MTBF
  • 2,275,800 h
Operating expectation
  • 20,000 h
Operating Temperature Min.
  • -30 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 80 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 254 V
Input voltage max. DC
  • 370 V
Input current
  • 0.15 A
Efficiency
  • 81.5 %
No load power, less than
  • 0.5 W
Leakage current, max.
  • 0.25 mA
Inrush current, max.
  • 70 A
Max. number on B16 circuit breaker
  • 17
Max. number on C16 circuit breaker
  • 29
Power factor correction (PFC)
Connection type, input
  • Strand
Cable length, input
  • 15 cm

Output

Number of outputs
  • 1
Output Power
  • 8 W
Output Voltage Min.
  • 16 V
Output Voltage Max.
  • 32 V
Ripple & Noise
  • 350 mVp-p
Output current
  • 0.250 A
Output current tolerance
  • -8.8 %
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Strand
Cable length, output
  • 15 cm

Safety/Certifications

Protection class
  • II
Protection Class IP
  • IP42
Isolation voltage I/P-O/P
  • 3,750 V
Approvals
  • CE
  • EAC
  • UL
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1
  • UL 8750

Documents

LED_GE.pdf
Download (pdf, 1.172 KB)
MEAN_WELL_Katalog_Industrie_2026.pdf
Download (pdf, 48.955 KB)
MEAN_WELL_Katalog_LED.pdf
Download (pdf, 53.159 KB)
