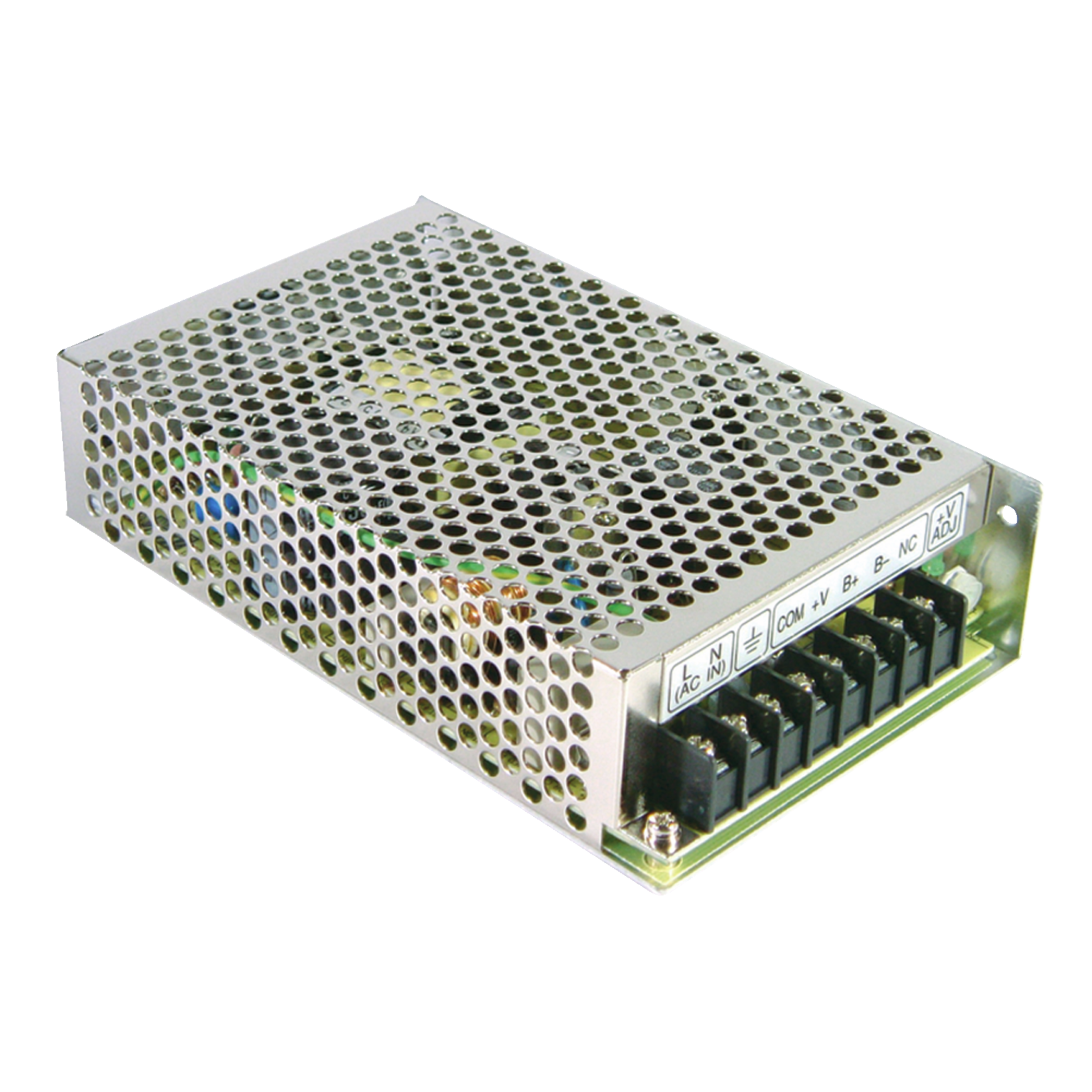

ADD-55B
MEAN WELL Uninterruptible power supply (UPS) 55,12W 27,6V 1,3A External Energy Storage
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
6 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 24 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Output Power
- 55.12 W
- Output voltage
- 27.6 V
- Output voltage, channel 2
- 5 V
- Output voltage, channel 3
- 26.5 V
- Output current
- 1.300 A
- Output current, channel 2
- 3.000 A
- Output current, channel 3
- 0.160 A
- Operating mode
- External Energy Storage
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 241,300 h
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 60 °C
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 85 °C
Input
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 88 V
- Input voltage max. AC
- 264 V
- Input voltage min. DC
- 124 V
- Input voltage max. DC
- 370 V
- Input current
- 1 A
- Efficiency
- 74 %
- Leakage current, max.
- 1 mA
- Power factor correction (PFC)
- Connection type, input
- Screw Terminal
- Shutdown at deeply discharged battery
- Alarm at deeply discharged battery
Output
- Number of outputs
- 3
- Output Power
- 55.12 W
- Output voltage
- 27.6 V
- Output voltage, channel 2
- 5 V
- Output voltage, channel 3
- 26.5 V
- Output voltage tolerance
- -1 %
- Output voltage tolerance, channel 2
- -3 %
- Ripple & Noise
- 150 mVp-p
- Ripple & Noise, Channel 2
- 150 mVp-p
- Output current
- 1.300 A
- Output current, channel 2
- 3.000 A
- Output current, channel 3
- 0.160 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Reverse polarity protection
- Connection type, output
- Screw Terminal
Safety/Certifications
- Protection class
- I
- Isolation voltage I/P-O/P
- 3,000 V
- Isolation voltage I/P-FG
- 2,000 V
- Isolation voltage O/P-FG
- 500 V
- Approvals
- CE
- EAC
- EN
- IEC
- UKCA
- UL
- Standards (EMC)
- EN 55032 Class B
- Standards (safety)
- EN 62368-1
- IEC 62368-1
- UL 62368-1
