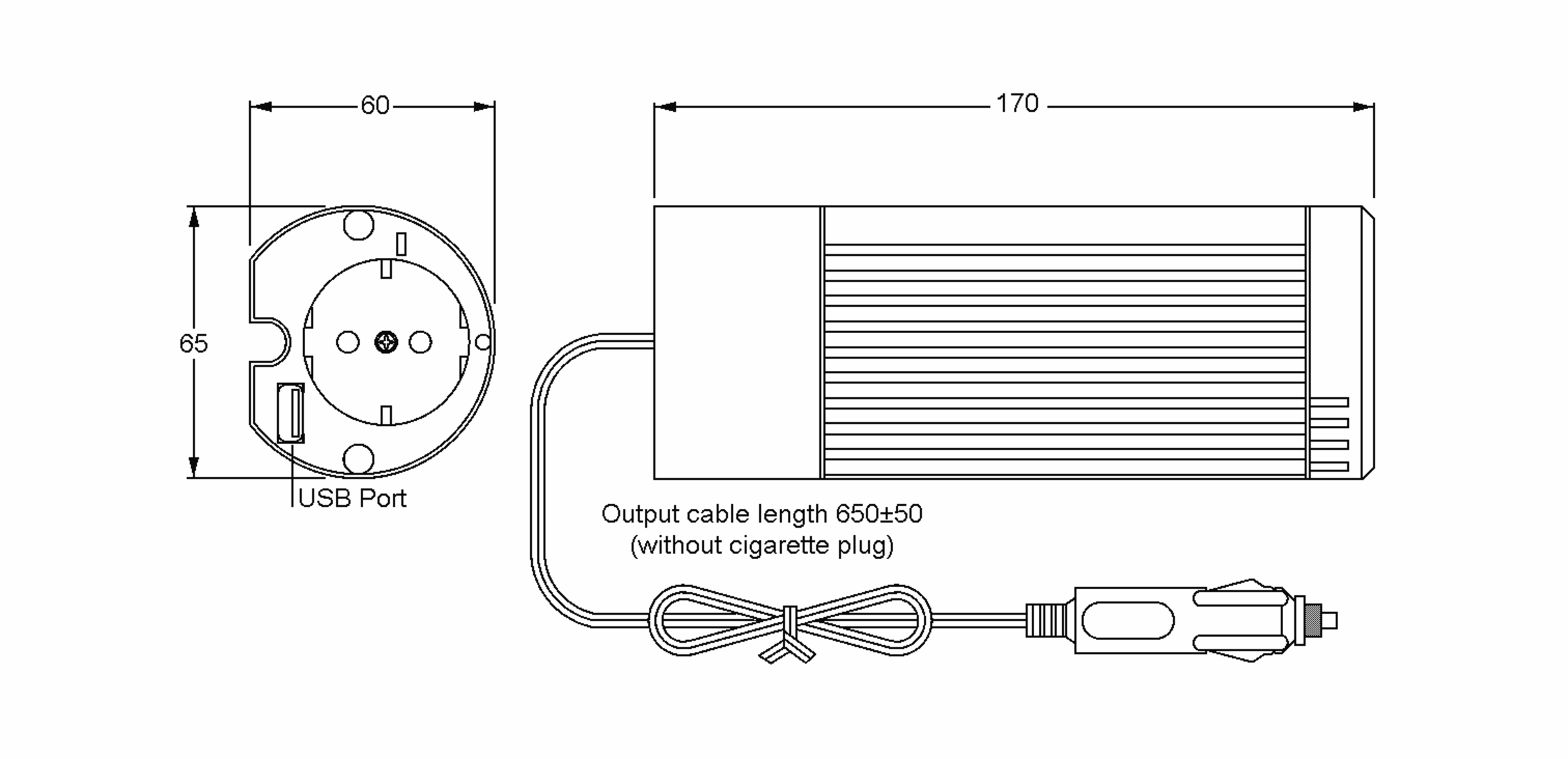

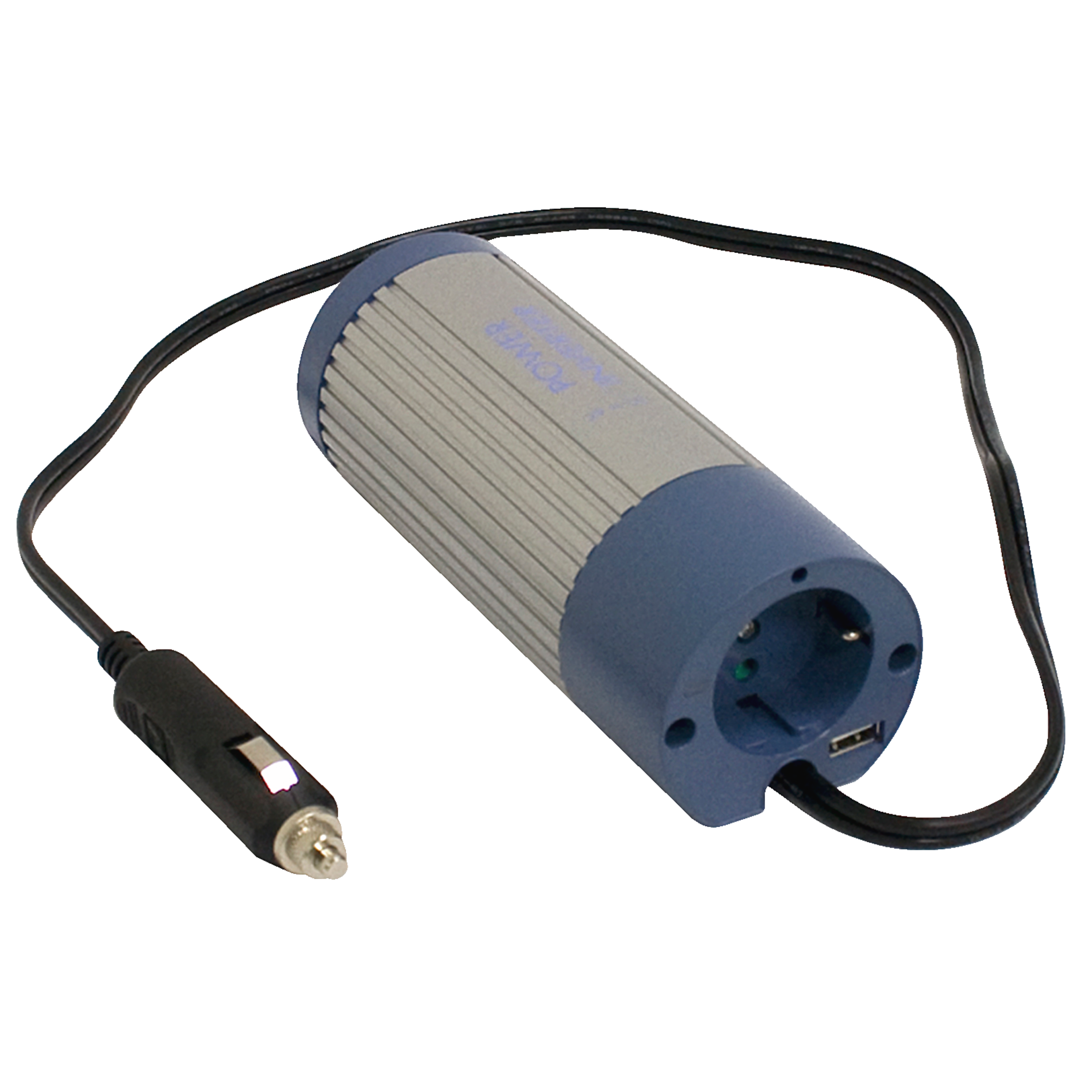

A302-100-F3
MEAN WELL DC/AC inverter modified Sine 230V 100,0W
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Next Stock Receipt
Week 02/2025
40 Pcs.
40 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Output voltage
- 230 V
- Output Power
- 100 W
- Operating mode
- modified Sine
- Input voltage min. DC
- 21 V
- Input voltage max. DC
- 30 V
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 30 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 70 °C
Input
- Nominal input voltage
- 24 V
- Input voltage min. DC
- 21 V
- Input voltage max. DC
- 30 V
- Efficiency
- 90 %
- Connection type, input
- Cigarette Lighter Plug
- Cable length, input
- 65 cm
- Shutdown at deeply discharged battery
- Alarm at deeply discharged battery
Output
- Output Power
- 100 W
- Output voltage
- 230 V
- Output voltage tolerance
- -10 %
- Overload protection
- Short-circuit protection
- Overtemperature protection
- Connection type, output
- EU Typ F
- Output frequency (Hz)
- 50
- Output frequency tolerance
- -1 %
Safety/Certifications
- Approvals
- CE
- EAC
- EN
- UKCA
- Standards (EMC)
- EN 55014
- Standards (safety)
- EN 60950-1
