Filter articles
Manufacturer
Manufacturer
Series
Series
Type
Type
Rated Voltage
Rated Voltage
Dimension: Width
Dimension: Width
Dimension: Height
Dimension: Height
Dimension: Depth
Dimension: Depth
Features
Features
Bearing type
Bearing type
Air Flow (Rate)
Air Flow (Rate)
Static pressure [inch-H₂O]
Static pressure [inch-H₂O]
Noise
Noise
Power consumption
Power consumption
Protection Class IP
Protection Class IP
Results (351)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Rated Voltage | Dimension: Width | Dimension: Height | Dimension: Depth | Features | Bearing type | Air Flow (Rate) | Static pressure [inch-H₂O] | Noise | Power consumption | Protection Class IP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
151 |  | Manufacturers Part No. MF30150V1-1000U-A99(MF30150V11000UA99) SUNON MF Axial DC fan 5VDC 30mm x 15mm Vapo Bearing 10,19m³/h 27dBA | Customer Part No. Customer Project No. | 1.547 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 30.0 mm | 30.0 mm | 15.0 mm | Vapo Bearing | 10.19 m³/h | 0.17 inch-H₂O | 27.0 dBA | 0.7 W | |||||||
152 | | Manufacturers Part No. MF30150V1-1000U-S99(MF30150V11000US99) SUNON MF Axial DC fan 5VDC 30mm x 15mm Vapo Bearing 10,19m³/h 27dBA Speedometer signal
PWM | Customer Part No. Customer Project No. | 3.165 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 30.0 mm | 30.0 mm | 15.0 mm | PWM Speedometer signal | Vapo Bearing | 10.19 m³/h | 0.17 inch-H₂O | 27.0 dBA | 0.7 W | ||||||
153 | | Manufacturers Part No. MF30151V1-1000U-A99(MF30151V11000UA99) SUNON MF Axial DC fan 12VDC 30mm x 15mm Vapo Bearing 10,19m³/h 27dBA | Customer Part No. Customer Project No. | 191 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 30.0 mm | 30.0 mm | 15.0 mm | Vapo Bearing | 10.19 m³/h | 0.17 inch-H₂O | 27.0 dBA | 0.78 W | |||||||
154 | | Manufacturers Part No. MF25101V1-1000U-A99(MF25101V11000UA99) SUNON MF Axial DC fan 12VDC 25mm x 10mm Vapo Bearing 6,45m³/h 26dBA | Customer Part No. Customer Project No. | 1.774 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 25.0 mm | 25.0 mm | 10.0 mm | Vapo Bearing | 6.45 m³/h | 0.27 inch-H₂O | 26.0 dBA | 0.6 W | |||||||
155 | | Manufacturers Part No. MF25101V2-1000U-A99(MF25101V21000UA99) SUNON MF Axial DC fan 12VDC 25mm x 10mm Vapo Bearing 5,09m³/h 16dBA TOP | Customer Part No. Customer Project No. | 3.587 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 25.0 mm | 25.0 mm | 10.0 mm | Vapo Bearing | 5.09 m³/h | 0.18 inch-H₂O | 16.0 dBA | 0.36 W | |||||||
156 | | Manufacturers Part No. MF25060V1-1000U-A99(MF25060V11000UA99) SUNON MF Axial DC fan 5VDC 25mm x 6mm Vapo Bearing 5,09m³/h 24,8dBA | Customer Part No. Customer Project No. | 720 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 25.0 mm | 25.0 mm | 6.0 mm | Vapo Bearing | 5.09 m³/h | 0.23 inch-H₂O | 24.8 dBA | 0.58 W | |||||||
157 | | Manufacturers Part No. MF25060V2-1000U-A99(MF25060V21000UA99) SUNON MF Axial DC fan 5VDC 25mm x 6mm Vapo Bearing 3,73m³/h 18dBA TOP | Customer Part No. Customer Project No. | 1.651 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 25.0 mm | 25.0 mm | 6.0 mm | Vapo Bearing | 3.73 m³/h | 0.16 inch-H₂O | 18.0 dBA | 0.38 W | |||||||
158 | | Manufacturers Part No. D01000761F-00(UB3F3-500) SUNON Mighty Mini Blower Radial DC fan 3VDC 15mm x 3mm Vapo Bearing 4,53m³/h 23,6dBA Speedometer signal | Customer Part No. Customer Project No. | 58 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Radial | 3VDC | 15.0 mm | 15.0 mm | 3.0 mm | Speedometer signal | Vapo Bearing | 4.53 m³/h | 23.6 dBA | 0.1 W | |||||||

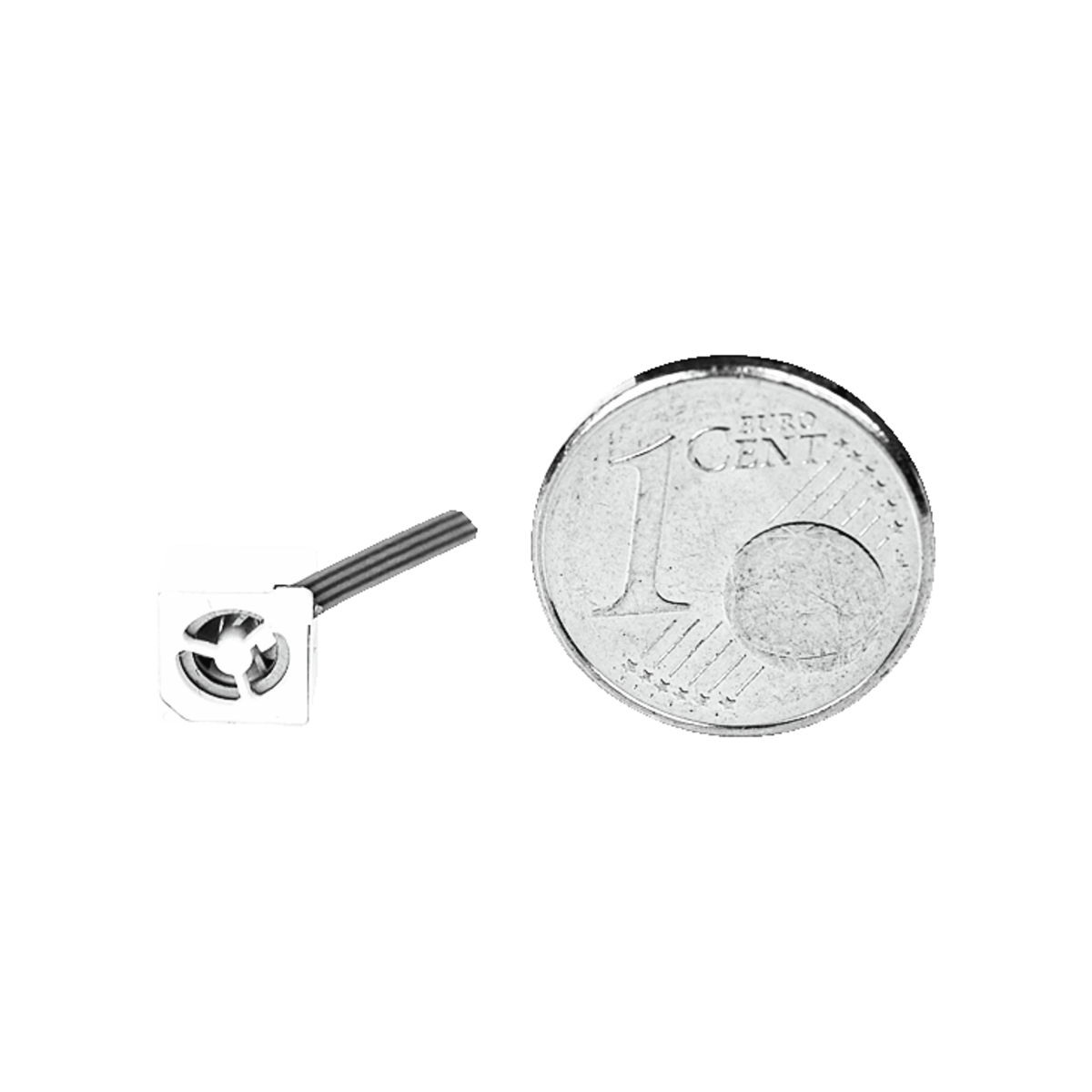

159 | | Manufacturers Part No. D01000841F-00(UF3F3-500) SUNON Mighty Mini Fan Axial DC fan 3VDC 15mm x 3mm Vapo Bearing 8,75m³/h 20,2dBA Speedometer signal | Customer Part No. Customer Project No. | 31 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 3VDC | 15.0 mm | 15.0 mm | 3.0 mm | Speedometer signal | Vapo Bearing | 8.75 m³/h | 20.2 dBA | 0.1 W | |||||||

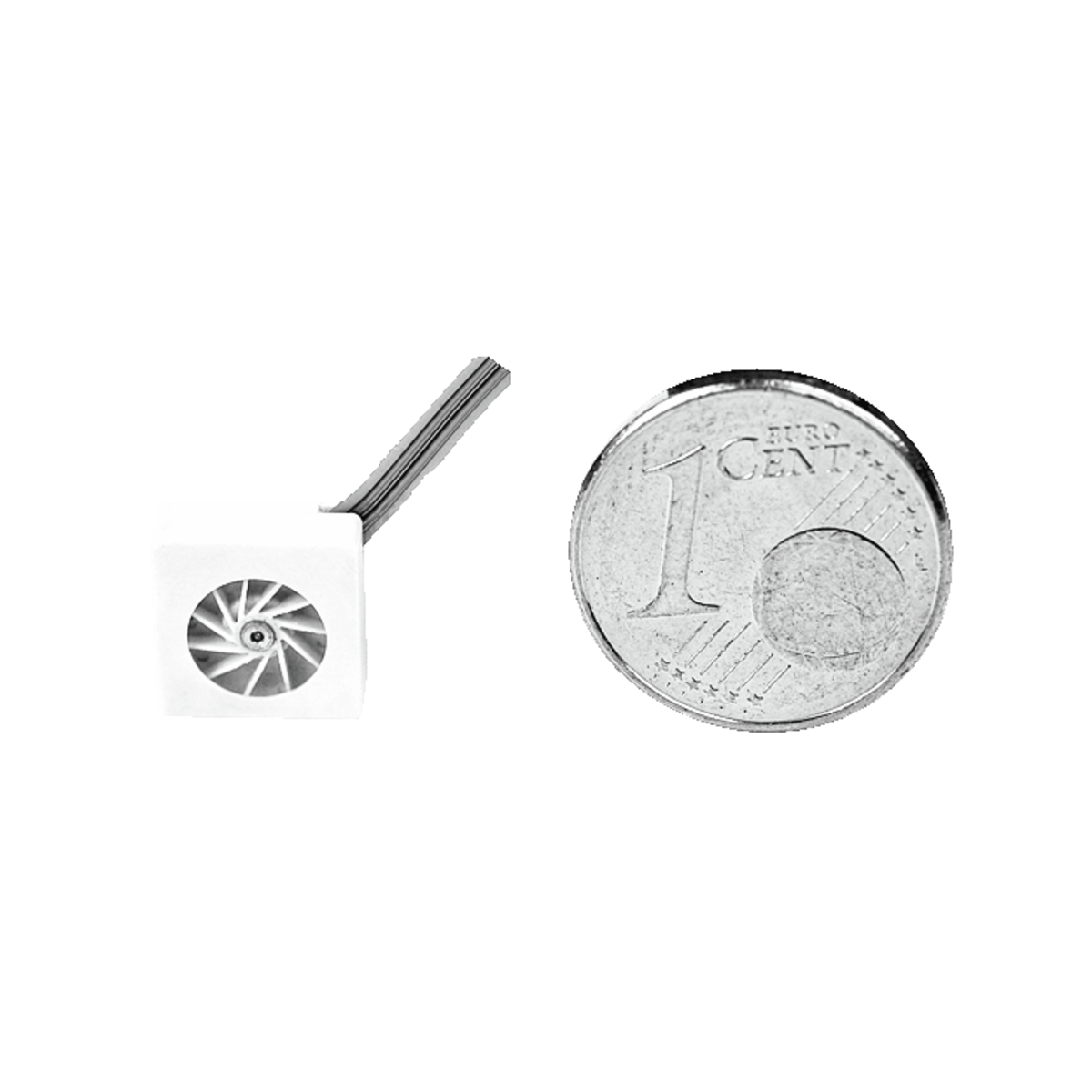

160 | | Manufacturers Part No. D01000941F-00(UB3H3-500) SUNON Mighty Mini Blower Radial DC fan 3VDC 17mm x 3mm Vapo Bearing 6,17m³/h 22dBA Speedometer signal | Customer Part No. Customer Project No. | 92 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Radial | 3VDC | 17.0 mm | 17.0 mm | 3.0 mm | Speedometer signal | Vapo Bearing | 6.17 m³/h | 22.0 dBA | 0.1 W | |||||||
161 | | Manufacturers Part No. D01000881F-00(UF3H3-500) SUNON Mighty Mini Fan Axial DC fan 3VDC 17mm x 3mm Vapo Bearing 16,27m³/h 21,3dBA Speedometer signal | Customer Part No. Customer Project No. | 83 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 3VDC | 17.0 mm | 17.0 mm | 3.0 mm | Speedometer signal | Vapo Bearing | 16.27 m³/h | 21.3 dBA | 0.1 W | |||||||

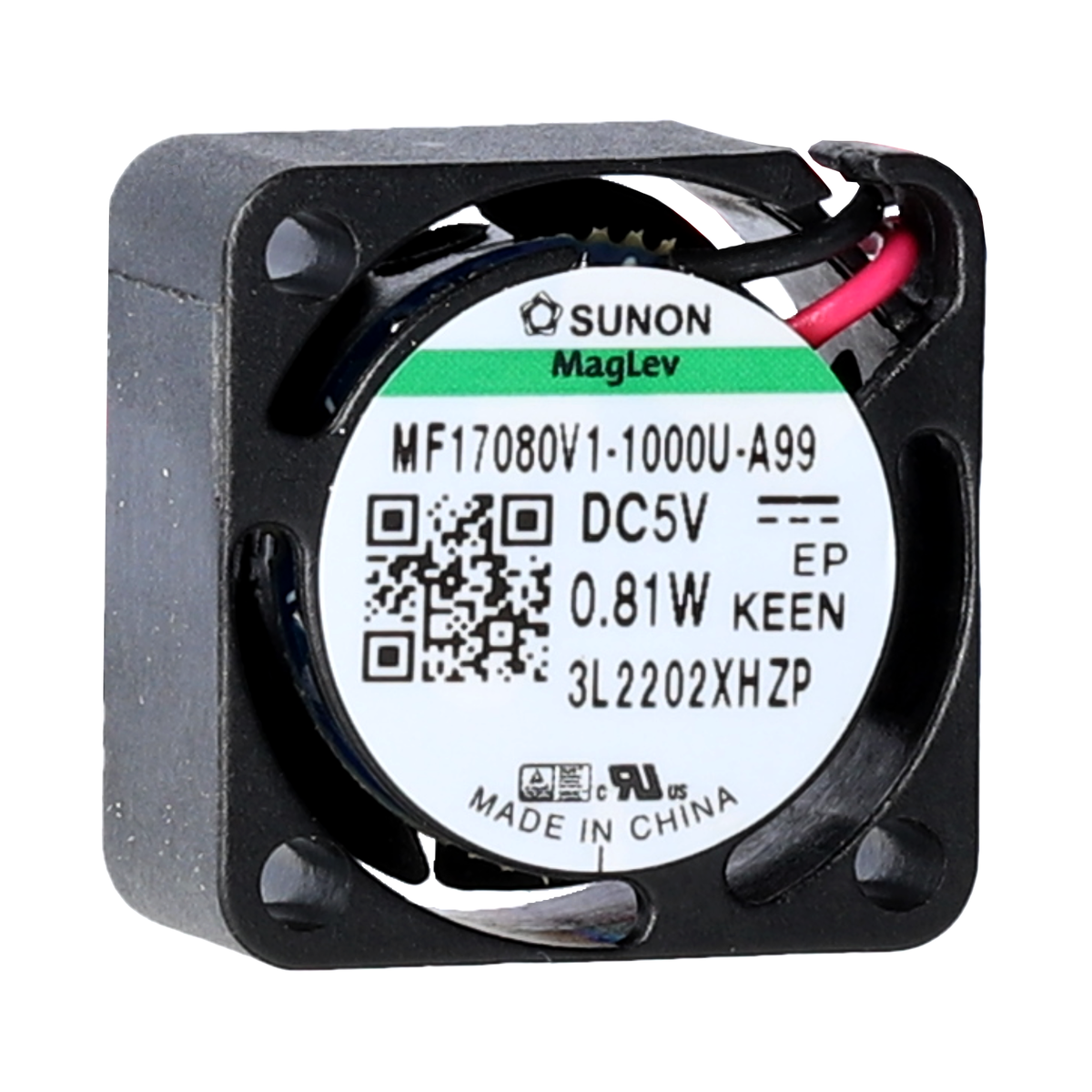

162 | | Manufacturers Part No. MF17080V1-1000U-A99(MF17080V11000UA99) SUNON MF Axial DC fan 5VDC 17mm x 8mm Vapo Bearing 1,52m³/h 21,5dBA | Customer Part No. Customer Project No. | 2.375 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 17.0 mm | 17.0 mm | 8.0 mm | Vapo Bearing | 1.52 m³/h | 0.28 inch-H₂O | 21.5 dBA | 0.47 W | |||||||
163 | | Manufacturers Part No. MF17080V2-1000U-A99(MF17080V21000UA99) SUNON MF Axial DC fan 5VDC 17mm x 8mm Vapo Bearing 1,18m³/h 14,2dBA | Customer Part No. Customer Project No. | 2.224 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 17.0 mm | 17.0 mm | 8.0 mm | Vapo Bearing | 1.18 m³/h | 0.17 inch-H₂O | 14.2 dBA | 0.33 W | |||||||
164 | | Manufacturers Part No. MF30100V1-1000U-S99(MF30100V11000US99) SUNON MF Axial DC fan 5VDC 30mm x 10mm Vapo Bearing 9,34m³/h 23dBA Speedometer signal
PWM | Customer Part No. Customer Project No. | 278 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 30.0 mm | 30.0 mm | 10.0 mm | PWM Speedometer signal | Vapo Bearing | 9.34 m³/h | 0.2 inch-H₂O | 23.0 dBA | 0.6 W | ||||||
165 | | Manufacturers Part No. MF30100V3-1000U-A99(MF30100V31000UA99) SUNON MF Axial DC fan 5VDC 30mm x 10mm Vapo Bearing 4,24m³/h 30,2dBA | Customer Part No. Customer Project No. | 1.990 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 30.0 mm | 30.0 mm | 10.0 mm | Vapo Bearing | 4.24 m³/h | 0.07 inch-H₂O | 30.2 dBA | 0.23 W | |||||||

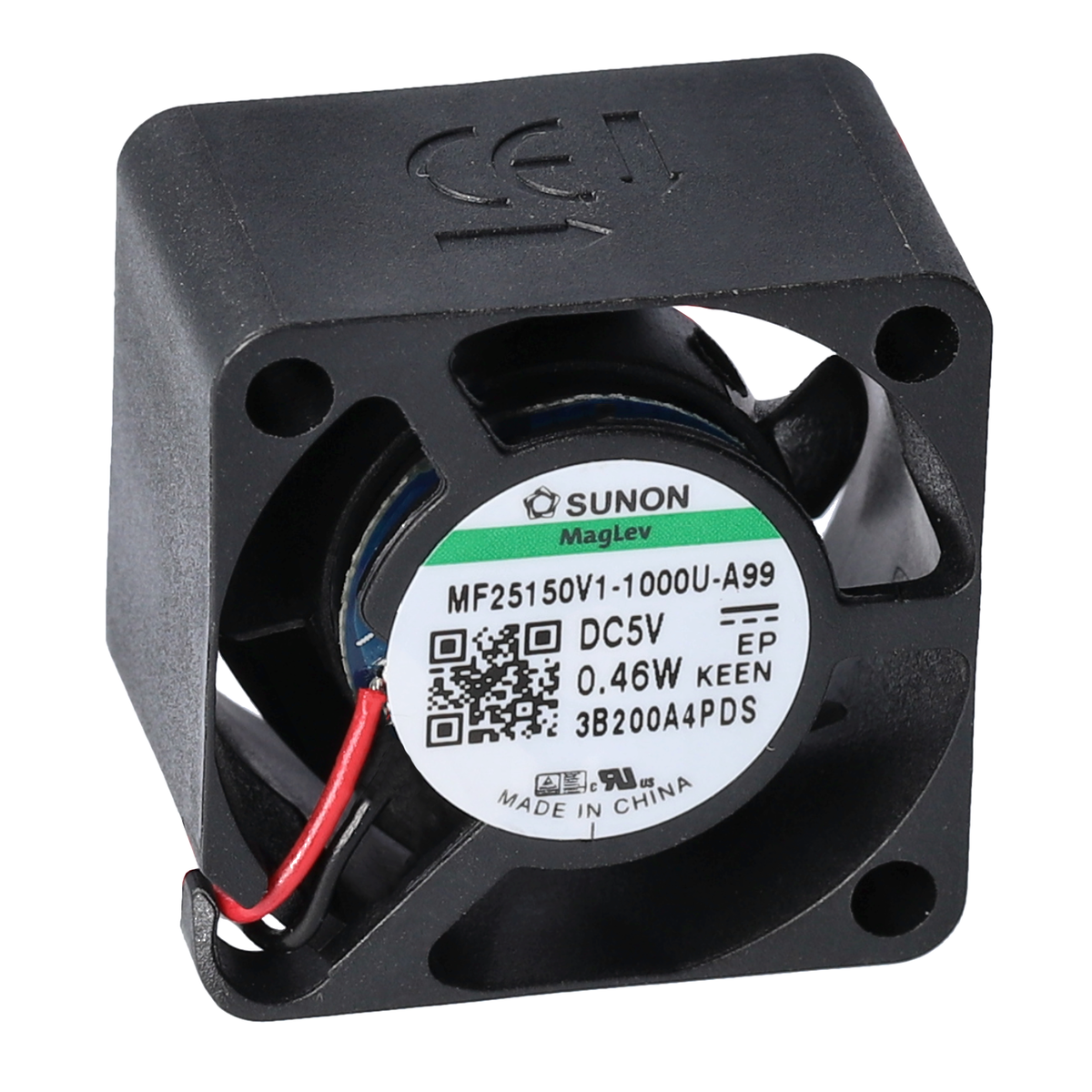

166 | | Manufacturers Part No. MF25150V1-1000U-A99(MF25150V11000UA99) SUNON MF Axial DC fan 5VDC 25mm x 15mm Vapo Bearing 5,26m³/h 20dBA | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 25.0 mm | 25.0 mm | 15.0 mm | Vapo Bearing | 5.26 m³/h | 0.16 inch-H₂O | 20.0 dBA | 0.43 W | |||||||
167 | | Manufacturers Part No. MF25150V1-1000U-S99(MF25150V11000US99) SUNON MF Axial DC fan 5VDC 25mm x 15mm Vapo Bearing 5,26m³/h 20dBA Speedometer signal
PWM | Customer Part No. Customer Project No. | 105 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 25.0 mm | 25.0 mm | 15.0 mm | PWM Speedometer signal | Vapo Bearing | 5.26 m³/h | 0.16 inch-H₂O | 20.0 dBA | 0.43 W | ||||||

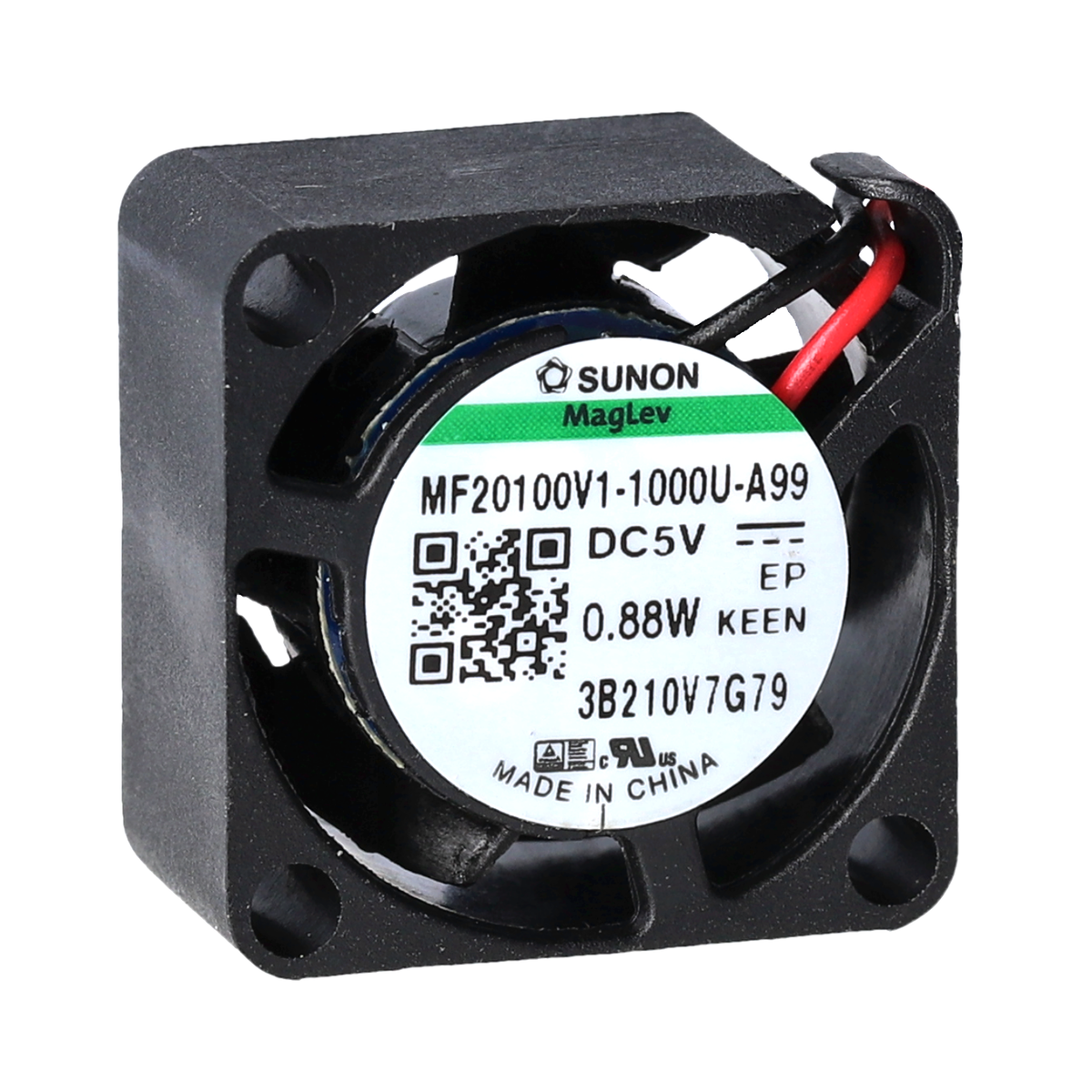

168 | | Manufacturers Part No. MF20100V1-1000U-A99(MF20100V11000UA99) SUNON MF Axial DC fan 5VDC 20mm x 10mm Vapo Bearing 3,22m³/h 25dBA | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 20.0 mm | 20.0 mm | 10.0 mm | Vapo Bearing | 3.22 m³/h | 0.29 inch-H₂O | 25.0 dBA | 0.53 W | |||||||
169 | | Manufacturers Part No. D03018191F-00(UB5U3-500) SUNON Mighty Mini Blower Radial DC fan 5VDC 30mm x 3mm Vapo Bearing 17,84m³/h 28,7dBA Speedometer signal | Customer Part No. Customer Project No. | 76 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Radial | 5VDC | 30.0 mm | 30.0 mm | 3.0 mm | Speedometer signal | Vapo Bearing | 17.84 m³/h | 28.7 dBA | 0.36 W | |||||||

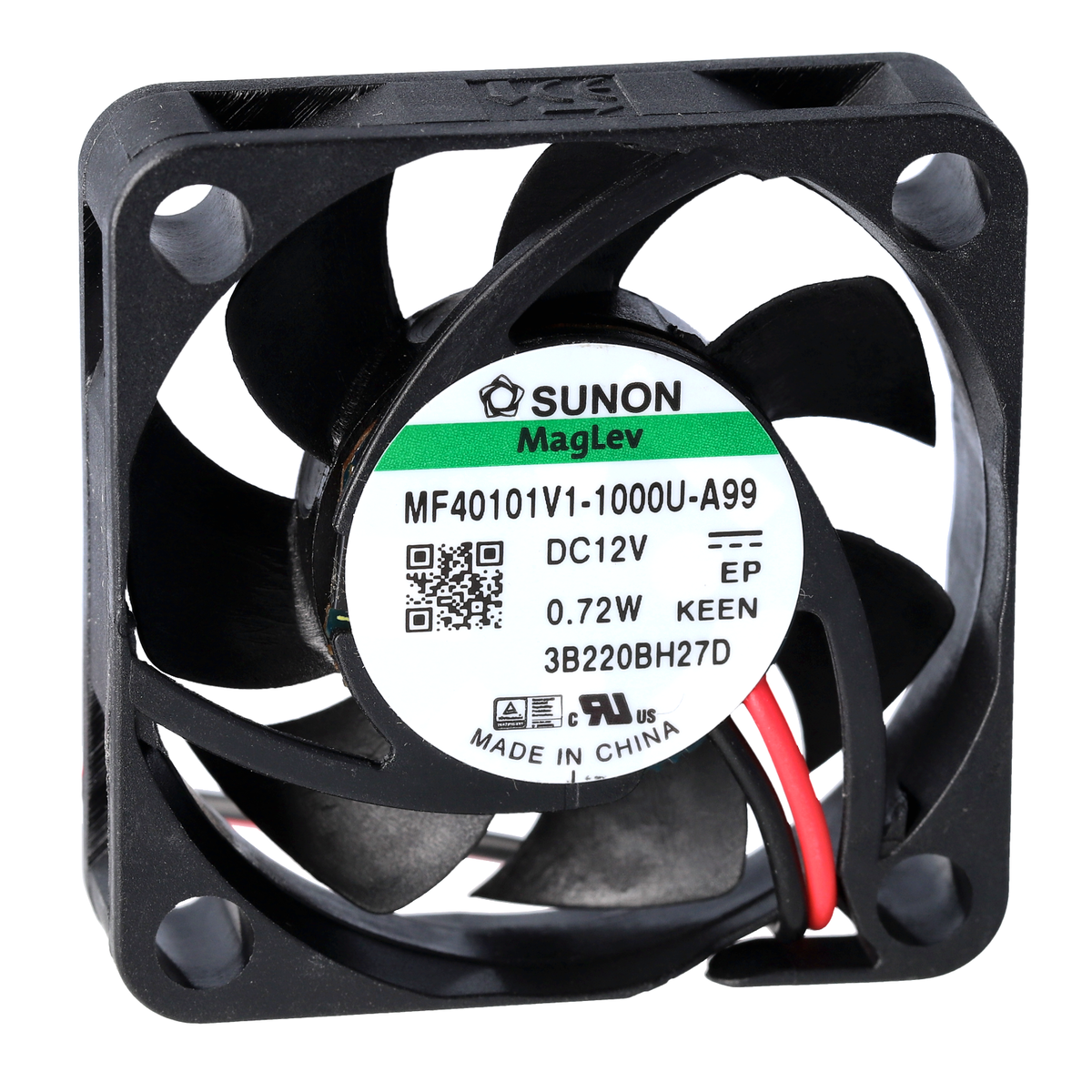

170 | | Manufacturers Part No. MF40101V1-1000U-A99(MF40101V11000UA99) SUNON MF Axial DC fan 12VDC 40mm x 10mm Vapo Bearing 13,58m³/h 27,3dBA TOP | Customer Part No. Customer Project No. | 3.141 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 40.0 mm | 40.0 mm | 10.0 mm | Vapo Bearing | 13.58 m³/h | 0.19 inch-H₂O | 27.3 dBA | 0.62 W | |||||||
171 | | Manufacturers Part No. MF40101V2-1000U-A99(MF40101V21000UA99) SUNON MF Axial DC fan 12VDC 40mm x 10mm Vapo Bearing 11,89m³/h 20,6dBA TOP | Customer Part No. Customer Project No. | 15.821 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 40.0 mm | 40.0 mm | 10.0 mm | Vapo Bearing | 11.89 m³/h | 0.12 inch-H₂O | 20.6 dBA | 0.48 W | |||||||
172 | | Manufacturers Part No. MF40101VX-1000U-A99(MF40101VX1000UA99) SUNON MF Axial DC fan 12VDC 40mm x 10mm Vapo Bearing 16,81m³/h 31,4dBA | Customer Part No. Customer Project No. | 5.178 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 40.0 mm | 40.0 mm | 10.0 mm | Vapo Bearing | 16.81 m³/h | 0.25 inch-H₂O | 31.4 dBA | 1.05 W | |||||||

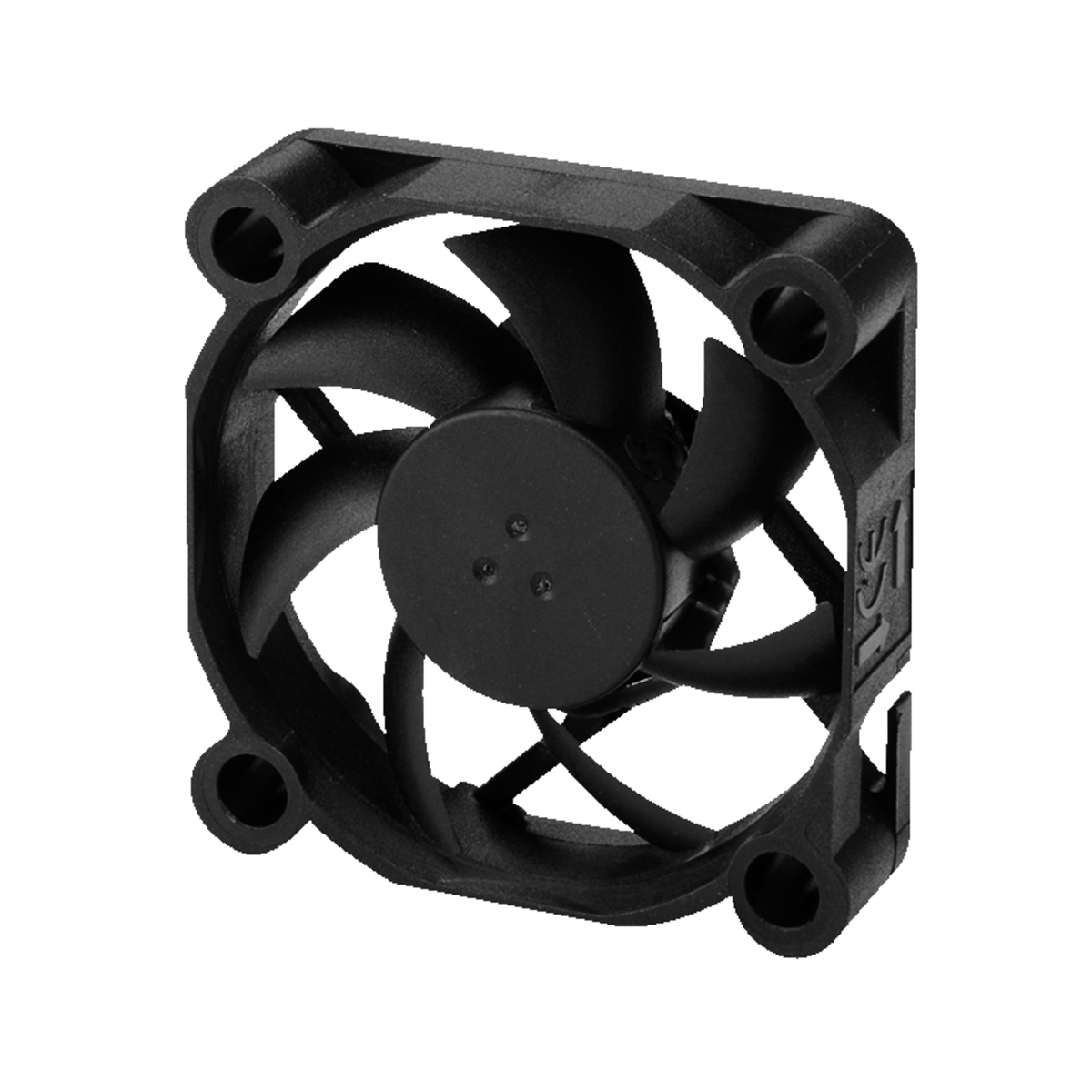

173 | | Manufacturers Part No. HA40101V4-1000U-A99(HA40101V41000UA99) SUNON HA Axial DC fan 12VDC 40mm x 10mm Vapo Bearing 9,17m³/h 15,7dBA TOP | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 40.0 mm | 40.0 mm | 10.0 mm | Vapo Bearing | 9.17 m³/h | 0.09 inch-H₂O | 15.7 dBA | 0.38 W | |||||||
174 | | Manufacturers Part No. MF40100V1-1000U-A99(MF40100V11000UA99) SUNON MF Axial DC fan 5VDC 40mm x 10mm Vapo Bearing 13,58m³/h 27,3dBA | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 40.0 mm | 40.0 mm | 10.0 mm | Vapo Bearing | 13.58 m³/h | 0.19 inch-H₂O | 27.3 dBA | 0.68 W | |||||||
175 | | Manufacturers Part No. MF40100V2-1000U-A99(MF40100V21000UA99) SUNON MF Axial DC fan 5VDC 40mm x 10mm Vapo Bearing 11,89m³/h 20,6dBA TOP | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 40.0 mm | 40.0 mm | 10.0 mm | Vapo Bearing | 11.89 m³/h | 0.12 inch-H₂O | 20.6 dBA | 0.47 W |
