Results (351)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Rated Voltage | Dimension: Width | Dimension: Height | Dimension: Depth | Features | Bearing type | Air Flow (Rate) | Static pressure [inch-H₂O] | Noise | Power consumption | Protection Class IP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
276 |  | Manufacturers Part No. GF92251B3-000U-AE9(GF92251B3-AE9) SUNON GF Axial DC fan 12VDC 92mm x 25mm Ball Bearing 110,40m³/h 43dBA IP68
IP68(GR487) | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 23 Weeks Available on order | (at least 56 or mul. of 1) | SUNON | Axial | 12VDC | 92.0 mm | 92.0 mm | 25.0 mm | Ball Bearing | 110.4 m³/h | 0.25 inch-H₂O | 43.0 dBA | 2.76 W | IP68 IP68(GR487) | ||||||

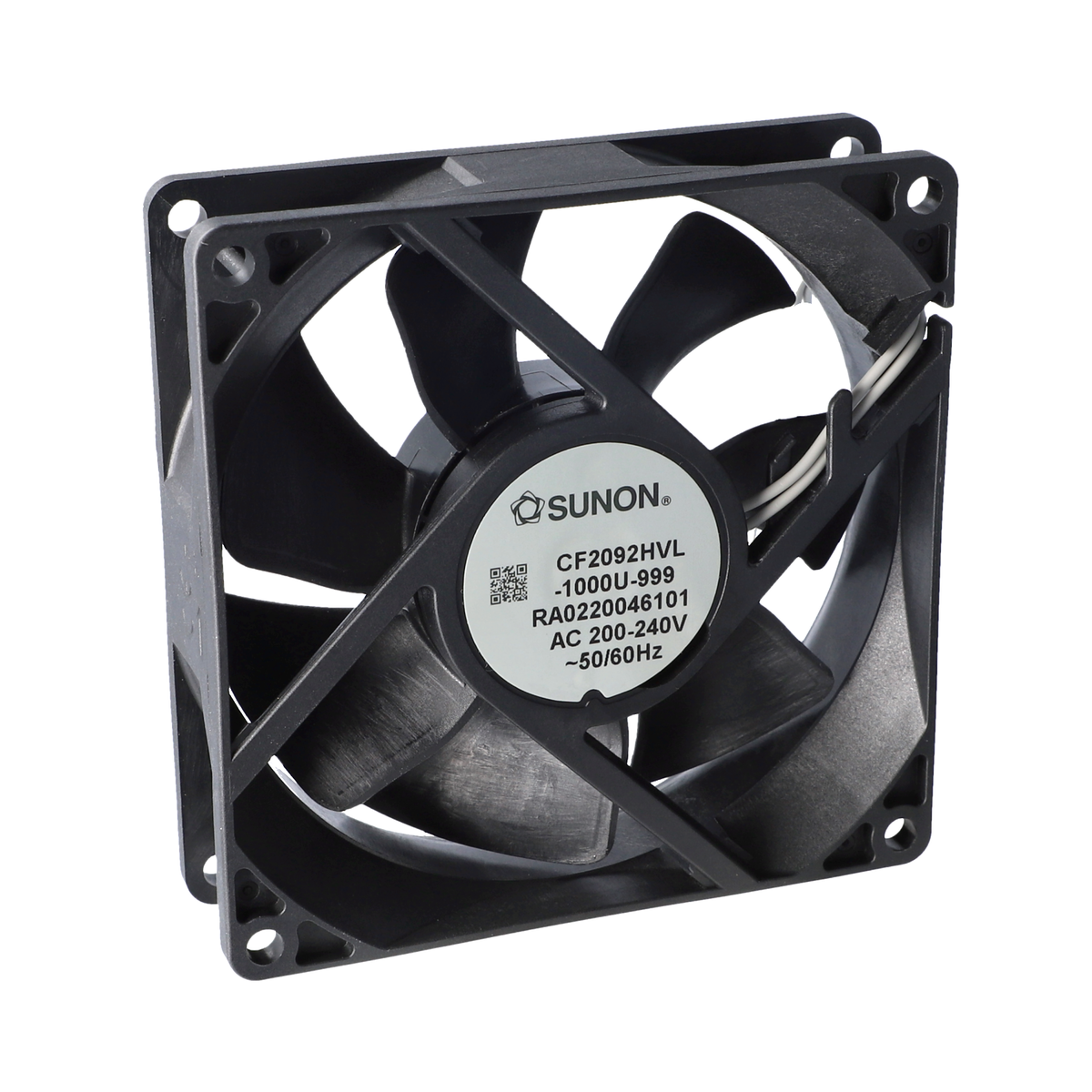

277 | | Manufacturers Part No. CF2092HVL-1000U-999(CF2092HVL1000U999) SUNON CF Axial Fan EC 230VAC 92mm x 25mm Vapo Bearing Strand, AWG24, UL3266, 30cm, Stripped, Tinned 88,32m³/h 31dBA | Customer Part No. Customer Project No. | 839 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 230VAC | 92.0 mm | 92.0 mm | 25.0 mm | Vapo Bearing | 88.32 m³/h | 0.12 inch-H₂O | 31.0 dBA | 3.9 W | |||||||

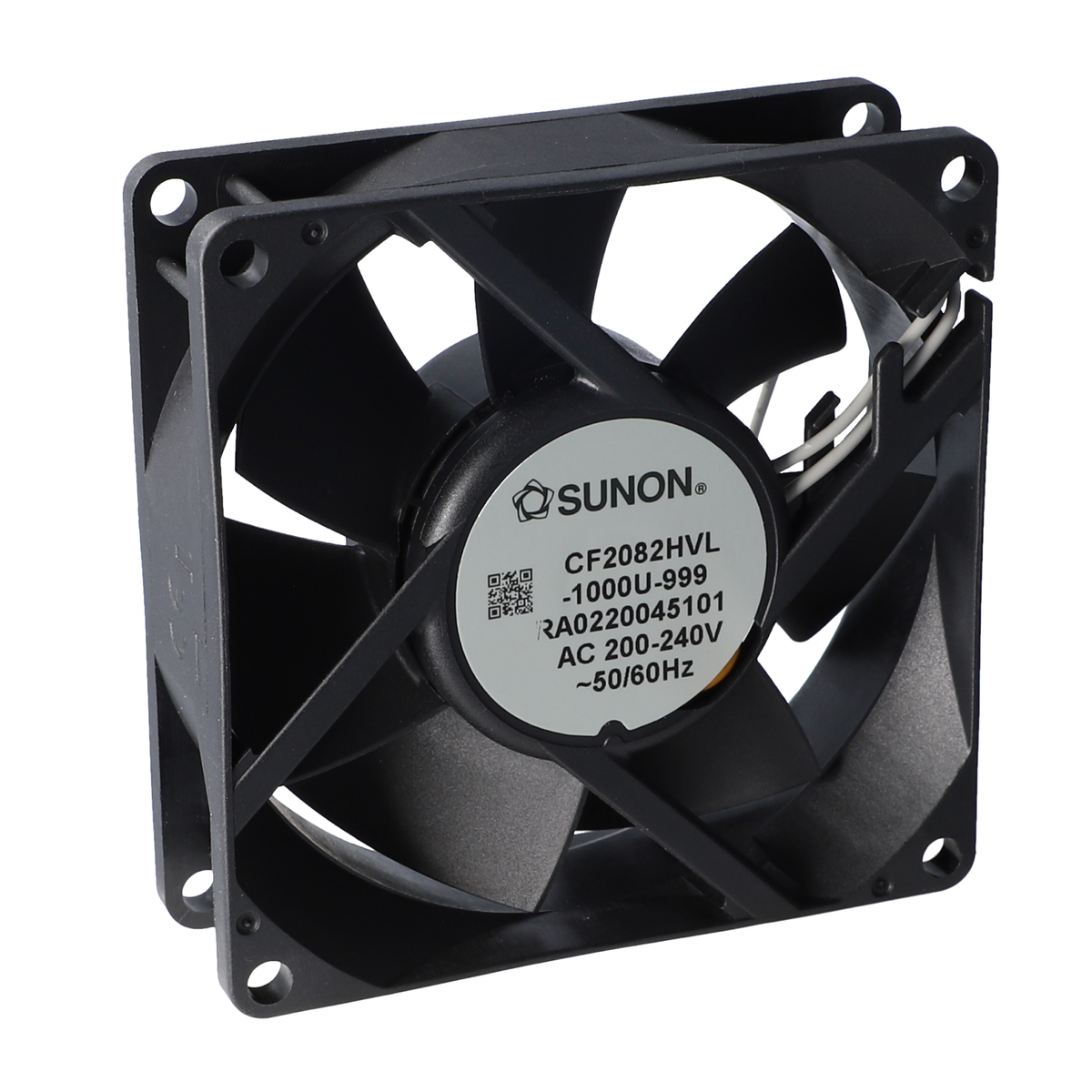

278 | | Manufacturers Part No. CF2082HVL-1000U-999(CF2082HVL1000U999) SUNON CF Axial Fan EC 230VAC 80mm x 25mm Vapo Bearing Strand, AWG24, UL3266, 30cm, Stripped, Tinned 67,94m³/h 32dBA | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 230VAC | 80.0 mm | 80.0 mm | 25.0 mm | Vapo Bearing | 67.94 m³/h | 0.14 inch-H₂O | 32.0 dBA | 3.2 W | |||||||

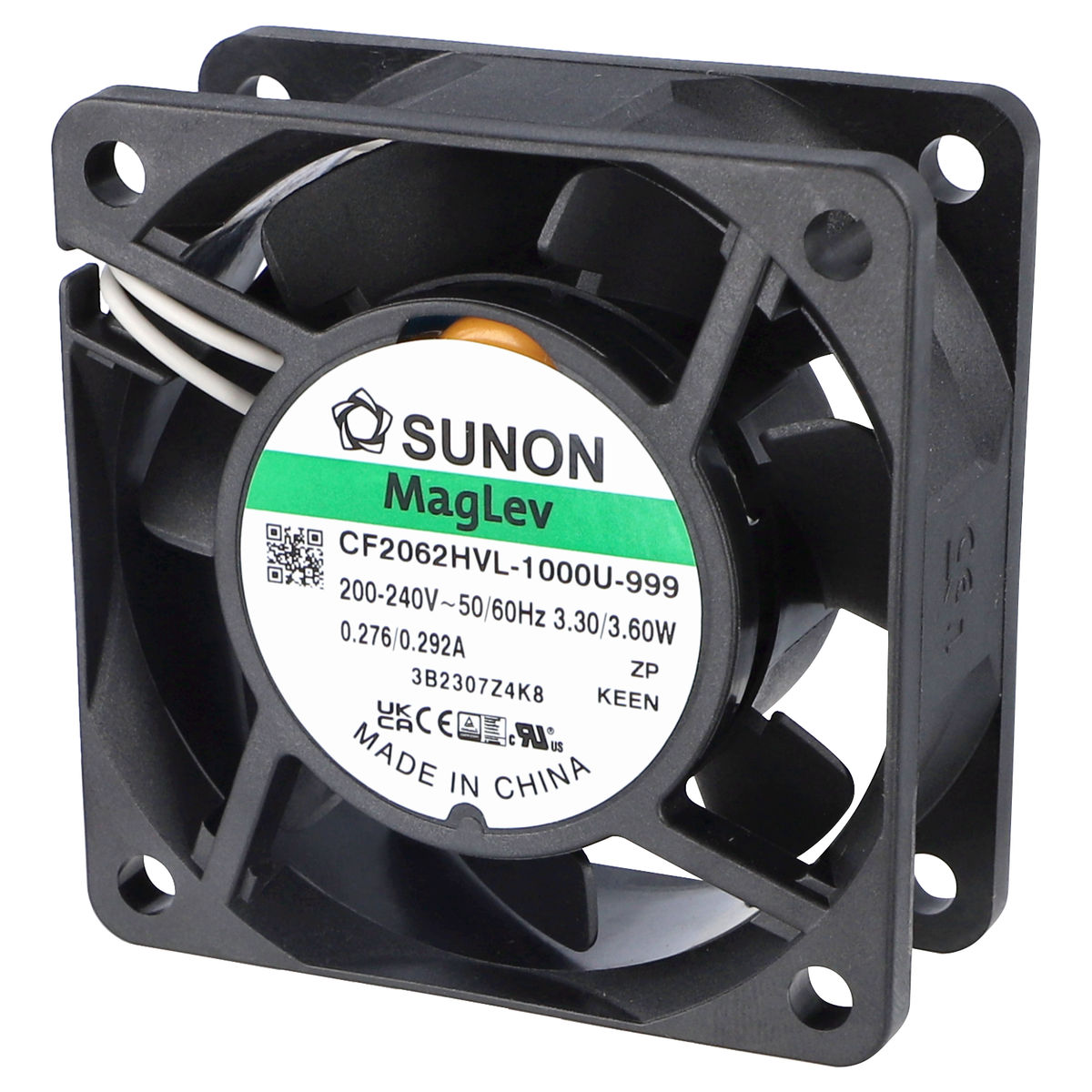

279 | | Manufacturers Part No. CF2062HVL-1000U-999(CF2062HVL1000U999) SUNON CF Axial Fan EC 230VAC 60mm x 25mm Vapo Bearing Strand AWG24, UL3266, 30cm, Stripped, Tinned 29,72m³/h 30dBA | Customer Part No. Customer Project No. | 1.769 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 230VAC | 60.0 mm | 60.0 mm | 25.0 mm | Vapo Bearing | 29.72 m³/h | 0.19 inch-H₂O | 30.0 dBA | 3.5 W | |||||||
280 | | Manufacturers Part No. EF80252S2-1000U-A99(EF80252S21000UA99) SUNON EF Axial DC fan 24VDC 80mm x 25mm Sleeve Bearing 62,85m³/h 30dBA | Customer Part No. Customer Project No. | 482 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 24VDC | 80.0 mm | 80.0 mm | 25.0 mm | Sleeve Bearing | 62.85 m³/h | 0.15 inch-H₂O | 30.0 dBA | 1.01 W | |||||||
281 | | Manufacturers Part No. MF40202VX-1000U-G99(MF40202VX1000UG99) SUNON MF Axial DC fan 24VDC 40mm x 20mm Vapo Bearing 18,34m³/h 27,5dBA Speedometer signal | Customer Part No. Customer Project No. | 3.494 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 24VDC | 40.0 mm | 40.0 mm | 20.0 mm | Speedometer signal | Vapo Bearing | 18.34 m³/h | 0.29 inch-H₂O | 27.5 dBA | 0.94 W | ||||||
282 | | Manufacturers Part No. MF92252V1-1000U-G99(MF92252V11000UG99) SUNON MF Axial DC fan 24VDC 92mm x 25mm Vapo Bearing 87,47m³/h 34dBA Speedometer signal | Customer Part No. Customer Project No. | 16 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 24VDC | 92.0 mm | 92.0 mm | 25.0 mm | Speedometer signal | Vapo Bearing | 87.47 m³/h | 0.15 inch-H₂O | 34.0 dBA | 1.8 W | ||||||
283 | | Manufacturers Part No. MF40201VX-1000U-G99(MF40201VX1000UG99) SUNON MF Axial DC fan 12VDC 40mm x 20mm Vapo Bearing 18,34m³/h 27,5dBA Speedometer signal | Customer Part No. Customer Project No. | 501 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 40.0 mm | 40.0 mm | 20.0 mm | Speedometer signal | Vapo Bearing | 18.34 m³/h | 0.29 inch-H₂O | 27.5 dBA | 0.96 W | ||||||
284 | | Manufacturers Part No. MF40101V1-1000U-G99(MF40101V11000UG99) SUNON MF Axial DC fan 12VDC 40mm x 10mm Vapo Bearing 13,58m³/h 27,3dBA Speedometer signal | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 40.0 mm | 40.0 mm | 10.0 mm | Speedometer signal | Vapo Bearing | 13.58 m³/h | 0.19 inch-H₂O | 27.3 dBA | 0.62 W | ||||||
285 | | Manufacturers Part No. MF40101VX-1000U-G99(MF40101VX1000UG99) SUNON MF Axial DC fan 12VDC 40mm x 10mm Vapo Bearing 16,81m³/h 31,4dBA Speedometer signal | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 40.0 mm | 40.0 mm | 10.0 mm | Speedometer signal | Vapo Bearing | 16.81 m³/h | 0.25 inch-H₂O | 31.4 dBA | 1.05 W | ||||||
286 | | Manufacturers Part No. HA30101V3-1000U-G99(HA30101V31000UG99) SUNON HA Axial DC fan 12VDC 30mm x 10mm Vapo Bearing 5,94m³/h 15,1dBA Speedometer signal | Customer Part No. Customer Project No. | 566 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 30.0 mm | 30.0 mm | 10.0 mm | Speedometer signal | Vapo Bearing | 5.94 m³/h | 0.1 inch-H₂O | 15.1 dBA | 0.3 W | ||||||
287 | | Manufacturers Part No. MF25100V1-1000U-G99(MF25100V11000UG99) SUNON MF Axial DC fan 5VDC 25mm x 10mm Vapo Bearing 5,95m³/h 23dBA Speedometer signal | Customer Part No. Customer Project No. | 711 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 25.0 mm | 25.0 mm | 10.0 mm | Speedometer signal | Vapo Bearing | 5.95 m³/h | 0.25 inch-H₂O | 23.0 dBA | 0.53 W | ||||||
288 | | Manufacturers Part No. MF30060V1-1000U-G99(MF30060V11000UG99) SUNON MF Axial DC fan 5VDC 30mm x 6mm Vapo Bearing 8,32m³/h 23,6dBA Speedometer signal | Customer Part No. Customer Project No. | 35 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 30.0 mm | 30.0 mm | 6.0 mm | Speedometer signal | Vapo Bearing | 8.32 m³/h | 0.17 inch-H₂O | 23.6 dBA | 0.56 W | ||||||
289 | | Manufacturers Part No. MF25101V1-1000U-G99(MF25101V11000UG99) SUNON MF Axial DC fan 12VDC 25mm x 10mm Vapo Bearing 6,45m³/h 26dBA Speedometer signal | Customer Part No. Customer Project No. | 774 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 25.0 mm | 25.0 mm | 10.0 mm | Speedometer signal | Vapo Bearing | 6.45 m³/h | 0.27 inch-H₂O | 26.0 dBA | 0.6 W | ||||||
290 | | Manufacturers Part No. MF30100V1-1000U-G99(MF30100V11000UG99) SUNON MF Axial DC fan 5VDC 30mm x 10mm Vapo Bearing 9,34m³/h 23dBA Speedometer signal | Customer Part No. Customer Project No. | 966 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 30.0 mm | 30.0 mm | 10.0 mm | Speedometer signal | Vapo Bearing | 9.34 m³/h | 0.2 inch-H₂O | 23.0 dBA | 0.6 W | ||||||
291 | | Manufacturers Part No. MF20100V2-1000U-A99(MF20100V21000UA99) SUNON MF Axial DC fan 5VDC 20mm x 10mm Vapo Bearing 2,55m³/h 20dBA | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 20.0 mm | 20.0 mm | 10.0 mm | Vapo Bearing | 2.55 m³/h | 0.2 inch-H₂O | 20.0 dBA | 0.4 W | |||||||
292 | | Manufacturers Part No. MF30101V1-1000U-A99(MF30101V11000UA99) SUNON MF Axial DC fan 12VDC 30mm x 10mm Vapo Bearing 9,34m³/h 23dBA | Customer Part No. Customer Project No. | 350 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 30.0 mm | 30.0 mm | 10.0 mm | Vapo Bearing | 9.34 m³/h | 0.25 inch-H₂O | 23.0 dBA | 0.66 W | |||||||
293 | | Manufacturers Part No. MF30101V1-1000U-G99(MF30101V11000UG99) SUNON MF Axial DC fan 12VDC 30mm x 10mm Vapo Bearing 9,34m³/h 23dBA Speedometer signal | Customer Part No. Customer Project No. | 1.099 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 30.0 mm | 30.0 mm | 10.0 mm | Speedometer signal | Vapo Bearing | 9.34 m³/h | 0.25 inch-H₂O | 23.0 dBA | 0.66 W | ||||||
294 | | Manufacturers Part No. MF30101V2-1000U-G99(MF30101V21000UG99) SUNON MF Axial DC fan 12VDC 30mm x 10mm Vapo Bearing 7,81m³/h 20dBA Speedometer signal | Customer Part No. Customer Project No. | 973 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 30.0 mm | 30.0 mm | 10.0 mm | Speedometer signal | Vapo Bearing | 7.81 m³/h | 0.14 inch-H₂O | 20.0 dBA | 0.39 W | ||||||
295 | | Manufacturers Part No. MF30100V2-1000U-G99(MF30100V21000UG99) SUNON MF Axial DC fan 5VDC 30mm x 10mm Vapo Bearing 7,98m³/h 21dBA Speedometer signal | Customer Part No. Customer Project No. | 1.123 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 30.0 mm | 30.0 mm | 10.0 mm | Speedometer signal | Vapo Bearing | 7.98 m³/h | 0.17 inch-H₂O | 21.0 dBA | 0.4 W | ||||||
296 | | Manufacturers Part No. MF40201V1-1000U-G99(MF40201V11000UG99) SUNON MF Axial DC fan 12VDC 40mm x 20mm Vapo Bearing 15,11m³/h 25,5dBA Speedometer signal | Customer Part No. Customer Project No. | 560 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 40.0 mm | 40.0 mm | 20.0 mm | Speedometer signal | Vapo Bearing | 15.11 m³/h | 0.22 inch-H₂O | 25.5 dBA | 0.7 W | ||||||
297 | | Manufacturers Part No. MF40201V3-1000U-G99(MF40201V31000UG99) SUNON MF Axial DC fan 12VDC 40mm x 20mm Vapo Bearing 10,70m³/h 16,5dBA Speedometer signal | Customer Part No. Customer Project No. | 609 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 40.0 mm | 40.0 mm | 20.0 mm | Speedometer signal | Vapo Bearing | 10.7 m³/h | 0.11 inch-H₂O | 16.5 dBA | 0.46 W | ||||||
298 | | Manufacturers Part No. MF30060V2-1000U-G99(MF30060V21000UG99) SUNON MF Axial DC fan 5VDC 30mm x 6mm Vapo Bearing 6,28m³/h 15,7dBA Speedometer signal | Customer Part No. Customer Project No. | 888 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 5VDC | 30.0 mm | 30.0 mm | 6.0 mm | Speedometer signal | Vapo Bearing | 6.28 m³/h | 0.11 inch-H₂O | 15.7 dBA | 0.36 W | ||||||
299 | | Manufacturers Part No. MF60251V1-1000U-G99(MF60251V11000UG99) SUNON MF Axial DC fan 12VDC 60mm x 25mm Vapo Bearing 39,91m³/h 27dBA Speedometer signal | Customer Part No. Customer Project No. | 370 Pcs. Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 12VDC | 60.0 mm | 60.0 mm | 25.0 mm | Speedometer signal | Vapo Bearing | 39.91 m³/h | 0.21 inch-H₂O | 27.0 dBA | 0.9 W | ||||||
300 | | Manufacturers Part No. MF60252VX-1000U-G99(MF60252VX1000UG99) SUNON MF Axial DC fan 24VDC 60mm x 25mm Vapo Bearing 45,86m³/h 31,2dBA Speedometer signal | Customer Part No. Customer Project No. | 793 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | SUNON | Axial | 24VDC | 60.0 mm | 60.0 mm | 25.0 mm | Speedometer signal | Vapo Bearing | 45.86 m³/h | 0.31 inch-H₂O | 31.2 dBA | 1.92 W |
