SRL-5-BS2
Lorlin SRL Key switch 17mm 24VDC 1A 2 Switch position
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
116 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Key switch
- Series
- SRL
- Type of actuator
- Key
- Number of switch positions
- 2
- Diameter
- 17 mm
- illumination
- unlit
- Operating voltage AC
- 115 V AC
- Switching current, max.
- 1 A
- Panel cut out
- 13x16mm
- Operating voltage DC
- 24 V DC
- Operating temperature range, min.
- -20 °C
- Operating temperature range, max.
- 65 °C
- RoHS-Conform
Specifications
Open all

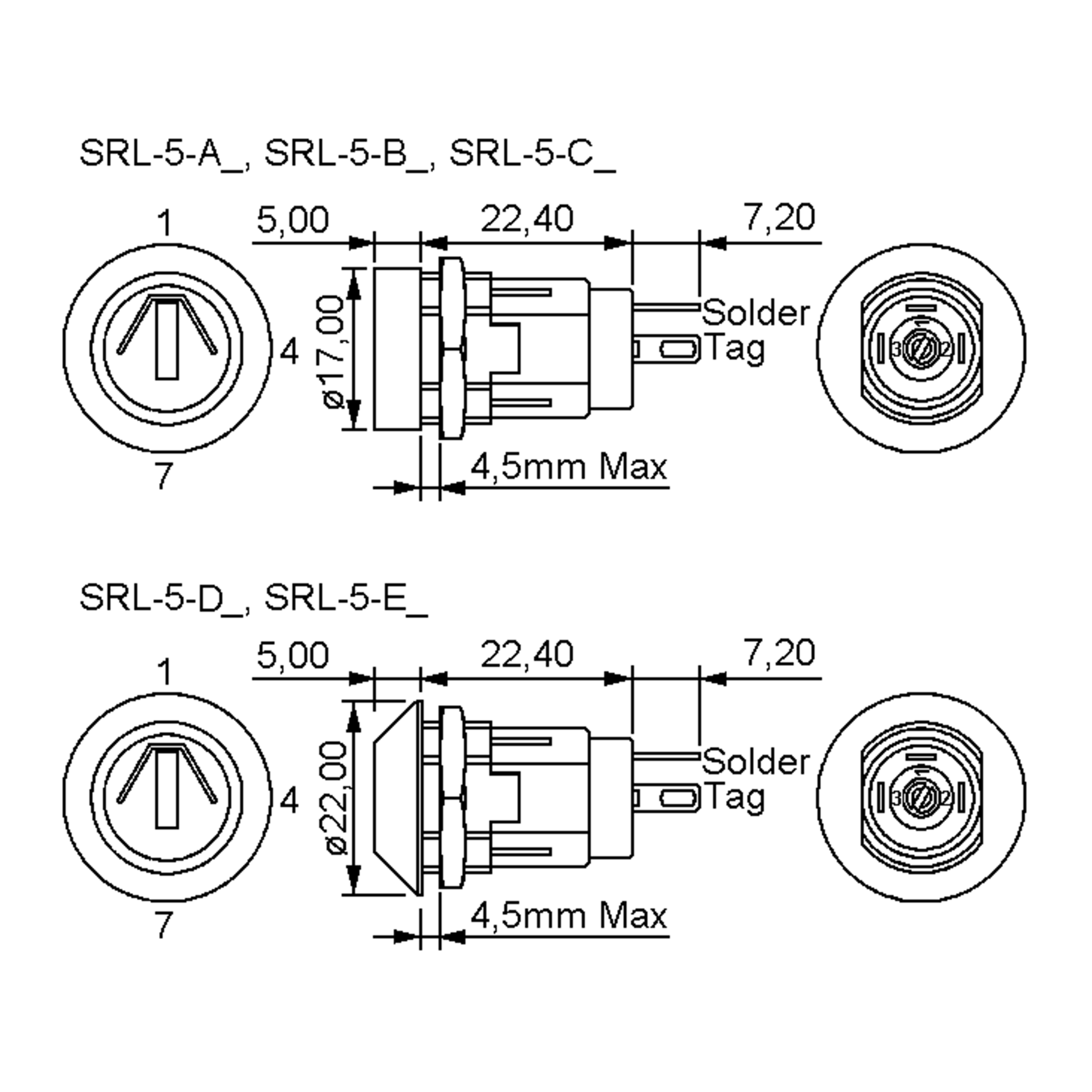

Dimensions and weights
- Dimension: Length
- 27.4 mm
- Diameter
- 17 mm
- Panel cut out
- 13x16mm
Operating conditions
- Operating temperature range, min.
- -20 °C
- Operating temperature range, max.
- 65 °C
Technical features
- Operating voltage DC
- 24 V DC
- Operating voltage AC
- 115 V AC
- Test voltage
- 750 V DC, 1min.
- Mechanical service life
- 10^4 Betätigungen
- Switching current, max.
- 1 A
- Contact resistance, max.
- 20 mOhm
- Insulation resistance, min.
- 999 MOhm
- Material: Terminals
- CZ108 brass, silver plated
Mechanical properties
- Connection
- Soldering eye
- switching angle
- 90 °
- Number of switch positions
- 2
