CK-1049

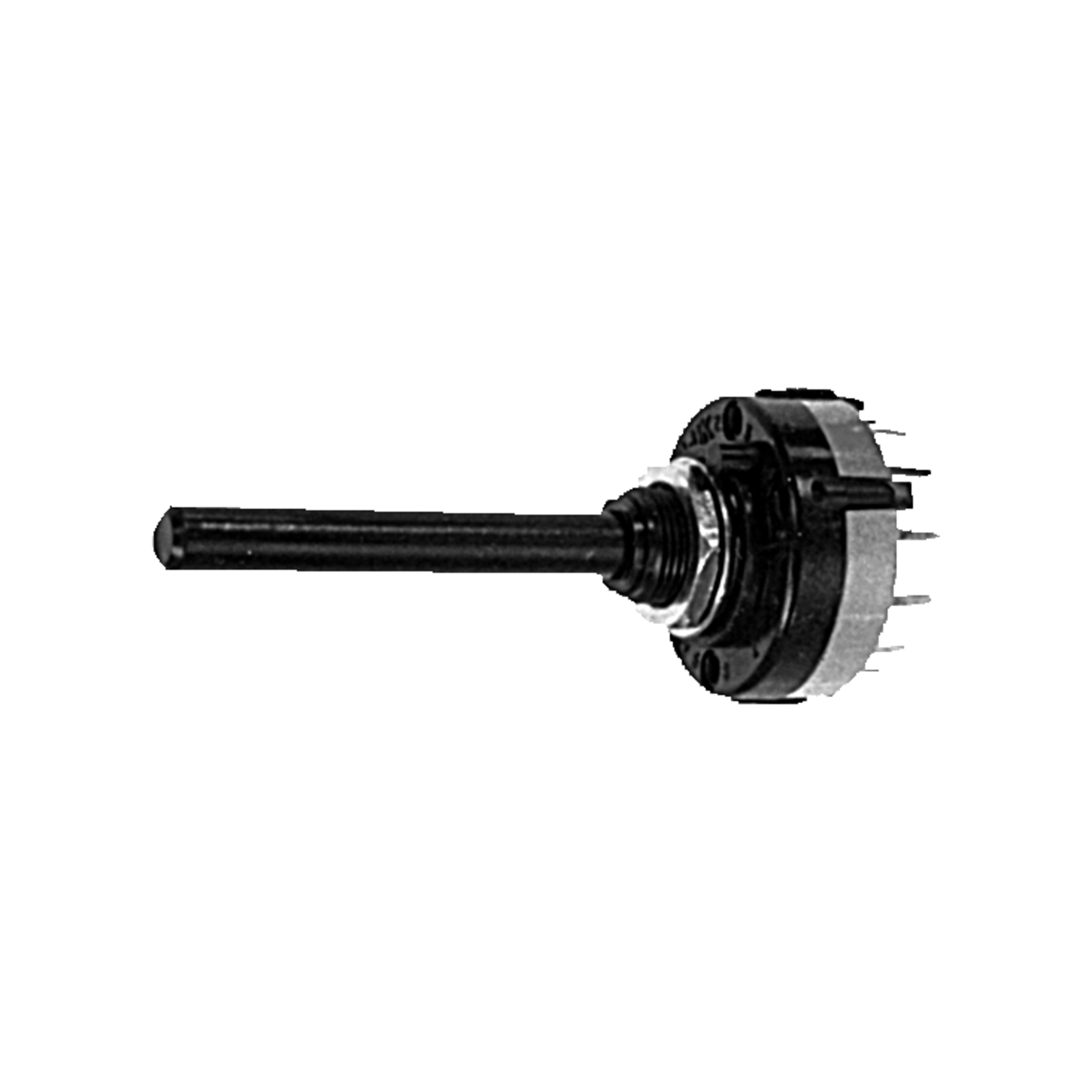

Lorlin CK Rotary switch 1x12 27,5mm 250VDC 0,15A 12 Switch position 1 Pol(e) not bridging
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.955 Pcs. in stock
Next Stock Receipt
Week 51/2024
500 Pcs.
500 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Rotary switch
- Series
- CK
- Body colour
- black
- Type of actuator
- Spindle

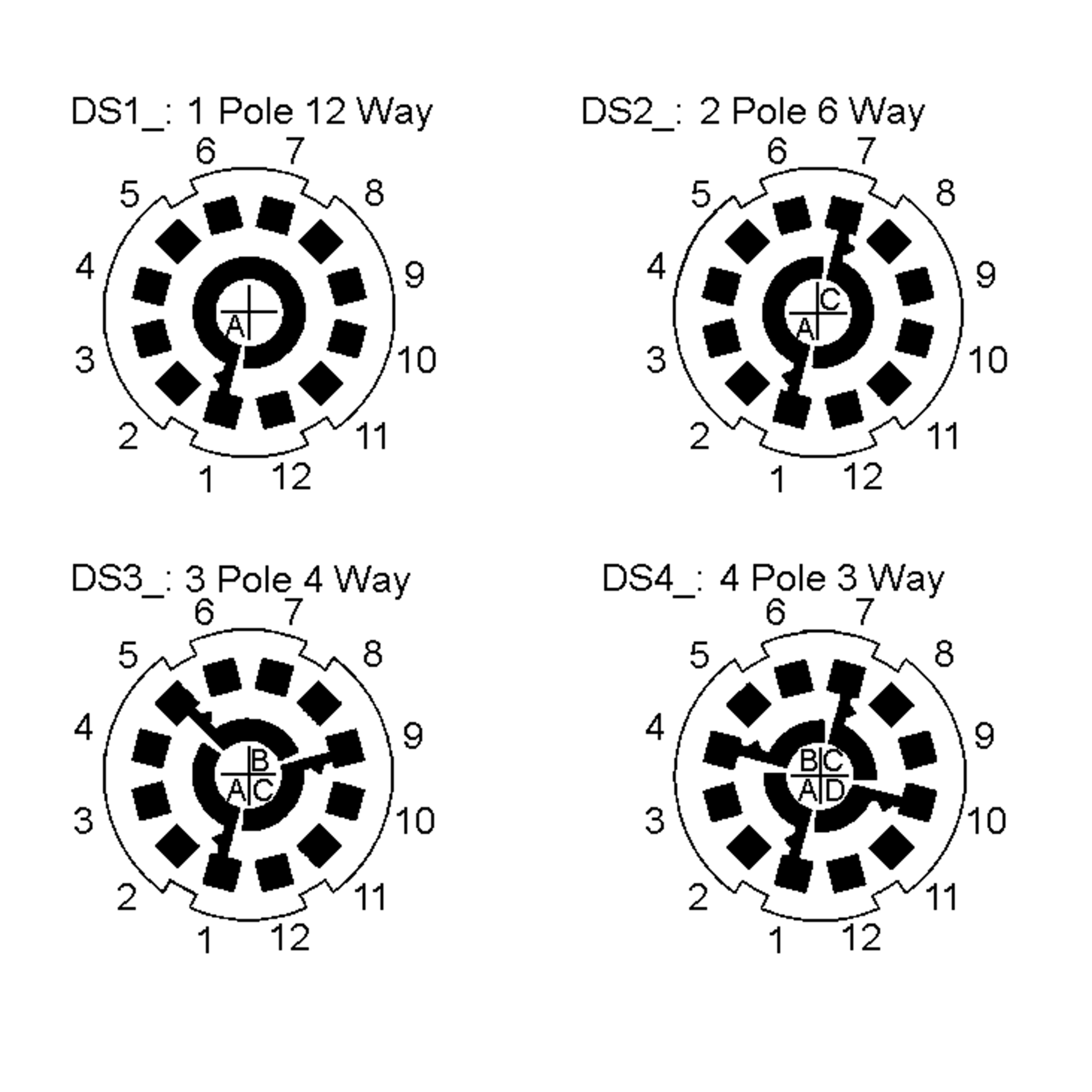

- Function
- 1x12
- Number of switch positions
- 12
- Actuator colour
- black
- Diameter
- 27.5 mm
- Number of poles
- 1
- illumination
- unlit
- Operating voltage AC
- 250 V AC
- Switching current, max.
- 0.15 A
- Operating voltage DC
- 250 V DC
- Operating temperature range, min.
- -30 °C
- Operating temperature range, max.
- 85 °C
- RoHS-Conform
Specifications
Open all

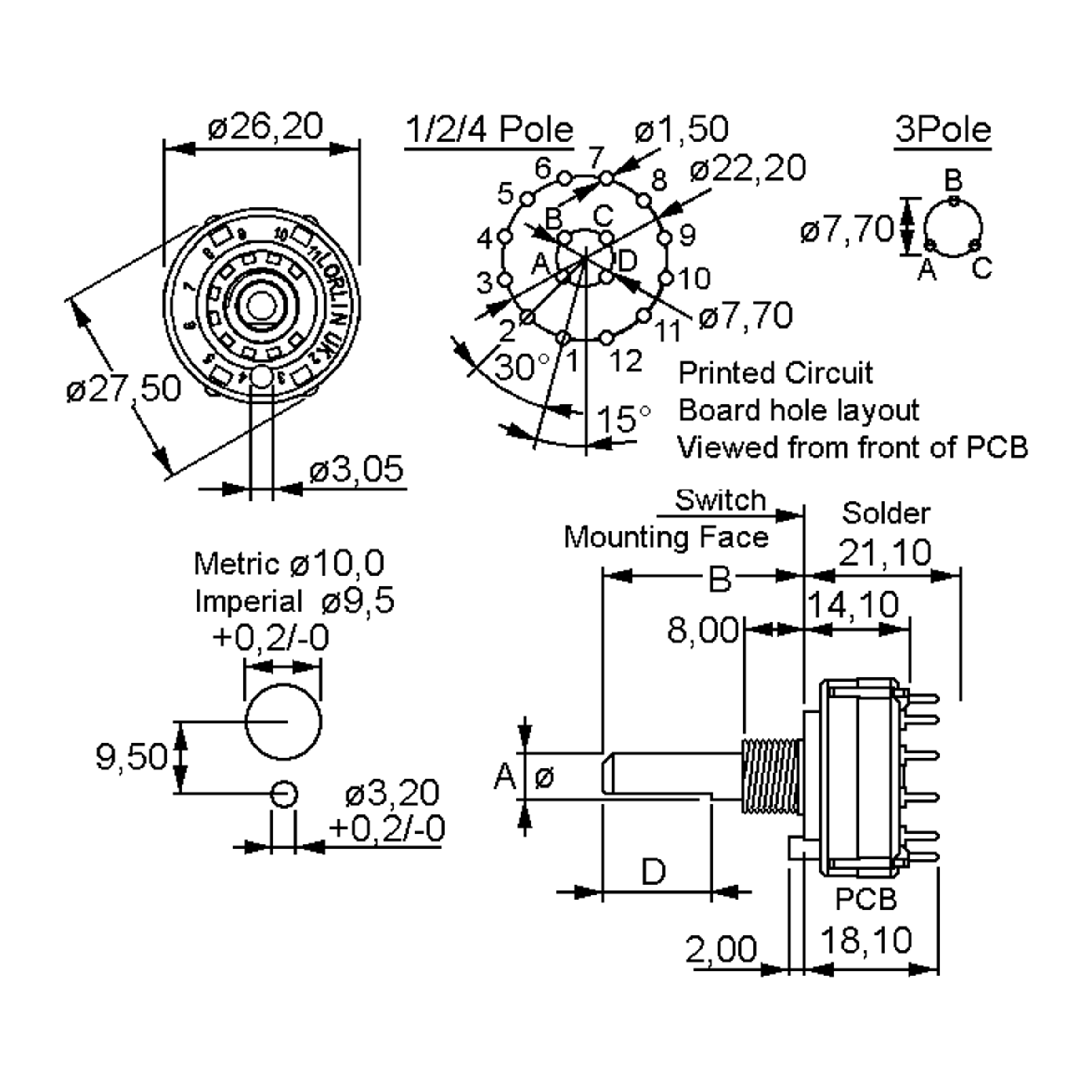

Dimensions and weights
- Diameter
- 27.5 mm
Operating conditions
- Operating temperature range, min.
- -30 °C
- Operating temperature range, max.
- 85 °C
Technical features
- Operating voltage DC
- 250 V DC
- Operating voltage AC
- 250 V AC
- Test voltage
- 1.500 V AC, 1min.
- Mechanical service life
- 10^4 Betätigungen
- Switching current, max.
- 0.15 A
- Contact resistance
- 20 mOhm
- Insulation resistance, min.
- 999 MOhm
- Material: Body
- Polyamide 6.6, glass fiber reinforced
- Material: Terminals
- Brass, silver plated
Mechanical properties
- Thread
- M10 x 0,75
- Connection
- Solder pin
- switching angle
- 30 °
- Number of switch positions
- 12
- Number of poles
- 1
