CK-1029

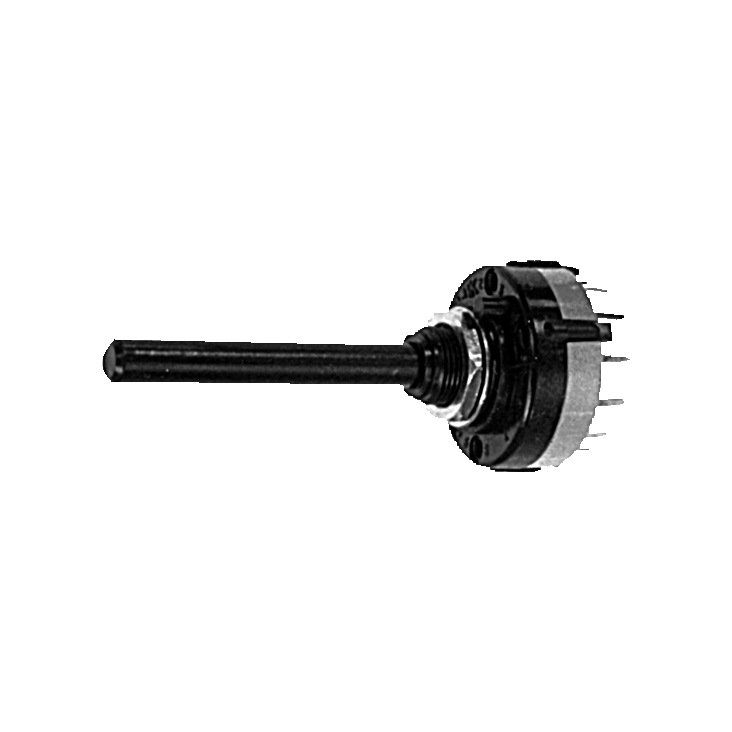

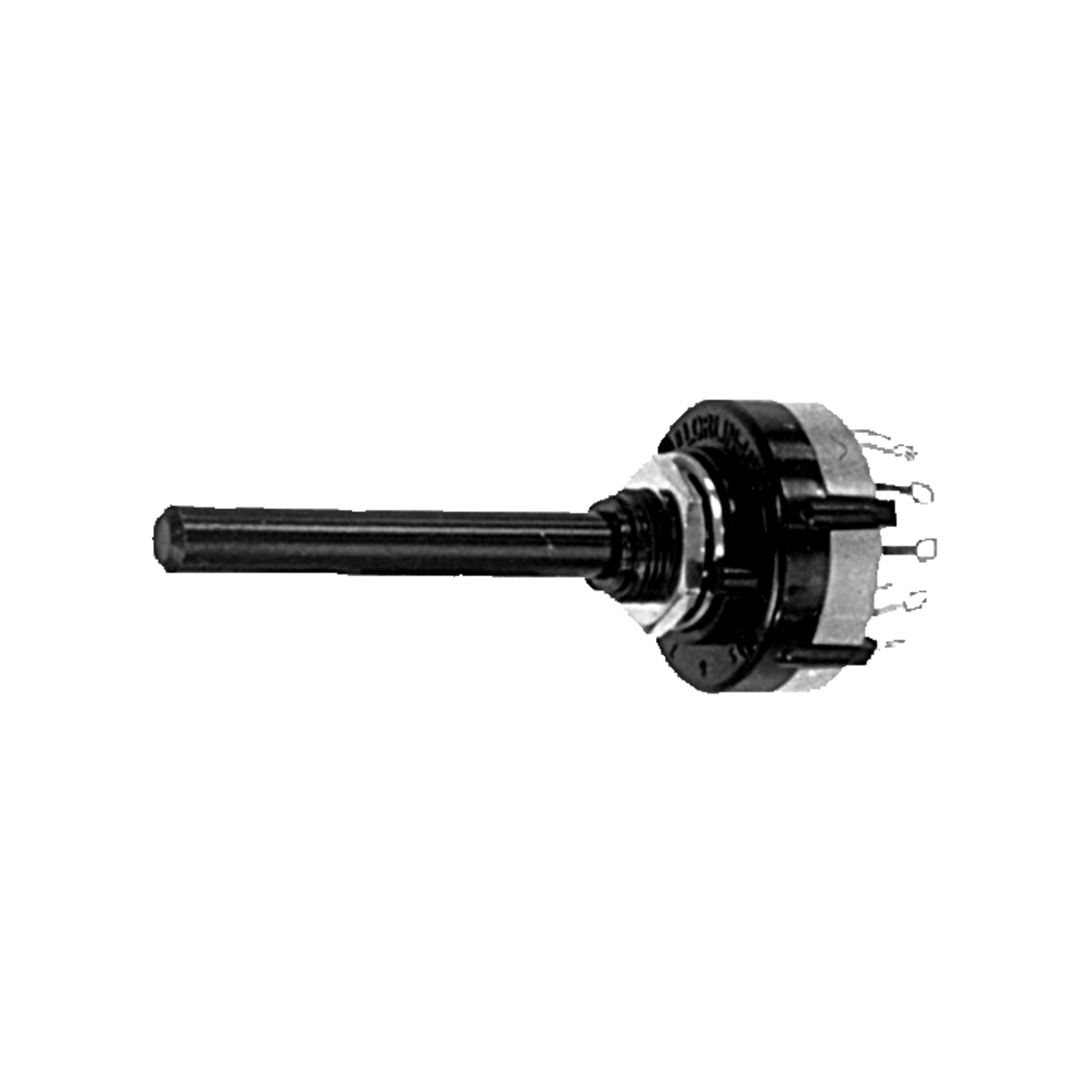

Lorlin CK Rotary switch 1x12 27,5mm 24VDC 0,15A 12 Switch position 1 Pol(e) not bridging
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 14.08.2023
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Rotary switch
- Series
- CK
- Body colour
- black
- Type of actuator
- Spindle
- Function
- 1x12
- Number of switch positions
- 12
- Actuator colour
- black
- Diameter
- 27.5 mm
- Number of poles
- 1
- illumination
- unlit
- Operating voltage AC
- 24 V AC
- Switching current, max.
- 0.15 A
- Operating voltage DC
- 24 V DC
- Operating temperature range, min.
- -30 °C
- Operating temperature range, max.
- 85 °C
- RoHS-Conform
Specifications
Open all

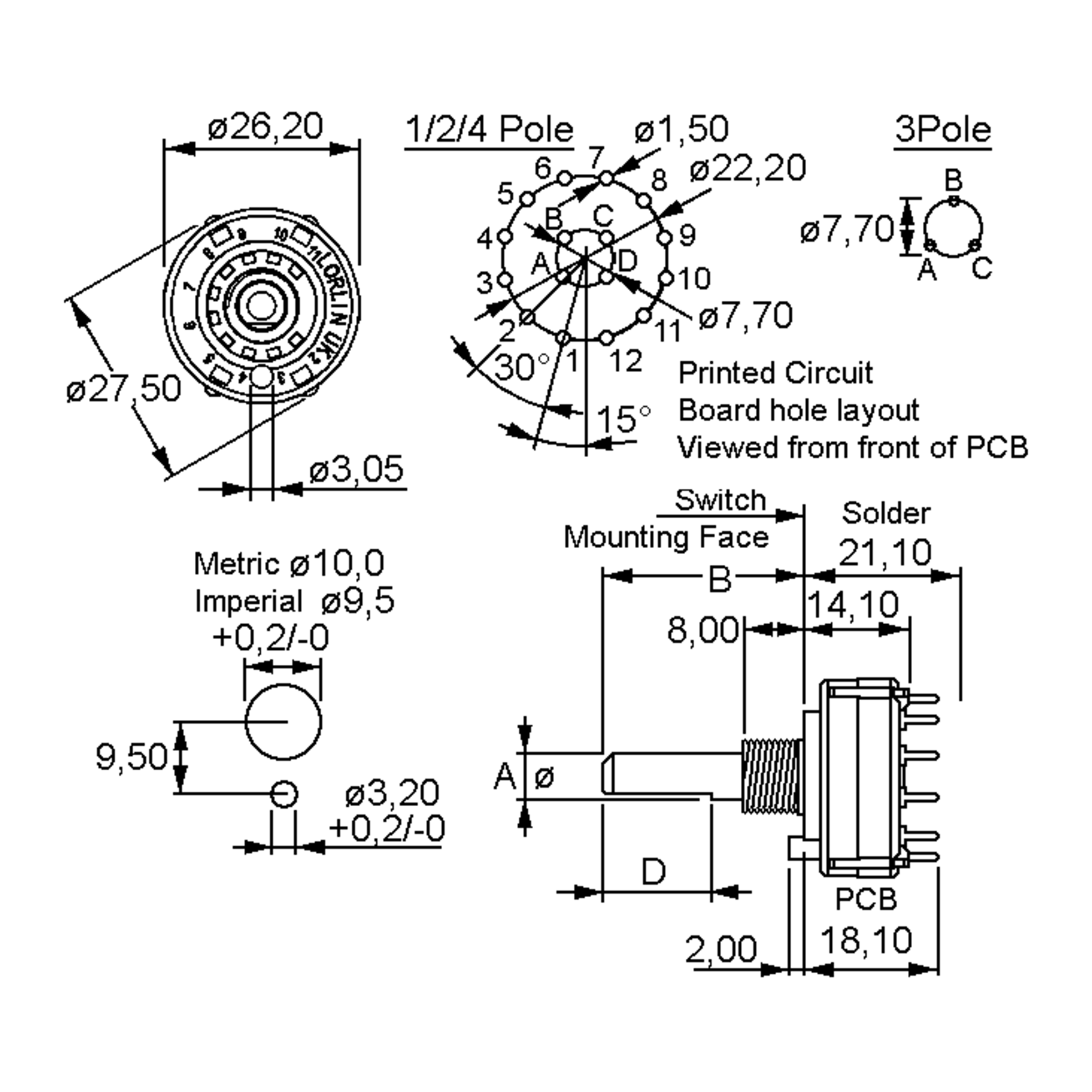

Dimensions and Weights
- Diameter
- 27.5 mm
Operating conditions
- Operating temperature range, min.
- -30 °C
- Operating temperature range, max.
- 85 °C
Technical Features
- Operating voltage DC
- 24 V DC
- Operating voltage AC
- 24 V AC
- Test voltage
- 1.500 V AC, 1min.
- Mechanical service life
- 10^4 Betätigungen
- Switching current, max.
- 0.15 A
- Contact resistance
- 20 mOhm
- Insulation resistance, min.
- 999 MOhm
- Material: Body
- Polyamide 6.6, glass fiber reinforced
- Material: Terminals
- Brass, silver plated

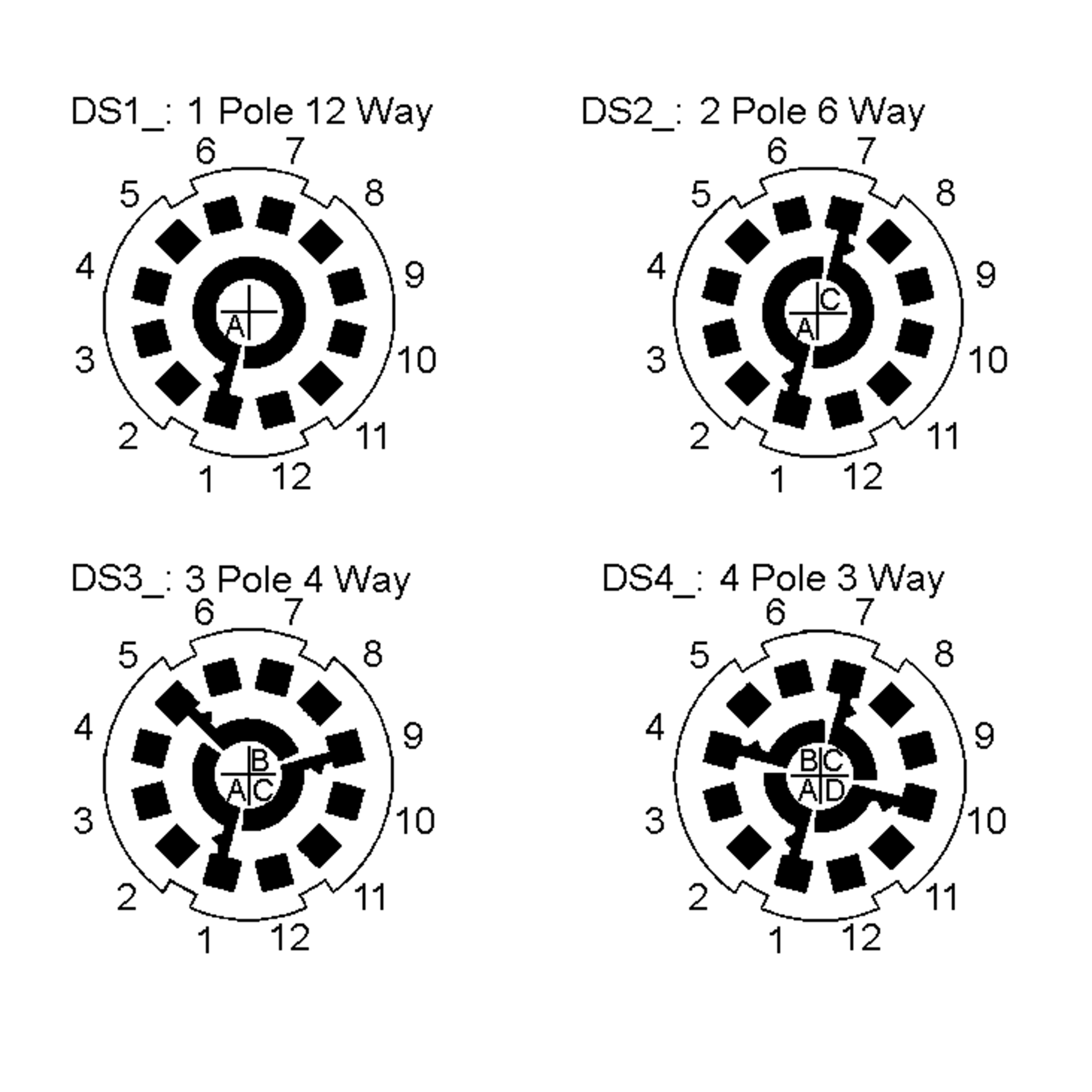

Mechanical properties
- Thread
- M10 x 0,75
- Connection
- Soldering eye
- switching angle
- 30 °
- Number of switch positions
- 12
- Number of poles
- 1
