RXEF005
Littelfuse Poly-Switch Fuse RXEF 60VDC 0,05A radial RM5,8mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
6.240 Pcs. in stock
Next Stock Receipt
Week 23/2026
1.500 Pcs.
1.500 Pcs.
Planned delivery time
Ø 11 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Self-resetting fuse
- Series
- RXEF
- Rated current
- 0.05 A
- Interrupting Current, Max.
- 40 A
- Rated voltage V DC
- 60 V DC
- RoHS-Conform
Specifications
Open all

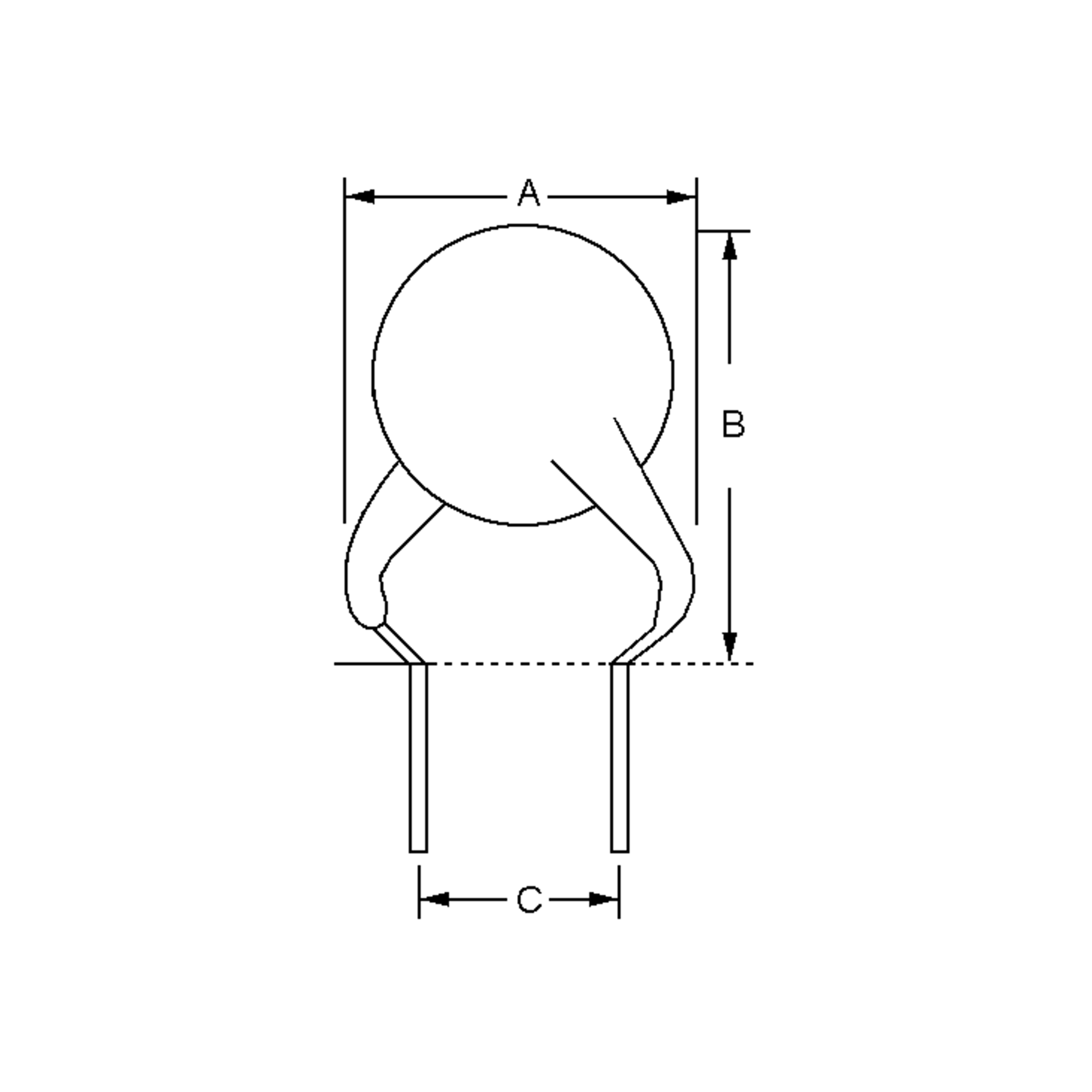

Dimensions and Weights
- Dimension: Width
- 3 mm
- Dimension: Height
- 15.9 mm
- Diameter
- 8 mm
- Pitch
- 5.8 mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
Technical Features
- Rated current
- 0.05 A
- Interrupting Current, Max.
- 40 A
- Rated voltage V DC
- 60 V DC
- Max. resistance 1 hour after switching off
- 20,000 mOhm
- Tripping time with specified reference current IS
- 5 s
Safety/Certifications
- Approvals
- MOT
- UL
- cCSA
Documents
PCN_47-IDM_EN.pdf
