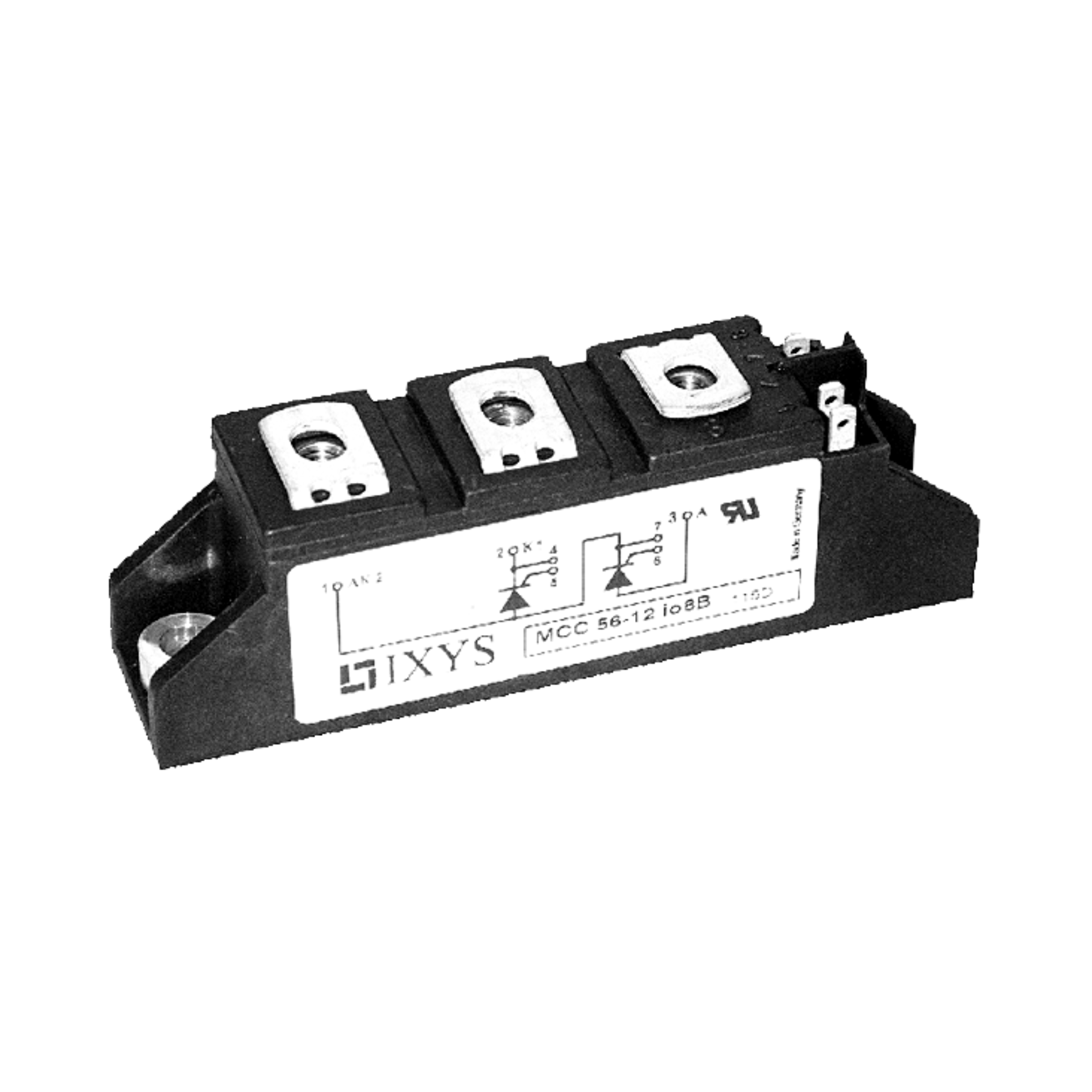

MCC56-16IO8B
Littelfuse Chassis Mount Thyristor Module 94A 1.600V TO-240AA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
36 Pcs.
36 Pcs.
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 36 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 36 or multiple of 36)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (IT(RMS)) RMS Forward Current Max.
- 94 A
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 1,600 V
- (IT(SM)) Non-Repetitive Peak On-State Current
- 1,500 A
- (I(GT)) Gate Trigger Current
- 100 mA
- Manufacturer Package
- TO-240AA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 125 °C
Electrical properties
- (IT(RMS)) RMS Forward Current Max.
- 94 A
- (IT(SM)) Non-Repetitive Peak On-State Current
- 1,500 A
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 1,600 V
- (I(GT)) Gate Trigger Current
- 100 mA
