IXTK180N15P

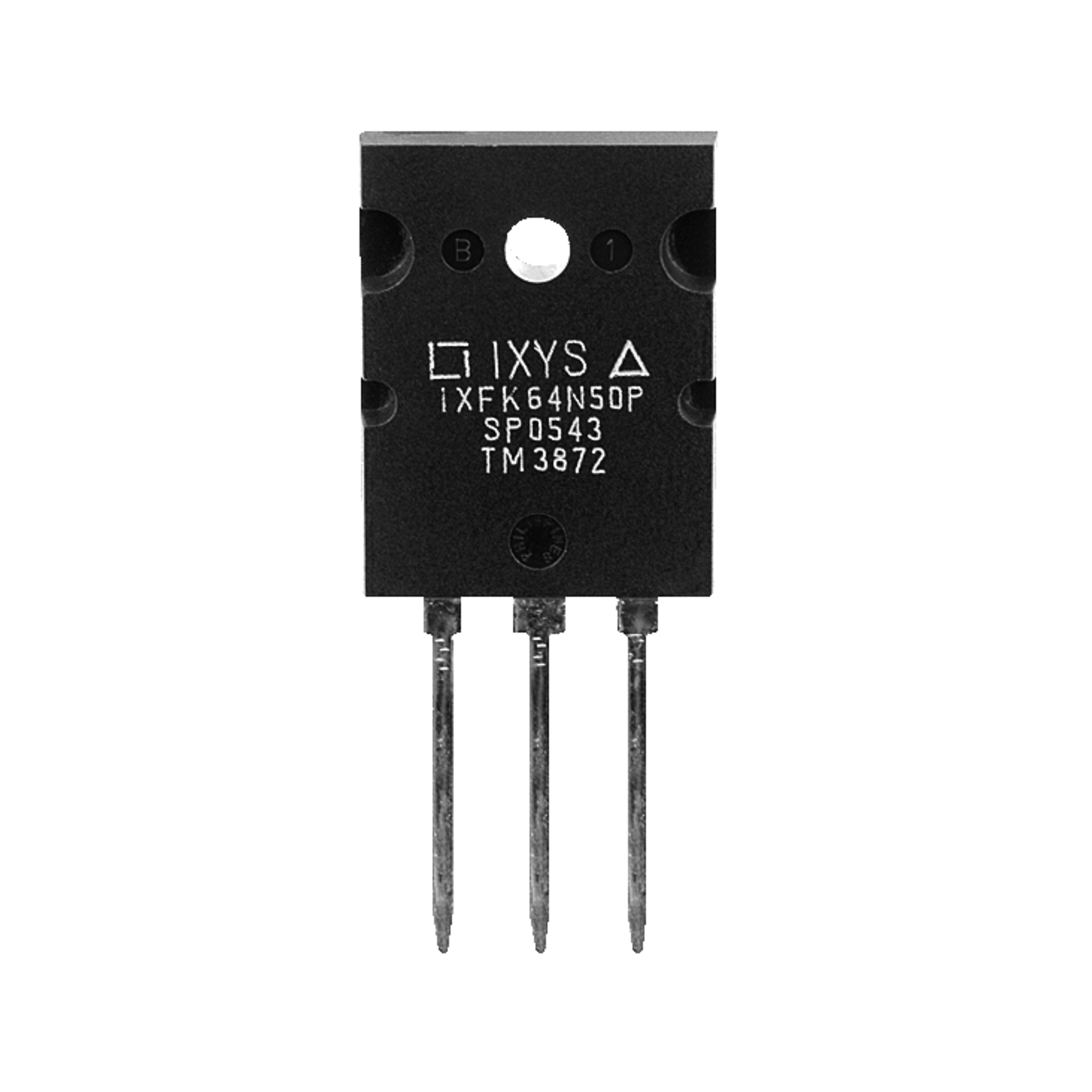

Littelfuse THT Power MOSFET N-Channel 180ATc(25°C) 800W 11mOhm  TO-264

IXTK180N15P
Manufacturer Part No.
IXTK180N15P
Schukat Part No.
IXTK180N15P
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

22 Pcs. in stock

Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Number of Channels
1
Polarity
N-Channel
(Id) Continuous Drain Current
180 A Tc (25°C)
(Pd) Power Dissipation
800 W
(RDS(on)) Drain-Source Widerstand max. Q1
11 mOhm
Manufacturer Package
TO-264
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Littelfuse
Type
  • Power MOSFET
Series
  • Polar™
Product group
  • U8344
Packaging
  • Tube
Assembly Type
  • THT
Pin Count
  • 3
Manufacturer Package
  • TO-264
Configuration
  • Single
Technology
  • Planar
Material
  • Si
Betriebsmodus
  • Enhancement

Operating conditions

Barrier Layer temperature, min. (TJ)
  • -55 °C
Barrier Layer Temperature, max. (TJ)
  • 175 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 175 °C

Electrical Properties

(Uds) Max. Drain-Source Voltage
  • 150 V
(Id) Continuous Drain Current
  • 180 A Tc (25°C)
(Id) Continuous Drain Current Temperatur Q1
  • Tc (25°C)
(Ugs) Gate-Source Voltage
  • ±20V
(Ugs th) Gate-Source Threshold Voltage
  • 5 V
(Ugs th) Gate-Source Schwellspannung min. Q1
  • 2.5 V
(Ugs th) Gate-Source Schwellspannung max. Q1
  • 5 V
Number of Channels
  • 1
Polarity
  • N-Channel
(Pd) Power Dissipation
  • 800 W
(Pd) Verlustleistung Temperatur
  • Tc (25°C)
(RDS(on)) Drain-Source Widerstand max. Q1
  • 11 mOhm
(RDS(on)) Drain-Source Widerstand max.
  • 11 mOhm  VGS (10V), ID (0,5*ID25)
  • 11 mOhm
(Qg) Gate Charge
  • 240 nC
Vorwärtstranskonduktanz min. Q1
  • 55 s
Anstiegszeit Q1
  • 32 ns
Typische Ausschaltverzögerungszeit Q1
  • 150 ns
Abfallzeit Q1
  • 36 ns

Documents

PCN_47-IDM_EN.pdf
PCN_118305_EN.pdf
PCN_20251210_EN.pdf
PCN_LFPCN-DMI-BTA-2024-002_01_EN.pdf
PCN_LFPCN-DMI-BTA-2024-003_01_EN.pdf
PCN_LFPCN-DMI-BTA-2024-003_02_EN.pdf
