IXFN80N50P

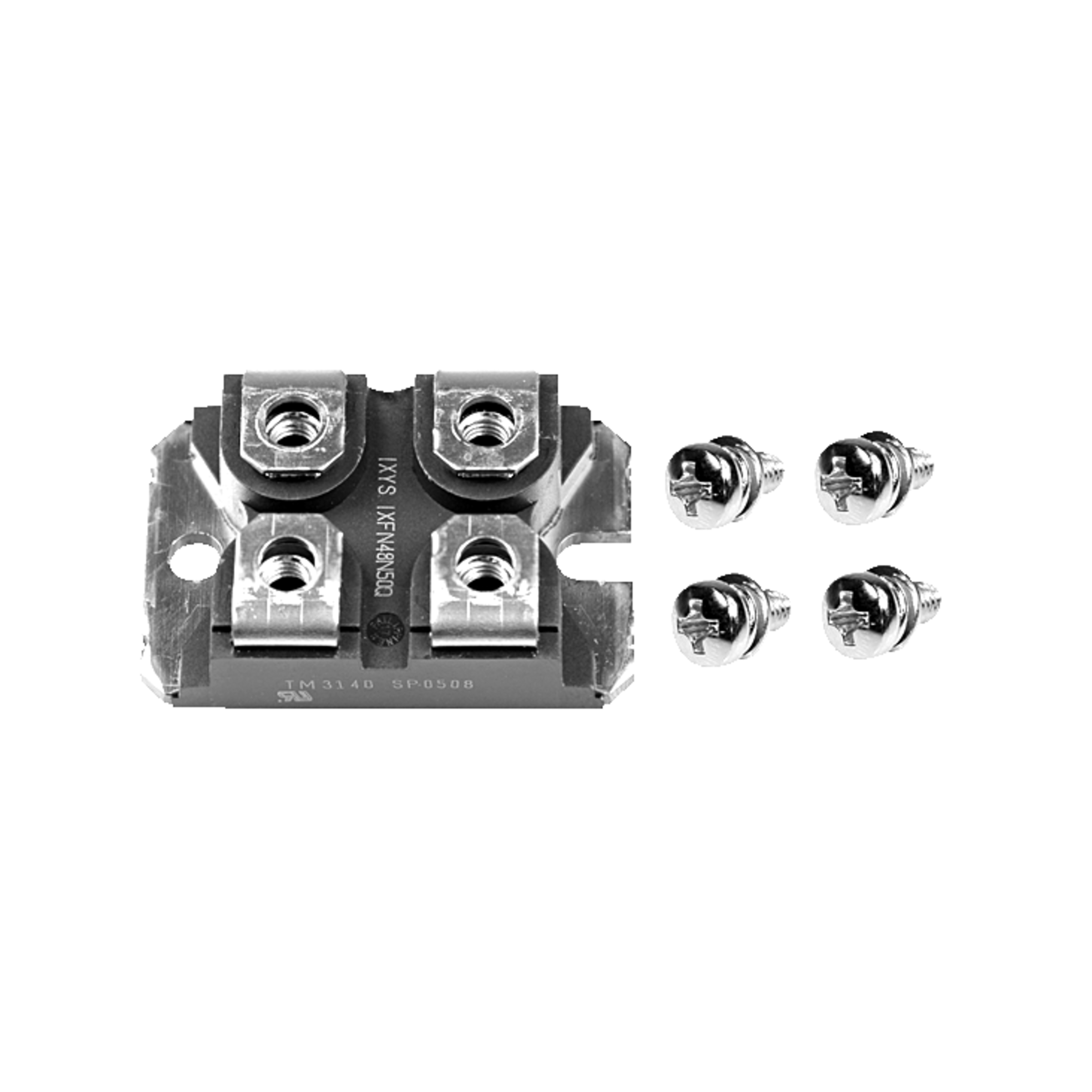

Littelfuse Chassis mounting Power MOSFET N-Channel 66ATc(25°C) 700W 65mOhm  SOT-227B (miniBLOC)

IXFN80N50P
Manufacturer Part No.
IXFN80N50P
Schukat Part No.
IXFN80N50P
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

267 Pcs. in stock

Planned delivery time
Ø 60 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Number of Channels
1
Polarity
N-Channel
(Id) Continuous Drain Current
66 A Tc (25°C)
(Pd) Power Dissipation
700 W
(RDS(on)) Drain-Source Widerstand max. Q1
65 mOhm
Manufacturer Package
SOT-227B (miniBLOC)
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Littelfuse
Type
  • Power MOSFET
Series
  • PolarHV™ HiPerFET™
Product group
  • U8347
Packaging
  • Tube
Assembly Type
  • Chassis mounting
Manufacturer Package
  • SOT-227B (miniBLOC)
Configuration
  • Single
Technology
  • Planar
Material
  • Si
Betriebsmodus
  • Enhancement

Operating conditions

Barrier Layer temperature, min. (TJ)
  • -55 °C
Barrier Layer Temperature, max. (TJ)
  • 150 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 150 °C

Electrical Properties

(Uds) Max. Drain-Source Voltage
  • 500 V
(Id) Continuous Drain Current
  • 66 A Tc (25°C)
(Id) Continuous Drain Current Temperatur Q1
  • Tc (25°C)
(Ugs) Gate-Source Voltage
  • ±30V
(Ugs th) Gate-Source Threshold Voltage
  • 5 V
(Ugs th) Gate-Source Schwellspannung min. Q1
  • 3 V
(Ugs th) Gate-Source Schwellspannung max. Q1
  • 5 V
Number of Channels
  • 1
Polarity
  • N-Channel
(Pd) Power Dissipation
  • 700 W
(Pd) Verlustleistung Temperatur
  • Tc (25°C)
(RDS(on)) Drain-Source Widerstand max. Q1
  • 65 mOhm
(RDS(on)) Drain-Source Widerstand max.
  • 65 mOhm  VGS (10V), ID (0,5*ID25)
  • 65 mOhm
(Qg) Gate Charge
  • 195 nC
Vorwärtstranskonduktanz min. Q1
  • 35 s
Anstiegszeit Q1
  • 27 ns
Typische Ausschaltverzögerungszeit Q1
  • 70 ns
Abfallzeit Q1
  • 18 ns
