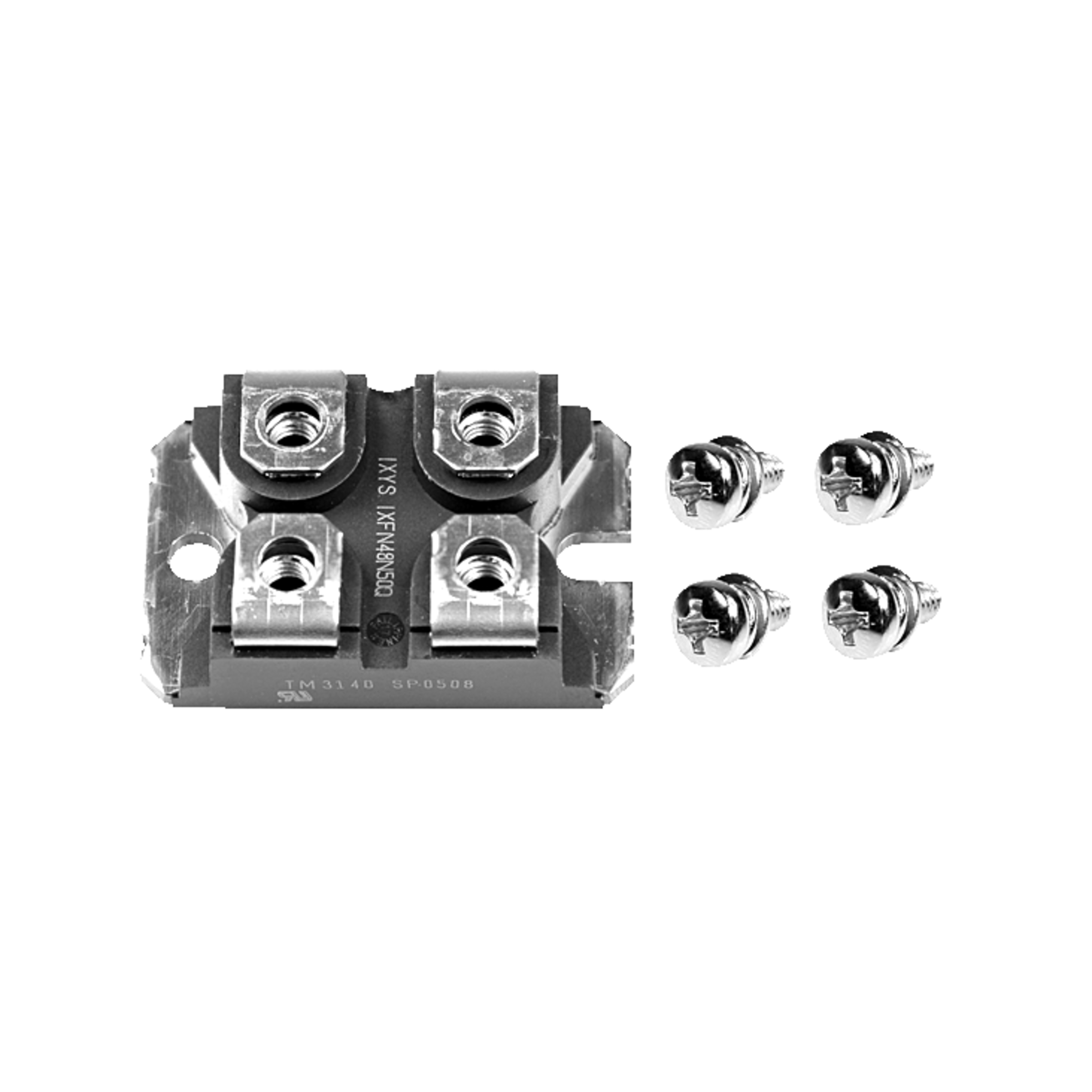

IXFN56N90P

Littelfuse Chassis mounting Power MOSFET N-Channel 56ATc(25°C) 1.000W 145mOhm  SOT-227B (miniBLOC)

IXFN56N90P
Manufacturer Part No.
IXFN56N90P
Schukat Part No.
IXFN56N90P
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 38 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 300 or multiple of 300)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Number of Channels
1
Polarity
N-Channel
(Id) Continuous Drain Current
56 A Tc (25°C)
(Pd) Power Dissipation
1,000 W
(RDS(on)) Drain-Source Widerstand max. Q1
145 mOhm
Manufacturer Package
SOT-227B (miniBLOC)
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Littelfuse
Type
  • Power MOSFET
Series
  • Polar™ HiPerFET™
Product group
  • U8347
Packaging
  • Tube
Assembly Type
  • Chassis mounting
Manufacturer Package
  • SOT-227B (miniBLOC)
Configuration
  • Single
Technology
  • Planar
Material
  • Si
Betriebsmodus
  • Enhancement

Operating conditions

Barrier Layer temperature, min. (TJ)
  • -55 °C
Barrier Layer Temperature, max. (TJ)
  • 150 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 150 °C

Electrical Properties

(Uds) Max. Drain-Source Voltage
  • 900 V
(Id) Continuous Drain Current
  • 56 A Tc (25°C)
(Id) Continuous Drain Current Temperatur Q1
  • Tc (25°C)
(Ugs) Gate-Source Voltage
  • ±30V
(Ugs th) Gate-Source Threshold Voltage
  • 6,5 V
(Ugs th) Gate-Source Schwellspannung min. Q1
  • 3.5 V
(Ugs th) Gate-Source Schwellspannung max. Q1
  • 6.5 V
Number of Channels
  • 1
Polarity
  • N-Channel
(Pd) Power Dissipation
  • 1,000 W
(Pd) Verlustleistung Temperatur
  • Tc (25°C)
(RDS(on)) Drain-Source Widerstand max. Q1
  • 145 mOhm
(RDS(on)) Drain-Source Widerstand max.
  • 145 mOhm  VGS (10V), ID (0,5*ID25)
  • 145 mOhm
(Qg) Gate Charge
  • 375 nC
Vorwärtstranskonduktanz min. Q1
  • 27 s
Anstiegszeit Q1
  • 80 ns
Typische Ausschaltverzögerungszeit Q1
  • 93 ns
Abfallzeit Q1
  • 38 ns
