IXFN320N17T2

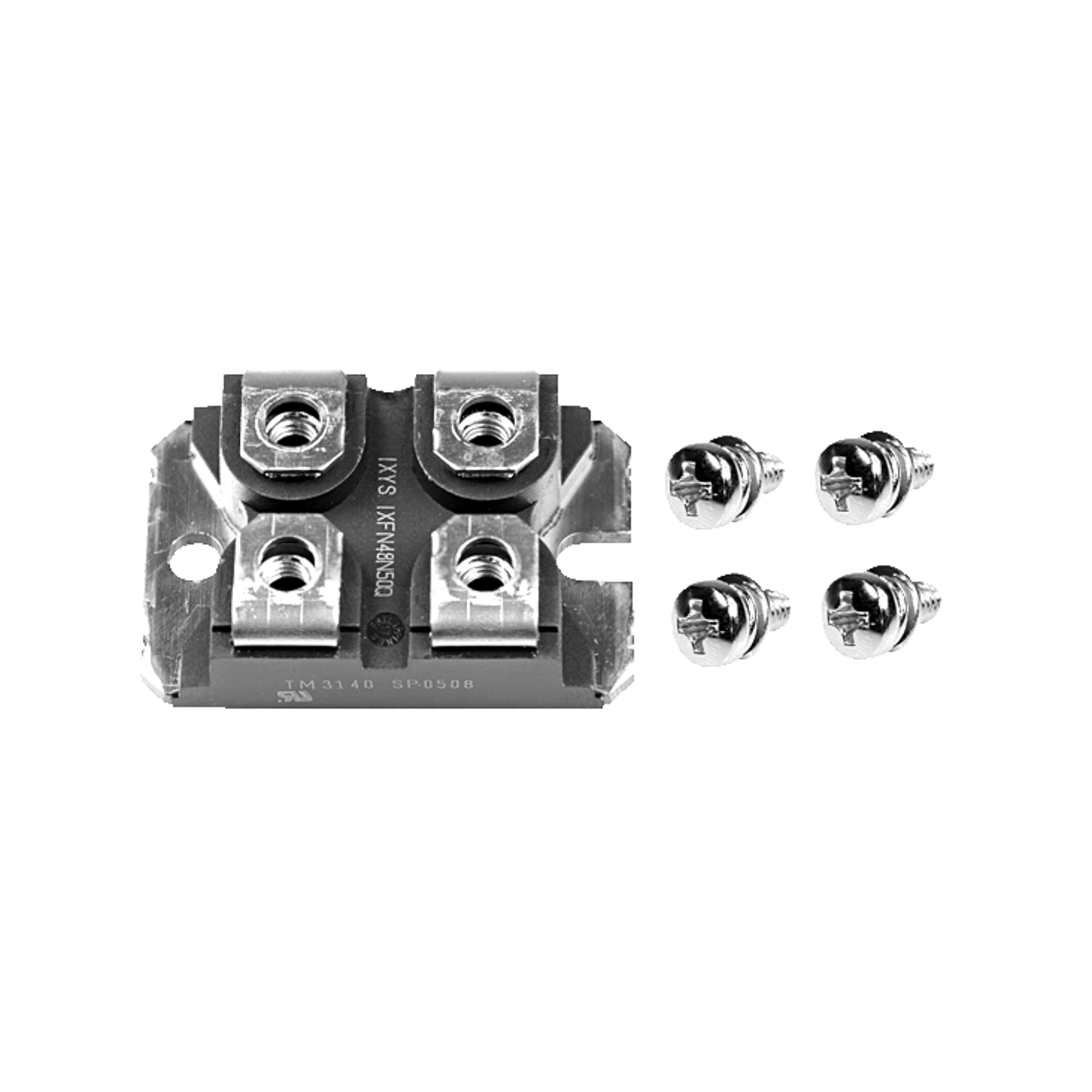

Littelfuse Chassis mounting Power MOSFET N-Channel 260ATc(25°C) 1.070W 5,2mOhm  SOT-227B (miniBLOC)

IXFN320N17T2
Manufacturer Part No.
IXFN320N17T2
Schukat Part No.
IXFN320N17T2
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

7 Pcs. in stock

Planned delivery time
Ø 80 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Number of Channels
1
Polarity
N-Channel
(Id) Continuous Drain Current
260 A Tc (25°C)
(Pd) Power Dissipation
1,070 W
(RDS(on)) Drain-Source Widerstand max. Q1
5.2 mOhm
Manufacturer Package
SOT-227B (miniBLOC)
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Littelfuse
Type
  • Power MOSFET
Series
  • GigaMOS™ HiperFET™
Product group
  • U8347
Packaging
  • Tube
Assembly Type
  • Chassis mounting
Manufacturer Package
  • SOT-227B (miniBLOC)
Configuration
  • Single
Technology
  • TrenchT2™
Material
  • Si
Betriebsmodus
  • Enhancement

Operating conditions

Barrier Layer temperature, min. (TJ)
  • -55 °C
Barrier Layer Temperature, max. (TJ)
  • 175 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 175 °C

Electrical Properties

(Uds) Max. Drain-Source Voltage
  • 170 V
(Id) Continuous Drain Current
  • 260 A Tc (25°C)
(Id) Continuous Drain Current Temperatur Q1
  • Tc (25°C)
(Ugs) Gate-Source Voltage
  • ±20V
(Ugs th) Gate-Source Threshold Voltage
  • 5 V
(Ugs th) Gate-Source Schwellspannung min. Q1
  • 2.5 V
(Ugs th) Gate-Source Schwellspannung max. Q1
  • 5 V
Number of Channels
  • 1
Polarity
  • N-Channel
(Pd) Power Dissipation
  • 1,070 W
(Pd) Verlustleistung Temperatur
  • Tc (25°C)
(RDS(on)) Drain-Source Widerstand max. Q1
  • 5.2 mOhm
(RDS(on)) Drain-Source Widerstand max.
  • 5,2 mOhm  VGS (10V), ID (60A)
  • 5,2 mOhm  VGS (10V), ID (60A)
(Qg) Gate Charge
  • 640 nC
Vorwärtstranskonduktanz min. Q1
  • 120 s
Anstiegszeit Q1
  • 170 ns
Typische Ausschaltverzögerungszeit Q1
  • 115 ns
Abfallzeit Q1
  • 230 ns

Documents

PCN_47-IDM_EN.pdf
PCN_LFPCN-DMI-BTA-2024-003_01_EN.pdf
PCN_LFPCN-DMI-BTA-2024-003_02_EN.pdf
