IXFK48N60P

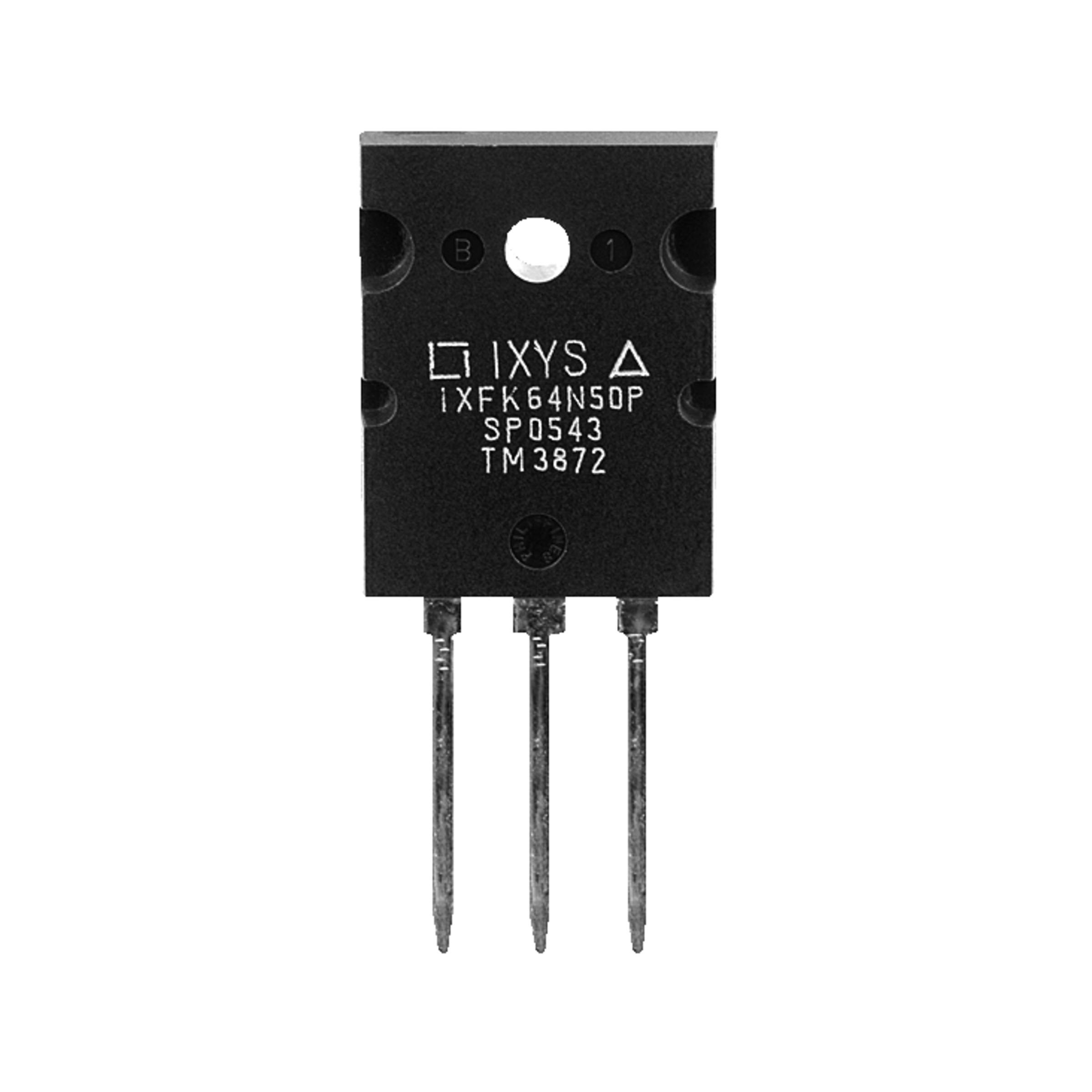

Littelfuse THT Power MOSFET N-Channel 48ATc(25°C) 830W 135mOhm  TO-264

IXFK48N60P
Manufacturer Part No.
IXFK48N60P
Schukat Part No.
IXFK48N60P
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 38 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 300 or multiple of 300)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Number of Channels
1
Polarity
N-Channel
(Id) Continuous Drain Current
48 A Tc (25°C)
(Pd) Power Dissipation
830 W
(RDS(on)) Drain-Source Widerstand max. Q1
135 mOhm
Manufacturer Package
TO-264
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Littelfuse
Type
  • Power MOSFET
Series
  • PolarHV™ HiPerFET™
Product group
  • U8344
Packaging
  • Tube
Assembly Type
  • THT
Pin Count
  • 3
Manufacturer Package
  • TO-264
Configuration
  • Single
Technology
  • Planar
Material
  • Si
Betriebsmodus
  • Enhancement

Operating conditions

Barrier Layer temperature, min. (TJ)
  • -55 °C
Barrier Layer Temperature, max. (TJ)
  • 150 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 150 °C

Electrical Properties

(Uds) Max. Drain-Source Voltage
  • 600 V
(Id) Continuous Drain Current
  • 48 A Tc (25°C)
(Id) Continuous Drain Current Temperatur Q1
  • Tc (25°C)
(Ugs) Gate-Source Voltage
  • ±30V
(Ugs th) Gate-Source Threshold Voltage
  • 5 V
(Ugs th) Gate-Source Schwellspannung min. Q1
  • 3 V
(Ugs th) Gate-Source Schwellspannung max. Q1
  • 5 V
Number of Channels
  • 1
Polarity
  • N-Channel
(Pd) Power Dissipation
  • 830 W
(Pd) Verlustleistung Temperatur
  • Tc (25°C)
(RDS(on)) Drain-Source Widerstand max. Q1
  • 135 mOhm
(RDS(on)) Drain-Source Widerstand max.
  • 135 mOhm  VGS (10V), ID (0,5*ID25)
  • 135 mOhm
(Qg) Gate Charge
  • 150 nC
Vorwärtstranskonduktanz min. Q1
  • 35 s
Anstiegszeit Q1
  • 25 ns
Typische Ausschaltverzögerungszeit Q1
  • 85 ns
Abfallzeit Q1
  • 22 ns

Documents

PCN_47-IDM_EN.pdf
PCN_LFPCN-DMI-BTA-2024-002_01_EN.pdf
PCN_LFPCN-DMI-BTA-2024-003_01_EN.pdf
PCN_LFPCN-DMI-BTA-2024-003_02_EN.pdf
