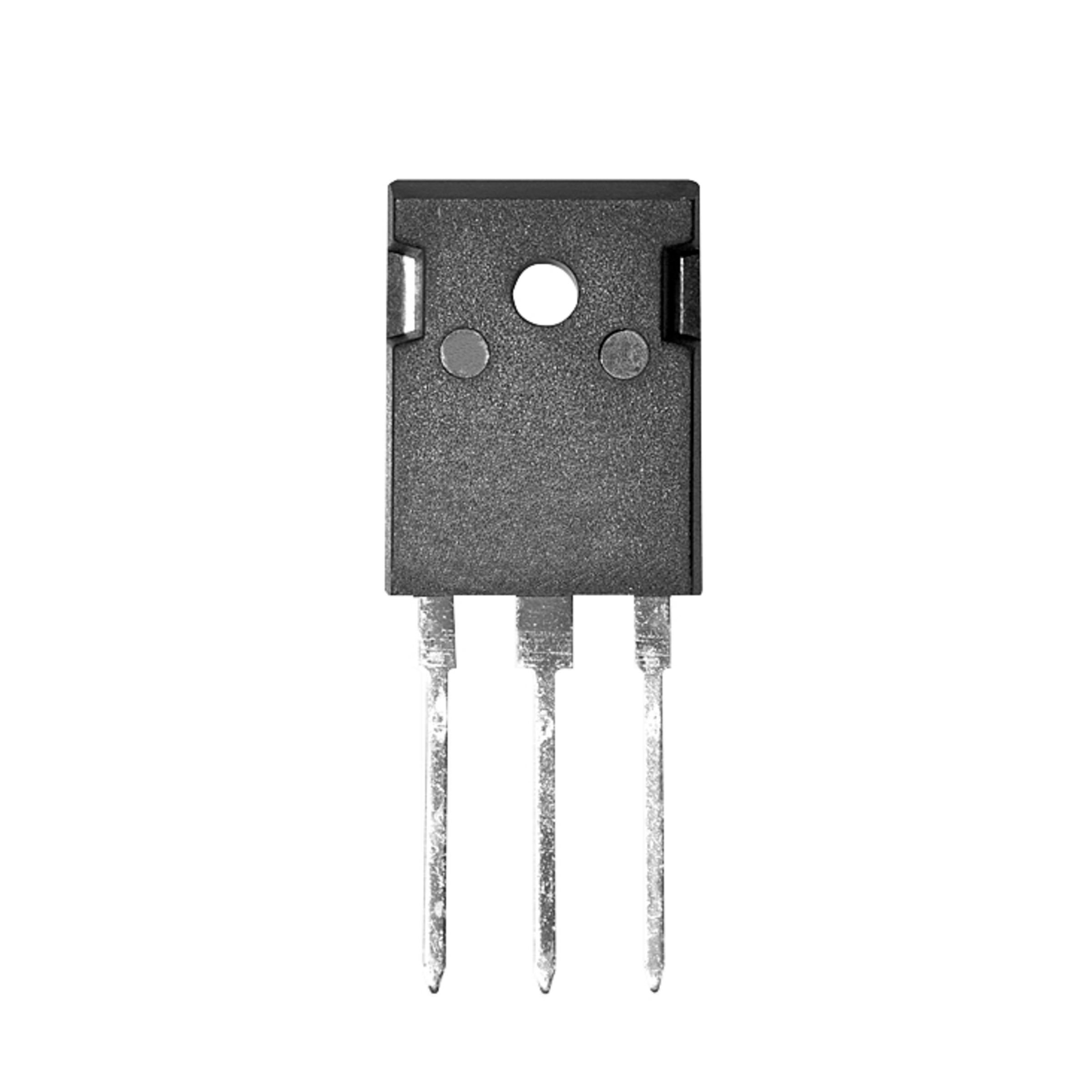

IXBH12N300
Littelfuse BIMOSFET 3.000V 30A 160 W TO-247AD
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 80 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 300 or multiple of 300)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (Uces) Max. Collector-Emitter Breakdown Voltage
- 3,000 V
- (IC) Collector Current
- 30 A
- (Pd) Power Dissipation
- 160 W
- (td(on)) Turn-On Delay Time
- 64 ns
- (td(off)) Turn-Off Delay Time
- 180 ns
- Manufacturer Package
- TO-247AD
- RoHS-Conform
Specifications
Open all
Operating conditions
- Barrier Layer temperature, min. (TJ)
- -55 °C
- Barrier Layer Temperature, max. (TJ)
- 150 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 150 °C
Electrical Properties
- (IC) Collector Current
- 30 A
- (Pd) Power Dissipation
- 160 W
- (Uces) Max. Collector-Emitter Breakdown Voltage
- 3,000 V
- (td(on)) Turn-On Delay Time
- 64 ns
- (td(off)) Turn-Off Delay Time
- 180 ns
- (UGE(th)) Gate Emitter ThresholdVoltage
- 3 V
