IXA60IF1200NA

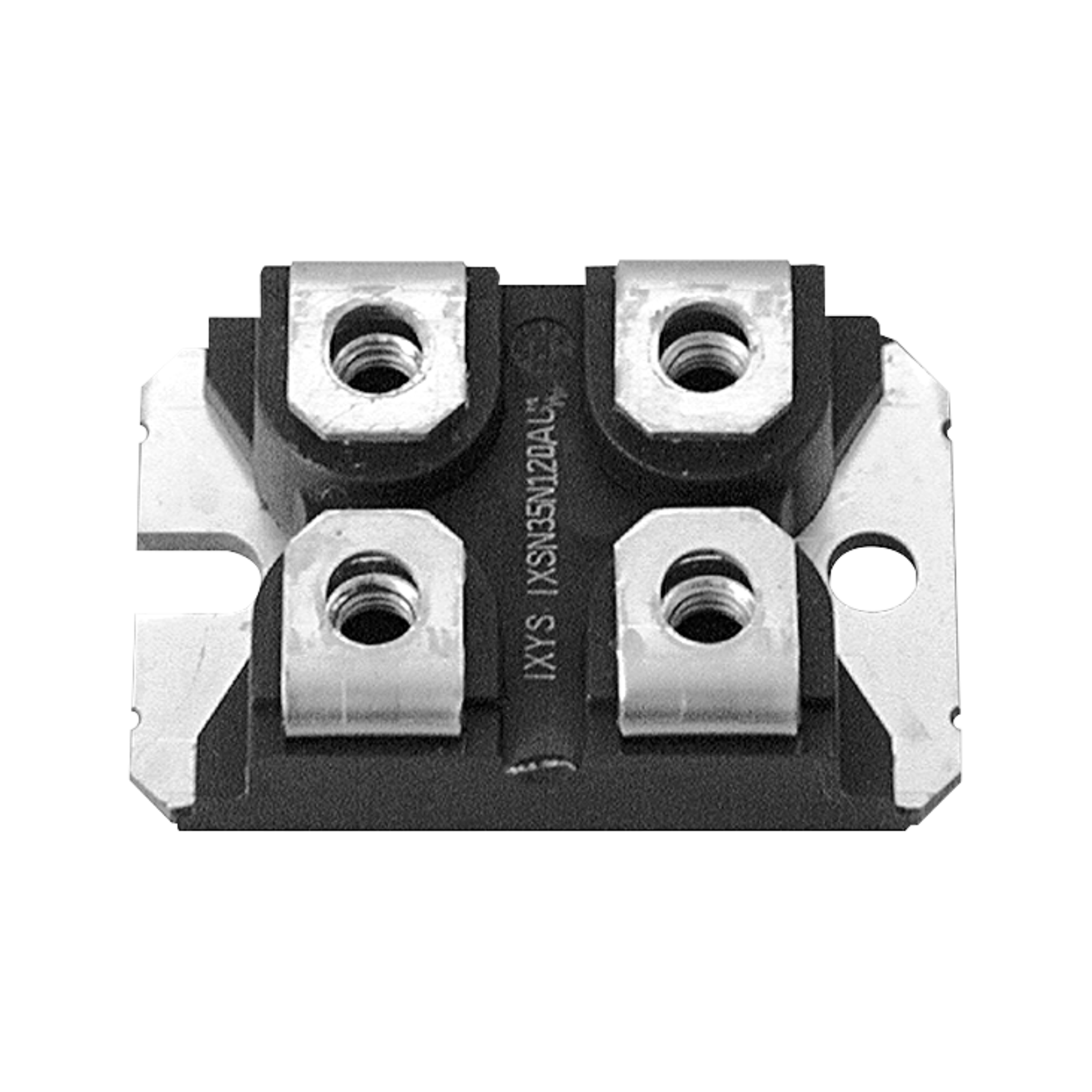

Littelfuse IGBT 1.200V 88A 290 W SOT-227B
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 01.04.2025
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (Uces) Max. Collector-Emitter Breakdown Voltage
- 1,200 V
- (IC) Collector Current
- 88 A
- (Pd) Power Dissipation
- 290 W
- (td(on)) Turn-On Delay Time
- 70 ns
- (td(off)) Turn-Off Delay Time
- 250 ns
- Manufacturer Package
- SOT-227B
- RoHS-Conform
Specifications
Open all
Operating conditions
- Barrier Layer temperature, min. (TJ)
- -40 °C
- Barrier Layer Temperature, max. (TJ)
- 125 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 150 °C
Electrical Properties
- (IC) Collector Current
- 88 A
- (Pd) Power Dissipation
- 290 W
- (Uces) Max. Collector-Emitter Breakdown Voltage
- 1,200 V
- (td(on)) Turn-On Delay Time
- 70 ns
- (td(off)) Turn-Off Delay Time
- 250 ns
- (UGE(th)) Gate Emitter ThresholdVoltage
- 5.9 V
Documents
EOL_ LFPTN-DI-FE-2025-003-01_EN.pdf
PCN_47-IDM_EN.pdf
PCN_118305_EN.pdf
PCN_20251210_EN.pdf
PCN_LFPCN-DMI-BTA-2024-003_01_EN.pdf
PCN_LFPCN-DMI-BTA-2024-003_02_EN.pdf
