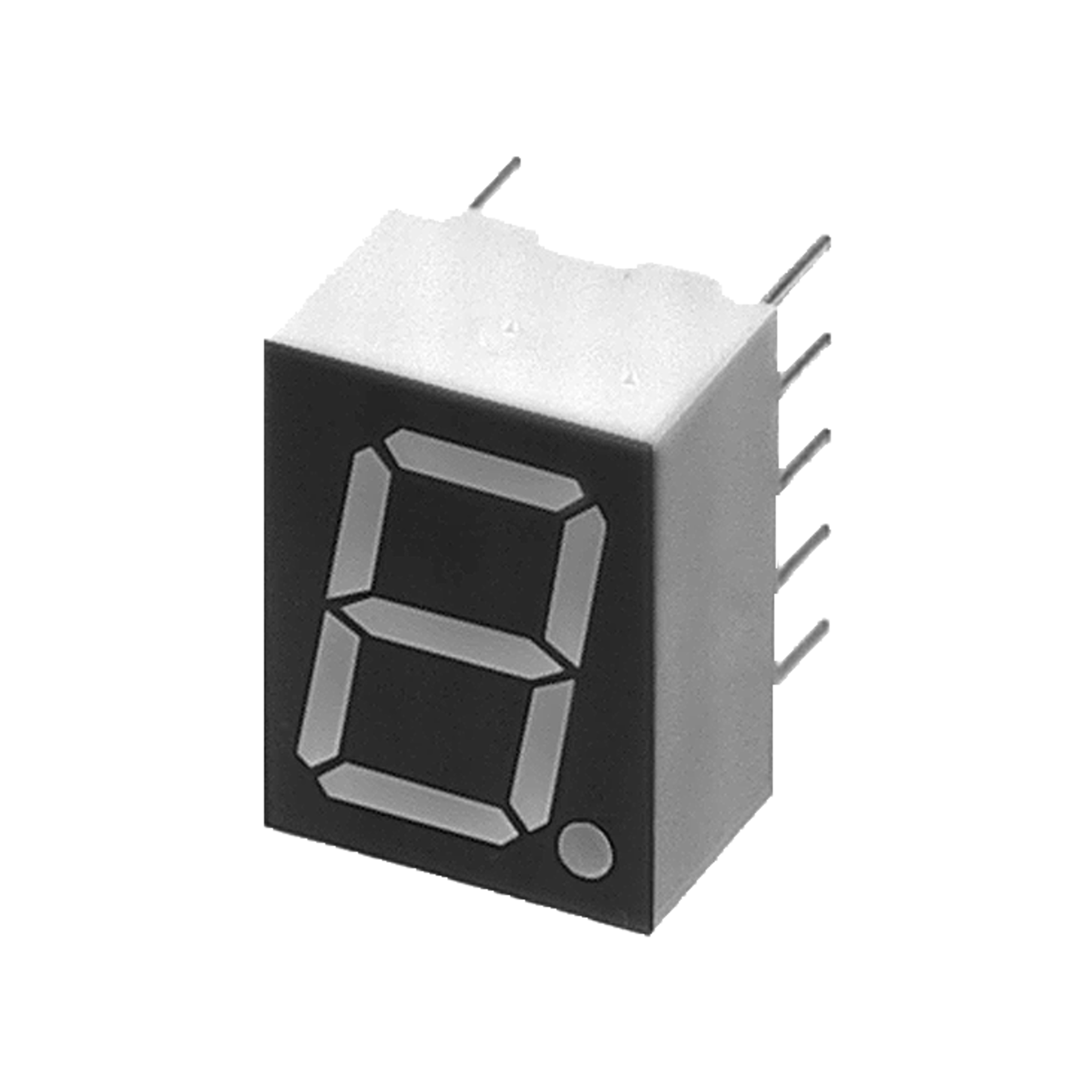

LTS4301P-T
Lite-On THT 7-Segment LED Display 1 Digit red
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
3.240 Pcs.
3.240 Pcs.
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 36 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 3240 or multiple of 36)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Characters
- 1 Digit
- Lighting Colour
- red
- Light Intensity
- 0.8 mcd
- Character Heigth
- 10 mm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -35 °C
- Operating Temperature Max.
- 85 °C
Electrical properties
- (Uf) Forward Voltage
- 2.1 V
- Characters
- 1 Digit
- (If) Forward Current
- 20 mA
- Lighting Colour
- red
- Peak Emission Wavelength
- 697 Nm
- (Ur) Reverse Voltage Min.
- 5 V
- Configuration
- Common Cathode
- Light Intensity
- 0.8 mcd
- Character Heigth
- 10 mm
