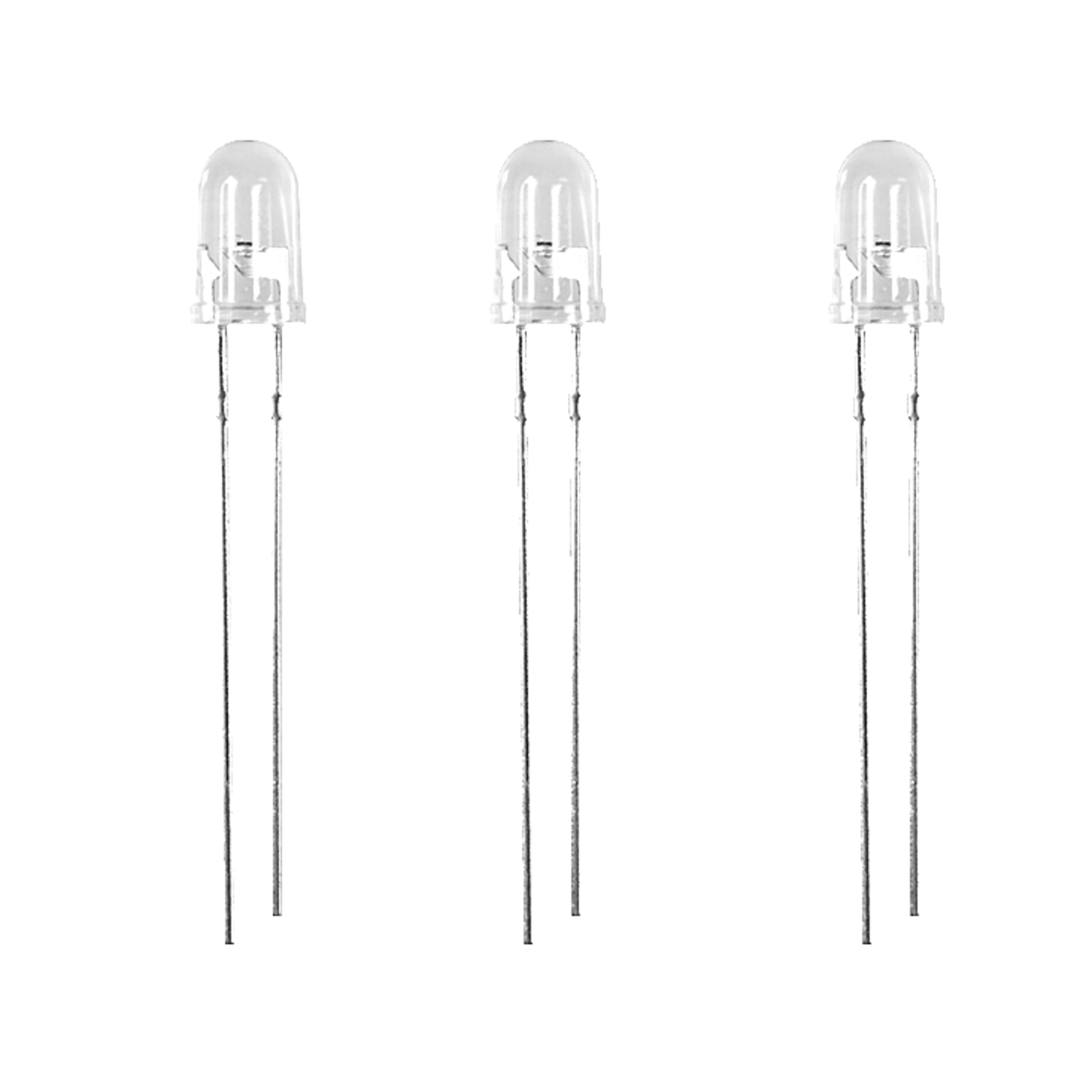

LTR4206

Lite-On THT Phototransistor 100nA 940nm 30V 3mm

Manufacturer Part No.
LTR4206
Schukat Part No.
LTR4206
Manufacturer
Lite-On
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1.975 Pcs. in stock

Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Lite-On
Type
  • Phototransistor
Series
  • LTR4206
Product group
  • X3745 LITEON Phototransistors IRE_, LTR_
Packaging
  • Boxed
Assembly Type
  • THT
Manufacturer Package
  • 3mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C

Electrical properties

(UCEO) Collector Emitter Voltage
  • 30 V
(IC) Collector Current
  • 0.8 mA
Dark Current
  • 100 nA
Wavelength Of Peak Sensitivity
  • 940 Nm
Angle Of Half Sensitivity
  • 20 °
(Pd) Power Dissipation
  • 100 mW
