LTL30EHJ

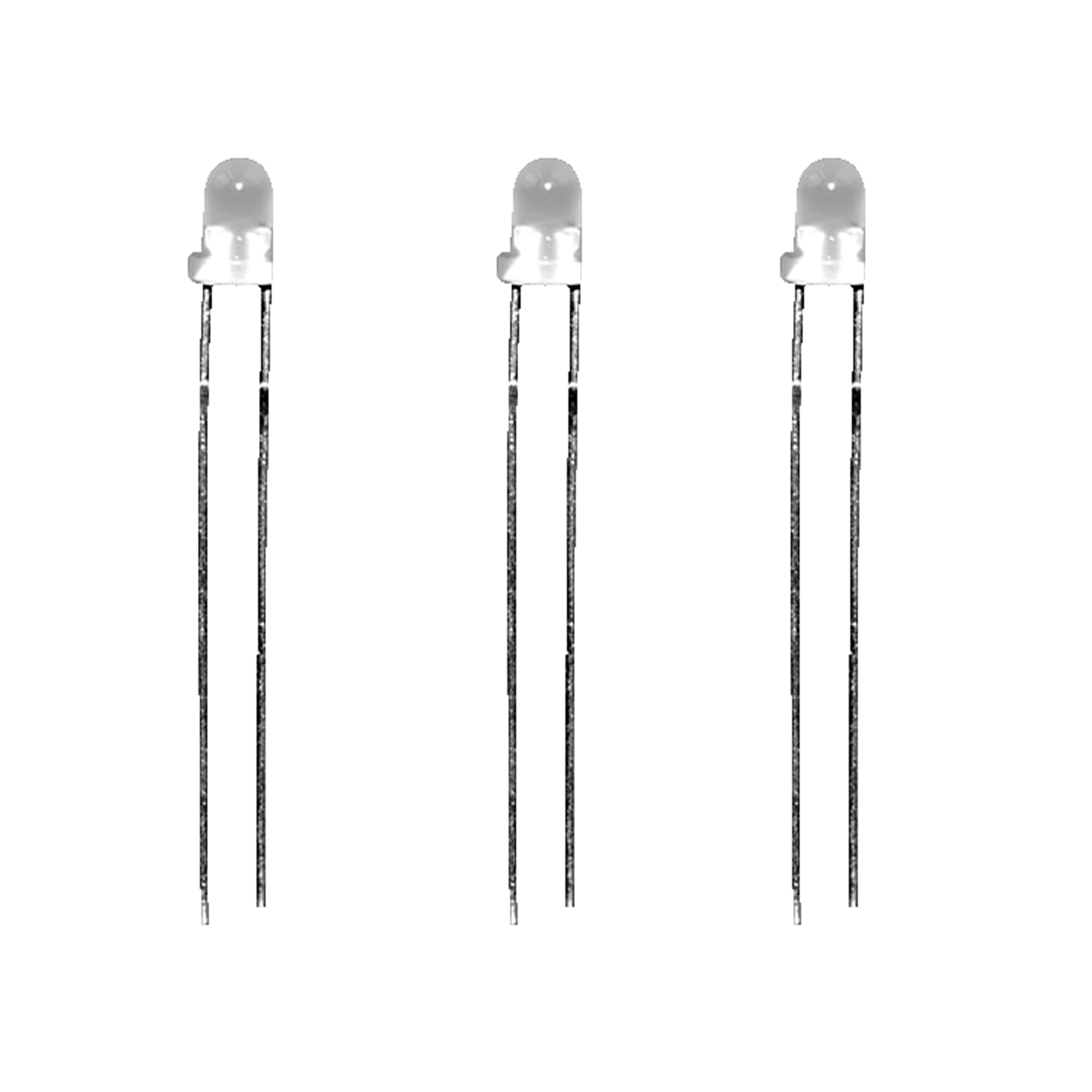

Lite-On THT LED orange, green diffuse Dome 40mcd/29mcd/ 30°/30°/ 2V/2,1V/ 5mm

Manufacturer Part No.
LTL30EHJ
Schukat Part No.
LTL30EHJ
Manufacturer
Lite-On
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

8.850 Pcs. in stock

Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Lighting Colour
orange, green
Lens Tranparency
diffuse
Lens Shape
Dome
Luminous Intensity Max. (colour1/colour2/colour3)
40 mcd / 29 mcd /
40 mcd / 29 mcd /
Viewing Angle (colour1/colour2/colour3)
30 ° / 30 ° /
30 ° / 30 ° /
(Uf) Forward Voltage (1/2/3)
2 V / 2,1 V /
2 V / 2,1 V /
(If) Forward Current (colour1/colour2/colour3)
20 mA / 20 mA / mA
20 mA / 20 mA / mA
Peak Emission Wavelength (colour1/colour2/colour3)
621 nm / 569 nm /
621 nm / 569 nm /
Dominant Wavelength Max. (1/2/3)
630 nm / 565 nm /
630 nm / 565 nm /
(Pd) Power Dissipation (colour1/colour2/colour3)
100 mW / 100 mW /
100 mW / 100 mW /
Manufacturer Package
5mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Lite-On
Type
  • LED
Series
  • LTL30_
Product group
  • W1395 LITEON Light-Emitting Diodes diffuse Bi-Coloured 5mm
Packaging
  • Boxed
Assembly Type
  • THT
Manufacturer Package
  • 5mm

Operating conditions

Operating Temperature Min.
  • -55 °C
Operating Temperature Max.
  • 100 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 100 °C

Electrical properties

(Uf) Forward Voltage (colour1)
  • 2 V
(Uf) Forward Voltage (colour2)
  • 2.1 V
(Uf) Forward Voltage (1/2/3)
  • 2 V / 2,1 V /
  • 2 V / 2,1 V /
(If) Forward Current (colour1)
  • 20 mA
(If) Forward Current (colour2)
  • 20 mA
(If) Forward Current (colour1/colour2/colour3)
  • 20 mA / 20 mA / mA
  • 20 mA / 20 mA / mA
Lighting Colour
  • orange, green
Viewing Angle (colour1)
  • 30 °
Viewing Angle (colour2)
  • 30 °
Viewing Angle (colour1/colour2/colour3)
  • 30 ° / 30 ° /
  • 30 ° / 30 ° /
Luminous Intensity Max. (colour1)
  • 40 mcd
Luminous Intensity Max. (colour2)
  • 29 mcd
Luminous Intensity Max. (colour1/colour2/colour3)
  • 40 mcd / 29 mcd /
  • 40 mcd / 29 mcd /
Dominant Wavelength Max. (colour1)
  • 630 Nm
Dominant Wavelength Max. (colour2)
  • 565 Nm
Dominant Wavelength Max. (1/2/3)
  • 630 nm / 565 nm /
  • 630 nm / 565 nm /
Peak Emission Wavelength (colour1)
  • 621 Nm
Peak Emission Wavelength (colour2)
  • 569 Nm
Peak Emission Wavelength (colour1/colour2/colour3)
  • 621 nm / 569 nm /
  • 621 nm / 569 nm /
(Pd) Power Dissipation (colour1)
  • 100 mW
(Pd) Power Dissipation (colour2)
  • 100 mW
(Pd) Power Dissipation (colour1/colour2/colour3)
  • 100 mW / 100 mW /
  • 100 mW / 100 mW /
(Ur) Reverse Voltage (colour1)
  • 5 V
(Ur) Reverse Voltage (colour2)
  • 5 V
(Ur) Reverse Voltage (1/2/3)
  • 5 V / 5 V / V
  • 5 V / 5 V / V
Lens Colour
  • white
Lens Tranparency
  • diffuse
Lens Shape
  • Dome
