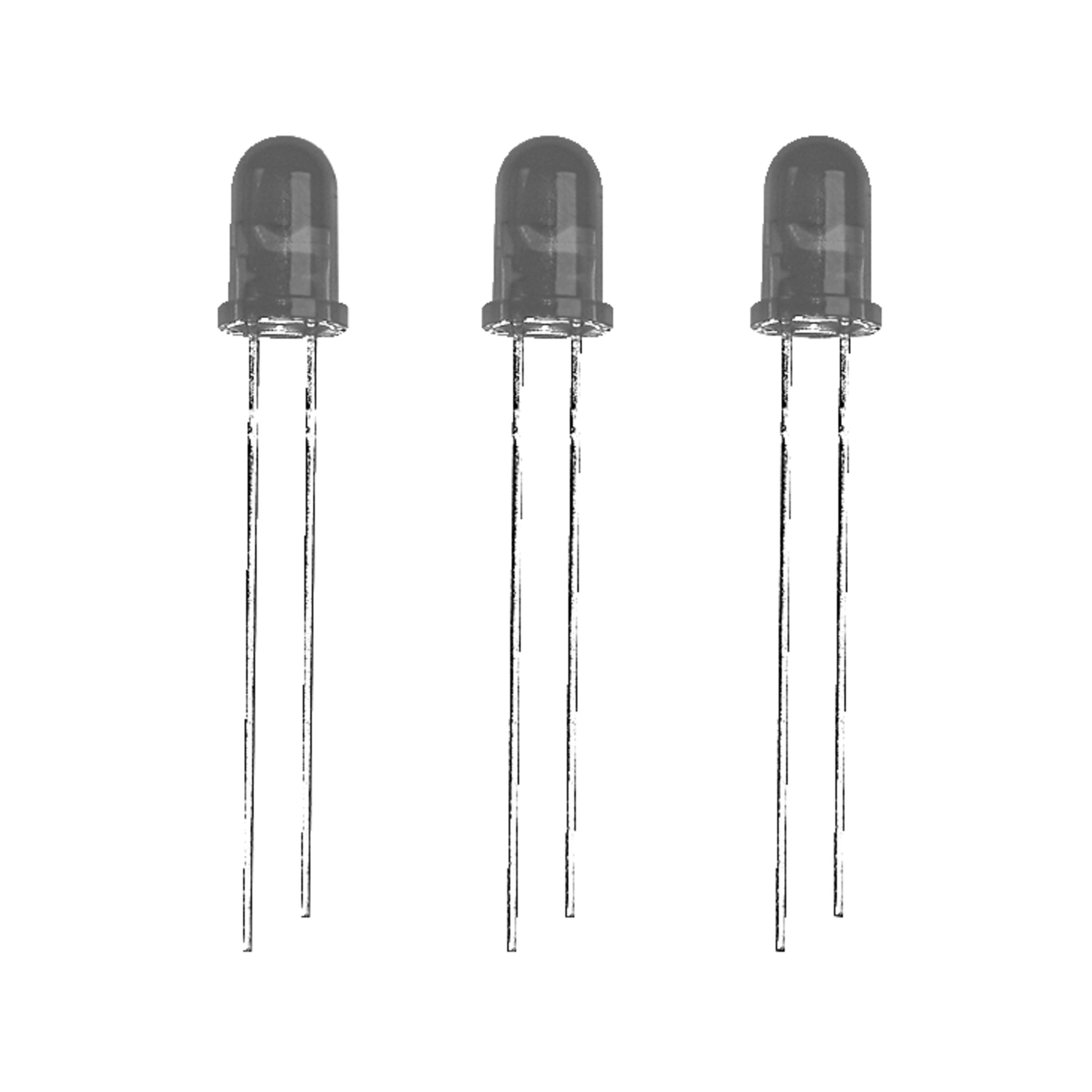

LTL307E
Lite-On THT LED red diffuse round 19mcd 50° 2,0V 5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
11.400 Pcs. in stock
Next Stock Receipt
Week 07/2025
10.000 Pcs.
10.000 Pcs.
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Lighting Colour
- red
- Luminous Intensity Max.
- 19 mcd
- Viewing Angle
- 50 °
- (Uf) Forward Voltage
- 2 V
- (If) Forward Current
- 20 mA
- Peak Emission Wavelength
- 635 Nm
- Dominant Wavelength Max.
- 623 Nm
- (Pd) Power Dissipation
- 100 mW
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 100 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 100 °C
Electrical properties
- (Uf) Forward Voltage
- 2 V
- (If) Forward Current
- 20 mA
- (Ur) Reverse Voltage
- 5 V
- Lighting Colour
- red
- Viewing Angle
- 50 °
- Luminous Intensity Max.
- 19 mcd
- Dominant Wavelength Max.
- 623 Nm
- Peak Emission Wavelength
- 635 Nm
- (Pd) Power Dissipation
- 100 mW
- Lens Colour
- red
- Lens Tranparency
- diffuse
- Lens Shape
- round
