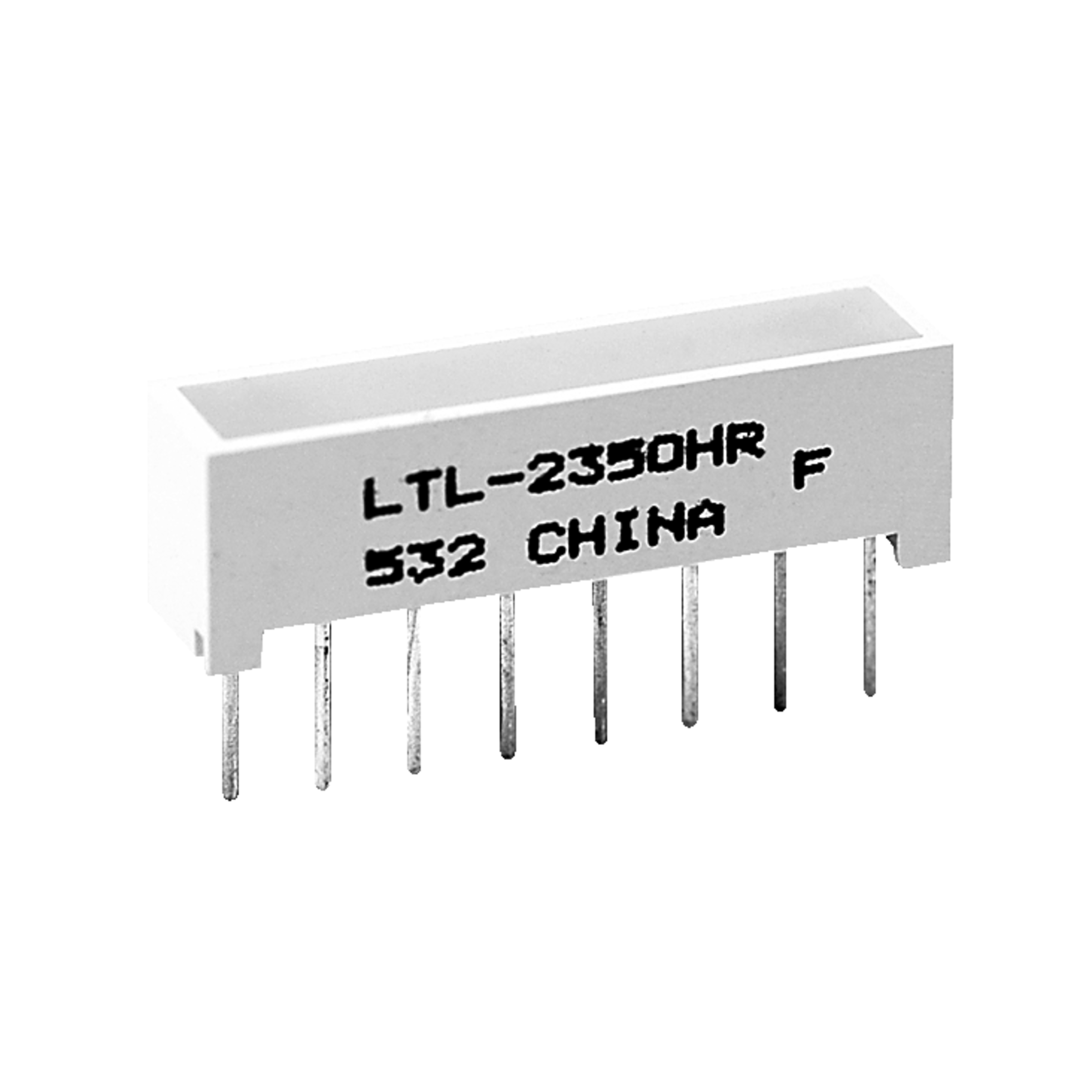

LTL2350HR
Lite-On LED Light Bar red 8 mcd 100 ° 2,0 V SIL8
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.750 Pcs. in stock
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Lighting Colour
- red
- Luminous Intensity Max.
- 8 mcd
- Viewing Angle
- 100 °
- (Uf) Forward Voltage
- 2 V
- (If) Forward Current
- 25 mA
- Peak Emission Wavelength
- 635 Nm
- Manufacturer Package
- SIL8
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -35 °C
- Operating Temperature Max.
- 85 °C
Electrical properties
- (Uf) Forward Voltage
- 2 V
- (If) Forward Current
- 25 mA
- (Ur) Reverse Voltage
- 5 V
- Lighting Colour
- red
- Viewing Angle
- 100 °
- Luminous Intensity Max.
- 8 mcd
- Peak Emission Wavelength
- 635 Nm
- Lens Tranparency
- diffuse
