Results (467)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Application | Assembly Type | Rated voltage at 50/60Hz | Rated current | Approvals | Protection class front side | Dimension: Length | Dimension: Width | Dimension: Height | Operating Temperature Min. | Operating Temperature Max. | Leakage current, max. | Inductance | Cx | Cy | Climate category |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
401 |  | Manufacturers Part No. FN2020B-20-06(FN2020B-20-06) Schaffner Single-phase filter FN 2020 Chassis assembly 250V 20A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 30 or mul. of 30) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 20.0 A | CE CQC CSA ENEC14 UK CA UL | 85.0 mm | 54.0 mm | 30.3 mm | -25.0 °C | 100.0 °C | 0.6 mH | 0,15 µF | |||||||||
402 | | Manufacturers Part No. FN2020B-3-06(FN2020B-3-06) Schaffner Single-phase filter FN 2020 Chassis assembly 250V 3A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 20 or mul. of 20) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 3.0 A | CE CQC CSA ENEC14 UK CA UL | 64.0 mm | 35.0 mm | 29.3 mm | -25.0 °C | 100.0 °C | 2.5 mH | 0,15 µF | |||||||||
403 | | Manufacturers Part No. FN2020B-6-06(FN2020B-6-06) Schaffner Single-phase filter FN 2020 Chassis assembly 250V 6A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 20 or mul. of 20) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 6.0 A | CE CQC CSA ENEC14 UK CA UL | 64.0 mm | 35.0 mm | 29.3 mm | -25.0 °C | 100.0 °C | 1.0 mH | 0,15 µF | |||||||||
404 | | Manufacturers Part No. FN2020-10-06(FN2020-10-06) Schaffner Single-phase filter FN 2020 Chassis assembly 250V 10A | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 10.0 A | CE CQC CSA ENEC14 UK CA UL | 64.0 mm | 35.0 mm | 29.3 mm | -25.0 °C | 100.0 °C | 0,66 mA | 0.8 mH | 0,15 µF | 4,7 nF | ||||||||
405 | | Manufacturers Part No. FN2020-16-06(FN2020-16-06) Schaffner Single-phase filter FN 2020 Chassis assembly 250V 16A | Customer Part No. Customer Project No. | 25 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 16.0 A | CE CQC CSA ENEC14 UK CA UL | 71.0 mm | 46.6 mm | 29.3 mm | -25.0 °C | 100.0 °C | 0,66 mA | 0.65 mH | 0,15 µF | 4,7 nF | ||||||||
406 | | Manufacturers Part No. FN2070B-12-06(FN2070B-12-06) Schaffner Single-phase filter FN 2070 Chassis assembly 250V 12A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 20 or mul. of 20) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 12.0 A | CE CSA ENEC14 UK CA UL | 156.0 mm | 57.5 mm | 45.4 mm | -25.0 °C | 100.0 °C | 3.25 mH | 1 µF | |||||||||
407 | | Manufacturers Part No. FN2070B-36-08(FN2070B-36-08) Schaffner Single-phase filter FN 2070 Chassis assembly 250V 36A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 10 or mul. of 10) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 36.0 A | CE CSA ENEC14 UK CA UL | 156.0 mm | 57.5 mm | 45.4 mm | -25.0 °C | 100.0 °C | 1.23 mH | 2,2 µF | |||||||||
408 | | Manufacturers Part No. FN2070B-25-08(FN2070B-25-08) Schaffner Single-phase filter FN 2070 Chassis assembly 250V 25A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 10 or mul. of 10) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 25.0 A | CE CSA ENEC14 UK CA UL | 156.0 mm | 57.5 mm | 45.4 mm | -25.0 °C | 100.0 °C | 2.0 mH | 2,2 µF | |||||||||
409 | | Manufacturers Part No. 5500.2031(5500.2031) Schurter Single-phase filter FMLB-09 Chassis assembly 250V 6A | Customer Part No. Customer Project No. | 7 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Single-phase filter | Chassis assembly | 250.0 V | 6.0 A | CE CRUus ENEC10 IEC UK CA | 75.0 mm | 45.0 mm | 28.6 mm | -25.0 °C | 100.0 °C | 0,5 mA | 1.8 mH | 0,1 µF | 4,2 nF | 25/100/21 | |||||||
410 | | Manufacturers Part No. 5500.2032(5500.2032) Schurter Single-phase filter FMLB-09 Chassis assembly 250V 10A | Customer Part No. Customer Project No. | 5 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Single-phase filter | Chassis assembly | 250.0 V | 10.0 A | CE CRUus ENEC10 IEC UK CA | 75.0 mm | 45.0 mm | 28.6 mm | -25.0 °C | 100.0 °C | 0,5 mA | 0.82 mH | 0,1 µF | 4,2 nF | 25/100/21 | |||||||
411 | | Manufacturers Part No. 5500.2033(5500.2033) Schurter Single-phase filter FMLB-09 Chassis assembly 250V 16A | Customer Part No. Customer Project No. | 109 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Schurter | Single-phase filter | Chassis assembly | 250.0 V | 16.0 A | CE CRUus ENEC10 IEC UK CA | 75.0 mm | 45.0 mm | 28.6 mm | -25.0 °C | 100.0 °C | 0,5 mA | 0.64 mH | 0,1 µF | 4,2 nF | 25/100/21 | |||||||
412 | | Manufacturers Part No. 5500.2034(5500.2034) Schurter Single-phase filter FMLB-09 Chassis assembly 250V 20A | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Schurter | Single-phase filter | Chassis assembly | 250.0 V | 20.0 A | CE CRUus ENEC10 IEC UK CA | 75.0 mm | 45.0 mm | 28.6 mm | -25.0 °C | 100.0 °C | 0,5 mA | 0.5 mH | 0,1 µF | 4,2 nF | 25/100/21 | |||||||
413 | | Manufacturers Part No. 5500.2039(5500.2039) Schurter Single-phase filter FMW-41 Chassis assembly 250V 1A | Customer Part No. Customer Project No. | 16 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Single-phase filter | Chassis assembly | 250.0 V | 1.0 A | CE CRUus CSA ENEC10 IEC UK CA | 67.0 mm | 46.0 mm | 25.0 mm | -25.0 °C | 100.0 °C | 0,25 mA | 10.0 mH | 15 nF | 2,2 nF | 25/100/21 | |||||||
414 | | Manufacturers Part No. 5500.2040(5500.2040) Schurter Single-phase filter FMW-41 Chassis assembly 250V 3A | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Schurter | Single-phase filter | Chassis assembly | 250.0 V | 3.0 A | CE CRUus CSA ENEC10 IEC UK CA | 67.0 mm | 46.0 mm | 25.0 mm | -25.0 °C | 100.0 °C | 0,25 mA | 2.0 mH | 15 nF | 2,2 nF | 25/100/21 | |||||||
415 | | Manufacturers Part No. 5500.2041(5500.2041) Schurter Single-phase filter FMW-41 Chassis assembly 250V 6A | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Schurter | Single-phase filter | Chassis assembly | 250.0 V | 6.0 A | CE CRUus CSA ENEC10 IEC UK CA | 67.0 mm | 46.0 mm | 25.0 mm | -25.0 °C | 100.0 °C | 0,25 mA | 0.8 mH | 15 nF | 2,2 nF | 25/100/21 | |||||||
416 | | Manufacturers Part No. 5500.2042(5500.2042) Schurter Single-phase filter FMW-41 Chassis assembly 250V 10A | Customer Part No. Customer Project No. | 28 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Single-phase filter | Chassis assembly | 250.0 V | 10.0 A | CE CRUus CSA ENEC10 IEC UK CA | 67.0 mm | 46.0 mm | 25.0 mm | -25.0 °C | 100.0 °C | 0,25 mA | 0.4 mH | 15 nF | 2,2 nF | 25/100/21 | |||||||
417 | | Manufacturers Part No. 5500.2098(5500.2098) Schurter Single-phase filter FMW-41 Chassis assembly 250V 1A Medical | Customer Part No. Customer Project No. | 75 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Single-phase filter | Medical | Chassis assembly | 250.0 V | 1.0 A | CE CRUus CSA ENEC10 IEC UK CA | 67.0 mm | 46.0 mm | 25.0 mm | -25.0 °C | 100.0 °C | 5 µA | 10.0 mH | 15 nF | 25/100/21 | |||||||
418 | | Manufacturers Part No. 5500.2100(5500.2100) Schurter Single-phase filter FMW-41 Chassis assembly 250V 6A Medical | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Single-phase filter | Medical | Chassis assembly | 250.0 V | 6.0 A | CE CRUus CSA ENEC10 IEC UK CA | 67.0 mm | 46.0 mm | 25.0 mm | -25.0 °C | 100.0 °C | 5 µA | 0.8 mH | 15 nF | 25/100/21 | |||||||

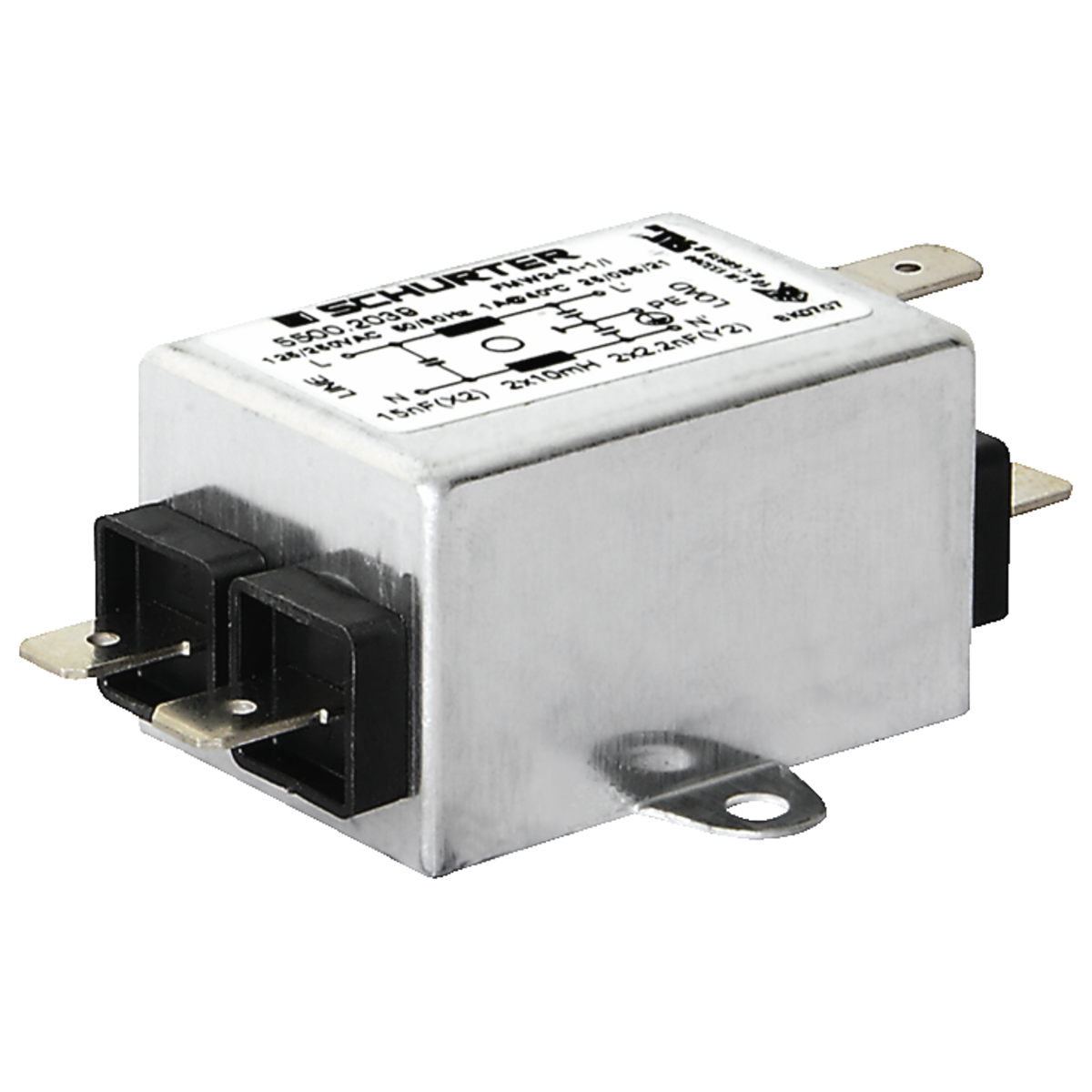

419 | | Manufacturers Part No. 5500.2102(5500.2102) Schurter Single-phase filter FMW-41 Chassis assembly 250V 10A Medical | Customer Part No. Customer Project No. | 24 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Single-phase filter | Medical | Chassis assembly | 250.0 V | 10.0 A | CE CRUus CSA ENEC10 IEC UK CA | 67.0 mm | 46.0 mm | 25.0 mm | -25.0 °C | 100.0 °C | 5 µA | 0.4 mH | 15 nF | 25/100/21 | |||||||
420 | | Manufacturers Part No. 5500.2104(5500.2104) Schurter Single-phase filter FMW-41 Chassis assembly 250V 3A Medical | Customer Part No. Customer Project No. | 14 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Single-phase filter | Medical | Chassis assembly | 250.0 V | 3.0 A | CE CRUus CSA ENEC10 IEC UK CA | 67.0 mm | 46.0 mm | 25.0 mm | -25.0 °C | 100.0 °C | 5 µA | 2.0 mH | 15 nF | 25/100/21 | |||||||

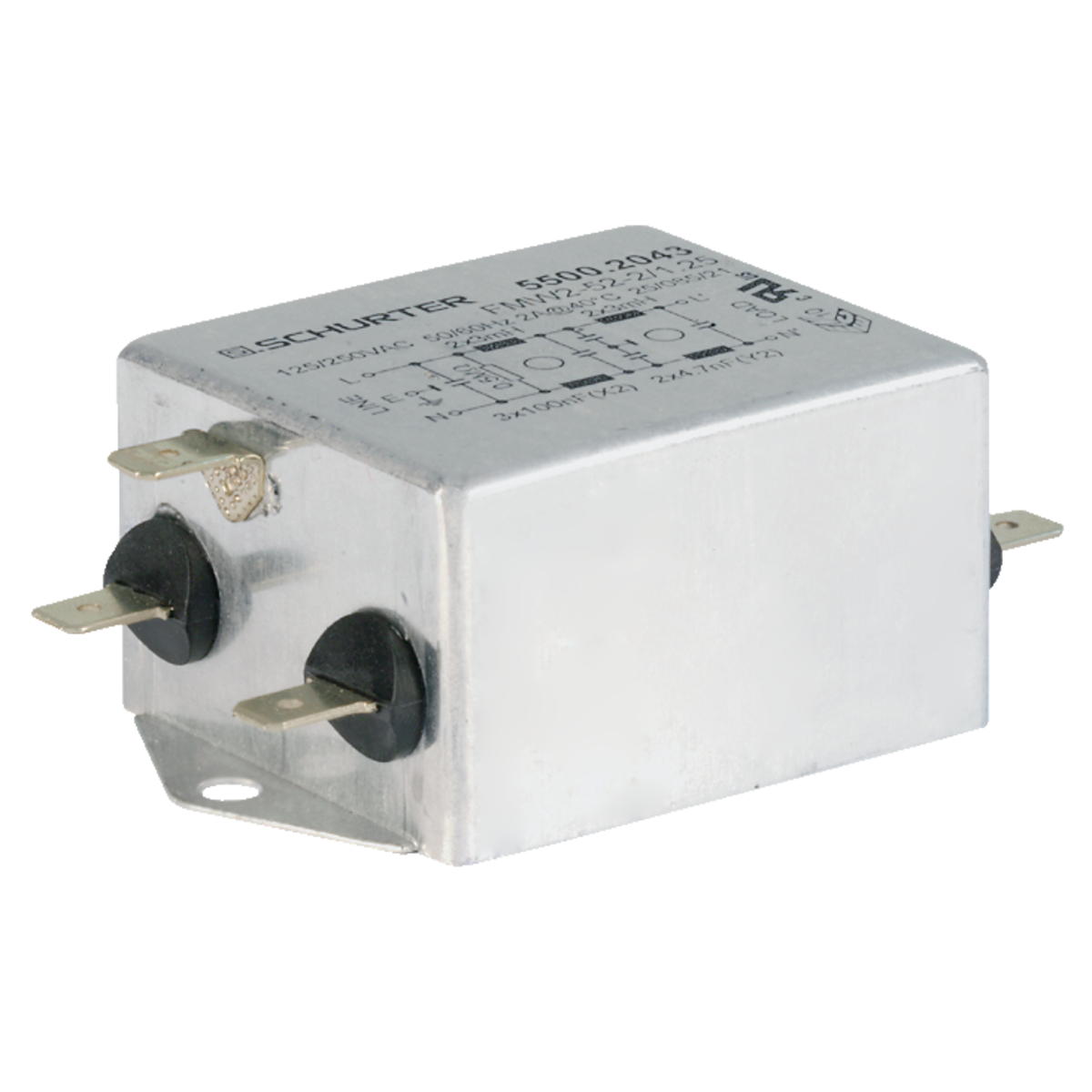

421 | | Manufacturers Part No. 5500.2043(5500.2043) Schurter Two-phase filter FMW-52 Chassis assembly 250V 2A | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Schurter | Two-phase filter | Chassis assembly | 250.0 V | 2.0 A | CE CRUus CSA ENEC10 IEC UK CA | 77.0 mm | 46.0 mm | 31.0 mm | -25.0 °C | 100.0 °C | 0,5 mA | 3.0 mH | 100 nF | 2,2 nF | 25/100/21 | |||||||
422 | | Manufacturers Part No. 5500.2044(5500.2044) Schurter Two-phase filter FMW-52 Chassis assembly 250V 6A | Customer Part No. Customer Project No. | 25 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Two-phase filter | Chassis assembly | 250.0 V | 6.0 A | CE CRUus CSA ENEC10 IEC UK CA | 77.0 mm | 46.0 mm | 31.0 mm | -25.0 °C | 100.0 °C | 0,5 mA | 0.8 mH | 100 nF | 4,7 nF | 25/100/21 | |||||||

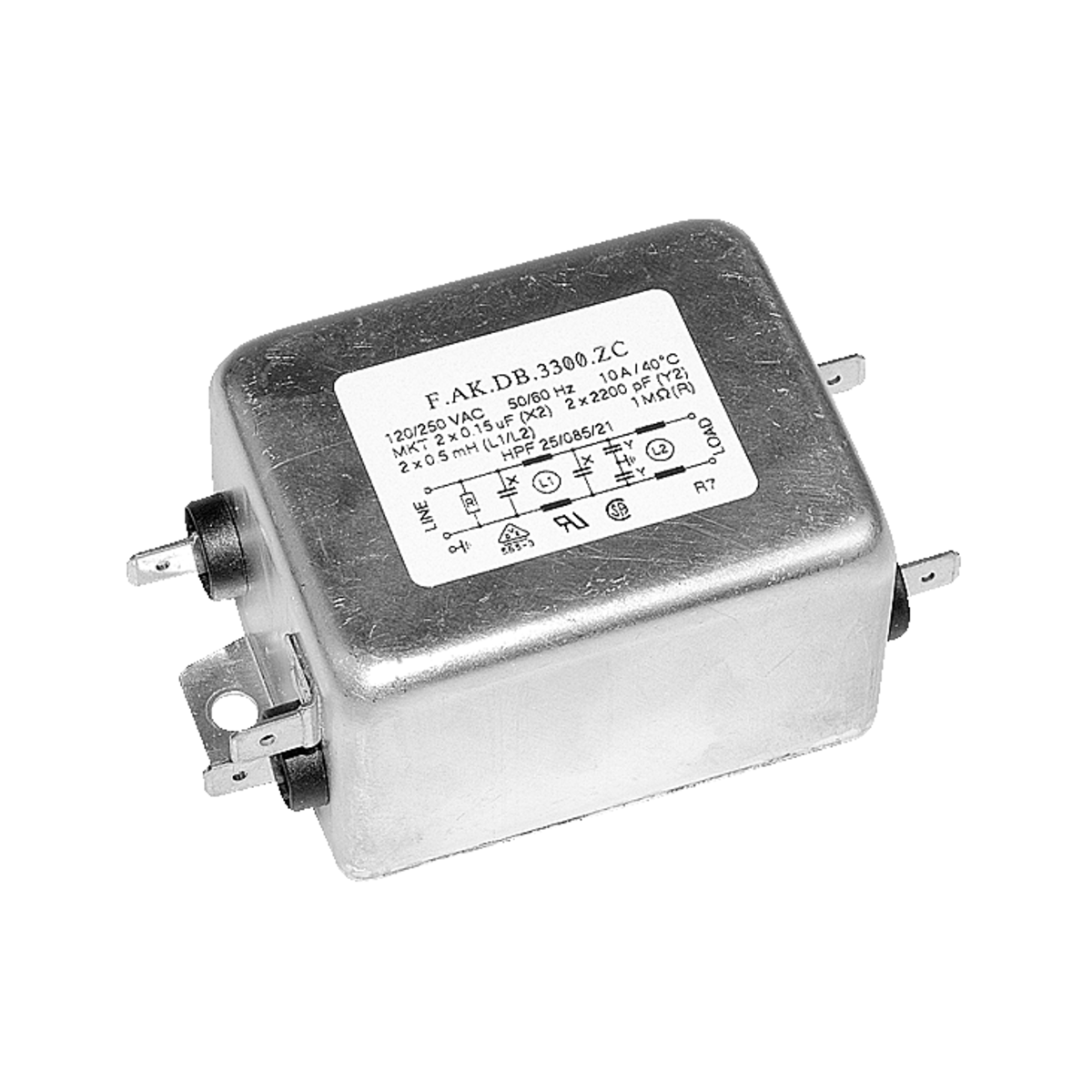

423 | | Manufacturers Part No. F.AK.DB.3300.ZC(FIL3300ZC) Kemet Single-phase filter F.AK Chassis assembly 250V 10A | Customer Part No. Customer Project No. | 59 Pcs. Planned Delivery Time Ø 99 Weeks Available (from stock) | (at least 1 or mul. of 1) | Kemet | Single-phase filter | Chassis assembly | 250.0 V | 10.0 A | UL | 92.0 mm | 52.0 mm | 40.0 mm | -25.0 °C | 85.0 °C | 0,2 mA | 0.5 mH | 0,15 µF | 2,2 nF | HPF (25/085/21) | |||||||

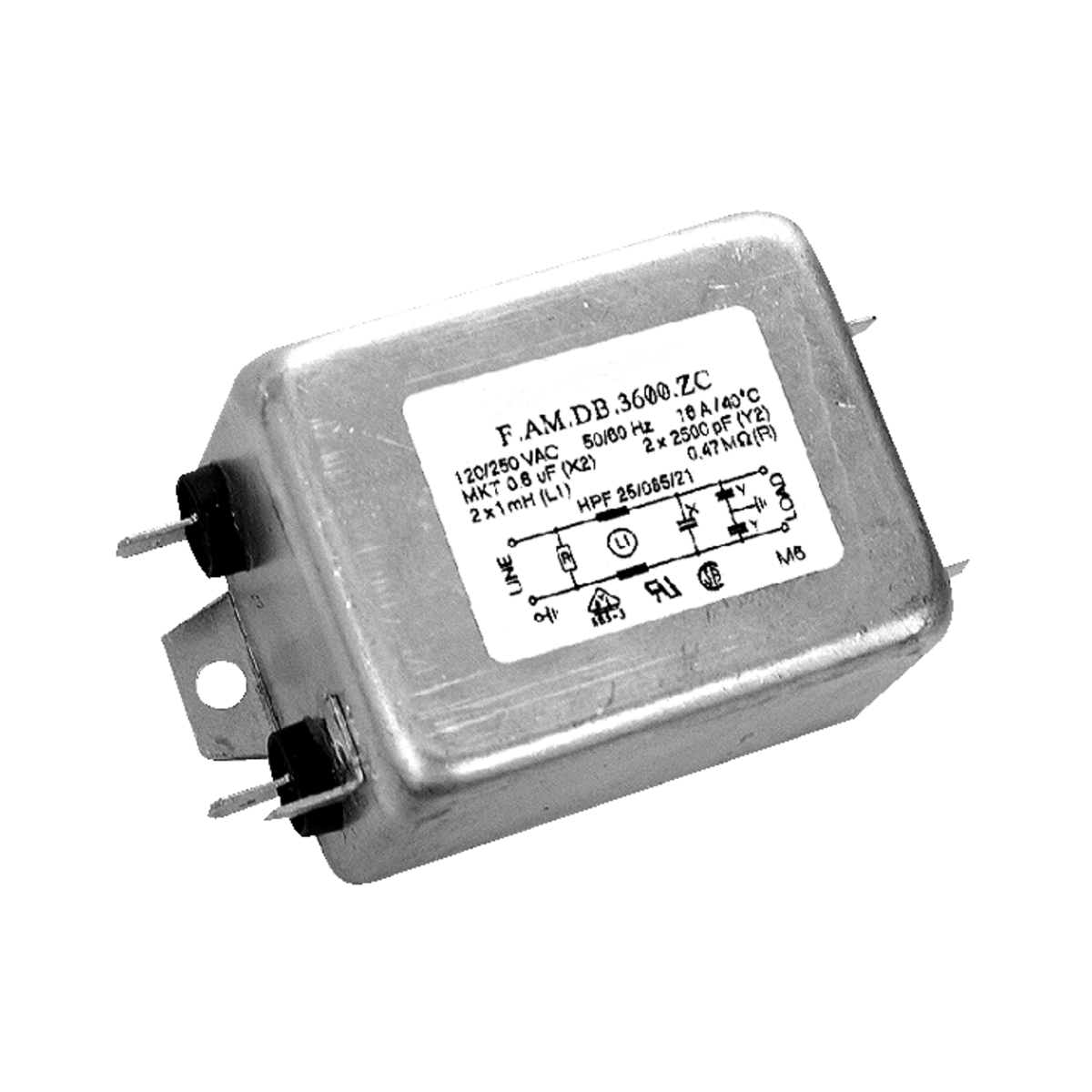

424 | | Manufacturers Part No. F.AM.DB.3600.ZC(FIL3600) Kemet Single-phase filter F.AM Chassis assembly 250V 16A | Customer Part No. Customer Project No. | 54 Pcs. Planned Delivery Time Ø 99 Weeks Available (from stock) | (at least 1 or mul. of 1) | Kemet | Single-phase filter | Chassis assembly | 250.0 V | 16.0 A | UL | 92.0 mm | 52.0 mm | 40.0 mm | -25.0 °C | 85.0 °C | 0,23 mA | 1.0 mH | 0,6 µF | 2,5 nF | HPF (25/085/21) | |||||||

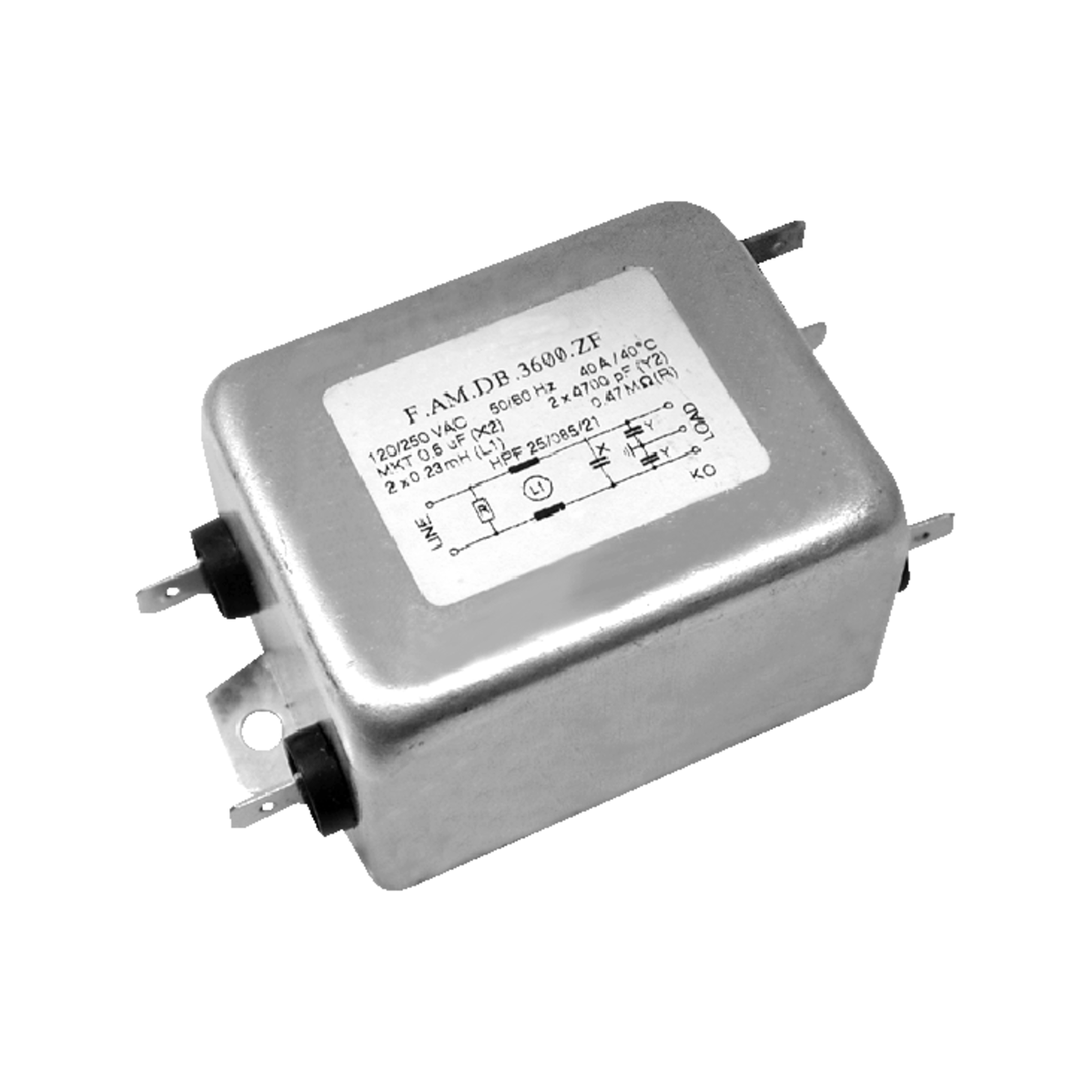

425 | | Manufacturers Part No. F.AM.DB.3600.ZF(FIL3640) Kemet Single-phase filter F.AM Chassis assembly 250V 40A | Customer Part No. Customer Project No. | 79 Pcs. Planned Delivery Time Ø 99 Weeks Available (from stock) | (at least 1 or mul. of 1) | Kemet | Single-phase filter | Chassis assembly | 250.0 V | 40.0 A | UL | 92.0 mm | 52.0 mm | 40.0 mm | -25.0 °C | 85.0 °C | 0,43 mA | 0.23 mH | 0,6 µF | 4,7 nF | HPF (25/085/21) |
