Results (423)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Application | Assembly Type | Rated voltage at 50/60Hz | Rated current | Approvals | Protection class front side | Dimension: Length | Dimension: Width | Dimension: Height | Operating Temperature Min. | Operating Temperature Max. | Leakage current, max. | Inductance | Cx | Cy | Climate category |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
326 |  | Manufacturers Part No. FN2080B-3-06(FN2080B-3-06) Schaffner Single-phase filter FN 2080 Chassis assembly 250V 3A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 20 or mul. of 20) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 3.0 A | CE ENEC14 UK CA UL cCSA | 85.0 mm | 54.0 mm | 40.3 mm | -25.0 °C | 100.0 °C | 9.8 mH | 0,47 µF | |||||||||
327 | | Manufacturers Part No. FN2080B-6-06(FN2080B-6-06) Schaffner Single-phase filter FN 2080 Chassis assembly 250V 6A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 20 or mul. of 20) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 6.0 A | CE ENEC14 UK CA UL cCSA | 113.5 mm | 57.5 mm | 45.4 mm | -25.0 °C | 100.0 °C | 7.8 mH | 1 µF | |||||||||
328 | | Manufacturers Part No. FN2080-1-06(FN2080-1-06) Schaffner Single-phase filter FN 2080 Chassis assembly 250V 1A | Customer Part No. Customer Project No. | 19 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 1.0 A | CE ENEC14 UK CA UL cCSA | 85.0 mm | 54.0 mm | 30.3 mm | -25.0 °C | 100.0 °C | 0,66 mA | 22.0 mH | 0,33 µF | 4,7 nF | ||||||||
329 | | Manufacturers Part No. FN2080-10-06(FN2080-10-06) Schaffner Single-phase filter FN 2080 Chassis assembly 250V 10A | Customer Part No. Customer Project No. | 2 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 10.0 A | CE ENEC14 UK CA UL cCSA | 156.0 mm | 57.5 mm | 45.4 mm | -25.0 °C | 100.0 °C | 0,66 mA | 4.5 mH | 1 µF | 4,7 nF | ||||||||
330 | | Manufacturers Part No. FN2060-1-06(FN2060-1-06) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 1A | Customer Part No. Customer Project No. | 15 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 1.0 A | CE ENEC14 UK CA UL cCSA | 71.0 mm | 46.6 mm | 29.3 mm | -25.0 °C | 100.0 °C | 0,66 mA | 12.0 mH | 0,22 µF | 4,7 nF | ||||||||
331 | | Manufacturers Part No. FN2060-10-06(FN2060-10-06) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 10A | Customer Part No. Customer Project No. | 14 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 10.0 A | CE ENEC14 UK CA UL cCSA | 85.0 mm | 54.0 mm | 30.3 mm | -25.0 °C | 100.0 °C | 0,66 mA | 0.8 mH | 0,47 µF | 4,7 nF | ||||||||
332 | | Manufacturers Part No. FN2060-12-06(FN2060-12-06) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 12A | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 50 or mul. of 50) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 12.0 A | CE ENEC14 UK CA UL cCSA | 85.0 mm | 54.0 mm | 30.3 mm | -25.0 °C | 100.0 °C | 0,66 mA | 0.58 mH | 0,47 µF | 4,7 nF | ||||||||
333 | | Manufacturers Part No. FN2060-16-06(FN2060-16-06) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 16A | Customer Part No. Customer Project No. | 39 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 16.0 A | CE ENEC14 UK CA UL cCSA | 85.0 mm | 54.0 mm | 40.3 mm | -25.0 °C | 100.0 °C | 0,66 mA | 0.65 mH | 0,33 µF | 4,7 nF | ||||||||
334 | | Manufacturers Part No. FN2060-3-06(FN2060-3-06) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 3A | Customer Part No. Customer Project No. | 10 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 3.0 A | CE ENEC14 UK CA UL cCSA | 71.0 mm | 46.6 mm | 29.3 mm | -25.0 °C | 100.0 °C | 0,66 mA | 2.5 mH | 0,22 µF | 4,7 nF | ||||||||
335 | | Manufacturers Part No. FN2060-30-08(FN2060-30-08) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 30A | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 10 or mul. of 10) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 30.0 A | CE ENEC14 UK CA UL cCSA | 119.0 mm | 85.5 mm | 57.6 mm | -25.0 °C | 100.0 °C | 0,79 mA | 0.6 mH | 1 µF | 10 nF | ||||||||
336 | | Manufacturers Part No. FN2060-6-06(FN2060-6-06) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 6A TOP | Customer Part No. Customer Project No. | 38 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 6.0 A | CE ENEC14 UK CA UL cCSA | 71.0 mm | 46.6 mm | 29.3 mm | -25.0 °C | 100.0 °C | 0,66 mA | 0.97 mH | 0,22 µF | 4,7 nF | ||||||||
337 | | Manufacturers Part No. FN2060B-1-06(FN2060B-1-06) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 1A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 50 or mul. of 50) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 1.0 A | CE ENEC14 UK CA UL cCSA | 71.0 mm | 46.6 mm | 29.3 mm | -25.0 °C | 100.0 °C | 12.0 mH | 0,22 µF | |||||||||

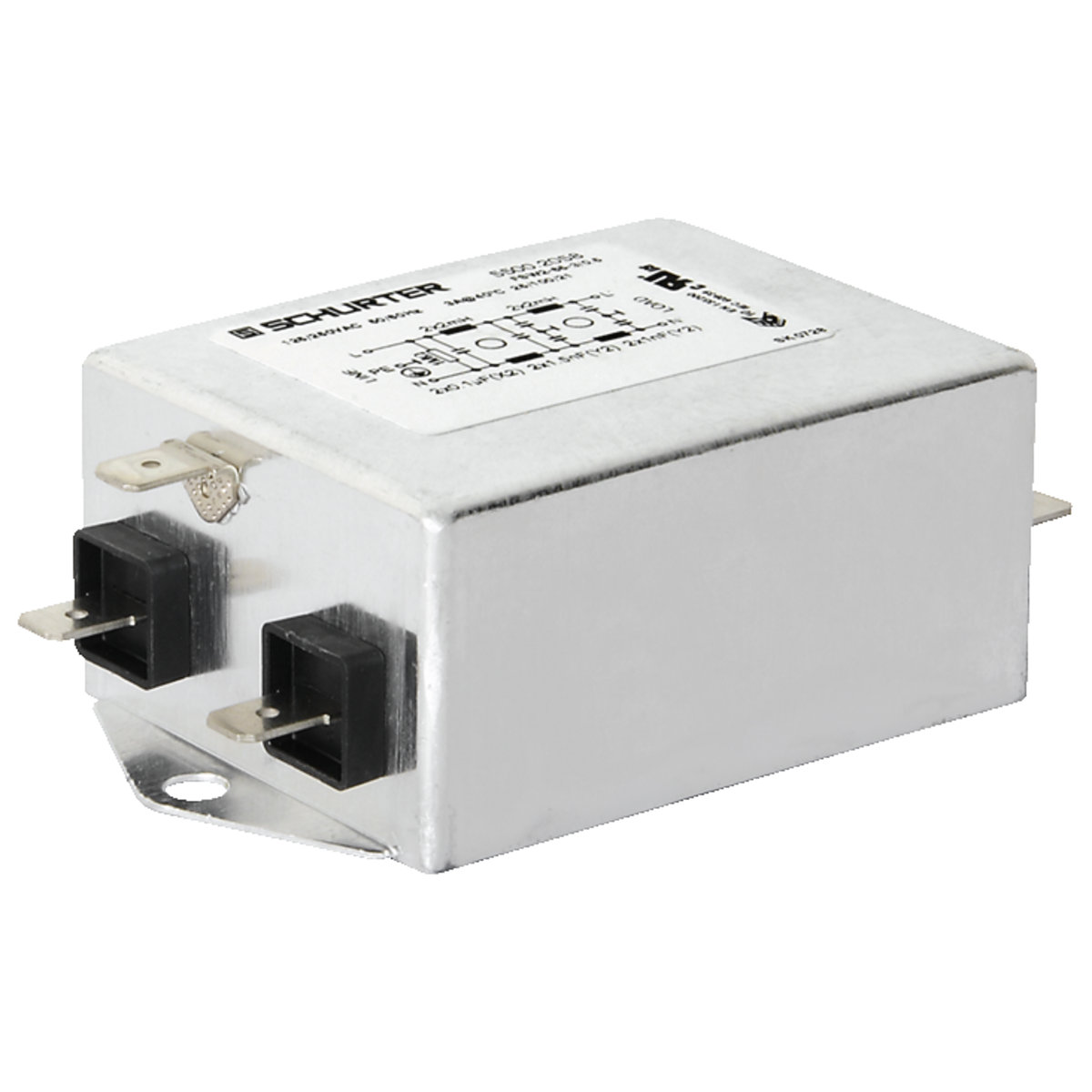

338 | | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Schurter | Two-phase filter | Chassis assembly | 250.0 V | 3.0 A | CE ENEC10 IEC UK CA cCSA cRUus | 66.0 mm | 51.0 mm | 31.0 mm | -25.0 °C | 100.0 °C | 0,25 mA | 2.0 mH | 0,1 µF | 1,5 nF | 25/100/21 | ||||||||
339 | | Customer Part No. Customer Project No. | 17 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Two-phase filter | Chassis assembly | 250.0 V | 10.0 A | CE ENEC10 IEC UK CA cCSA cRUus | 66.0 mm | 51.0 mm | 31.0 mm | -25.0 °C | 100.0 °C | 0,5 mA | 0.4 mH | 0,1 µF | 1,5 nF | 25/100/21 | ||||||||
340 | | Manufacturers Part No. FN2060B-10-06(FN2060B-10-06) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 10A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 50 or mul. of 50) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 10.0 A | CE ENEC14 UK CA UL cCSA | 85.0 mm | 54.0 mm | 30.3 mm | -25.0 °C | 100.0 °C | 0.8 mH | 0,47 µF | |||||||||
341 | | Customer Part No. Customer Project No. | 22 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Two-phase filter | Chassis assembly | 250.0 V | 6.0 A | CE ENEC10 IEC UK CA cCSA cRUus | 66.0 mm | 51.0 mm | 31.0 mm | -25.0 °C | 100.0 °C | 0,25 mA | 0.8 mH | 0,1 µF | 1,5 nF | 25/100/21 | ||||||||
342 | | Manufacturers Part No. FN2060B-12-06(FN2060B-12-06) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 12A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 50 or mul. of 50) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 12.0 A | CE ENEC14 UK CA UL cCSA | 85.0 mm | 54.0 mm | 30.3 mm | -25.0 °C | 100.0 °C | 0.58 mH | 0,47 µF | |||||||||
343 | | Manufacturers Part No. FN2060B-16-06(FN2060B-16-06) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 16A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 20 or mul. of 20) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 16.0 A | CE ENEC14 UK CA UL cCSA | 85.0 mm | 54.0 mm | 40.3 mm | -25.0 °C | 100.0 °C | 0.65 mH | 0,33 µF | |||||||||
344 | | Manufacturers Part No. FN2060B-20-06(FN2060B-20-06) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 20A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 20 or mul. of 20) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 20.0 A | CE ENEC14 UK CA UL cCSA | 113.5 mm | 57.5 mm | 45.4 mm | -25.0 °C | 100.0 °C | 0.6 mH | 1 µF | |||||||||
345 | | Customer Part No. Customer Project No. | 24 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Two-phase filter | Chassis assembly | 250.0 V | 16.0 A | CE ENEC10 IEC UK CA cCSA cRUus | 66.0 mm | 51.0 mm | 41.0 mm | -25.0 °C | 100.0 °C | 0,5 mA | 1.3 mH | 1 µF | 4,7 nF | 25/100/21 | ||||||||
346 | | Manufacturers Part No. FN2060B-3-06(FN2060B-3-06) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 3A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 50 or mul. of 50) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 3.0 A | CE ENEC14 UK CA UL cCSA | 71.0 mm | 46.6 mm | 29.3 mm | -25.0 °C | 100.0 °C | 2.5 mH | 0,22 µF | |||||||||
347 | | Manufacturers Part No. FN2060B-30-08(FN2060B-30-08) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 30A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 10 or mul. of 10) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 30.0 A | CE ENEC14 UK CA UL cCSA | 119.0 mm | 85.5 mm | 57.6 mm | -25.0 °C | 100.0 °C | 0.6 mH | 1 µF | |||||||||
348 | | Manufacturers Part No. FN2060B-6-06(FN2060B-6-06) Schaffner Single-phase filter FN 2060 Chassis assembly 250V 6A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 50 or mul. of 50) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 6.0 A | CE ENEC14 UK CA UL cCSA | 71.0 mm | 46.6 mm | 29.3 mm | -25.0 °C | 100.0 °C | 0.97 mH | 0,22 µF | |||||||||

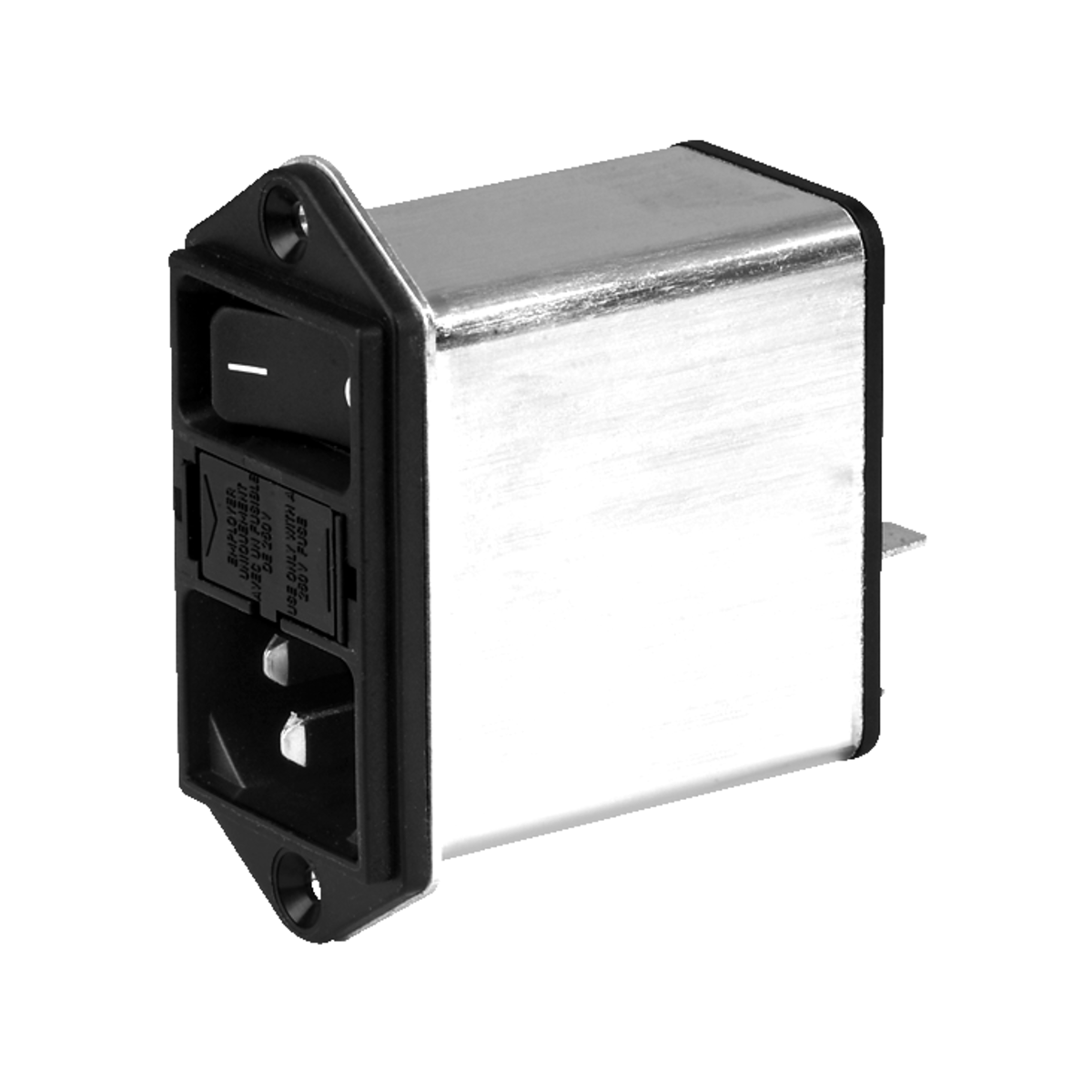

349 | | Manufacturers Part No. DD12.2121.111(DD12.2121.111) Schurter IEC filter DD12 Panel mounting 250V 2A IP40 | Customer Part No. Customer Project No. | 4 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | IEC filter | Panel mounting | 250.0 V | 2.0 A | CE CQC ENEC10 IEC UK CA cCSA cRUus | IP40 | 55.0 mm | 31.5 mm | 66.0 mm | -25.0 °C | 85.0 °C | 0,5 mA | 4.0 mH | 100 nF | 22 nF | HPF (25/085/21) | ||||||
350 | | Manufacturers Part No. DD12.6121.111(DD12.6121.111) Schurter IEC filter DD12 Panel mounting 250V 6A IP40 | Customer Part No. Customer Project No. | 82 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | IEC filter | Panel mounting | 250.0 V | 6.0 A | CE CQC ENEC10 IEC UK CA cCSA cRUus | IP40 | 55.0 mm | 31.5 mm | 66.0 mm | -25.0 °C | 85.0 °C | 0,5 mA | 0.8 mH | 100 nF | 22 nF | HPF (25/085/21) |
