Results (467)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Application | Assembly Type | Rated voltage at 50/60Hz | Rated current | Approvals | Protection class front side | Dimension: Length | Dimension: Width | Dimension: Height | Operating Temperature Min. | Operating Temperature Max. | Leakage current, max. | Inductance | Cx | Cy | Climate category |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

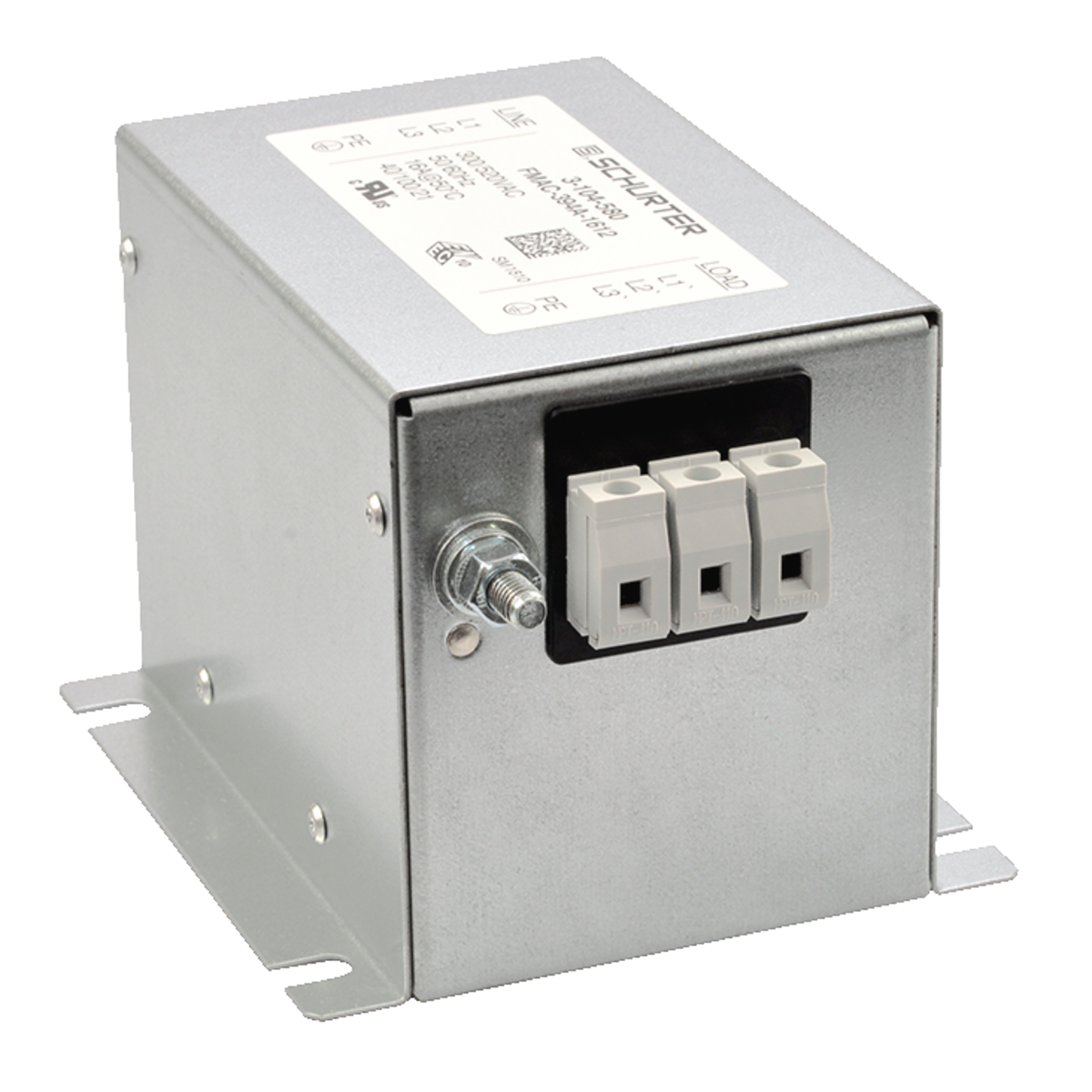

251 |  | Manufacturers Part No. 3-104-586(3-104-586) Schurter Three-phase filter FMAC NEO Chassis assembly 520V 110A IP20 | Customer Part No. Customer Project No. | 2 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Three-phase filter | Chassis assembly | 520.0 V | 110.0 A | CE CRUus ENEC10 IEC UK CA | IP20 | 161.0 mm | 134.0 mm | 101.0 mm | -40.0 °C | 100.0 °C | 12,2 mA | 40/100/21 | |||||||||
252 | | Manufacturers Part No. FN2070-10-06(FN2070-10-06) Schaffner Single-phase filter FN 2070 Chassis assembly 250V 10A | Customer Part No. Customer Project No. | 39 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 10.0 A | CE CSA ENEC14 UK CA UL | 156.0 mm | 57.5 mm | 45.4 mm | -25.0 °C | 100.0 °C | 0,66 mA | 4.5 mH | 1 µF | 4,7 nF | ||||||||
253 | | Manufacturers Part No. 3-104-587(3-104-587) Schurter Three-phase filter FMAC NEO Chassis assembly 520V 180A IP20 | Customer Part No. Customer Project No. | 3 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Three-phase filter | Chassis assembly | 520.0 V | 180.0 A | CE CRUus ENEC10 IEC UK CA | IP20 | 201.0 mm | 150.0 mm | 151.0 mm | -40.0 °C | 100.0 °C | 12,2 mA | 40/100/21 | |||||||||
254 | | Manufacturers Part No. 3-104-588(3-104-588) Schurter Three-phase filter FMAC NEO Chassis assembly 520V 230A IP20 | Customer Part No. Customer Project No. | 1 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Three-phase filter | Chassis assembly | 520.0 V | 230.0 A | CE CRUus ENEC10 IEC UK CA | IP20 | 201.0 mm | 150.0 mm | 151.0 mm | -40.0 °C | 100.0 °C | 13,1 mA | 40/100/21 | |||||||||
255 | | Manufacturers Part No. FN2070-12-06(FN2070-12-06) Schaffner Single-phase filter FN 2070 Chassis assembly 250V 12A | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 20 or mul. of 20) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 12.0 A | CE CSA ENEC14 UK CA UL | 156.0 mm | 57.5 mm | 45.4 mm | -25.0 °C | 100.0 °C | 0,66 mA | 3.25 mH | 1 µF | 4,7 nF | ||||||||
256 | | Manufacturers Part No. 3-104-841(3-104-841) Schurter Three-phase filter FMAC NEO Chassis assembly 520V 25A IP20 | Customer Part No. Customer Project No. | 1 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Schurter | Three-phase filter | Chassis assembly | 520.0 V | 25.0 A | CE CRUus ENEC10 IEC UK CA | IP20 | 121.0 mm | 110.0 mm | 91.0 mm | -40.0 °C | 100.0 °C | 3 mA | 40/100/21 | |||||||||
257 | | Manufacturers Part No. FN2070-16-06(FN2070-16-06) Schaffner Single-phase filter FN 2070 Chassis assembly 250V 16A | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 5 or mul. of 5) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 16.0 A | CE CSA ENEC14 UK CA UL | 119.0 mm | 85.5 mm | 57.6 mm | -25.0 °C | 100.0 °C | 0,66 mA | 2.8 mH | 1 µF | 4,7 nF | ||||||||
258 | | Manufacturers Part No. 3-104-862(3-104-862) Schurter Three-phase filter FMAC NEO Chassis assembly 520V 16A IP20 | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Schurter | Three-phase filter | Chassis assembly | 520.0 V | 16.0 A | CE CRUus ENEC10 IEC UK CA | IP20 | 121.0 mm | 110.0 mm | 91.0 mm | -40.0 °C | 100.0 °C | 1,4 mA | 40/100/21 | |||||||||
259 | | Manufacturers Part No. FN2070-25-08(FN2070-25-08) Schaffner Single-phase filter FN 2070 Chassis assembly 250V 25A | Customer Part No. Customer Project No. | 9 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 25.0 A | CE CSA ENEC14 UK CA UL | 156.0 mm | 57.5 mm | 45.4 mm | -25.0 °C | 100.0 °C | 0,66 mA | 2.0 mH | 2,2 µF | 4,7 nF | ||||||||
260 | | Manufacturers Part No. 3-104-872(3-104-872) Schurter Three-phase filter FMAC NEO Chassis assembly 520V 36A IP20 | Customer Part No. Customer Project No. | 4 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Three-phase filter | Chassis assembly | 520.0 V | 36.0 A | CE CRUus ENEC10 IEC UK CA | IP20 | 130.0 mm | 124.0 mm | 91.0 mm | -40.0 °C | 100.0 °C | 3 mA | 40/100/21 | |||||||||
261 | | Manufacturers Part No. FN2070-6-06(FN2070-6-06) Schaffner Single-phase filter FN 2070 Chassis assembly 250V 6A | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 20 or mul. of 20) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 6.0 A | CE CSA ENEC14 UK CA UL | 113.5 mm | 57.5 mm | 45.4 mm | -25.0 °C | 100.0 °C | 0,66 mA | 7.8 mH | 1 µF | 4,7 nF | ||||||||
262 | | Manufacturers Part No. 3-104-873(3-104-873) Schurter Three-phase filter FMAC NEO Chassis assembly 520V 50A IP20 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Three-phase filter | Chassis assembly | 520.0 V | 50.0 A | CE CRUus ENEC10 IEC UK CA | IP20 | 130.0 mm | 124.0 mm | 91.0 mm | -40.0 °C | 100.0 °C | 3 mA | 40/100/21 | |||||||||
263 | | Manufacturers Part No. FN2070-3-06(FN2070-3-06) Schaffner Single-phase filter FN 2070 Chassis assembly 250V 3A | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 20 or mul. of 20) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 3.0 A | CE CSA ENEC14 UK CA UL | 85.0 mm | 54.0 mm | 40.3 mm | -25.0 °C | 100.0 °C | 0,66 mA | 9.8 mH | 0,47 µF | 4,7 nF | ||||||||
264 | | Manufacturers Part No. 3-104-874(3-104-874) Schurter Three-phase filter FMAC NEO Chassis assembly 520V 64A IP20 | Customer Part No. Customer Project No. | 2 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schurter | Three-phase filter | Chassis assembly | 520.0 V | 64.0 A | CE CRUus ENEC10 IEC UK CA | IP20 | 130.0 mm | 124.0 mm | 91.0 mm | -40.0 °C | 100.0 °C | 3 mA | 40/100/21 | |||||||||
265 | | Manufacturers Part No. FN2070B-1-06(FN2070B-1-06) Schaffner Single-phase filter FN 2070 Chassis assembly 250V 1A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 50 or mul. of 50) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 1.0 A | CE CSA ENEC14 UK CA UL | 85.0 mm | 54.0 mm | 30.3 mm | -25.0 °C | 100.0 °C | 22.0 mH | 0,33 µF | |||||||||
266 | | Manufacturers Part No. FN2070B-10-06(FN2070B-10-06) Schaffner Single-phase filter FN 2070 Chassis assembly 250V 10A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 20 or mul. of 20) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 10.0 A | CE CSA ENEC14 UK CA UL | 156.0 mm | 57.5 mm | 45.4 mm | -25.0 °C | 100.0 °C | 4.5 mH | 1 µF | |||||||||
267 | | Manufacturers Part No. FN2070B-16-06(FN2070B-16-06) Schaffner Single-phase filter FN 2070 Chassis assembly 250V 16A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 10 or mul. of 10) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 16.0 A | CE CSA ENEC14 UK CA UL | 119.0 mm | 85.5 mm | 57.6 mm | -25.0 °C | 100.0 °C | 2.8 mH | 1 µF | |||||||||
268 | | Manufacturers Part No. FN2070B-3-06(FN2070B-3-06) Schaffner Single-phase filter FN 2070 Chassis assembly 250V 3A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 20 or mul. of 20) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 3.0 A | CE CSA ENEC14 UK CA UL | 85.0 mm | 54.0 mm | 40.3 mm | -25.0 °C | 100.0 °C | 9.8 mH | 0,47 µF | |||||||||
269 | | Manufacturers Part No. FN2070B-6-06(FN2070B-6-06) Schaffner Single-phase filter FN 2070 Chassis assembly 250V 6A Medical | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 25 Weeks Available on order | (at least 20 or mul. of 20) | Schaffner | Single-phase filter | Medical | Chassis assembly | 250.0 V | 6.0 A | CE CSA ENEC14 UK CA UL | 113.5 mm | 57.5 mm | 45.4 mm | -25.0 °C | 100.0 °C | 7.8 mH | 1 µF | |||||||||
270 | | Manufacturers Part No. FN2030-1-06(FN2030-1-06) Schaffner Single-phase filter FN 2030 Chassis assembly 250V 1A | Customer Part No. Customer Project No. | 12 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 1.0 A | CE CQC CSA ENEC14 UK CA UL | 64.0 mm | 35.0 mm | 24.3 mm | -25.0 °C | 100.0 °C | 0,31 mA | 20.0 mH | 0,22 µF | 2,2 nF | ||||||||
271 | | Manufacturers Part No. FN2030-10-06(FN2030-10-06) Schaffner Single-phase filter FN 2030 Chassis assembly 250V 10A | Customer Part No. Customer Project No. | 41 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 10.0 A | CE CQC CSA ENEC14 UK CA UL | 85.0 mm | 54.0 mm | 30.3 mm | -25.0 °C | 100.0 °C | 0,66 mA | 8.0 mH | 0,47 µF | 4,7 nF | ||||||||
272 | | Manufacturers Part No. FN2030-12-06(FN2030-12-06) Schaffner Single-phase filter FN 2030 Chassis assembly 250V 12A | Customer Part No. Customer Project No. | 50 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 12.0 A | CE CQC CSA ENEC14 UK CA UL | 85.0 mm | 54.0 mm | 30.3 mm | -25.0 °C | 100.0 °C | 0,79 mA | 4.0 mH | 1 µF | 10 nF | ||||||||
273 | | Manufacturers Part No. FN2030-16-06(FN2030-16-06) Schaffner Single-phase filter FN 2030 Chassis assembly 250V 16A | Customer Part No. Customer Project No. | 68 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 16.0 A | CE CQC CSA ENEC14 UK CA UL | 85.0 mm | 54.0 mm | 40.3 mm | -25.0 °C | 100.0 °C | 0,79 mA | 4.0 mH | 1 µF | 10 nF | ||||||||
274 | | Manufacturers Part No. FN2030-20-06(FN2030-20-06) Schaffner Single-phase filter FN 2030 Chassis assembly 250V 20A | Customer Part No. Customer Project No. | 13 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 20.0 A | CE CQC CSA ENEC14 UK CA UL | 85.0 mm | 54.0 mm | 40.3 mm | -25.0 °C | 100.0 °C | 0,79 mA | 4.0 mH | 1 µF | 10 nF | ||||||||
275 | | Manufacturers Part No. FN2030-20-08(FN2030-20-08) Schaffner Single-phase filter FN 2030 Chassis assembly 250V 20A | Customer Part No. Customer Project No. | 12 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Single-phase filter | Chassis assembly | 250.0 V | 20.0 A | CE CQC CSA ENEC14 UK CA UL | 85.0 mm | 54.0 mm | 40.3 mm | -25.0 °C | 100.0 °C | 0,79 mA | 4.0 mH | 1 µF | 10 nF |
