Results (382)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Manufacturer Package | Lighting Colour | Luminous Intensity Max. | Viewing Angle | (Uf) Forward Voltage | (If) Forward Current | Peak Emission Wavelength | Dominant Wavelength Max. | Lens Colour | Lens Tranparency | Lens Shape | Packaging | Operating Temperature, min. (TA) | Operating Temperature, max. (TA) | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
01 |  | Manufacturers Part No. 204-10SUBD/S400-A4(204-10SUBD/S400-A4) Everlight THT LED blue diffuse round 320mcd 30° 3,3V 3mm | Customer Part No. Customer Project No. | 2.000 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | THT | 3mm | blue | 320.0 mcd | 30.0 ° | 3.3 V | 20.0 mA | 468.0 nm | 470.0 nm | blue | diffuse | round | Boxed | -40.0 °C | 85.0 °C | ||||||
02 | | Manufacturers Part No. 204-10SUBD/S400-A6-L(204-10SUBD/S400A6L) Everlight THT LED blue diffuse round 500mcd 20° 3,4V 3mm | Customer Part No. Customer Project No. | 1.700 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | THT | 3mm | blue | 500.0 mcd | 20.0 ° | 3.4 V | 20.0 mA | 468.0 nm | 470.0 nm | blue | diffuse | round | Boxed | -40.0 °C | 85.0 °C | ||||||
03 | | Manufacturers Part No. 204-10SUBD/S400-X9(204-10SUBD/S400-X9) Everlight THT LED blue diffuse round 1.250mcd 30° 3,4V 3mm | Customer Part No. Customer Project No. | 2.500 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | THT | 3mm | blue | 1250.0 mcd | 30.0 ° | 3.4 V | 20.0 mA | 468.0 nm | 470.0 nm | blue | diffuse | round | Boxed | -40.0 °C | 85.0 °C | ||||||
04 | | Manufacturers Part No. 204-10SURD/S530-A3(EL204-10SURD/S53) Everlight THT LED red diffuse round 80mcd 45° 2,0V 3mm | Customer Part No. Customer Project No. | 10.000 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | THT | 3mm | red | 80.0 mcd | 45.0 ° | 2.0 V | 20.0 mA | 632.0 nm | 624.0 nm | red | diffuse | round | Boxed | -40.0 °C | 85.0 °C | ||||||
05 | | Manufacturers Part No. 204-10UYD/S530-A3(EL204-10UYD/S53) Everlight THT LED yellow diffuse round 200mcd 60° 2,0V 3mm | Customer Part No. Customer Project No. | 6.700 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | THT | 3mm | yellow | 200.0 mcd | 60.0 ° | 2.0 V | 20.0 mA | 591.0 nm | 589.0 nm | yellow | diffuse | round | Boxed | -40.0 °C | 85.0 °C | ||||||
06 | | Manufacturers Part No. 204-10SYGD/S530-E2(EL204-10SYGD/S53) Everlight THT LED yellow, green diffuse round 50mcd 60° 2,0V 3mm | Customer Part No. Customer Project No. | 18.700 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | THT | 3mm | yellow, green | 50.0 mcd | 60.0 ° | 2.0 V | 20.0 mA | 575.0 nm | 573.0 nm | green | diffuse | round | Boxed | -40.0 °C | 85.0 °C | ||||||
07 | | Manufacturers Part No. 1254-10SURD/S530-A3(EL1254-10SURD/S5) Everlight THT LED red diffuse round 500mcd 30° 2,0V 3mm | Customer Part No. Customer Project No. | 9.600 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | THT | 3mm | red | 500.0 mcd | 30.0 ° | 2.0 V | 20.0 mA | 632.0 nm | 624.0 nm | red | diffuse | round | Boxed | -40.0 °C | 85.0 °C | ||||||
08 | | Manufacturers Part No. 1254-10UYD/S530-A3(EL1254-10UYD/S5) Everlight THT LED yellow diffuse round 200mcd 30° 2,0V 3mm | Customer Part No. Customer Project No. | 9.000 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | THT | 3mm | yellow | 200.0 mcd | 30.0 ° | 2.0 V | 20.0 mA | 591.0 nm | 589.0 nm | yellow | diffuse | round | Boxed | -40.0 °C | 85.0 °C | ||||||
09 | | Manufacturers Part No. 1254-10SYGD/S530-E2(EL1254-10SYGD/S5) Everlight THT LED yellow, green diffuse round 63mcd 40° 2,0V 3mm | Customer Part No. Customer Project No. | 12.400 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | THT | 3mm | yellow, green | 63.0 mcd | 40.0 ° | 2.0 V | 20.0 mA | 575.0 nm | 573.0 nm | green | diffuse | round | Boxed | -40.0 °C | 85.0 °C | ||||||
10 | | Manufacturers Part No. 204-10SURT/S530-A3(EL204-10SURT/S53) Everlight THT LED red clear round 500mcd 20° 2,0V 3mm | Customer Part No. Customer Project No. | 23.400 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | THT | 3mm | red | 500.0 mcd | 20.0 ° | 2.0 V | 2.0 mA | 632.0 nm | 624.0 nm | red | clear | round | Boxed | -40.0 °C | 85.0 °C | ||||||
11 | | Manufacturers Part No. 204-10UYT/S530-A3(EL204-10UYT/S53) Everlight THT LED yellow clear round 500mcd 20° 2,0V 3mm | Customer Part No. Customer Project No. | 2.100 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | THT | 3mm | yellow | 500.0 mcd | 20.0 ° | 2.0 V | 20.0 mA | 591.0 nm | 589.0 nm | yellow | clear | round | Boxed | -40.0 °C | 85.0 °C | ||||||
12 | | Manufacturers Part No. 204-10SYGT/S530-E2(EL204-10SYGT/S53) Everlight THT LED yellow, green clear round 200mcd 20° 2,0V 3mm | Customer Part No. Customer Project No. | 17.500 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | THT | 3mm | yellow, green | 200.0 mcd | 20.0 ° | 2.0 V | 20.0 mA | 575.0 nm | 573.0 nm | green | clear | round | Boxed | -40.0 °C | 85.0 °C | ||||||
13 | | Customer Part No. Customer Project No. | 8.500 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | THT | 3mm | red | 4.4 mcd | 60.0 ° | 2.1 V | 20.0 mA | 697.0 nm | 657.0 nm | red | diffuse | Dome | Boxed | -55.0 °C | 100.0 °C | |||||||
14 | | TOP | Customer Part No. Customer Project No. | 63.600 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | THT | 3mm | red | 8.7 mcd | 60.0 ° | 2.0 V | 20.0 mA | 635.0 nm | 623.0 nm | red | diffuse | Dome | Boxed | -55.0 °C | 100.0 °C | ||||||
15 | | TOP | Customer Part No. Customer Project No. | 85.400 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | THT | 3mm | yellow | 5.6 mcd | 60.0 ° | 2.1 V | 20.0 mA | 585.0 nm | 590.0 nm | yellow | diffuse | Dome | Boxed | -55.0 °C | 100.0 °C | ||||||
16 | | TOP | Customer Part No. Customer Project No. | 45.300 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | THT | 3mm | green | 12.6 mcd | 60.0 ° | 2.1 V | 20.0 mA | 565.0 nm | 572.0 nm | green | diffuse | Dome | Boxed | -55.0 °C | 100.0 °C | ||||||
17 | | Manufacturers Part No. LTL4221N-022(LTL4221N-GURT) Lite-On THT LED red diffuse Dome 8,7mcd 60° 2,0V 3mm | Customer Part No. Customer Project No. | 15.600 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | THT | 3mm | red | 8.7 mcd | 60.0 ° | 2.0 V | 20.0 mA | 635.0 nm | 623.0 nm | red | diffuse | Dome | Ammo | -55.0 °C | 100.0 °C | ||||||
18 | | Manufacturers Part No. LTL4251N-022(LTL4251N-GURT) Lite-On THT LED yellow diffuse Dome 5,6mcd 60° 2,1V 3mm | Customer Part No. Customer Project No. | 14.100 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | THT | 3mm | yellow | 5.6 mcd | 60.0 ° | 2.1 V | 20.0 mA | 585.0 nm | 590.0 nm | yellow | diffuse | Dome | Ammo | -55.0 °C | 100.0 °C | ||||||
19 | | Manufacturers Part No. LTL4231N-022(LTL4231N-GURT) Lite-On THT LED green diffuse Dome 12,6mcd 60° 2,1V 3mm | Customer Part No. Customer Project No. | 26.900 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | THT | 3mm | green | 12.6 mcd | 60.0 ° | 2.1 V | 20.0 mA | 565.0 nm | 572.0 nm | green | diffuse | Dome | Ammo | -55.0 °C | 100.0 °C | ||||||
20 | | Customer Part No. Customer Project No. | 58.390 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | THT | 3mm | red | 2.5 mcd | 60.0 ° | 1.7 V | 2.0 mA | 635.0 nm | 623.0 nm | red | diffuse | Dome | Boxed | -55.0 °C | 100.0 °C | |||||||

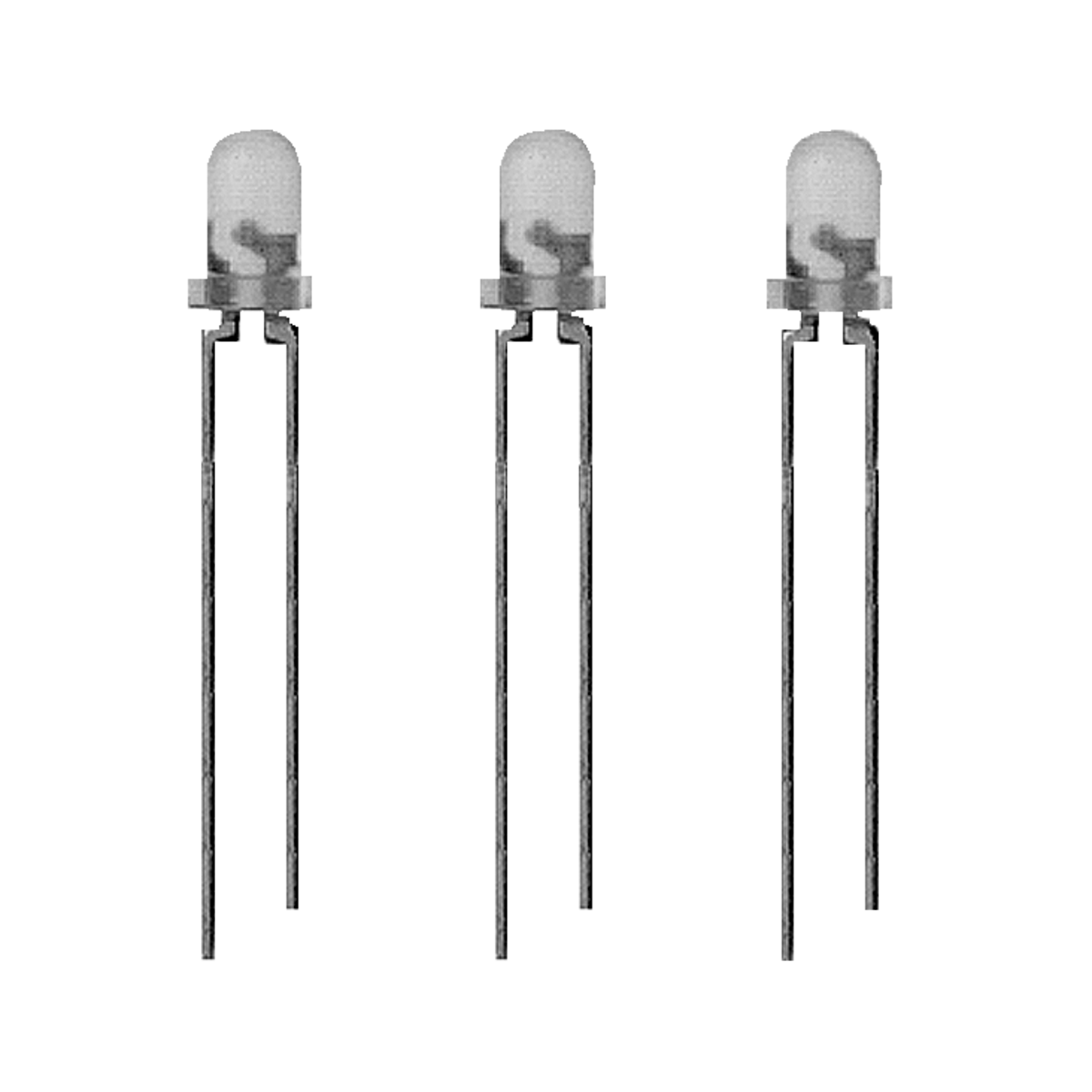

21 | | Manufacturers Part No. LTL-4251NLC(LED3GE2MA) Lite-On THT LED yellow diffuse Dome 1,1mcd 60° 1,8V 3mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | THT | 3mm | yellow | 1.1 mcd | 60.0 ° | 1.8 V | 2.0 mA | 585.0 nm | 588.0 nm | yellow | diffuse | Dome | Boxed | -55.0 °C | 100.0 °C | ||||||
22 | | Manufacturers Part No. LTL-4231NLC(LED3GN2MA) Lite-On THT LED green diffuse Dome 1,1mcd 60° 1,9V 3mm | Customer Part No. Customer Project No. | 26.500 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | THT | 3mm | green | 1.1 mcd | 60.0 ° | 1.9 V | 2.0 mA | 565.0 nm | 569.0 nm | green | diffuse | Dome | Boxed | -55.0 °C | 100.0 °C | ||||||
23 | | Customer Part No. Customer Project No. | 400 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | THT | 3mm | red | 19.0 mcd | 45.0 ° | 2.0 V | 20.0 mA | 635.0 nm | 625.0 nm | red | clear | round | Boxed | -55.0 °C | 100.0 °C | |||||||
24 | | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | THT | 3mm | yellow | 40.0 mcd | 45.0 ° | 2.1 V | 20.0 mA | 585.0 nm | 590.0 nm | yellow | clear | round | Boxed | -55.0 °C | 100.0 °C | |||||||
25 | | Customer Part No. Customer Project No. | 3.400 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | THT | 3mm | green | 40.0 mcd | 45.0 ° | 2.1 V | 20.0 mA | 565.0 nm | 573.0 nm | green | clear | round | Boxed | -55.0 °C | 100.0 °C |
