KPJX-PM-4S-S

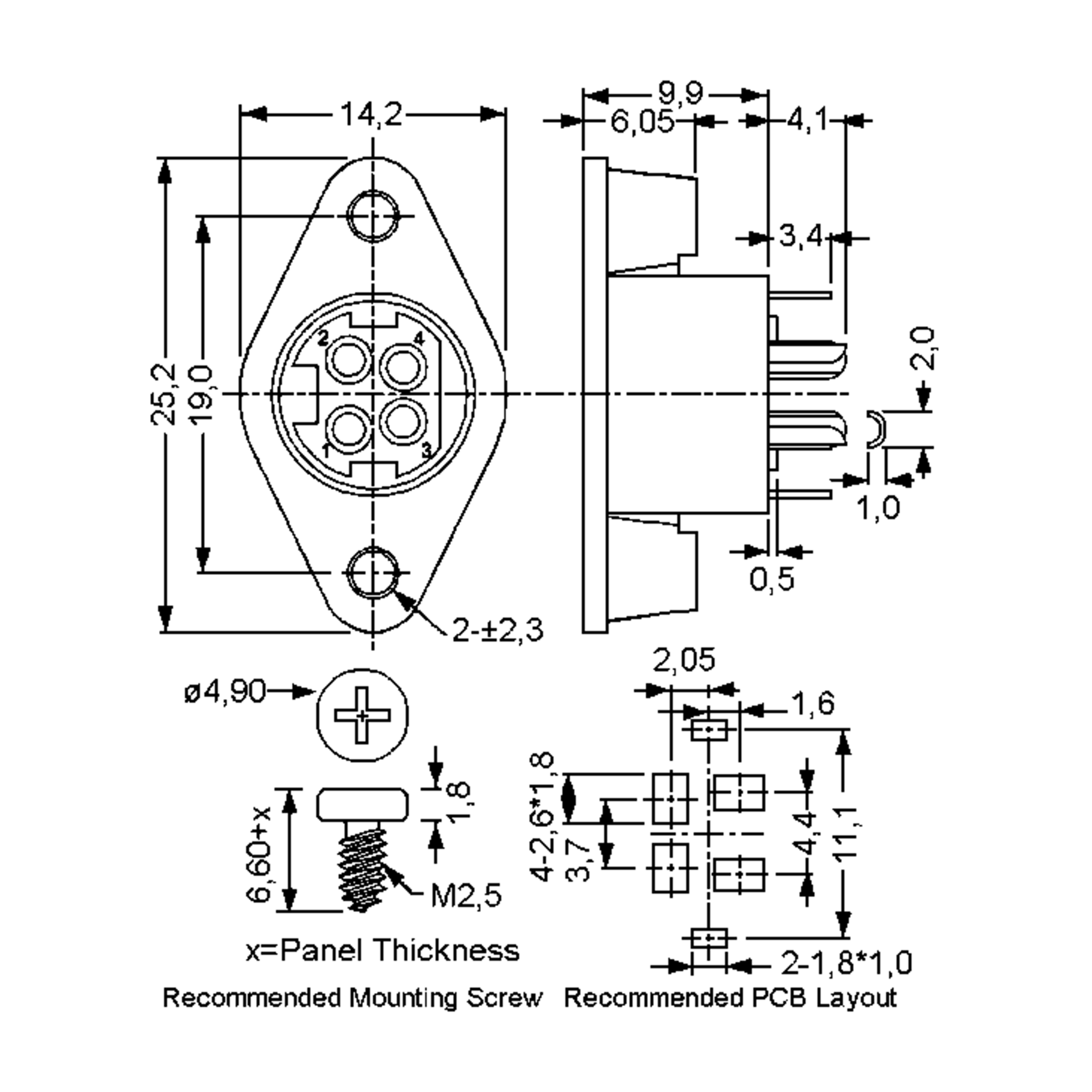

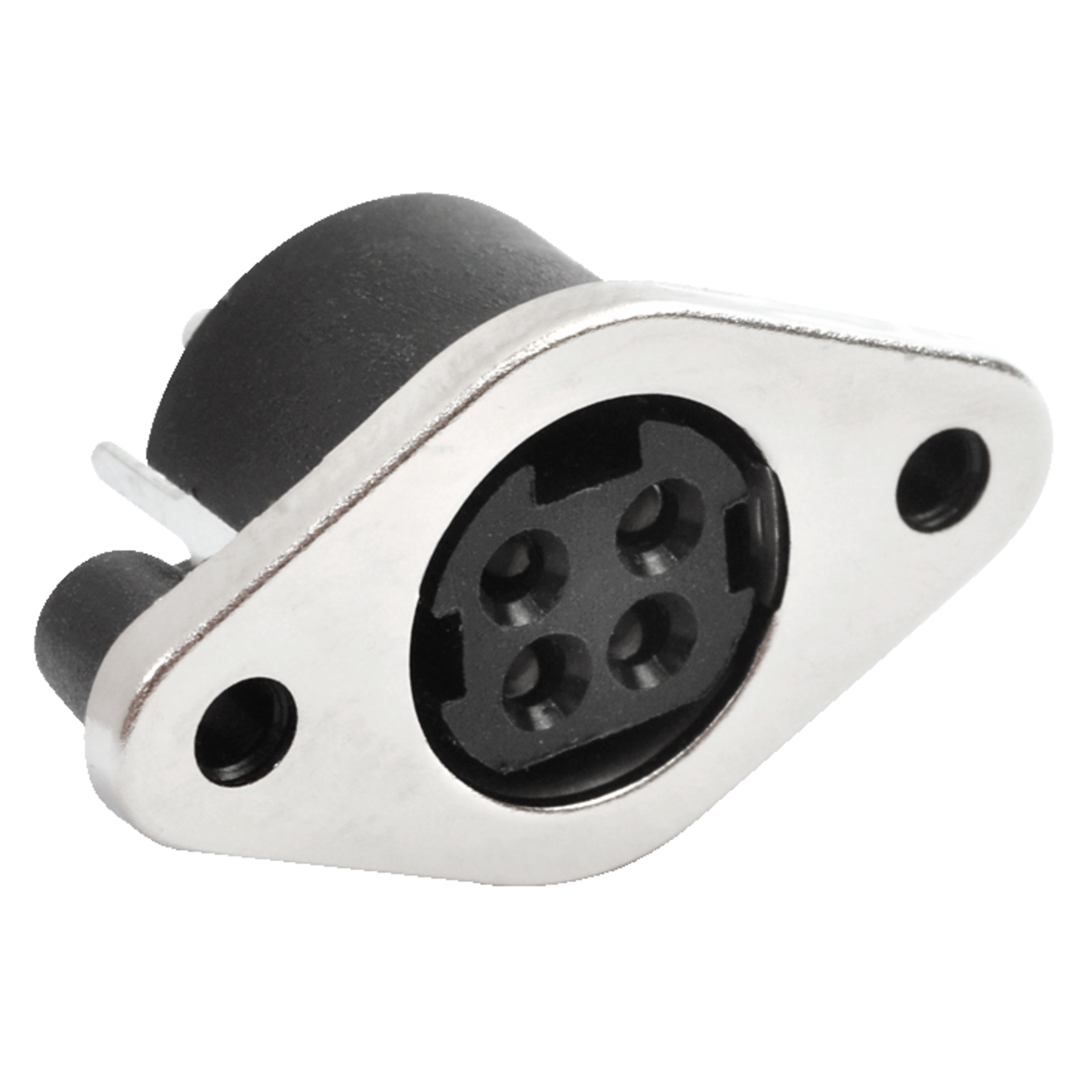

Kycon KPJX-PM Panel round straight 4 Pole Solder shielded

KPJX-PM-4S-SKPJX-PM-4S-S
Manufacturer Part No.
KPJX-PM-4S-S
Schukat Part No.
KPJX-PM-4S-S
Manufacturer
Kycon
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

390 Pcs. in stock

Next Stock Receipt
Week 28/2026
200 Pcs.
Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Contact Type
Socket
Connector Contact
Solder
Series
KPJX-PM
Housing material
Polybutylenterephthalat (PBT)
Housing
round
Design
Panel
Number of poles
4
Class of Inflammability
UL 94 V-0
Locking
no
Alignment
straight
Rated voltage DC
48 V DC
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Kycon
Series
  • KPJX-PM
Product group
  • L9982
Housing
  • round
Contact Type
  • Socket
Connector Contact
  • Solder
Number of poles
  • 4
Strain Relief
  • no
Features

  • Snap & Lock feature helps to prevent accidental disconnects

Application

  • - Suitable for signal and DC power applications

    - Suitable for laptop computers, power supplies and other portable digital equipment applications

Alignment
  • straight
Design
  • Panel
Protective conductor
Shielding
  • shielded
Locking
  • no

Dimensions and Weights

Dimension: Length
  • 14 mm
Dimension: Width
  • 14.2 mm
Dimension: Height
  • 25.2 mm
Conductor cross-section (AWG), min.
  • 24 AWG
Conductor cross-section (AWG), max.
  • 18 AWG

Technical Features

Current load, max.
  • 7.5 A
Rated voltage DC
  • 48 V DC
Dielectric strength
  • 500 V / min.
Insulation resistance
  • 50 MOhm
Contact resistance
  • 30 mOhm

Mechanical Features

Durability
  • 1,000
Drilling Dimensions
  • 2.3 mm
Housing material
  • Polybutylenterephthalat (PBT)
Contact Surface Input
  • verzinnt

Safety/Certifications

Approvals
  • UL
Class of Inflammability
  • UL 94 V-0

Other Products

All Products of the Series
Loading...

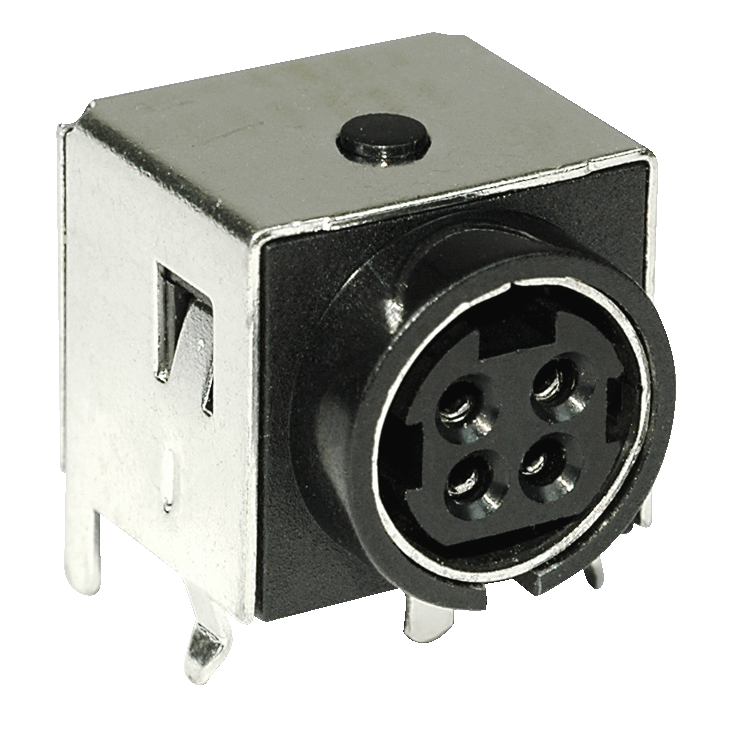

KPJX-4S-S
