KPJX-4S-S

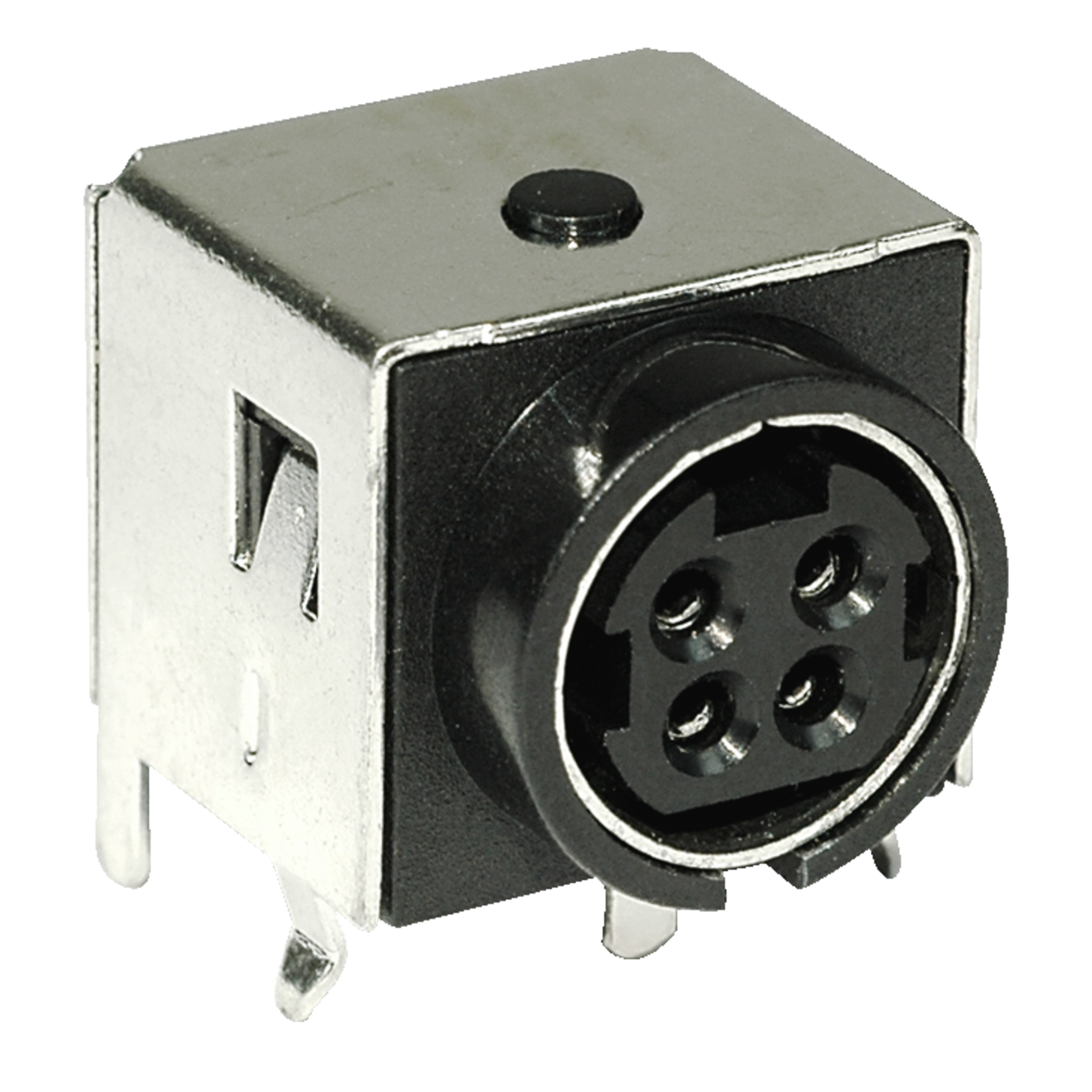

Kycon KPJX PCB 90° 4 Pole shielded
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
280 Pcs. in stock
Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 170 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Series
- KPJX
- Housing material
- Polybutylenterephthalat (PBT)
- Design
- PCB
- Number of poles
- 4
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- 90°
- Rated voltage DC
- 48 V DC
- RoHS-Conform
Specifications
Open all

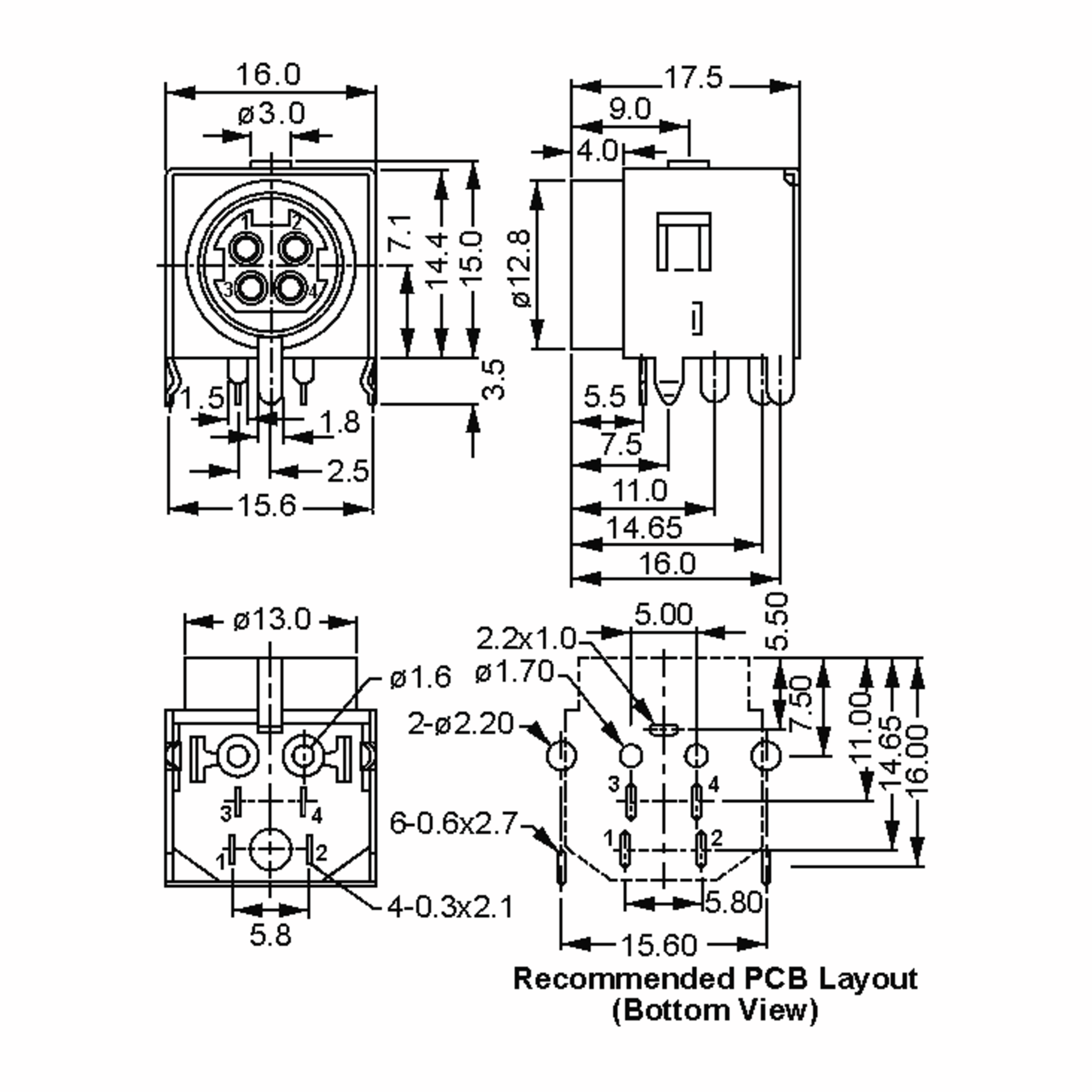

Dimensions and Weights
- Dimension: Width
- 16 mm
- Dimension: Height
- 18.5 mm
- Dimension: Depth
- 17.4 mm
Technical Features
- Current load, max.
- 7.5 A
- Rated voltage DC
- 48 V DC
- Dielectric strength
- 500 V / min.
- Insulation resistance
- 50 MOhm
- Contact resistance
- 30 mOhm
Mechanical Features
- Durability
- 1,000
- Housing material
- Polybutylenterephthalat (PBT)
- Contact Surface Input
- verzinnt
Safety/Certifications
- Approvals
- UL
- Class of Inflammability
- UL 94 V-0
Documents
KPJX.pdf
