KU-CG30-0H-ST-6-631-L
Kunze Insulators KU-CG30 Silicone 300µm 20mm 22mm -60°C 200°C pink UL 94 V-0
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5.420 Pcs. in stock
Planned delivery time
Ø 31 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 4410 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 90 or multiple of 90)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Insulators
- Series
- KU-CG30

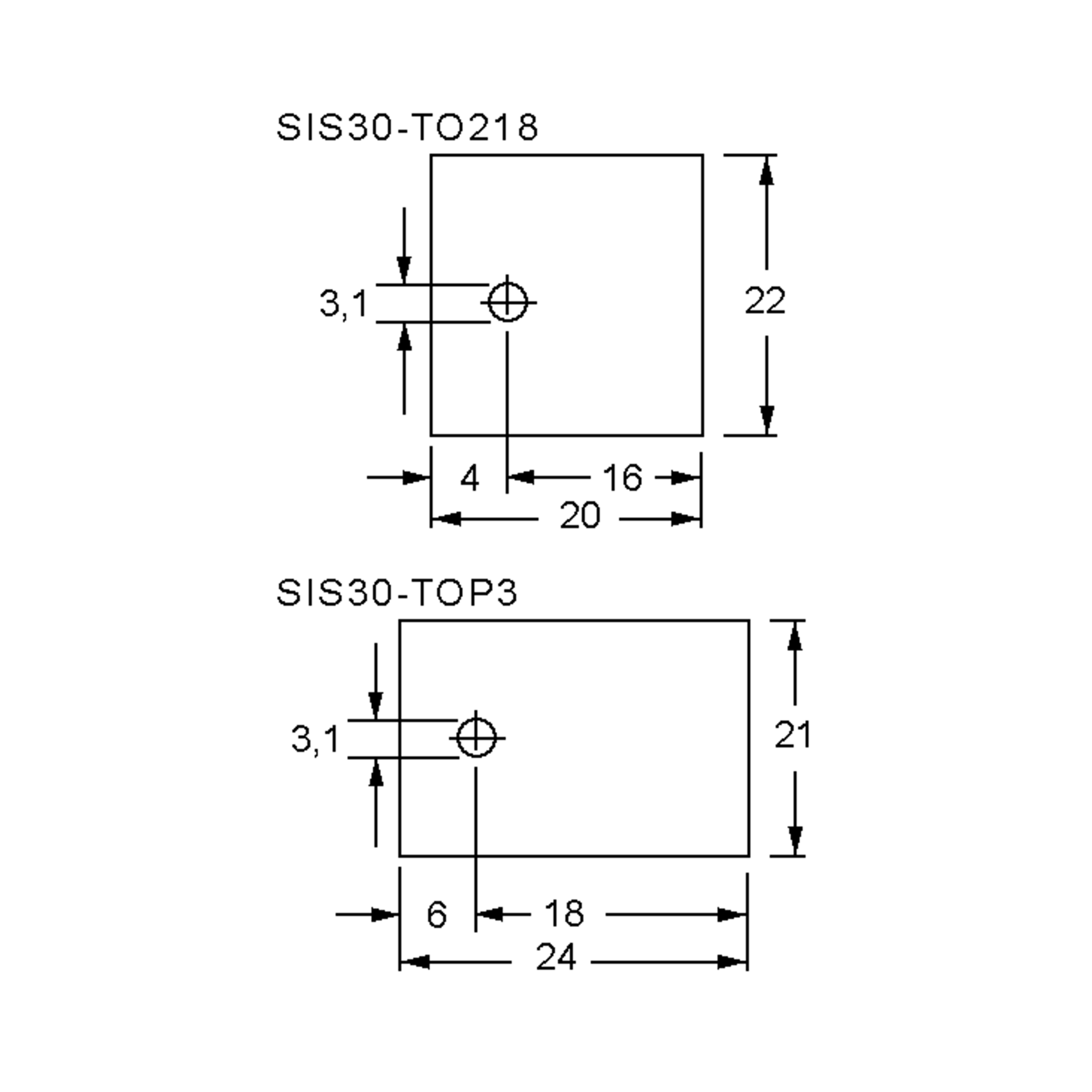

- Dimension: Length
- 20 mm
- Dimension: Width
- 22 mm
- Operating Temperature Min.
- -60 °C
- Operating Temperature Max.
- 200 °C
- Material
- Silicone
- Material thickness, max.
- 300 µm
- Colour
- pink
- Class of Inflammability
- UL 94 V-0
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 20 mm
- Dimension: Width
- 22 mm
- Material thickness, max.
- 300 µm
Operating conditions
- Thermal conductivity
- 1.9 W/m.K
- Operating Temperature Min.
- -60 °C
- Operating Temperature Max.
- 200 °C
Technical features
- Thermal resistance
- 0.45 K/W
- Dielectric strength, min.
- 7 kV/mm
- Insulation resistance
- 2,9 x 10^15 Ohm/cm
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
