06070104/22

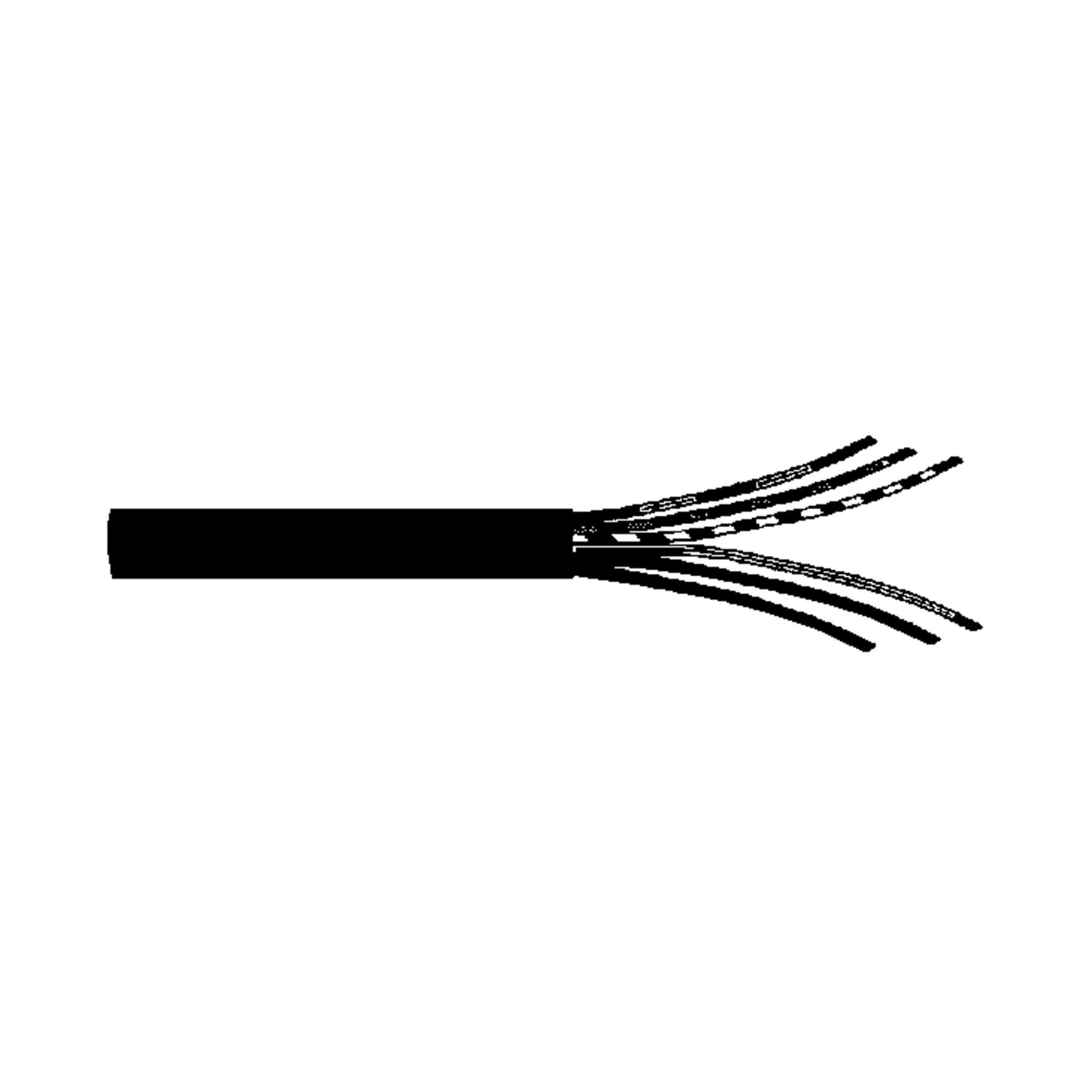

Klasing Control cable LiYY 4 18x0,10mm 0,14mm² Grey 100m ring
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.800 Meter ( m ) in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
| Qty in Meter ( m ) | Price per 100 Meter ( m ) | Price Type STP = Standard price RRP = Recommended retail price CPL = Customer price list | |
|---|---|---|---|
| 100 | 49,37 € | STP | |
| 500 | 39,15 € | STP | |
| 1.000 | 34,06 € | STP | |
| 3.000 | 32,50 € | STP |
Manufacturer bundle 100 Meter ( m )
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Meter ( m ) 0,4937 €
Fact Sheet
- Type
- Control cable
- Series
- 060701
- Abbreviation
- LiYY
- Numbers : conductor
- 4
- Dimension: Length
- 100 m
- Cross-section: Conductor
- 0.14 mm²
- Structure: conductor
- 18 x 0,10 mm
- Material: Coat
- PVC
- Colour of Outer Jacket
- Grey
- Approvals
- CE
- Flammability
- flame retardant IEC332.1
- Form of Delivery
- ring
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 100 m
- Cross-section: Conductor
- 0.14 mm²
- Diameter: Conductor
- 3.5 mm
Operating conditions
- Temperature, at rest
- 70 °C
- Temperature, in motion
- 70 °C
Technical Features
- Test voltage
- 1,200 V
- Conductor resistance, max.
- 135 Ohm/km
- Insulation resistance
- 20 MOhm
- Rated Voltage
- 300 V
Safety/Certifications
- Approvals
- CE
- Flammability
- flame retardant IEC332.1
