05C00187/09

Klasing Strand 16 x 0,20 mm 0,5 mm² Black

TOP
Manufacturer Part No.
05C00187/09
Schukat Part No.
ZL205SW
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

8.000 Meter ( m ) in stock

Planned delivery time
Ø 5 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Meter ( m )
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Meter ( m )

Quantity and Options

(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Strand
Series
05C00187
Abbreviation
LiYZ
Numbers : conductor
2
Dimension: Length
100 m
Cross-section: Conductor
0.5 mm²

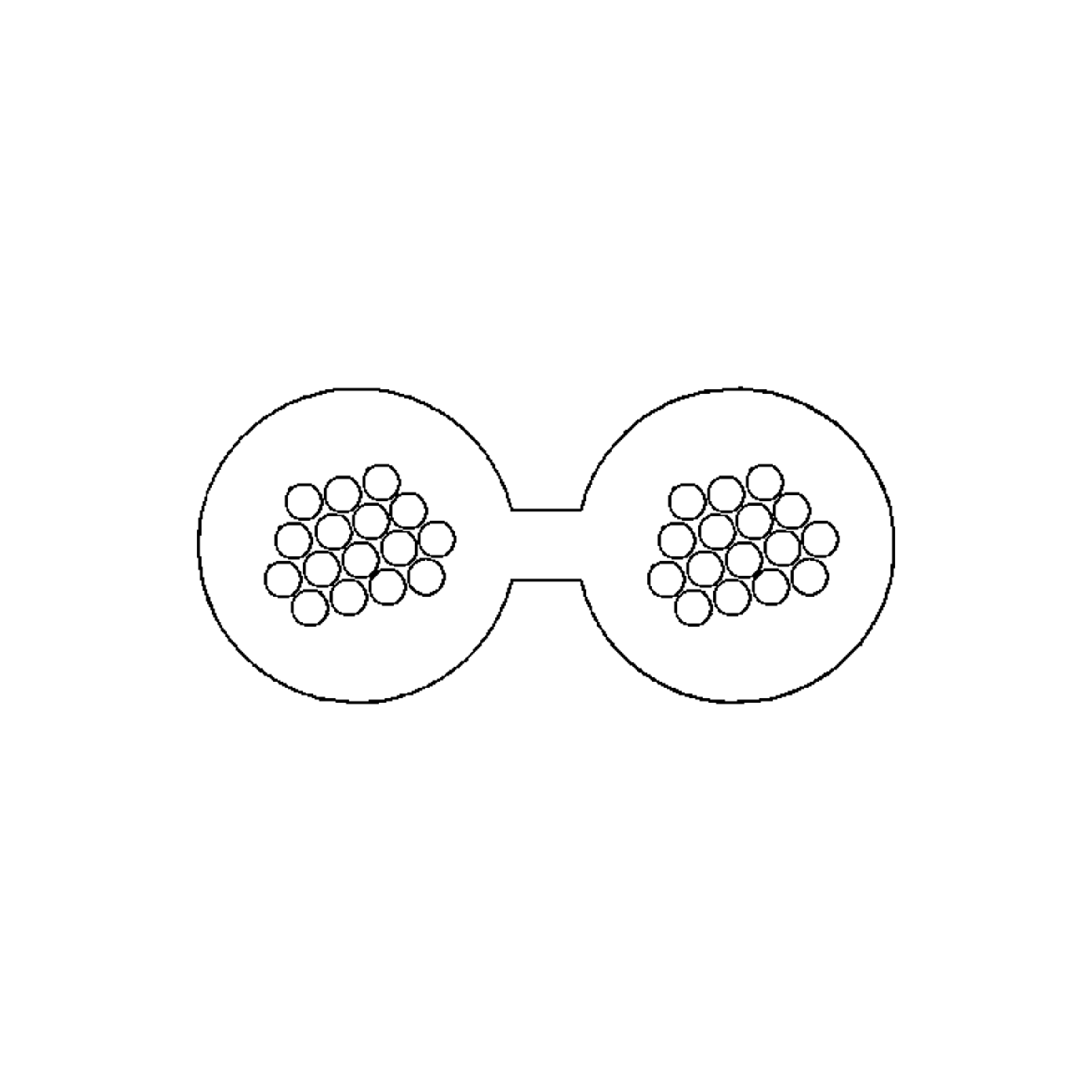

Structure: conductor
16 x 0,20 mm
Form of Delivery
reel
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Klasing
Type
  • Strand
Series
  • 05C00187
Product group
  • G1283 PVC Twin Braid Wire 2x0,5mm²
Abbreviation
  • LiYZ
Numbers : conductor
  • 2
Colour: Conductor insulation
  • Black
Structure: conductor
  • 16 x 0,20 mm
Features
  • - PVC insulated twin braid wires
    - Conductor welded/separable

Material: Conductor insulation
  • PVC
Form of Delivery
  • reel

Dimensions and weights

Dimension: Length
  • 100 m
Dimension: Width
  • 3.5 mm
Cross-section: Conductor
  • 0.5 mm²
Diameter: Conductor
  • 1.6 mm

Operating conditions

Temperature, in motion
  • 105 °C

Technical features

Test voltage
  • 1,500 V
Rated Voltage
  • 75 V
