05087225

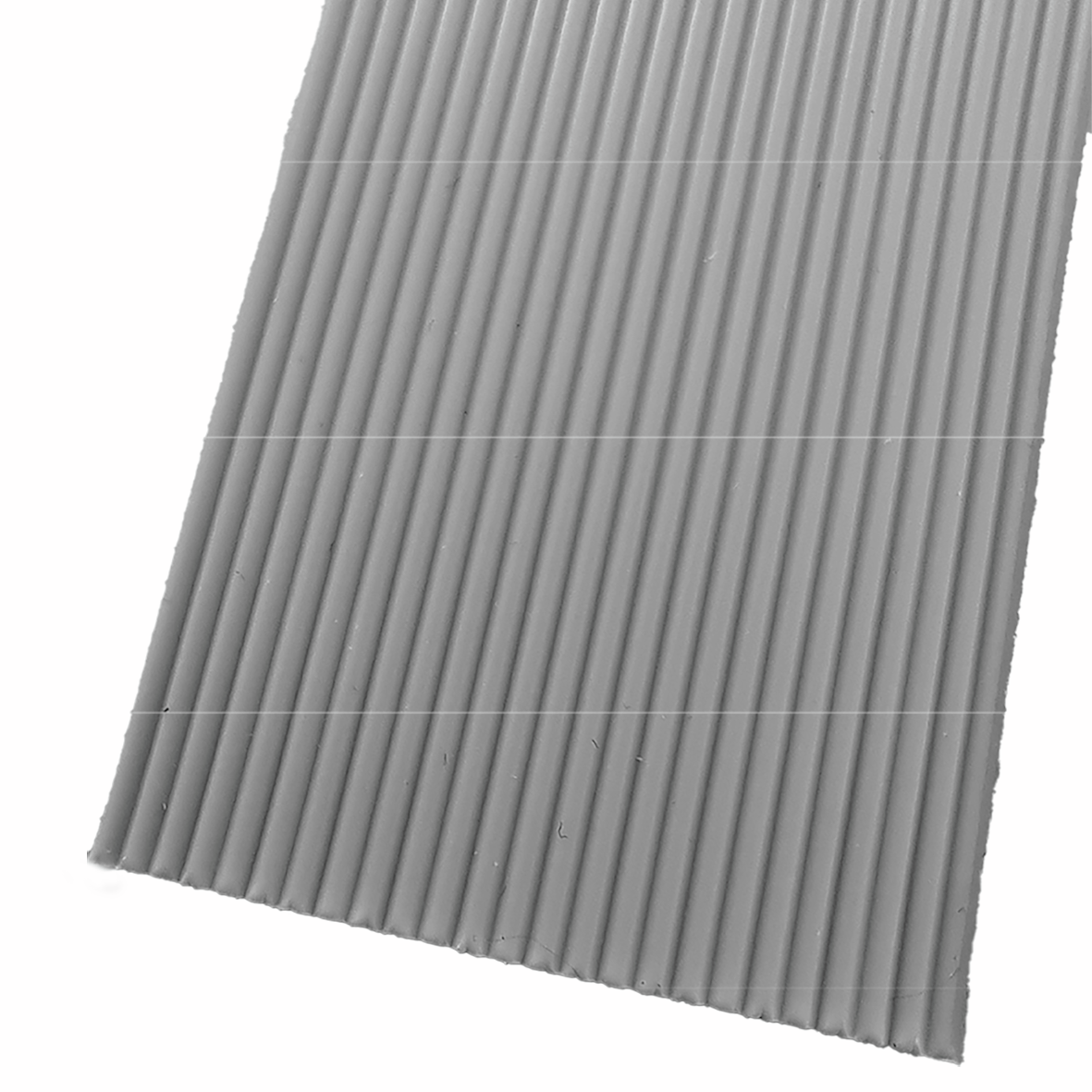

Klasing Ribbon cable 25 7x0,127mm 0,09mm² 30,5m reel
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Ribbon cable
- Series
- 050872xx
- Numbers : conductor
- 25
- Dimension: Length
- 30.5 m
- Cross-section: Conductor
- 0.09 mm²
- Structure: conductor
- 7 x 0,127 mm
- Structure: Cable
AWG 28
- Approvals
- CE
cCSA
cULus - Form of Delivery
- reel
- RoHS-Conform
Specifications
Open all

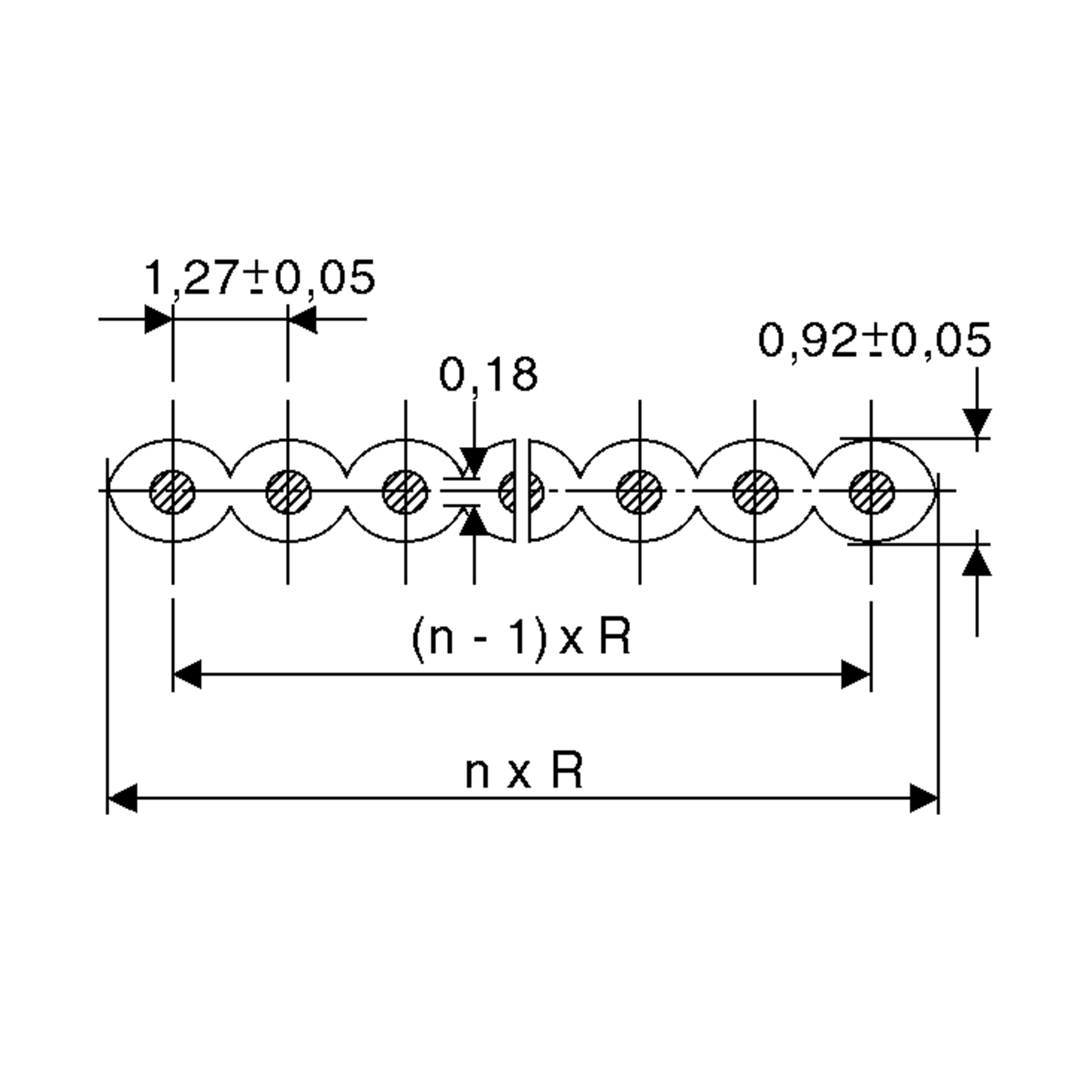

Dimensions and Weights
- Dimension: Length
- 30.5 m
- Dimension: Width
- 31.75 mm
- Cross-section: Conductor
- 0.09 mm²
- Diameter: Conductor
- 0.93 mm
- Pitch
- 1.27 mm
Operating conditions
- Temperature, at rest
- 105 °C
- Temperature, in motion
- 105 °C
Technical Features
- Conductor resistance, max.
- 216 Ohm/km
- Insulation resistance
- 20 MOhm
- Rated Voltage
- 300 V
- Impedance
- 100 Ohm
Safety/Certifications
- Approvals
- CE
- cCSA
- cULus
