02012759/09

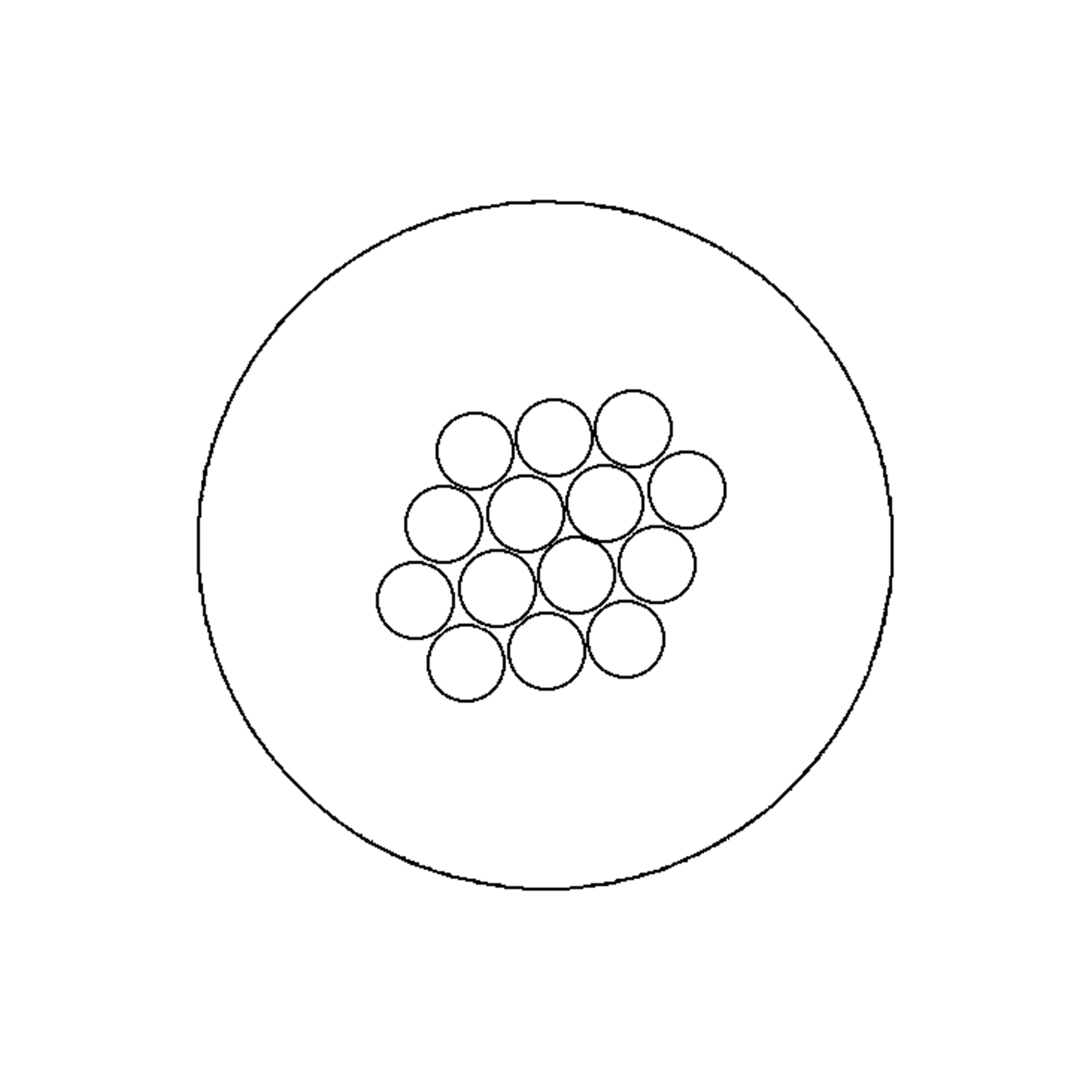

Klasing Strand 14 x 0,15 mm 0,25 mm² Black
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
17.900 Meter ( m ) in stock
Planned delivery time
Ø 5 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Meter ( m )
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Meter ( m )
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Strand
- Series
- 02012759
- Abbreviation
- LiYV
- Numbers : conductor
- 1
- Dimension: Length
- 100 m
- Cross-section: Conductor
- 0.25 mm²
- Structure: conductor
- 14 x 0,15 mm
- Form of Delivery
- reel
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 100 m
- Cross-section: Conductor
- 0.25 mm²
- Diameter: Conductor
- 1.3 mm
- Cu number
- 2.5 kg/km
Operating conditions
- Temperature, at rest
- 105 °C
- Temperature, in motion
- 105 °C
Technical features
- Test voltage
- 2,500 V
- Insulation resistance
- 200 MOhm
- Rated Voltage
- 900 V
