8191

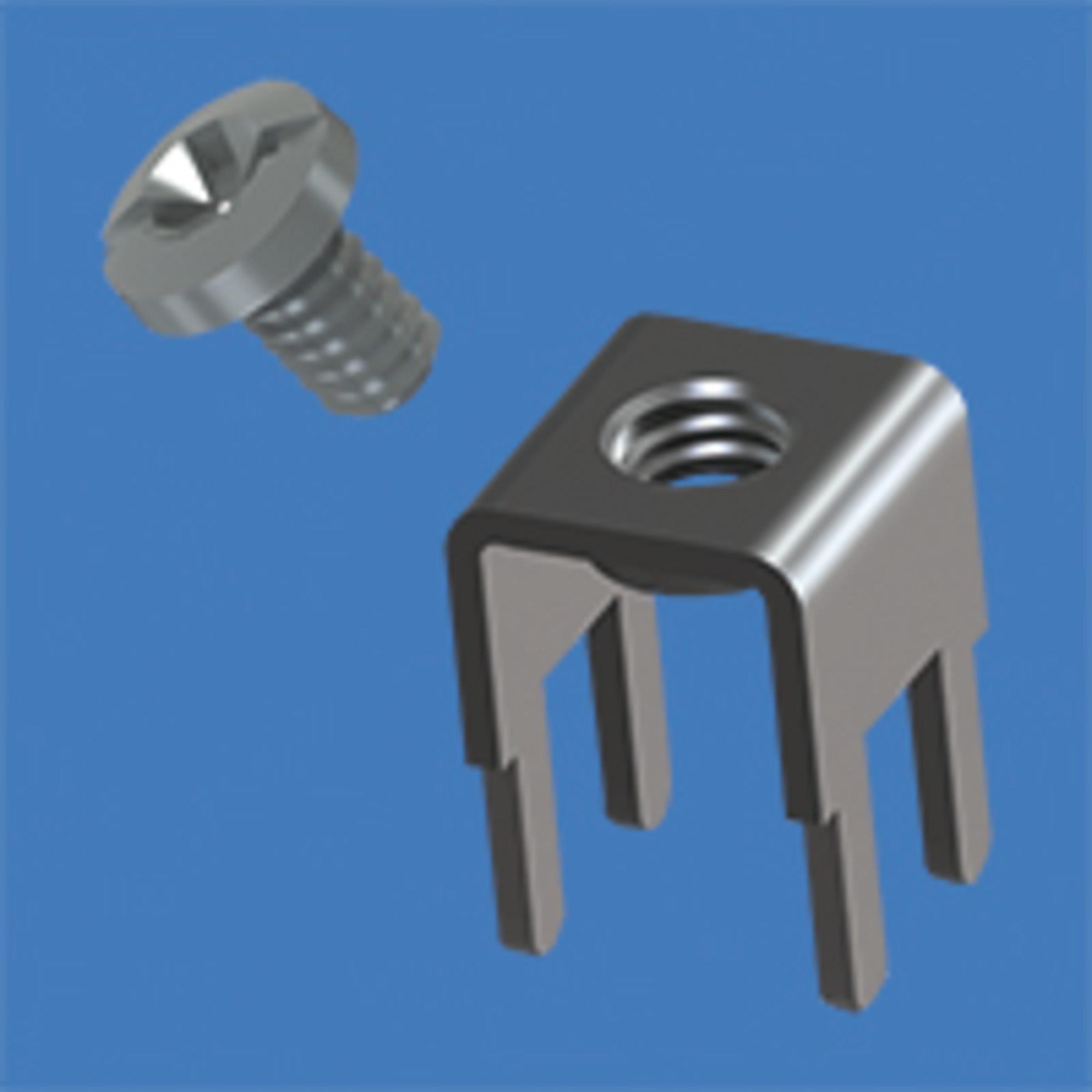

Keystone Screw terminal block KEY81 1 Pole straight verzinnt 22AWG 18AWG
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
650 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- KEY81
- Type
- Screw terminal block
- Number of poles
- 1
- Features
- suitable for cables from AWG14...22 (2.08 to 0.32 mm2)
- low space requirement
- simple installation
- high stability due to 4-pin connection- Dimension: Length
- 7.87 mm
- Dimension: Width
- 7.87 mm
- Dimension: Height
- 5.33 mm
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 7.87 mm
- Dimension: Width
- 7.87 mm
- Dimension: Height
- 5.33 mm
- Height (incl. pins)
- 11.18 mm
- Conductor cross-section (AWG), min.
- 22 AWG
- Conductor cross-section (AWG), max.
- 18 AWG
Technical Features
- Current load, max.
- 15 A
Mechanical Features
- Contact Material Input
- Tin-plated; Nickel-plated
- Contact Surface Input
- verzinnt
