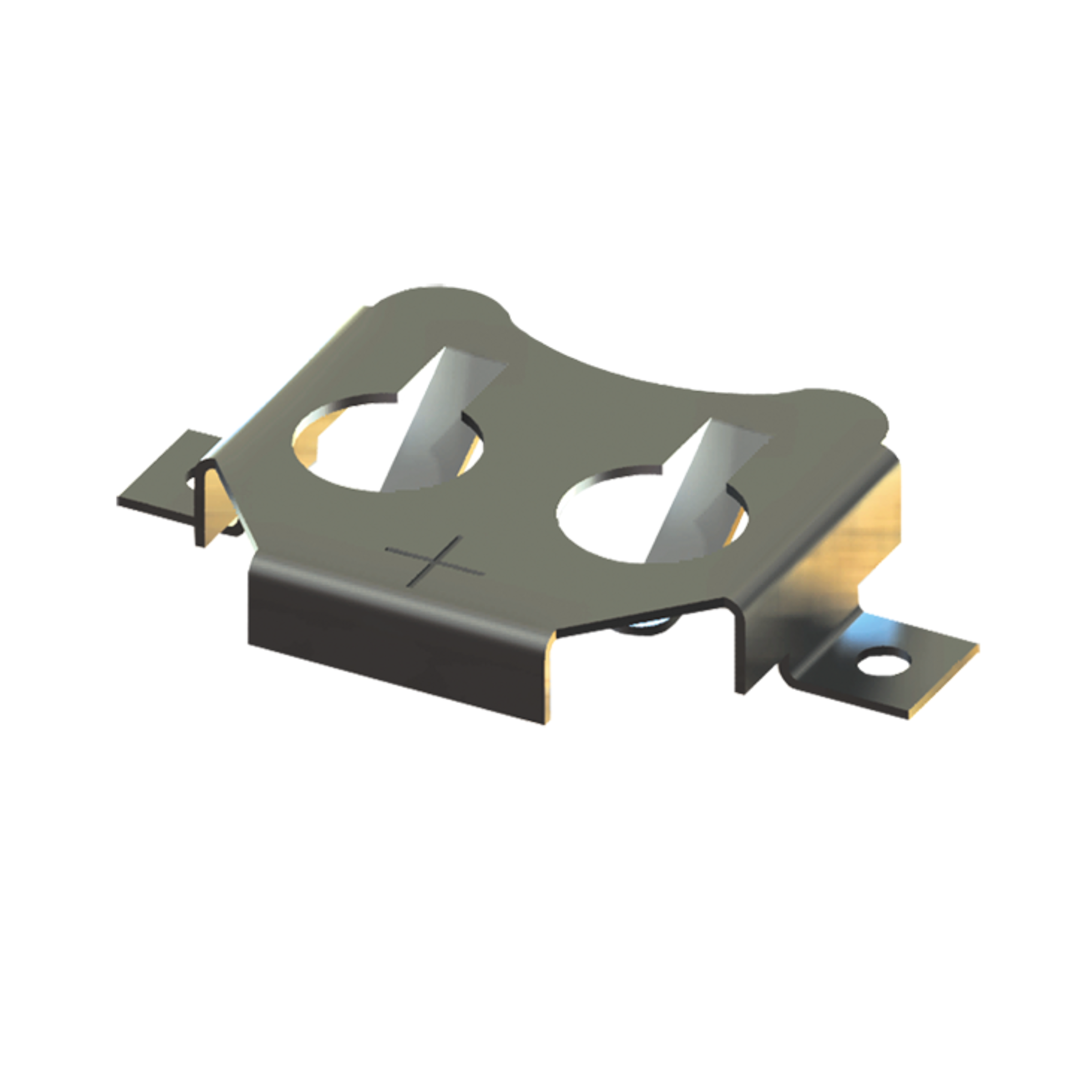

Keystone Battery Clip Ø 20

Manufacturer Part No.
3002
Schukat Part No.
KC3002S
Manufacturer
Keystone
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

560 Pcs. in stock

Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Cell size
Ø 20
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Keystone
Type
  • Battery Clip
Series
  • 3002
Product group
  • S6551 Keystone Coin Cell Battery Retainers
Application
  • Surface Mounting
Dimension: Length
  • 19.86 mm
Dimension: Width
  • 30.73 mm
Dimension: Height
  • 3.96 mm
Cell size
  • Ø 20
Features

  • - Suitable for reflow soldering
    - Unique "flow-hole" design of the solder tags to support reflow soldering and to strengthen the solder pads
    - Compatable with most vacuum and mechanical pick & place assembly systems
    - Low profil and extremly economical design by using the PCB pad as negative contact
    - Ideal for lead free soldering by high temperature
    - Dual spring contacts ensure reliable connections and a low contact resistance
    - Quick and easy button cell replacement and installation without any tools
    - Stable through mounting pins for increased strength
    - Clear polarity (+) markings on the clip
