T356L107M016AT
Kemet THT Pearl tantalum capacitor T356 radial 16V 100µF RM5,08mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
110 Pcs. in stock
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Pearl tantalum capacitor
- Capacity
- 100 µF
- Kapazitätstoleranz [%]
- ±20
- Rated voltage DC
- 16 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 5.08 mm
- RoHS-Conform
Specifications
Open all

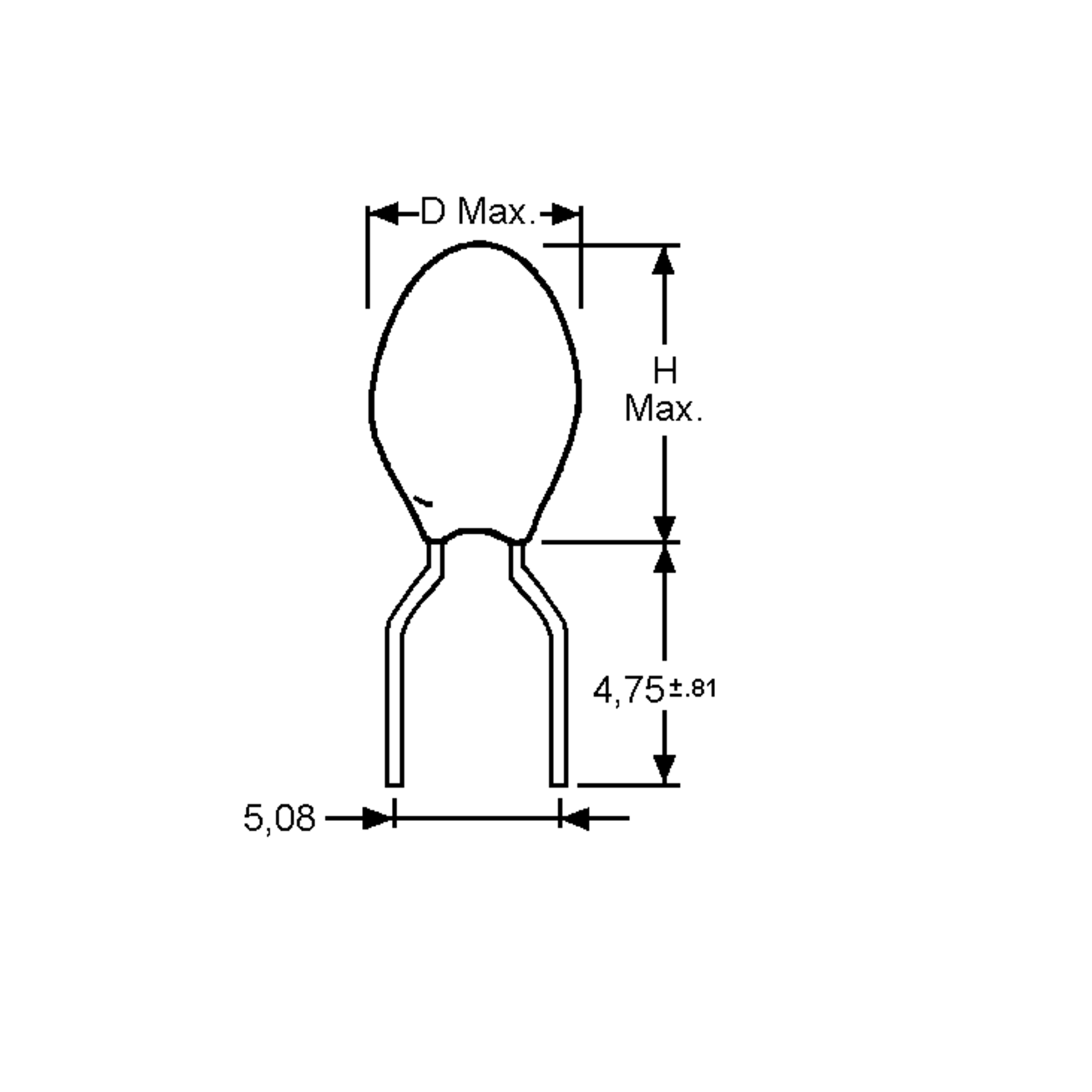

Dimensions and Weights
- Dimension: Width
- 8.9 mm
- Dimension: Height
- 18.1 mm
- Pitch
- 5.08 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Capacity
- 100 µF
- Capacity
- 100
- Capacity unit
- µF
- Kapazitätstoleranz [%]
- ±20
- Loss factor tan δ
- 8,00 %
- Leakage current
- 10 µA
- Rated voltage DC
- 16 V
- Operating voltage, reduced
- 10 V
