T350E475M035AT7301
Kemet THT Pearl tantalum capacitor T350 radial 35V 4,7µF 20% RM2,54mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.100 Pcs. in stock
Next Stock Receipt
Week 08/2025
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Pearl tantalum capacitor
- Capacity
- 4,7 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 35 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 2.54 mm
- RoHS-Conform
Specifications
Open all

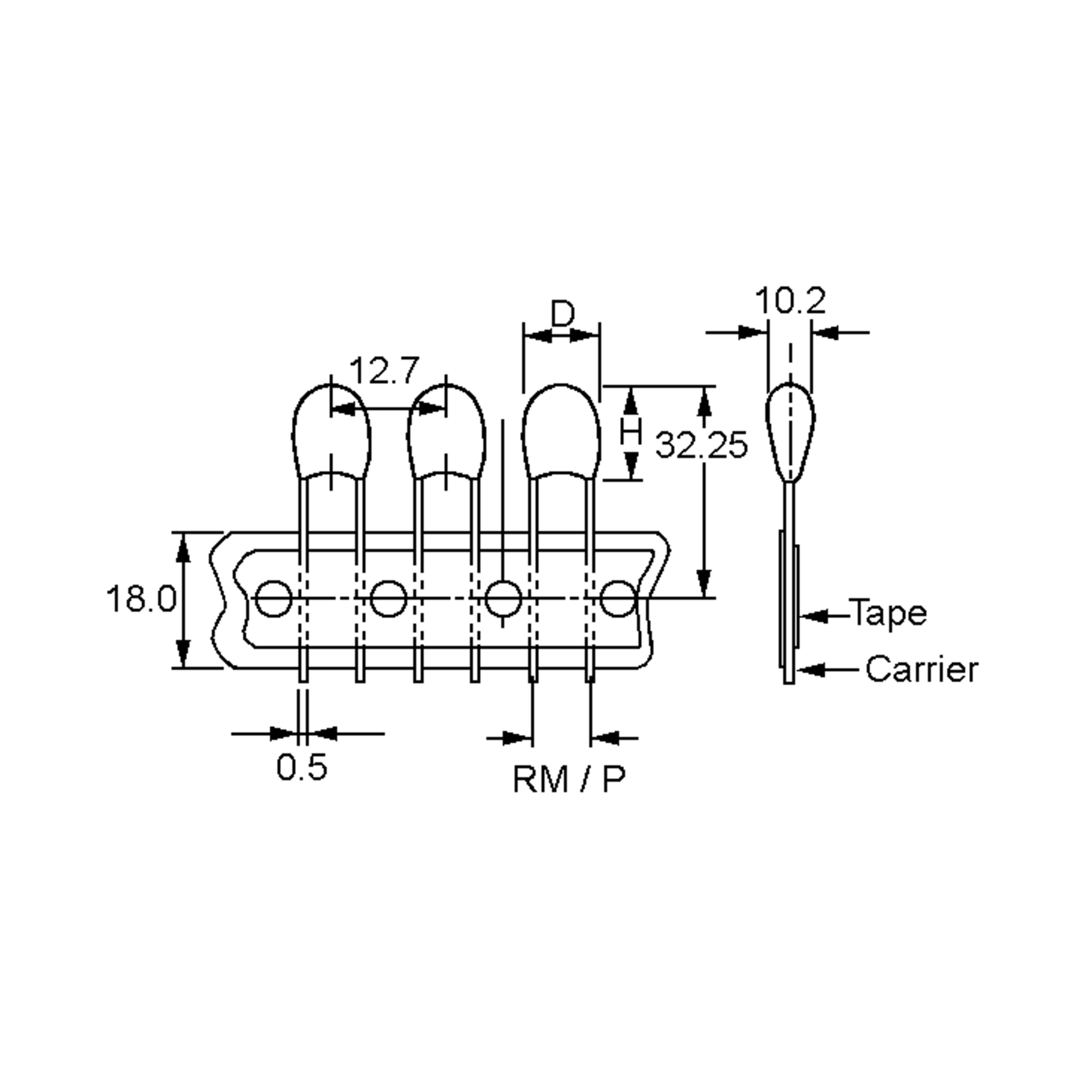

Dimensions and weights
- Dimension: Width
- 5.5 mm
- Dimension: Height
- 8.9 mm
- Pitch
- 2.54 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Capacity
- 4,7 µF
- Capacity
- 4.7
- Capacity unit
- µF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 5,00 %
- Leakage current
- 1.3 µA
- Rated voltage DC
- 35 V
- Operating voltage, reduced
- 23 V
