R82EC1100DQ50K

Kemet THT MKT capacitor R82 radial 63V 100V 1nF 10% RM5,0mm

Image similar
Manufacturer Part No.
R82EC1100DQ50K
Schukat Part No.
C82NF001.0
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

18.500 Pcs. in stock

Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 3500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
MKT capacitor
Capacity
1 nF
Capacity tolerance
10 %
Rated voltage DC
100 V
Assembly Type
THT
Housing
radial
Pitch
5 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Kemet
Type
  • MKT capacitor
Series
  • R82
Housing
  • radial
Assembly Type
  • THT
Form of Delivery
  • strapped
Connections
  • 2Pin

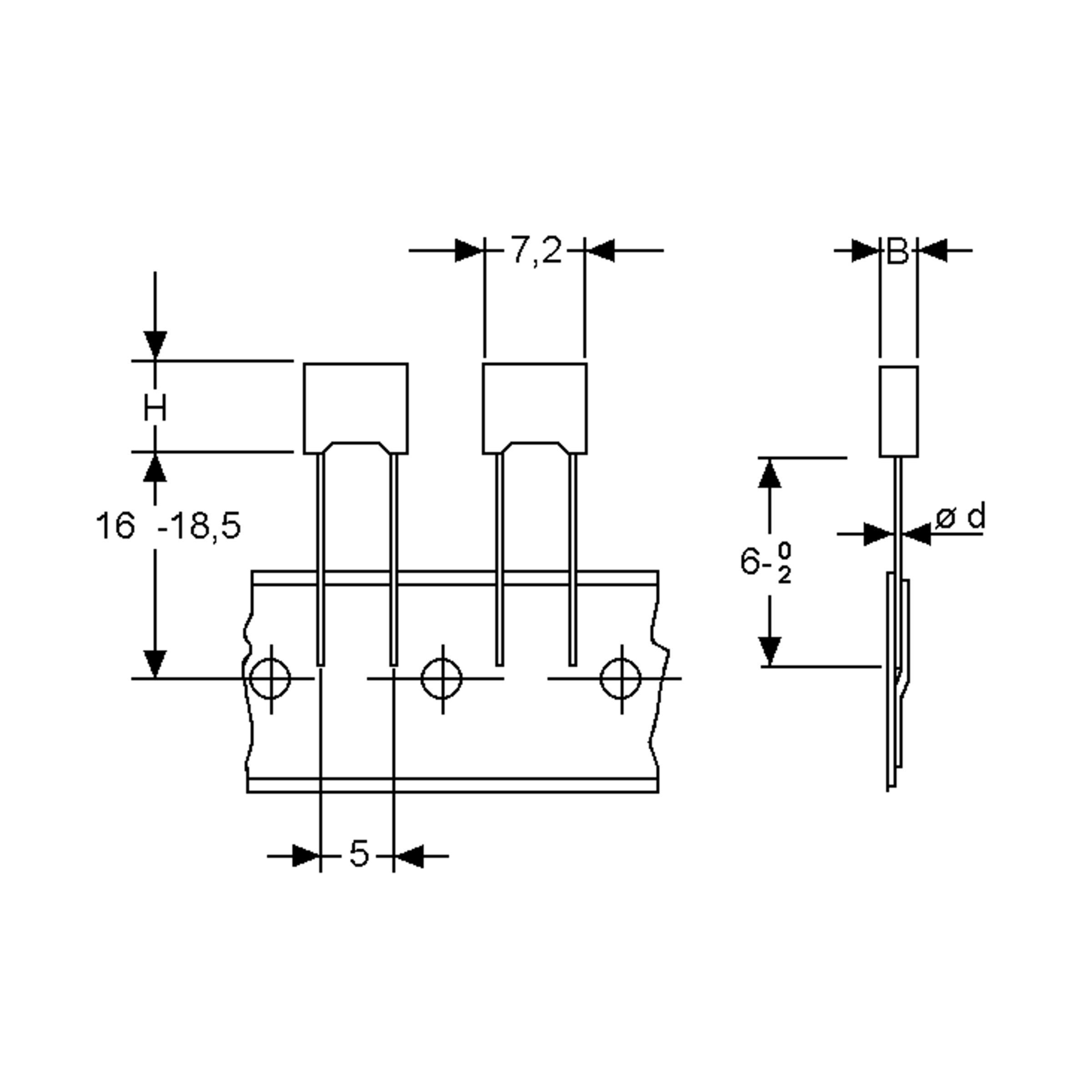

Dimensions and weights

Dimension: Length
  • 7.2 mm
Dimension: Width
  • 2.5 mm
Dimension: Height
  • 6.5 mm
Pitch
  • 5 mm

Operating conditions

Operating Temperature Min.
  • -55 °C
Operating Temperature Max.
  • 105 °C
Climate category IEC
  • 55/100/56

Technical features

Capacity
  • 1 nF
Capacity
  • 1
Capacity unit
  • nF
Capacity tolerance
  • 10 %
Rated voltage DC
  • 100 V
Rated voltage AC
  • 63 V
Pulse Rise Time
  • 100 V/µs
Reliability
  • 1 fit
Insulation resistance
  • 15 GOhm

Safety/Certifications

Standards
  • EN ISO90001, QS 9000
