R82DC3680AA60K

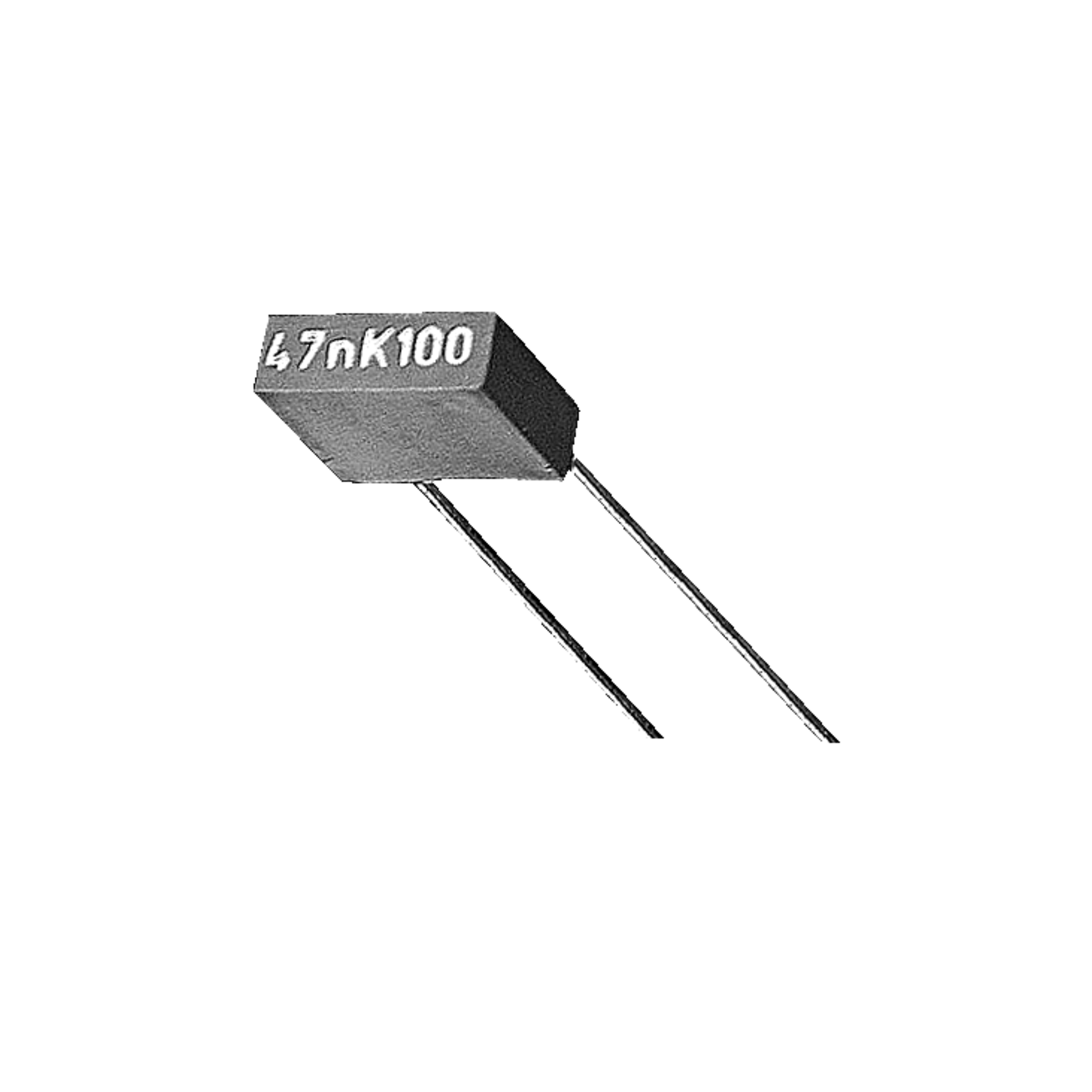

Kemet THT MKT capacitor R82 radial 40V 63V 680nF 10% RM5,0mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.100 Pcs. in stock
Next Stock Receipt
Week 49/2024
1.500 Pcs.
1.500 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MKT capacitor
- Capacity
- 680 nF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 63 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 5 mm
- RoHS-Conform
Specifications
Open all

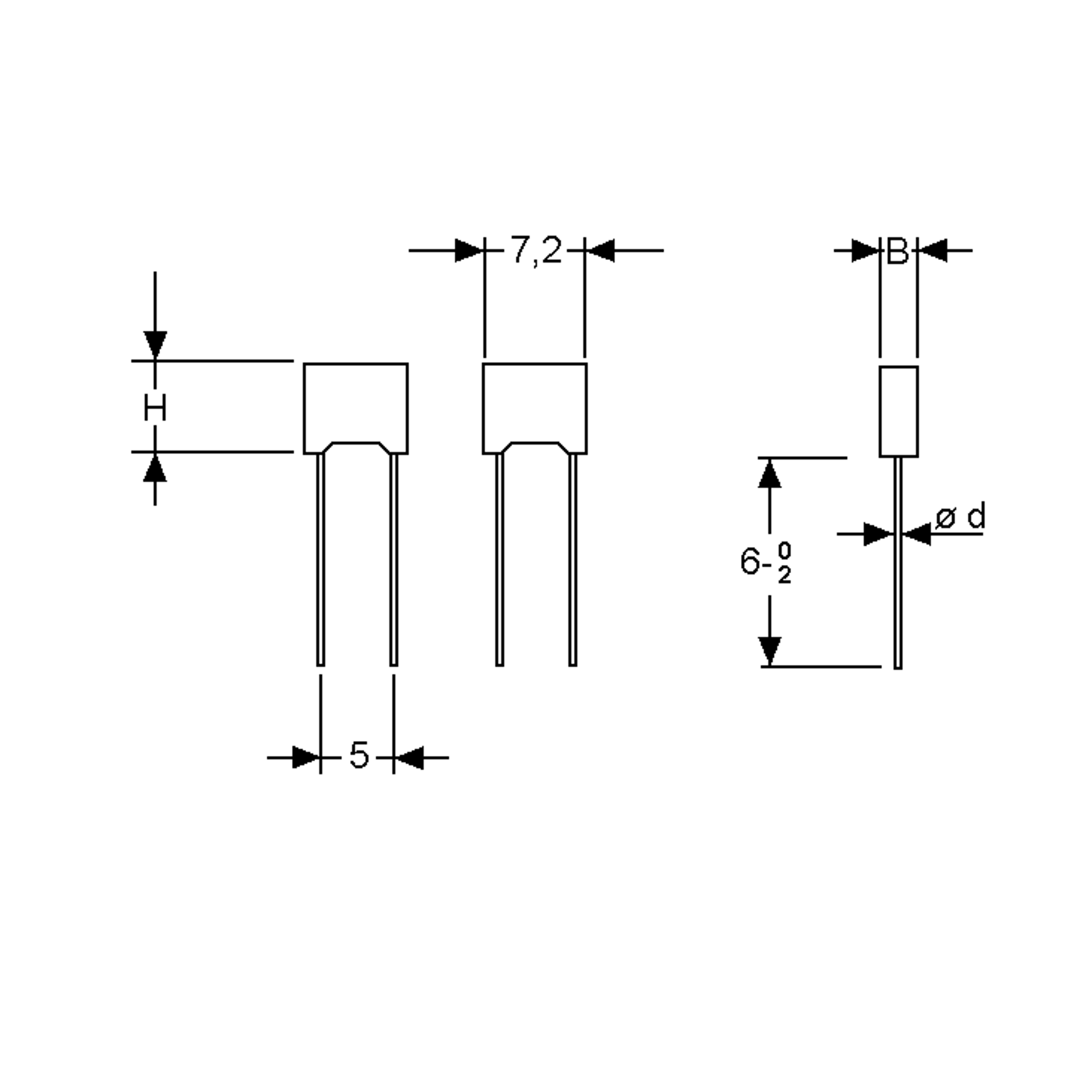

Dimensions and weights
- Dimension: Length
- 7.2 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 10 mm
- Pitch
- 5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
- Climate category IEC
- 55/100/56
Technical features
- Capacity
- 680 nF
- Capacity
- 680
- Capacity unit
- nF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 63 V
- Rated voltage AC
- 40 V
- Pulse Rise Time
- 70 V/µs
- Reliability
- 1 fit
- Insulation value in sec.
- 5,000 s
Safety/Certifications
- Standards
- EN ISO90001, QS 9000
